This is the 24V variant of the Yalu MY1016Z2 24V 250W Motor with E-Bike Combo Kit in Ebike Kit. Available at ₹7,397.42 (₹6,269.00 + GST) with free shipping across India.
The MY1016Z2 24V 250W Motor with E-Bike Combo Kit includes everything you need to convert your bike into an e-bike: a motor, a controller, a twist throttle gear and a brake lever. These components are compatible with each other, so you don’t have to worry about finding the right match for your project.
This reduction motor is one of the most common and versatile motors for scooters, bikes and quads in the market.
It is usually found in high-quality quads and scooters and offers a great performance.
They are very powerful for their small size and extremely reliable. We have sold them for many different applications that they were not originally designed for, but they keep working flawlessly thanks to their sturdy build.
Note: The image may vary from the actual product in terms of no. of items in the kit, Design, and color as it depends on the availability of the item from suppliers. Strictly read the package includes before placing the order
Features:
- 24 Volt DC Operation
- Permanent Magnet DC Motor
- Direct Drive (No Free Spooling)
- Suitable for forwarding and Reverse Operations
- Base Mount Model
- 9 Tooth Sprocket for 1/2″ x 1/8″ Pitch Chain
- This motor is capable of rotation in either clockwise or counterclockwise by reversing the motor’s power wires.
Specifications:
MY1016Z2
- No Load RPM: 3300
- No Load Current: <2.2 Amps
- Rated Wattage: 250W (0.33 Horsepower)
- Rated Load RPM: 400
- Torque (NM): 22
- Rated Current: 13.4 Amps
- Efficiency: 78%
- Reduction Ratio: 9.78:1
Chain
- Size: Pitch 0.5in.
- Roller Diameter 0.3in.
- Roller Width 0.16in.
| Model | MY1016Z2 |
|---|---|
| Rated Speed (RPM) | 3300 |
| Shipping Weight | 4.25 kg |
| Shipping Dimensions | 26 × 17 × 19 cm |

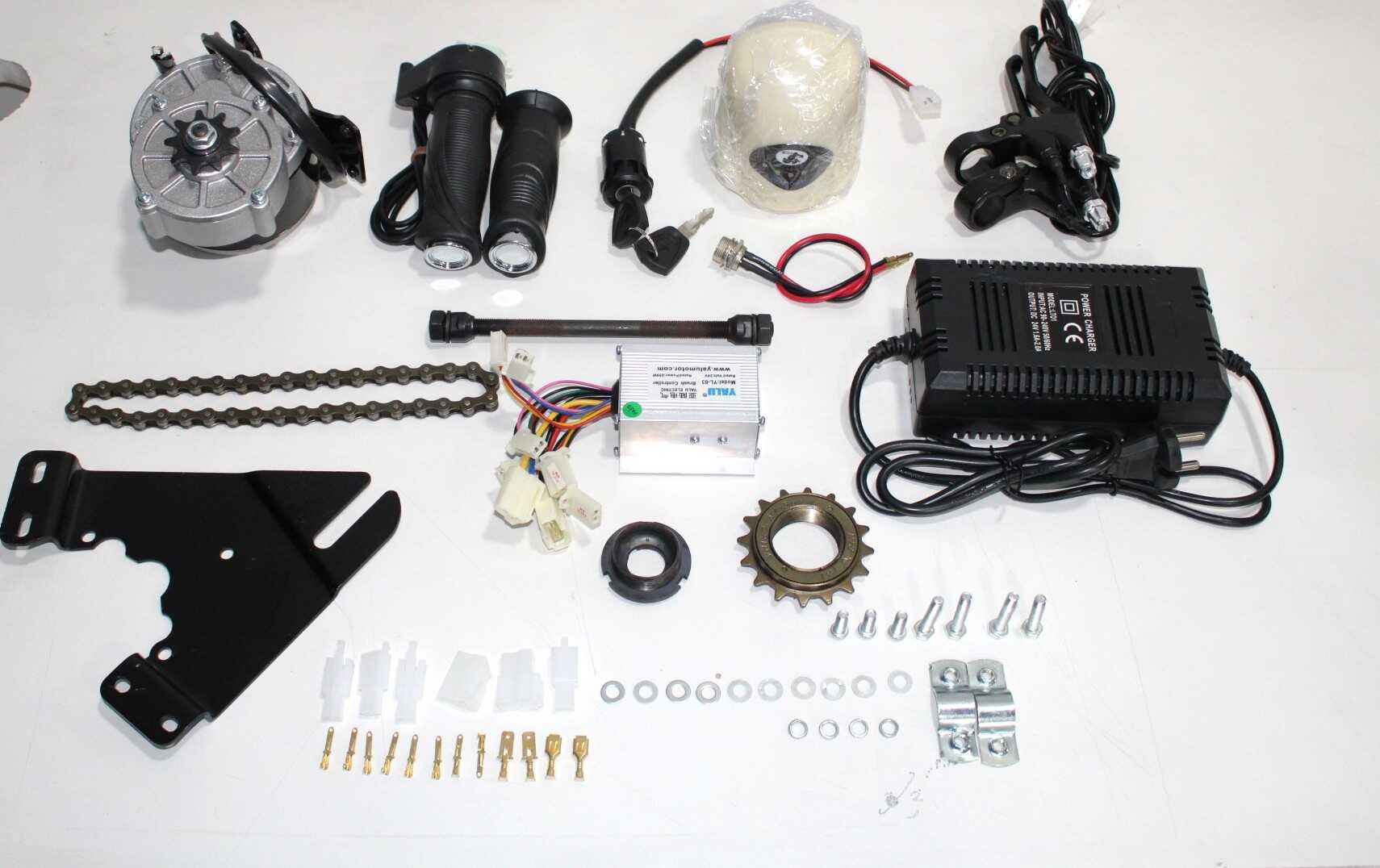

Package Includes :

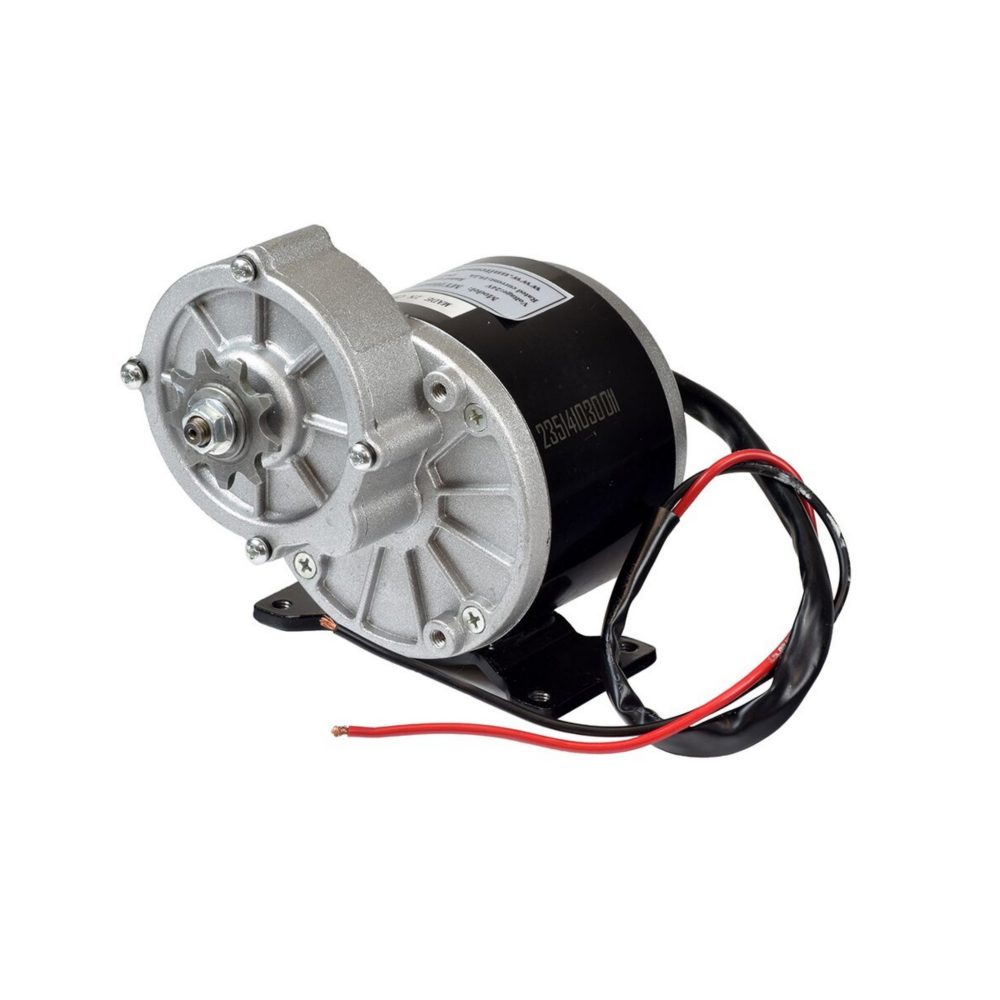

1 x MY1016Z2 DC 24V 250W motor

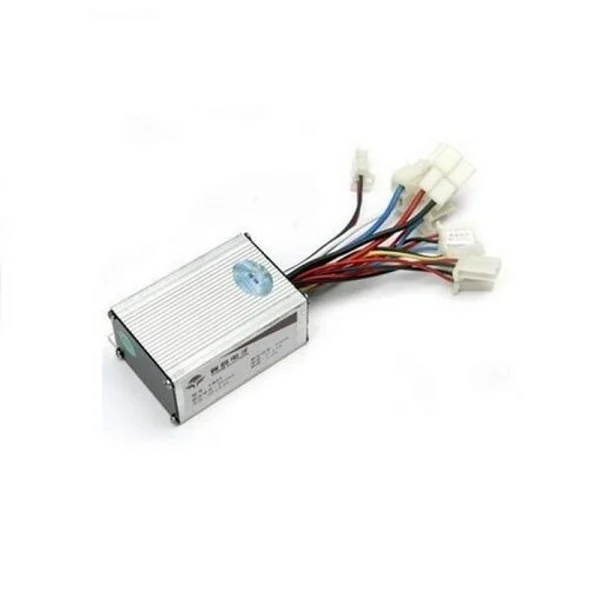

1 x Motor controller
1 x Chain
1 x Freewheel
1 x Freewheel adapter

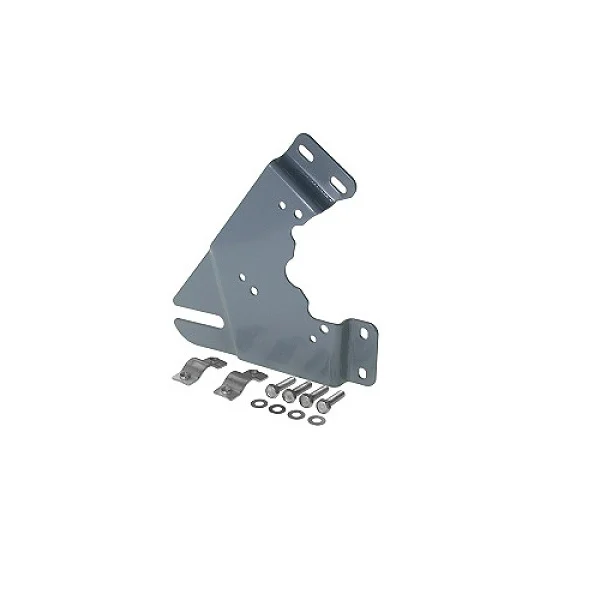

1 x Mounting plate with bolts

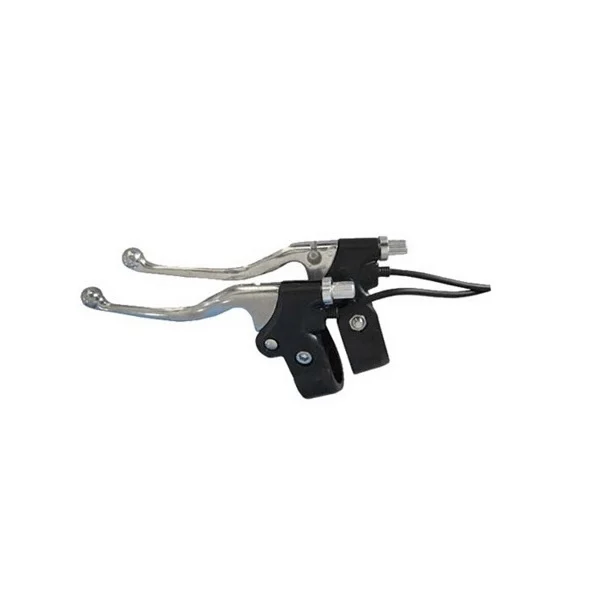

1 x Throttle handle & Brake lever

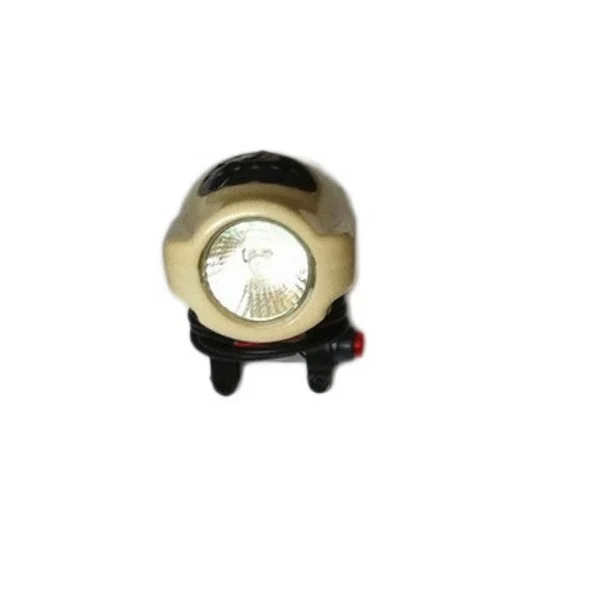

1 x Headlight
1 x Switch & key
1 x 18cm axis

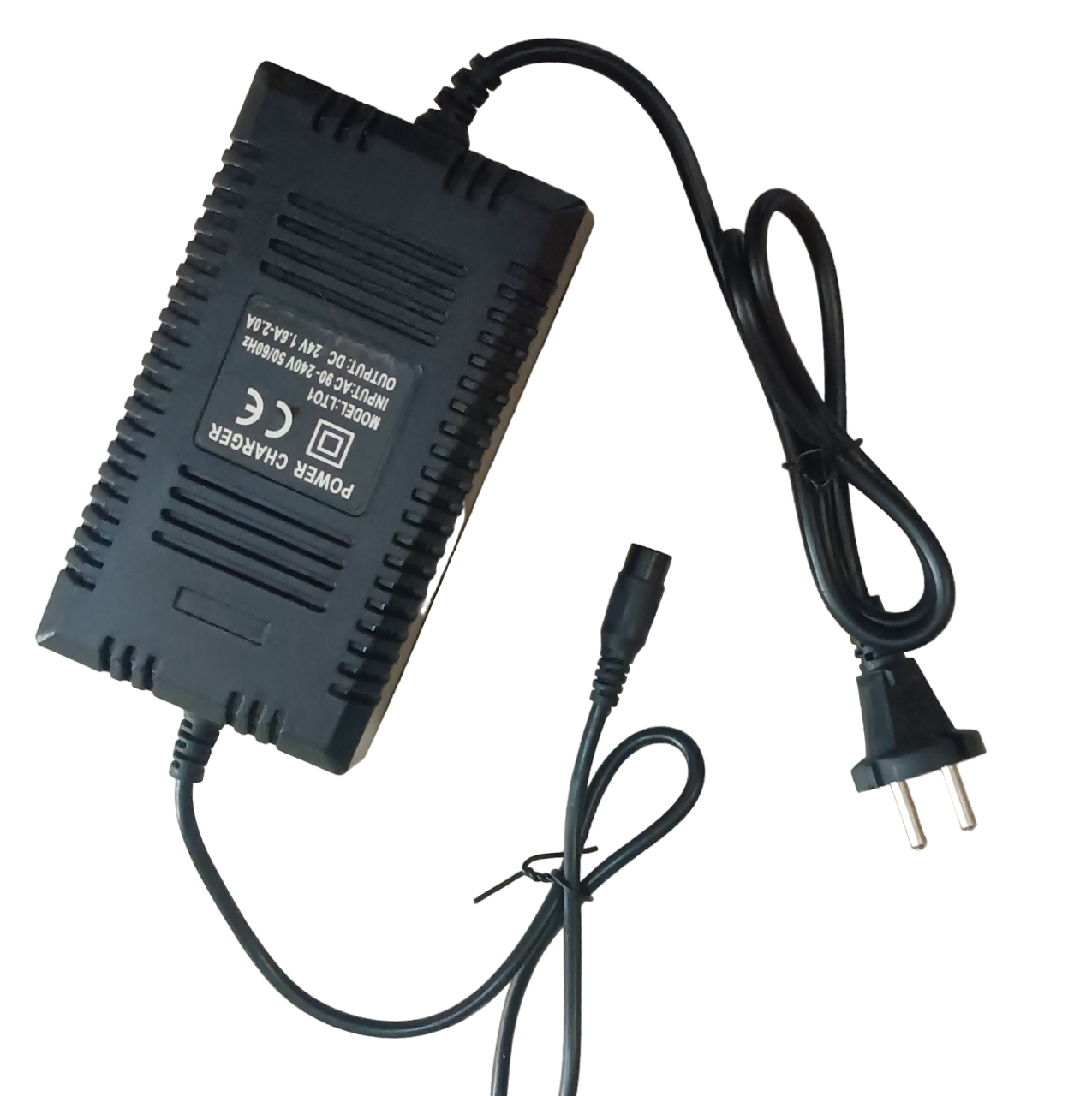

1 x LT01 Charger 24V 2A
Technical Specifications
| Brand | Yalu |
|---|---|
| Model | MY1016Z2 |
| Operating Voltage | 24V |
| Power Rating | 250W |
| SKU | AI4783 |
| Weight | 5.98 kg |
| Availability | In Stock |
Applications & Use Cases
The Yalu MY1016Z2 24V 250W Motor with E-Bike Combo Kit is a versatile ebike kit used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
