This is the 24V variant of the MY1016Z 350W 24V DC 330 RPM Gear Brushed Motor in Ebike Motors and Controllers. Available at ₹3,542.36 (₹3,002.00 + GST) with free shipping across India.
Looking for Gear Brushed Motor? MY1016Z 350W 24V DC 330 RPM Gear Brushed Motor is available at Zbotic with fast shipping across India.
Specification:
| Model | MY1016Z |
|---|---|
| Operating Voltage (VDC) | 24 |
| Operating Power | 350 watt |
| Rated Current(A) | 18 |
| Rated Speed (RPM) | 330 |
| Rated Torque (Kg-Cm) | 110 |
| Stall Torque(Kg-Cm) | 350 |
| Sprocket | 9 teeth |
| Pitch(inch) | 1/2 |
| Weight (Kg) | 2.98 |
| Gearbox | Yes |
| Cable Length (Meter) | 0.5 |
| Gear ratio | 9.78 : 1 |
| Shipping Weight | 3.2 kg |
| Shipping Dimensions | 20 × 15 × 10 cm |
Package Include:
1 x MY1016Z 350W 24V 330 RPM DC Gear Brushed Motor
MY1016Z 350W 24V DC 330 RPM Gear Brushed Motor Overview

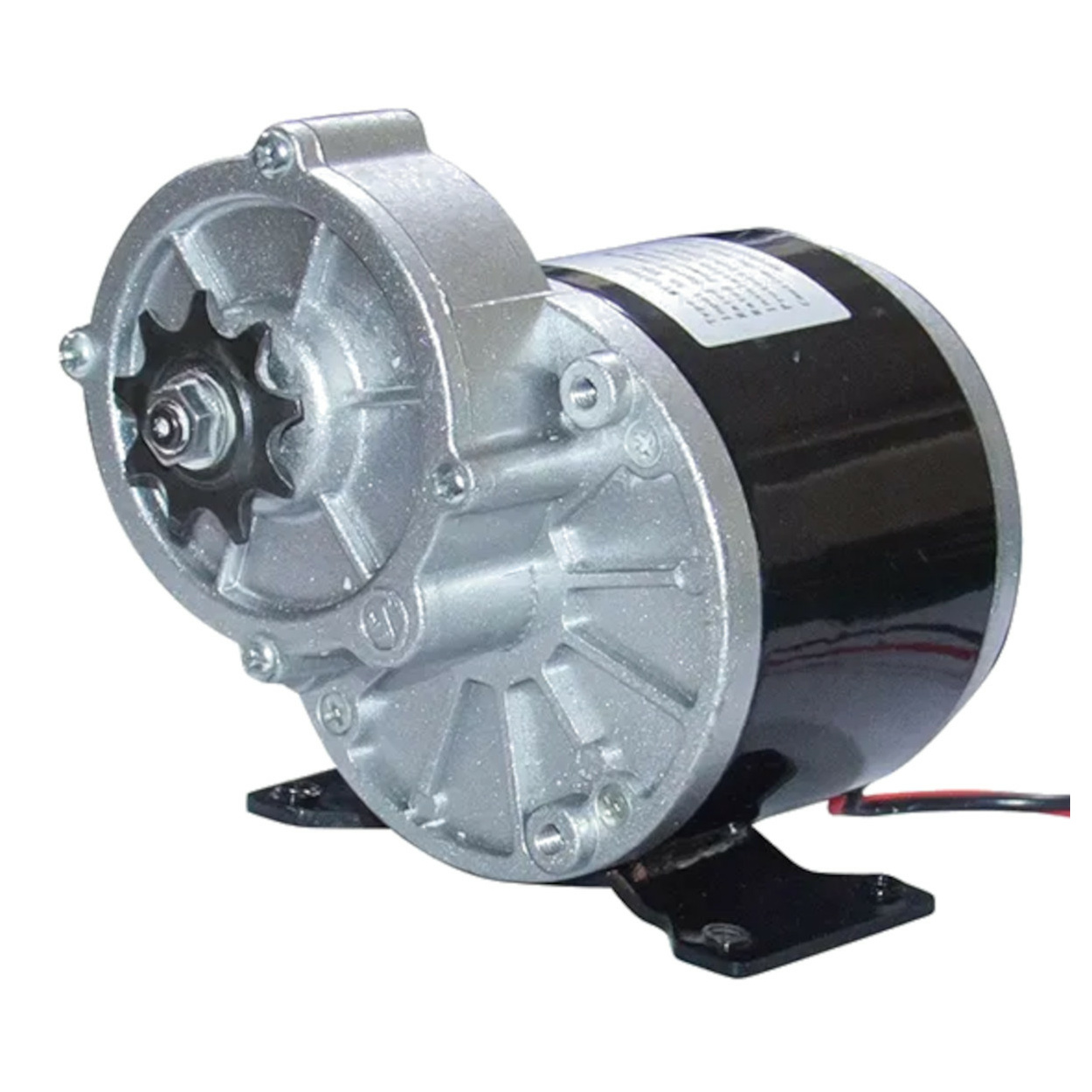

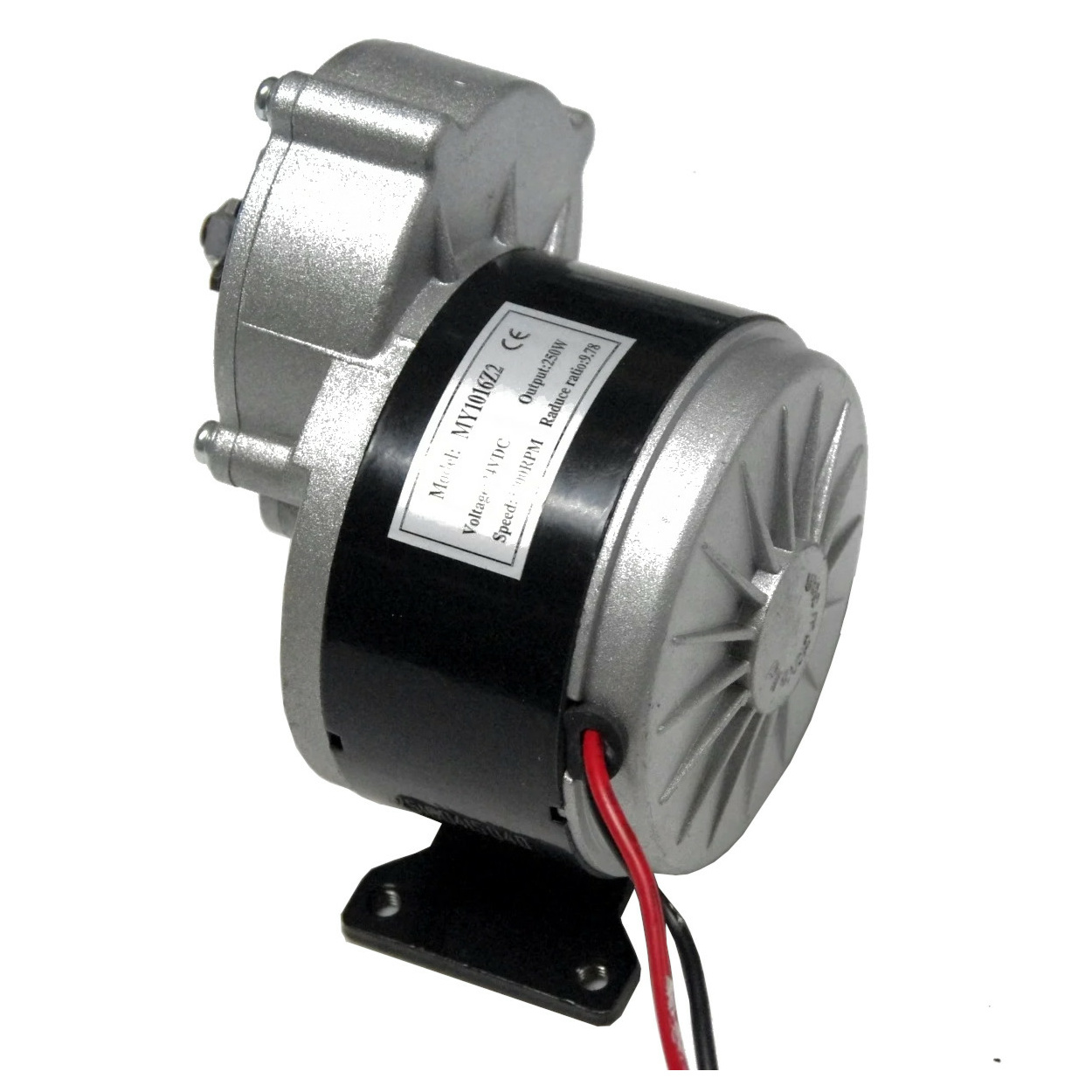

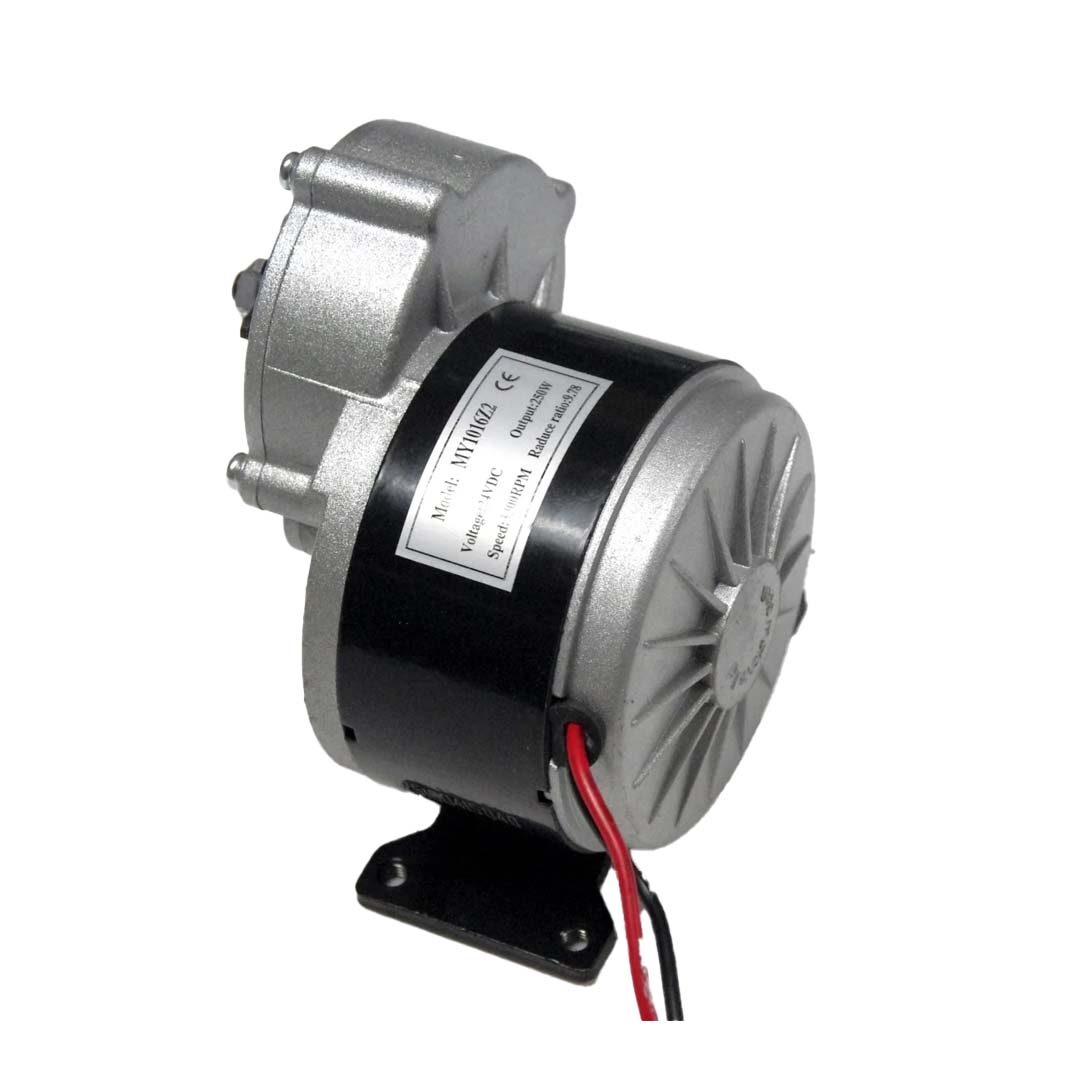

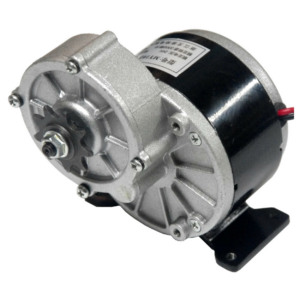

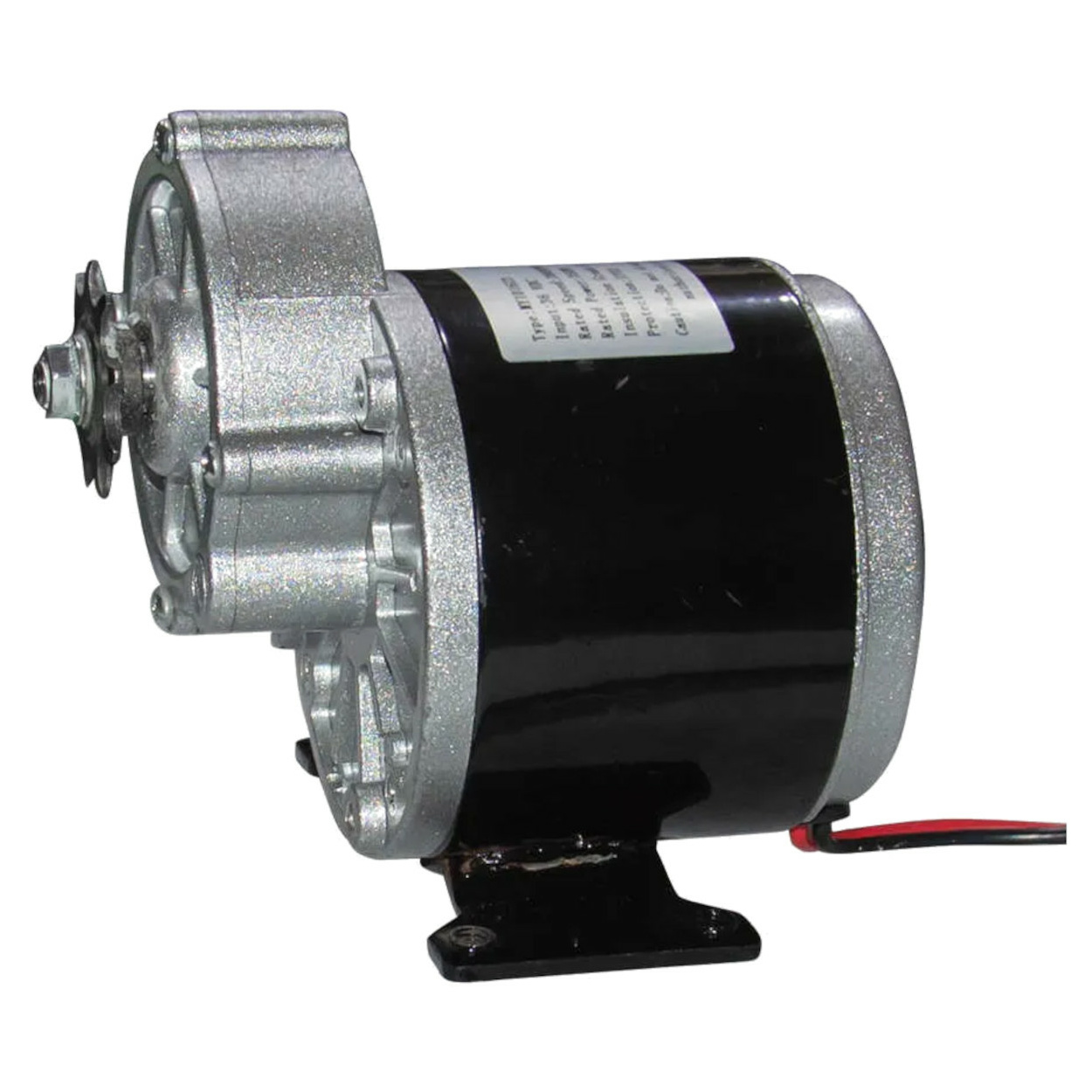

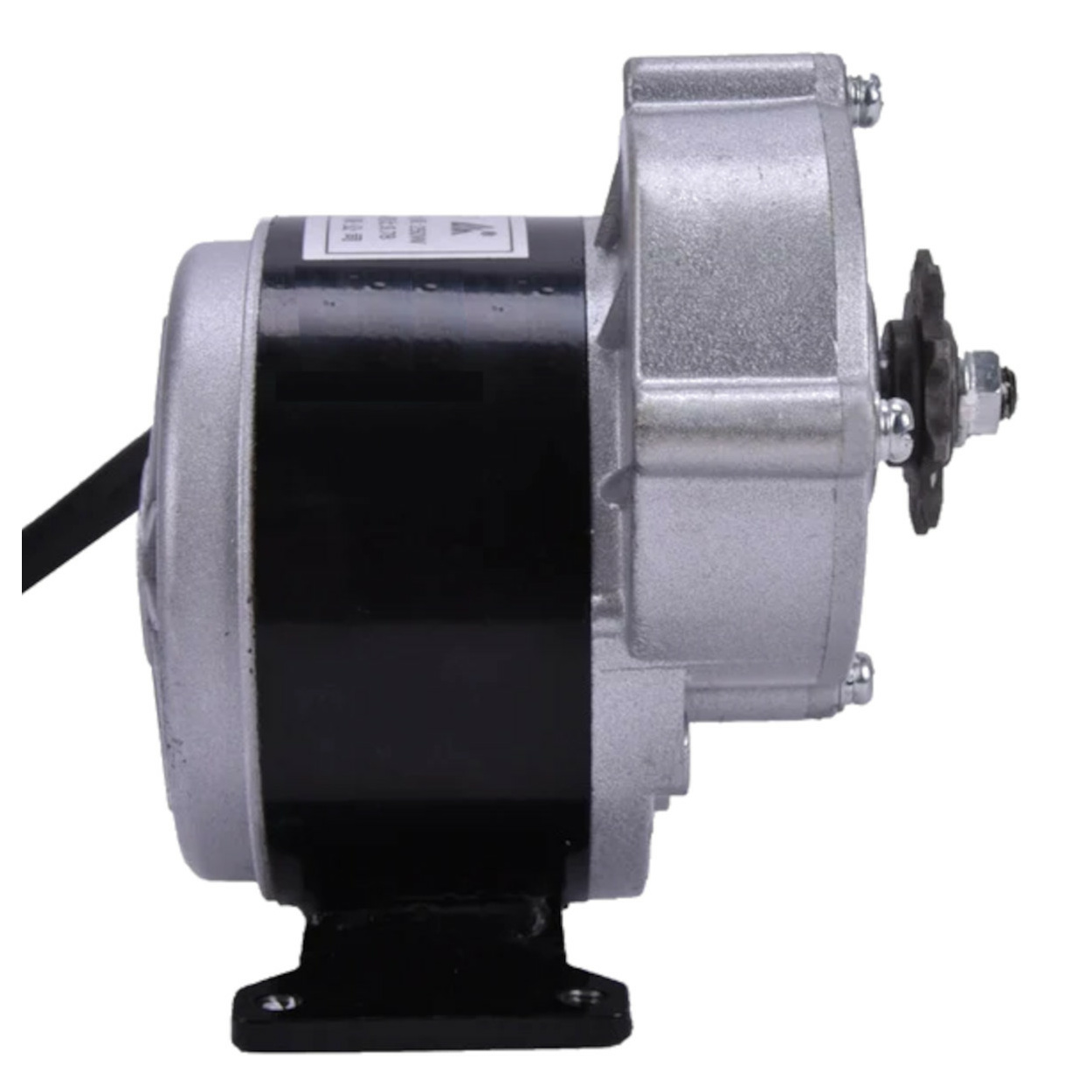

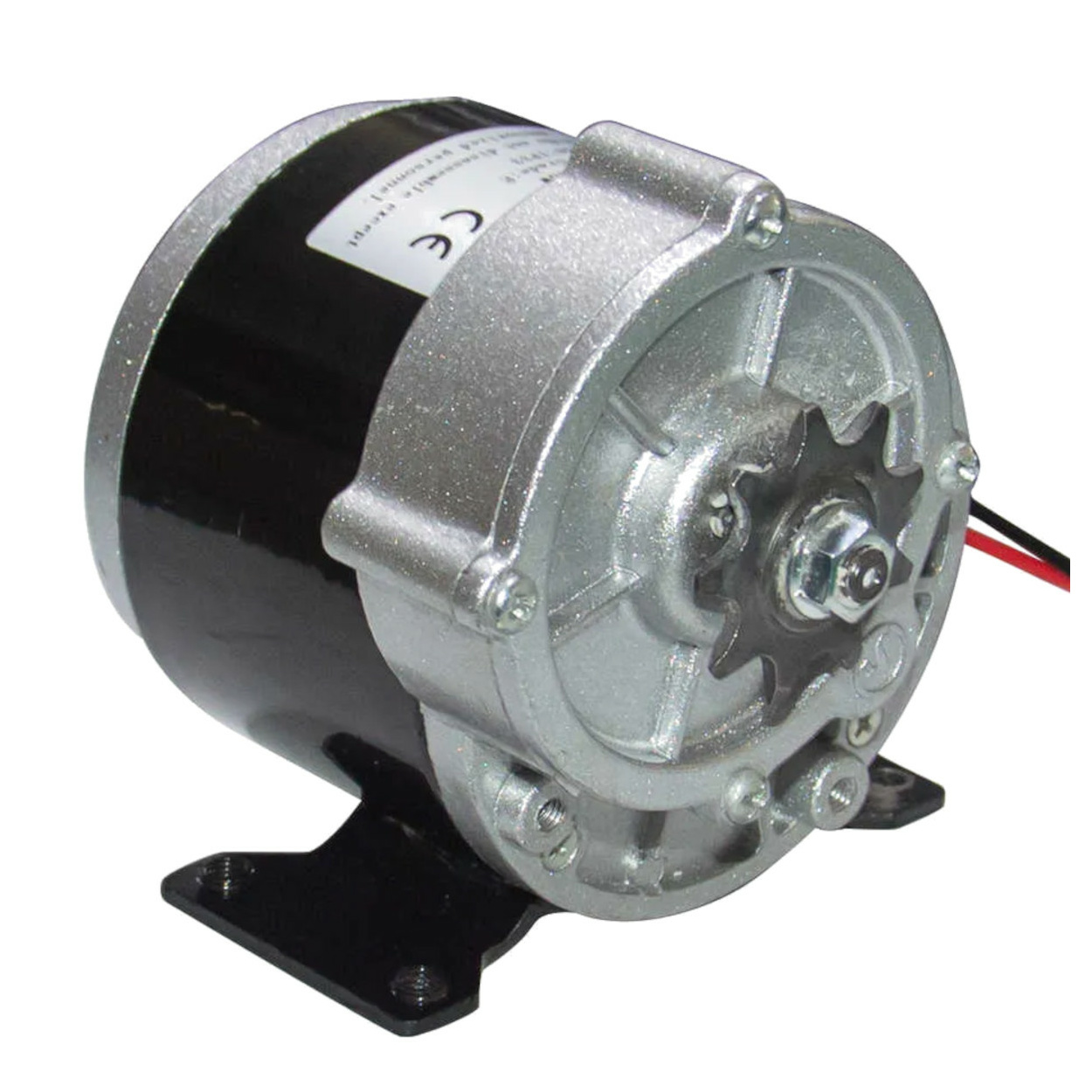

The MY1016Z is a 350 W, 24 V DC brushed motor with an integrated gearbox delivering 330 RPM and high torque. Designed for electric scooters, bikes, quads and DIY robotics, its robust construction handles demanding loads while ensuring reliable performance.
Key Features of MY1016Z 350W 24V DC 330 RPM Gear Brushed Motor
- Operating Voltage: 24 V DC with 18 A rated current
- 350 W continuous output power at 330 RPM
- High rated torque of 110 kg·cm and stall torque of 350 kg·cm
- Built-in gearbox with 9-tooth, ½″ pitch sprocket for easy chain drive
- 0.5 m pre-wired cable for straightforward installation
- Weighs 2.98 kg, featuring a rugged housing for heavy-duty use
- Genuine product sourced by Zbotic, with fast shipping across India
Applications and Use Cases
- Electric bicycles and city e-bike conversions
- Scooters, small electric motorcycles and quads
- DIY robotics projects—Segways, ATV robots or combat bots
- Go-karts, golf carts and small utility vehicles
- Portable electric platforms and custom e-car prototypes
How to Use MY1016Z 350W 24V DC 330 RPM Gear Brushed Motor
Mount the motor securely to your frame or bracket, fit a ½″ pitch chain onto the 9-tooth sprocket, and connect the 0.5 m cable to a compatible 24 V DC controller rated for 18 A. Ensure correct polarity, perform a light-load break-in run, then gradually increase torque. Regularly inspect the gearbox and brushes for wear to maintain peak performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use this motor with my 24 V lithium-ion battery pack?
Yes. The MY1016Z is rated for 24 V DC and draws up to 18 A. Pair it with a suitable PWM or DC motor controller designed for 24 V and at least 20 A to allow headroom for startup current.
What chain size and sprocket pitch are required?
This motor has a 9-tooth sprocket with a ½″ pitch. Use a standard ½″ roller chain for reliable power transfer and minimal slippage.
How often should I maintain the gearbox and brushes?
Inspect the gearbox lubrication and motor brushes every 100 hours of operation. Refill gearbox oil as needed and replace brushes when they wear down to ensure consistent torque and speed.
Motor Speed Sensor: Optical vs Magnetic Encoder Comparison
Choosing the right motor speed sensor can make or break a robotics or automation project. Whether you're building...
Read More →
Stepper Motor for CNC Router: Torque Requirements & Selection Guide
Choosing the correct stepper motor for a CNC router is one of the most important decisions in the...
Read More →
Stepper Motor Losing Steps: Causes & Fixes for Arduino Projects
Table of Contents What Is Step Loss and Why Does It Matter? Cause 1: Insufficient Motor Current Cause...
Read More →Technical Specifications
| Model | MY1016Z |
|---|---|
| Operating Voltage | 24V |
| Power Rating | 350W |
| Speed | 330 RPM |
| SKU | AI3742 |
| Weight | 3.61 kg |
| Availability | In Stock |
Applications & Use Cases
The MY1016Z 350W 24V DC 330 RPM Gear Brushed Motor is a versatile ebike motors and controllers used across a wide range of applications including electric bicycle conversion, e-scooter builds, electric go-karts, motorized wheelchairs, and cargo bikes.
Common use cases:
- Converting a regular bicycle to electric
- Replacing a worn e-bike motor
- Building a custom e-scooter
This product is ideal for e-bike builders and electric vehicle enthusiasts.
Technical Tip: Match controller voltage and current to your motor specs. Hub motors offer simple installation; mid-drive motors provide better hill-climbing torque.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
