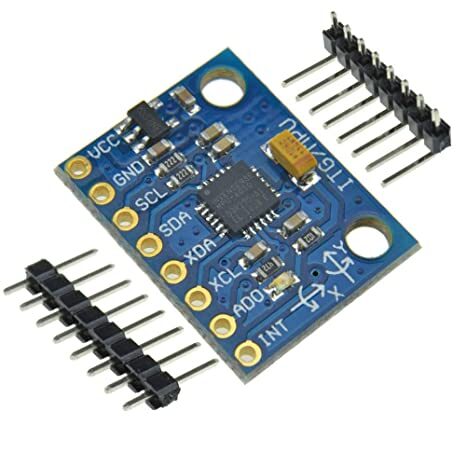

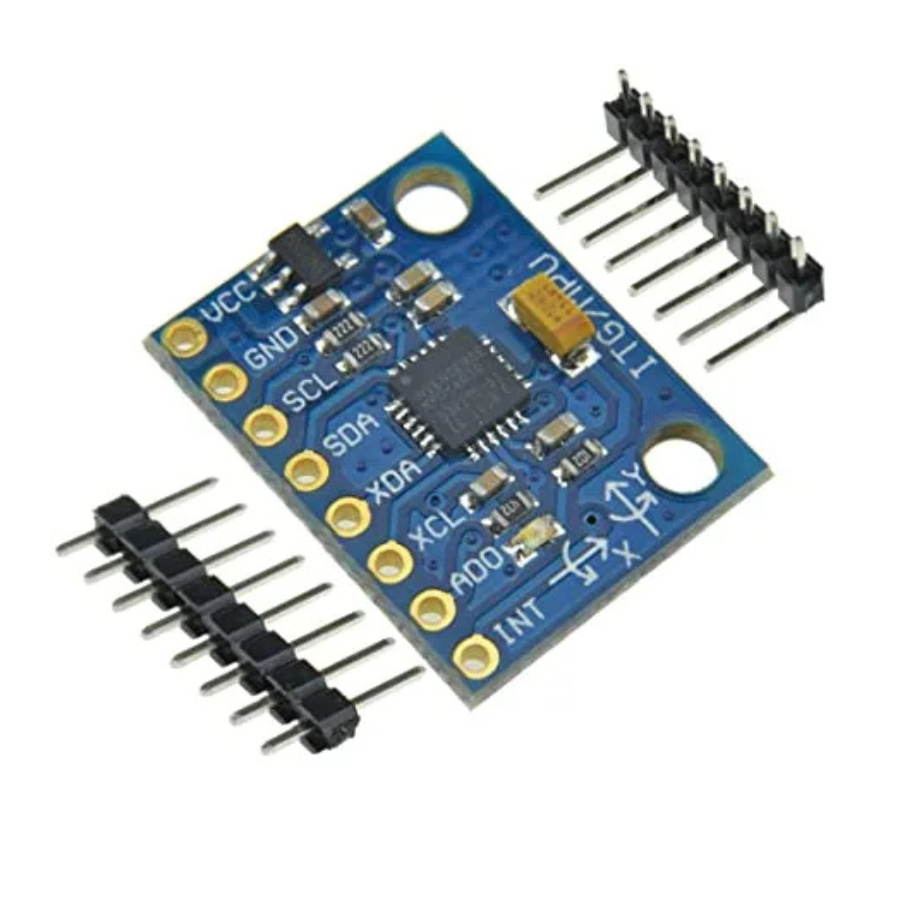

MPU-6050 3-Axis Accelerometer and Gyro Sensor Module

MPU-6050 3-Axis Accelerometer and Gyro Sensor Module

The MPU-6050 Module is a versatile sensor that combines a 3-axis accelerometer and a 3-axis gyroscope, making it essential for measuring motion-related parameters such as velocity, acceleration, displacement, and orientation. It features a high-precision 16-bit ADC (Analog-to-Digital Converter) for accurate data collection.

One of its standout features is the onboard Digital Motion Processor (DMP), which can execute complex 9-axis motion fusion algorithms. This capability offloads demanding data processing tasks from the microcontroller, enhancing overall system efficiency.

At its core, the MPU-6050 integrates motion processing technology by combining both sensors onto a single chip. The DMP allows it to perform advanced motion fusion, delivering comprehensive insights into motion dynamics.

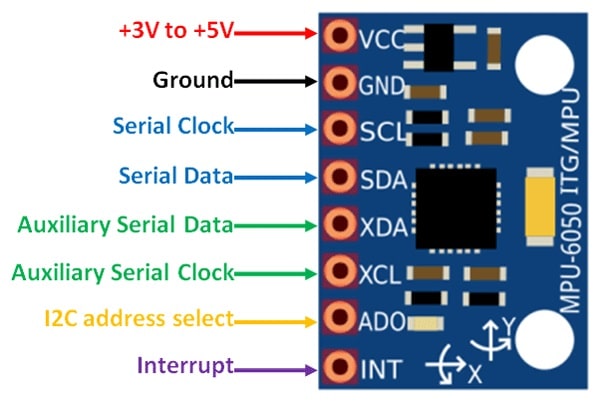

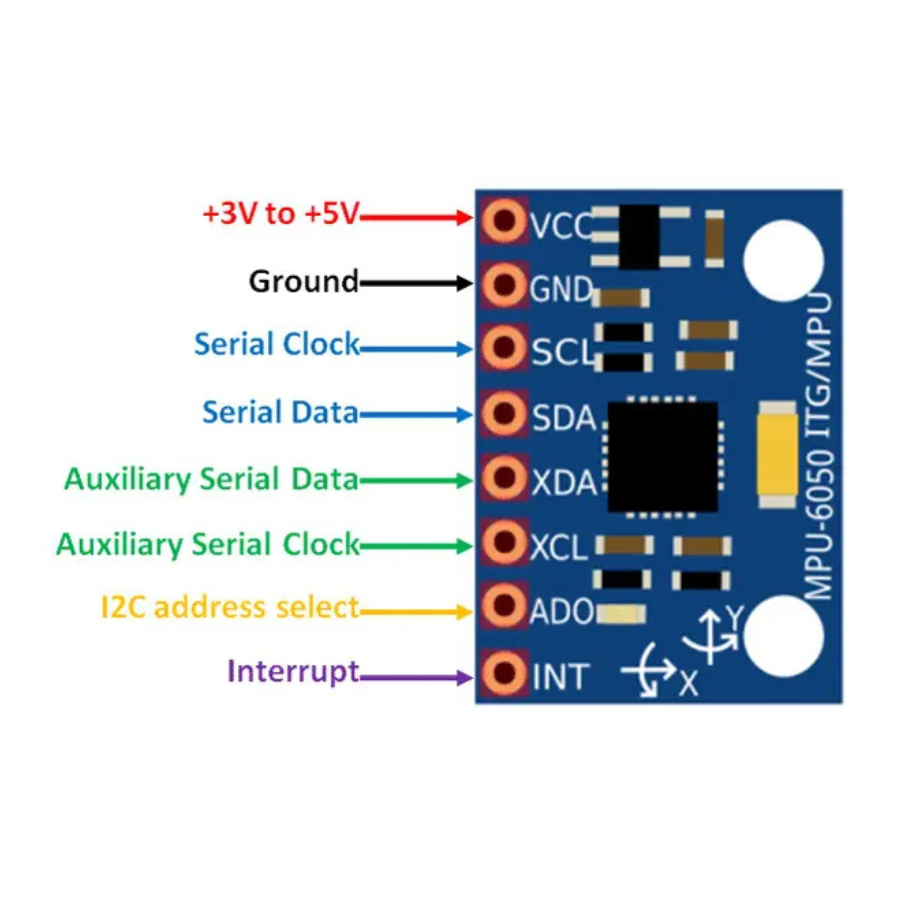

The MPU-6050 3-axis accelerometer features eight pins for connectivity:

1. VCC and GND : Power supply pins connected to +5V and ground, respectively.
2. SCL (Serial Clock Pin) : Provides clock pulses for I2C communication.
3. SDA (Serial Data Pin) : Facilitates data transmission via I2C communication.
4. XDA and XCL (Auxiliary Serial Clock and Data Pins) : Additional pins for optional use, which can either remain idle or be utilized for interfacing with other I2C modules.
5. AD0: Address select pin, allowing multiple MPU-6050 modules to operate within the same circuit, each with a distinct address.
6. INT: Digital output interrupt pin, which signals the microcontroller when motion-related events occur.

The MPU-6050 Module, with its compact design and extensive features, provides an effective solution for motion sensing applications in diverse fields. Its integration of advanced technology and versatile connectivity options makes it an essential component for projects that require precise motion tracking and analysis.

Features

• Chip built-in 16bit AD converter, 16-bit data output.
• I2C Digital-output of 6 or 9-axis Motion Fusion data in rotation matrix, quaternion, Euler Angle, or raw data format.
• Selectable Solder Jumpers on CLK, FSYNC, and AD0.
• Digital Motion Processing™ (DMP™) engine offloads complex Motion Fusion, sensor timing synchronization, and gesture detection.
• Embedded algorithms for run-time bias and compass calibration. No user intervention required.
• Temperature rise: <80K

Specification:

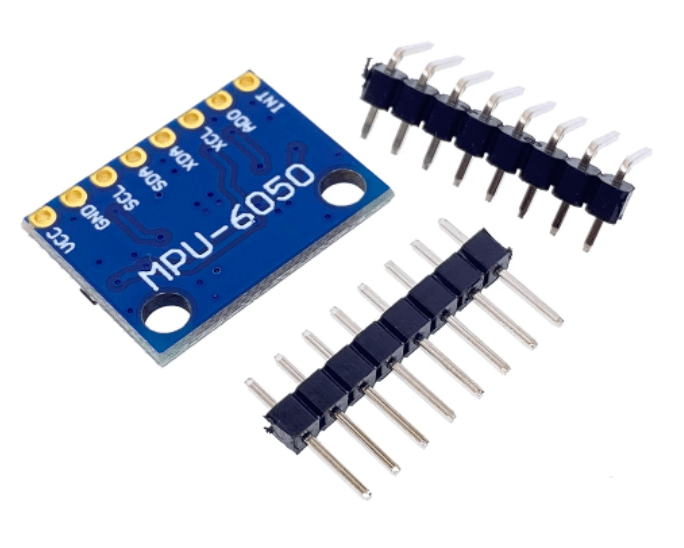

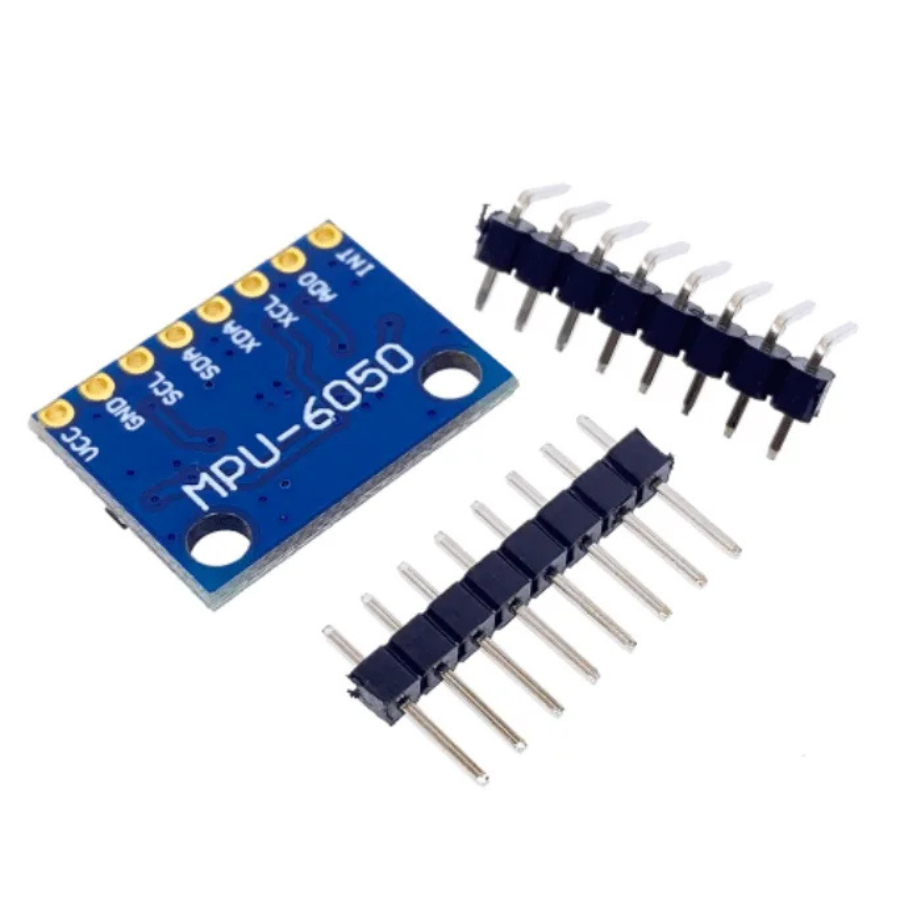

Package Includes

• 1 x MPU-6050 Module
• 1 x Burg connector Pins (Right angle).
• 1 x Burg connector Pins (Straight).

MPU6050 Datasheet

Video

MPU-6050 3-Axis Accelerometer and Gyro Sensor Module Overview

The MPU-6050 module integrates a 3-axis accelerometer and a 3-axis gyroscope on a single board, providing precise motion sensing for velocity, orientation and displacement measurements. Ideal for embedded systems, it delivers 16-bit digital outputs via I2C for reliable data acquisition in robotics, drones and wearable electronics.

Key Features of MPU-6050 3-Axis Accelerometer and Gyro Sensor Module

• Built-in MPU6050 driver chip with 16-bit ADC for high-precision acceleration and angular rate data
• Selectable gyro ranges of ±250, ±500, ±1000 and ±2000 °/s and accelerometer ranges of ±2, ±4, ±8 and ±16 g
• I2C/IIC communication interface operating at standard addresses for easy integration
• Onboard Digital Motion Processor (DMP) to offload motion fusion algorithms from your microcontroller
• Wide operating voltage from 3 V to 5 V DC compatible with most development boards
• Genuine sensor module, fast shipping from Zbotic with order dispatch within 24 hours

Applications and Use Cases

• Drone flight stabilization and attitude control systems
• Self-balancing robots and robotic arm movement tracking
• Smartphone or wearable device motion detection and activity monitoring
• Gaming controllers and VR headsets for gesture recognition
• Automotive inertial navigation and rollover detection
• Industrial equipment vibration analysis and monitoring

How to Use MPU-6050 3-Axis Accelerometer and Gyro Sensor Module

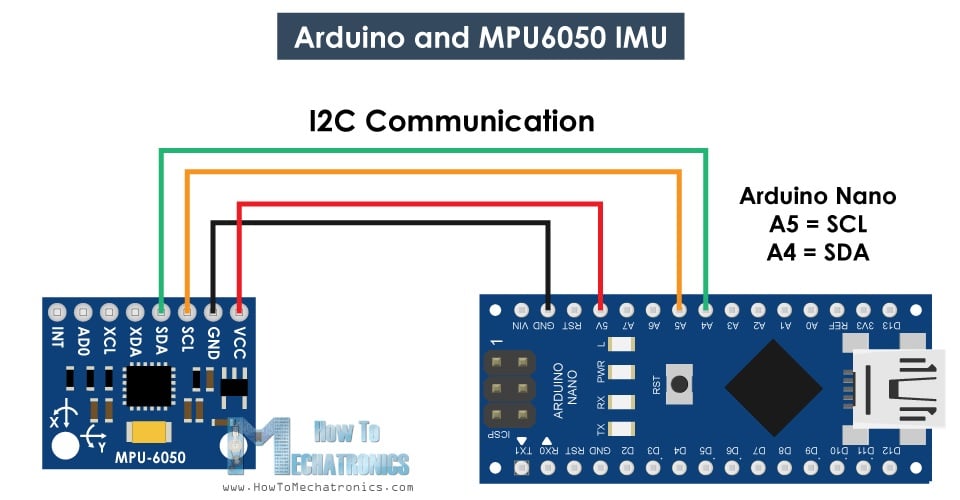

Connect VCC to a 3–5 V power supply and GND to ground, then wire SDA and SCL lines to your microcontroller’s I2C bus. Install an MPU-6050 library or driver, set the desired accelerometer and gyro sensitivity via register configuration, and read raw 16-bit data registers. Perform an initial calibration routine to determine zero-offsets before using motion data in your application.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What communication protocol does the MPU-6050 use?

The MPU-6050 communicates over I2C (also called IIC), using a fixed I2C address (default 0x68) to send and receive 16-bit accelerometer and gyroscope data registers.

Which sensor ranges can I select on the module?

You can configure the accelerometer for ±2, ±4, ±8 or ±16 g, and the gyroscope for ±250, ±500, ±1000 or ±2000 °/s by writing to the range-setting registers in the MPU-6050.

Do I need to calibrate the MPU-6050 before use?

Yes. For accurate motion measurements, perform a simple calibration routine at startup by recording the raw sensor outputs when the module is stationary and subtracting these offsets from subsequent readings.
