Product Description

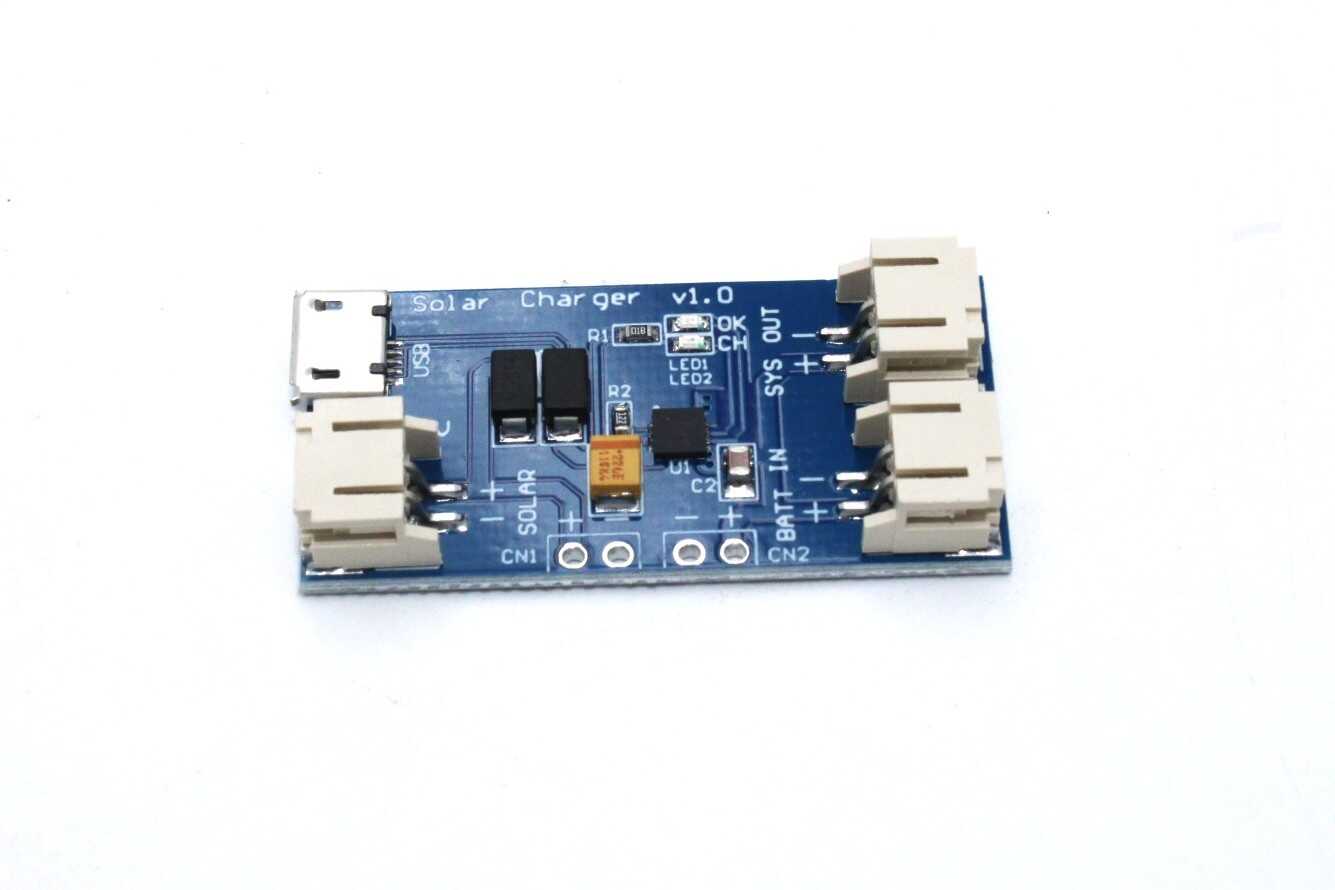

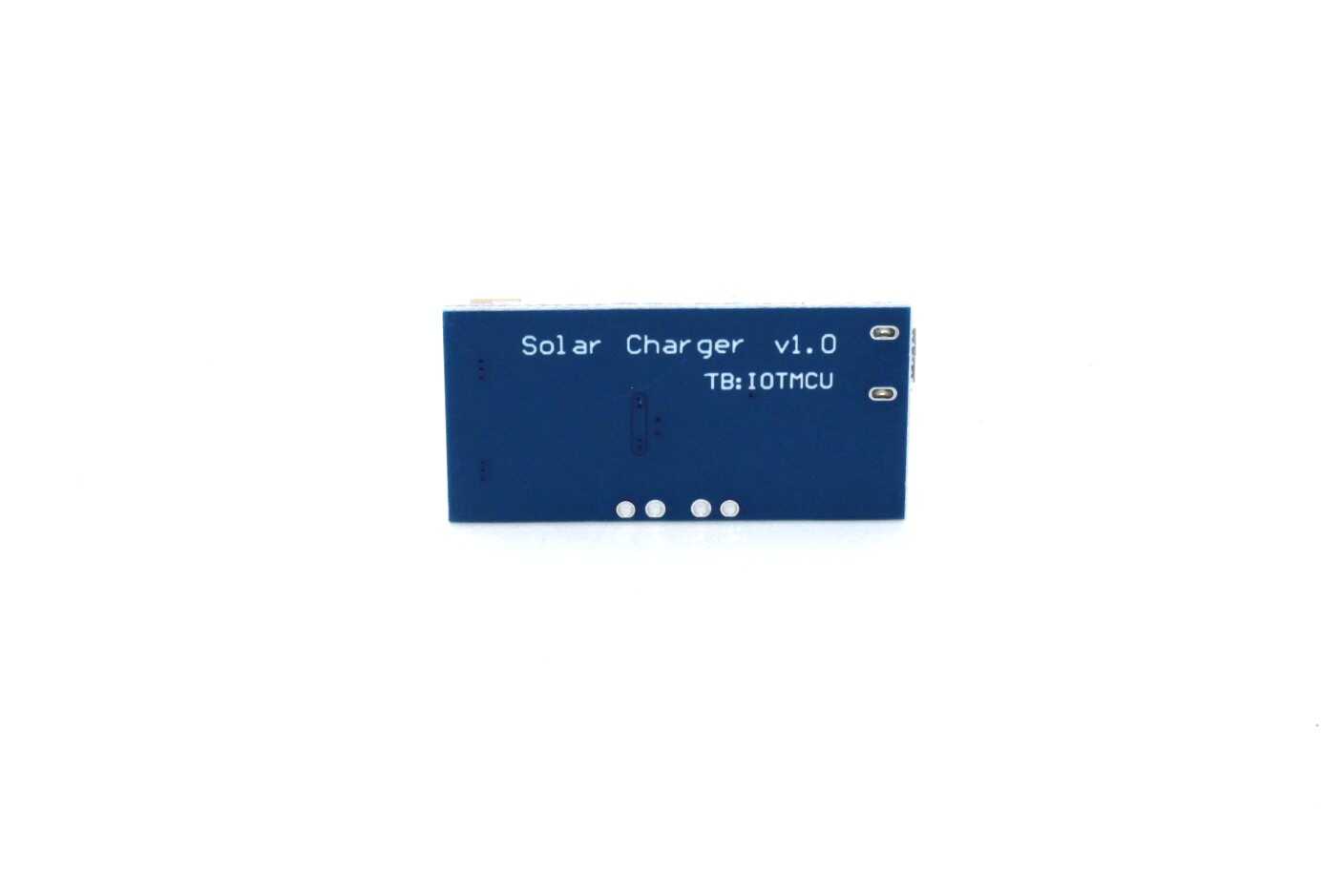

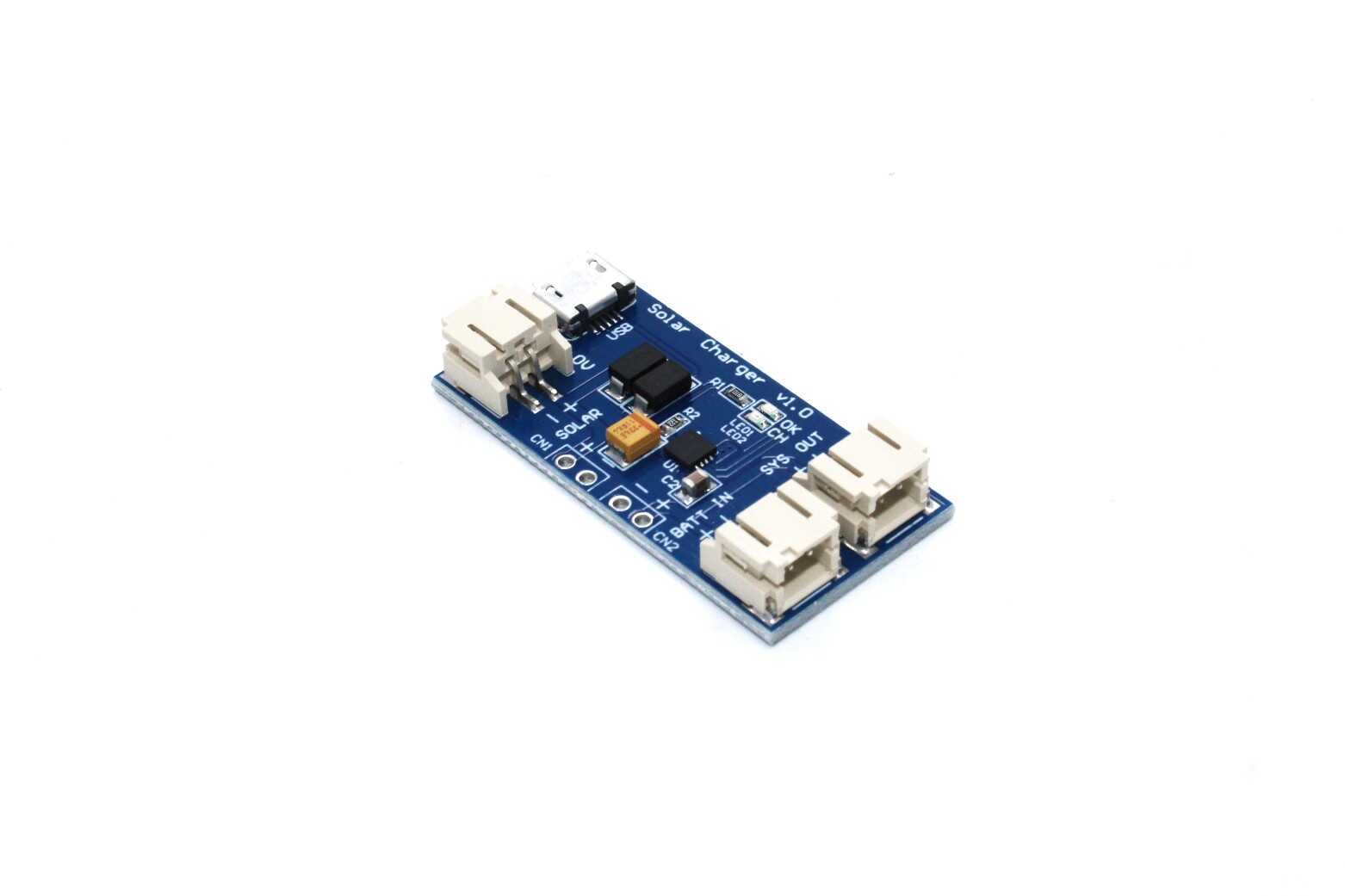

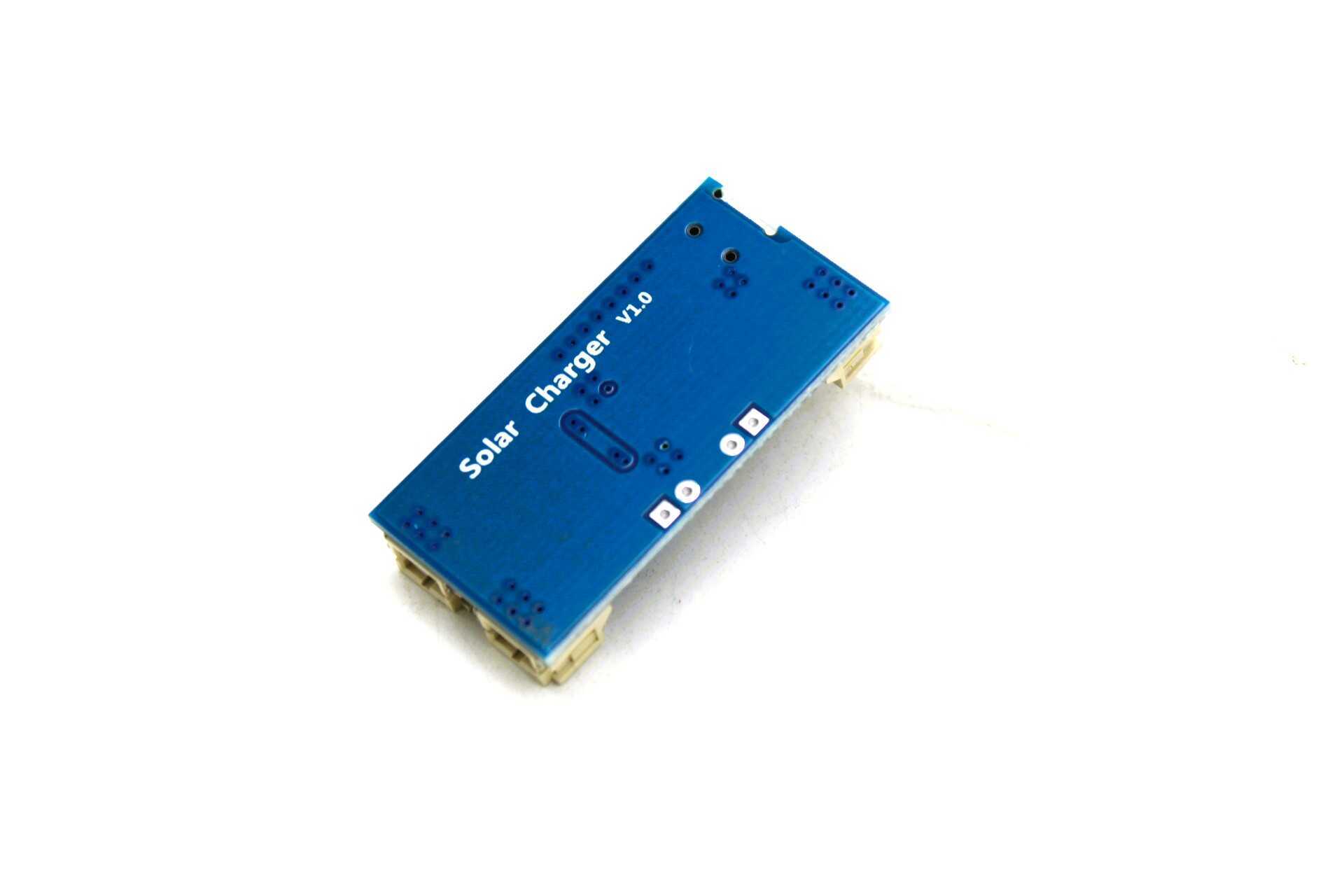

This device is a Super-Mini Solar Lipo Charger that uses the CN3065 chip to manage the charging of a single lithium battery. You can connect your solar panel or any photovoltaic device to this Solar Charger and charge a rechargeable LiPo battery efficiently. The Solar Charger is easy to use: just plug your solar panel into one side and your battery into the other side, and the charging will begin!
The Solar Charger is designed to charge only one polymer lithium-ion cell. The load should be connected parallel to the battery. The Solar Charger has a default maximum charge current of 500mA and a maximum recommended input of 6V (minimum 4.4V). For safety reasons, do not charge batteries at a higher rate than their capacity rating.

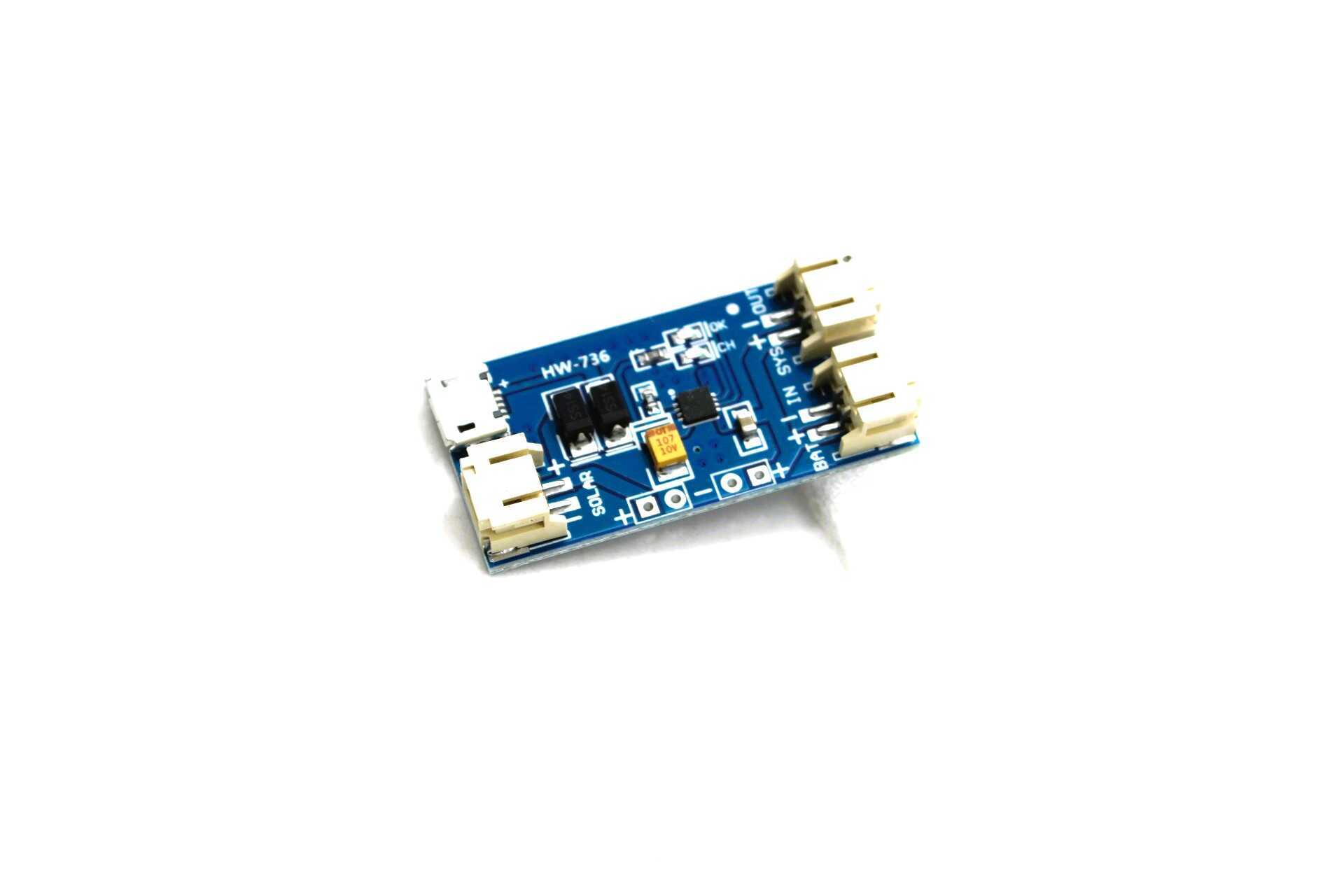

Note: This Product is also available in HW 736 variant with the same working we will ship it randomly.
Features:
- Solar panel input: 4.4-6V
- Max charge current: 500mA
- Interface: 2-pin JST connectors(or PH2.0)
- Short circuit protection
- Continuous Charge Current Up to 500mA
- Battery status indication ( Red: Charging, Green: Charged )
- Support USB Charge (Micro-USB Connector)
Specification:
| Input Voltage Range | 4.4 to 6VDC |
|---|---|
| Max Charge Current | 500mA |
| Connector | 2-Pin Connectors |
| Battery Status Indicator | Red: Charging Green: Charged |
| Length (mm): | 39.9 |
| Width (mm) | 20 |
| Height (mm) | 7 |
| Weight (g): | 5 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 5 × 1 cm |
Package Includes:
1 x Mini Solar Lipo Charger Board
