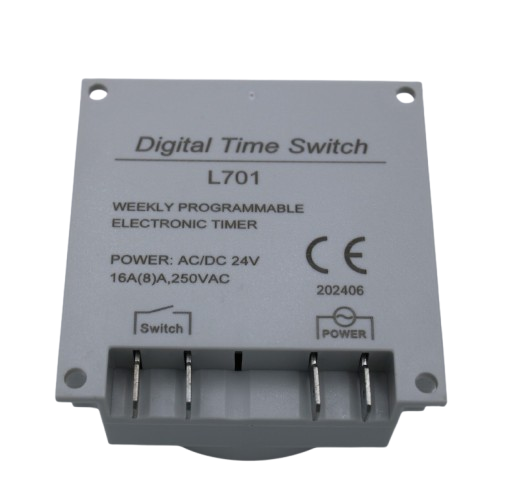

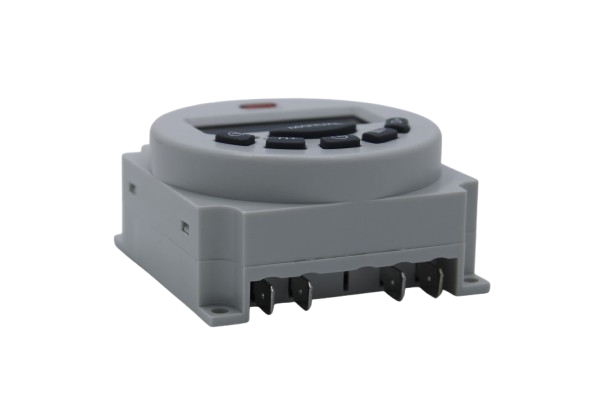

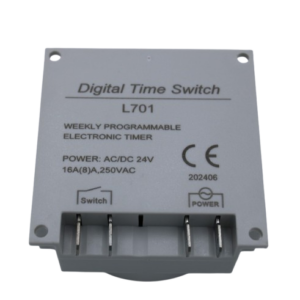

The L701 Microcomputer DC 24V LCD Digital Display Programmable Electronic Switch Timer allows users to control the on-off status of equipment by setting specific time intervals. This feature promotes energy savings and efficient operation. Our product is ideal for a variety of applications, including street lights, advertising displays, neon lights, production equipment, and household appliances that require scheduled operation.
Note: You may receive this timer switch with a depleted battery due to storage conditions. The internal battery will charge automatically when you connect it to the power supply.
Features:
- 100% brand new and high quality.
- Widely used in street lights, neon lights, bells, radio and television equipment, production equipment, electrical equipment, and household appliances automatic control.
- Built-in high-performance batteries as backup power in case of no electricity can still maintain time display and storage.
- Auto timer error correction. (with an electron)
- Repeat programs with 16 on/offsetting.
- Digital electronics general purpose time switch daily and programs.
Operating step:
- Press ‘P’ button, Setting1 ON time(display 1 on)
- Press H+/M+, setting hours and minutes.
- Press D+, to select the same every day, or at different times each day.
- Press ‘P’, setting 1 off time (display1 off)
- Press H+/M+, setting hours and minutes turn off time.
- Press D+, if you want the same every day, you need not press this key,
- Repeat step 2-6,set 2-16 on/off time,
- Press the third button, END.
Specification
| Item Type: | Other Switches |
|---|---|
| Switch Type | Timer Switch |
| Voltage Rating (V): | 24 |
| Rated Voltage: | 24V DC |
| Display Type | LED |
| Color: | Grey |
| Max. Current (A) | 16 |
| Operating Temperature (˚C): | – 25 to 65 |
| Dimensions (L x W x H) mm | 60 x 60 x 32 |
| Hysteresis | ≤1 Sec/Day (25ºC) |
| On/Off Operation | 16 On/ 16 Off |
| Timing Range | 1 Min ~ 168 Hrs. |
Package Includes:
1 x Microcomputer DC 24 V LCD Digital Display Programmable Electronic Switch Timer
1 x English User Manual.
Microcomputer DC 24 V LCD Digital Display Programmable Overview
The L701 Microcomputer DC 24 V LCD Digital Display Programmable Electronic Timer Switch is a compact 24 V DC timing controller with a clear LCD interface. It enables precise scheduling of on/off cycles for equipment such as street lights, neon signs, production machinery and household appliances, helping to optimize energy usage and automate operations.
Key Features of Microcomputer DC 24 V LCD Digital Display Programmable
- Operates on 24 V DC with an easy-to-read LCD for current time and program status
- Built-in high-performance battery backup maintains clock and settings during power outages
- Auto timer error correction ensures long-term timing accuracy
- Up to 16 repeatable on/off events per day for flexible scheduling

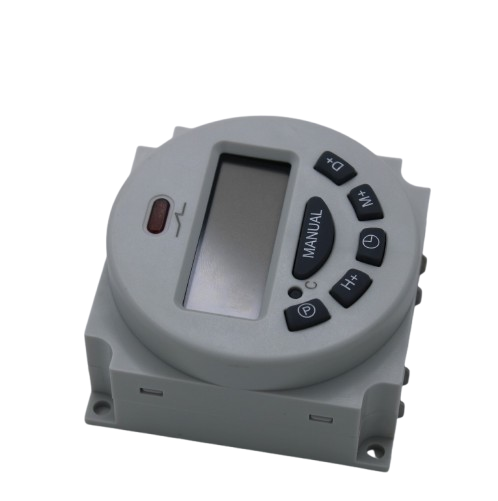

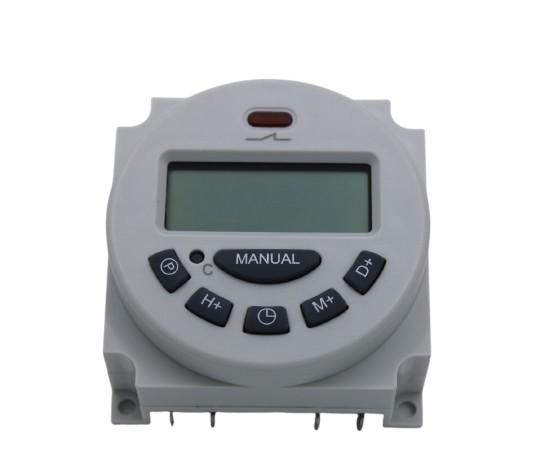

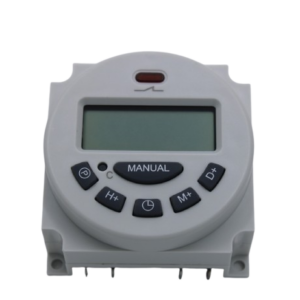

- Front-panel buttons allow quick programming and manual override
- Genuine product, fast shipping from Zbotic
Applications and Use Cases
- Automating street lights in residential and commercial areas
- Scheduling neon sign and advertising display operation
- Controlling bells, buzzers or audio alerts in schools and factories
- Managing start/stop cycles on production line equipment
- Timing household appliances for off-peak energy consumption
How to Use Microcomputer DC 24 V LCD Digital Display Programmable
Mount the timer switch and connect the 24 V DC power input along with your load to the output terminals. Use the front-panel buttons to set the current time, then navigate the LCD menu to program up to 16 on/off intervals. The internal battery automatically charges and retains all settings during any power interruption.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How many on/off events can I program each day?
The timer supports up to 16 independent on/off events within a 24-hour period, allowing you to set complex daily schedules.
What happens during a power outage?
The built-in high-performance battery backup keeps the clock running and stores all programmed settings. When 24 V DC power returns, the battery recharges automatically.
Can I correct time drift manually?
Yes. The device features auto error correction, and you can manually adjust hours and minutes via the LCD setup menu using the front-panel buttons.
