This is the 200mm variant of the GT2 Timing Belt 200mm Width-6mm Closed-Loop Rubber Belt for 3D Printer in Timing Belt and Pulley. Available at Original price was: ₹75.52.₹51.92Current price is: ₹51.92. (₹44.00 + GST) with free shipping across India.
Product Description

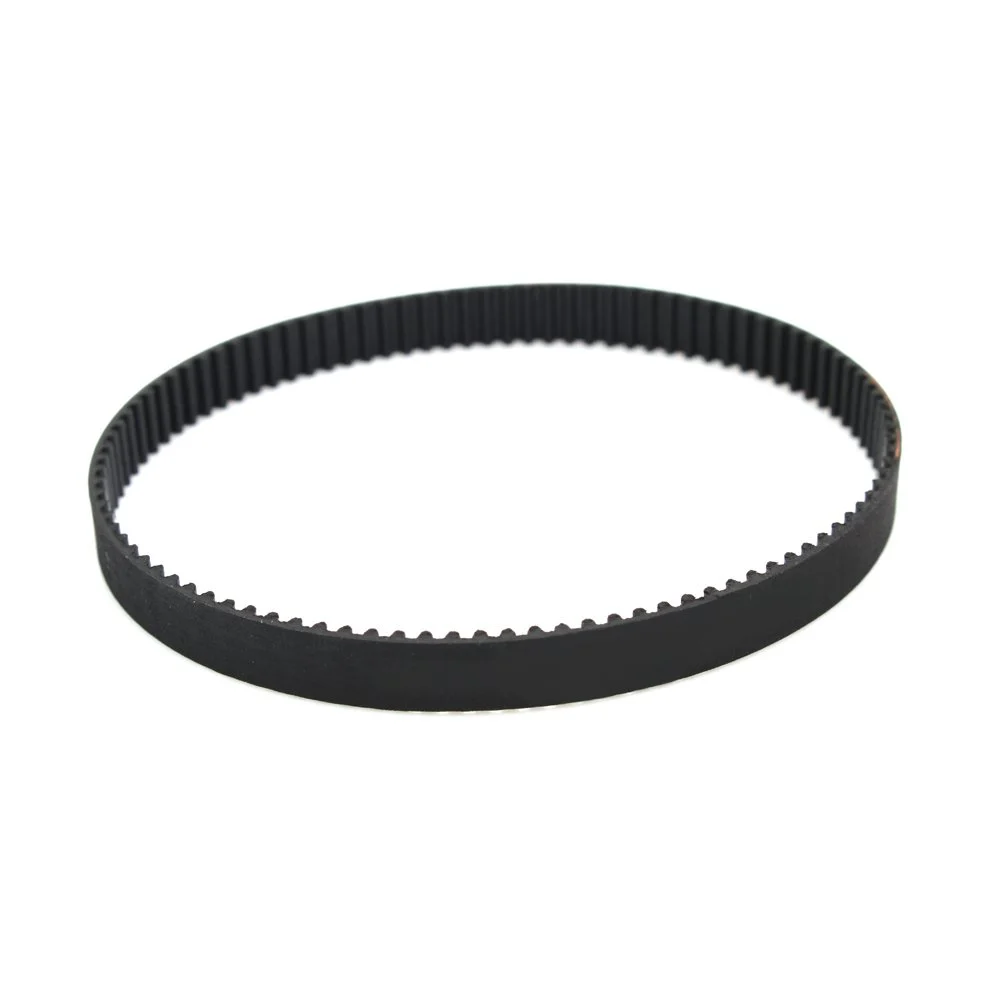

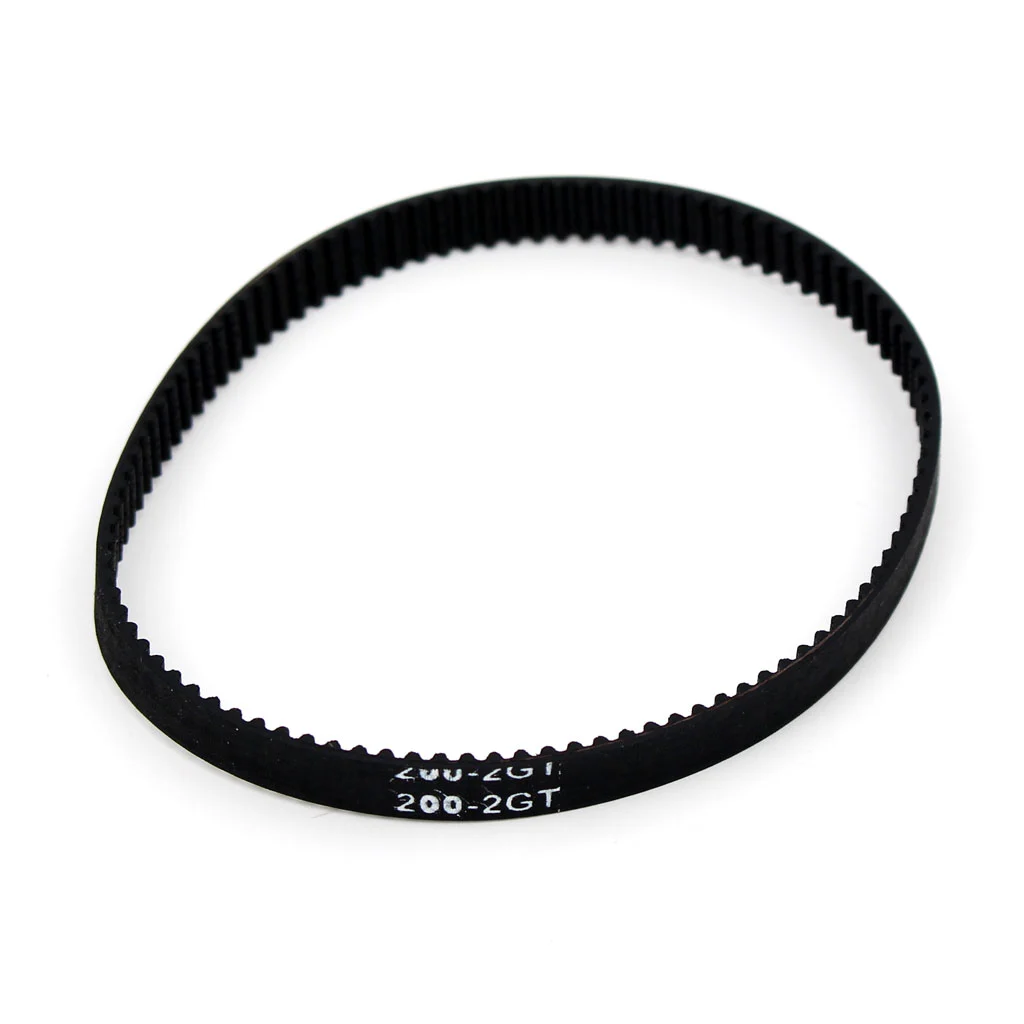

This is a 200mm long and 6mm wide GT2 Timing Belt made of rubber for 3D printers. It is a closed-loop belt that fits the PowerGrip GT2 system, which has more load-carrying capacity than the HTD system.
The GT2 Timing Belt has a circular arc tooth profile and small tooth spaces, which make it suitable for straight line driving. It also has less drive clearance than the HTD system when using small diameter pulleys. The drive clearance is the gap between the belt and the pulley teeth, which affects the performance and efficiency of the belt drive.
Specification:
| Material: | Neoprene Rubber With Fiberglass Core |
|---|---|
| Shape | Closed Loop |
| Width (mm) | 6 |
| Total Length(mm) | 200 |
| Teeth Quantity | 100 |
| Belt Height (mm) | 1.52 |
| Tooth Height (mm) | 0.76 |
| Pitch (mm) | 2 |
| Shipping Weight | 0.04 kg |
| Shipping Dimensions | 5 × 5 × 3 cm |
Package Includes:
1 x GT2 Timing Belt 200mm Width-6mm Closed-Loop Rubber Belt for 3D Printer
Technical Specifications
| Model | GT2 |
|---|---|
| Size | 200mm |
| SKU | AI2808 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The GT2 Timing Belt 200mm Width-6mm Closed-Loop Rubber Belt for 3D Printer is a versatile timing belt and pulley used across a wide range of applications including 3D printer maintenance, printer upgrades, custom printer builds, and replacement parts.
Common use cases:
- Replacing a worn-out nozzle or extruder gear
- Upgrading to a direct drive extruder
- Building a custom CoreXY printer
This product is ideal for 3D printer owners and custom printer builders.
Technical Tip: Keep spare nozzles, PTFE tubes, and belts on hand. Regular maintenance significantly extends printer life and print quality.
