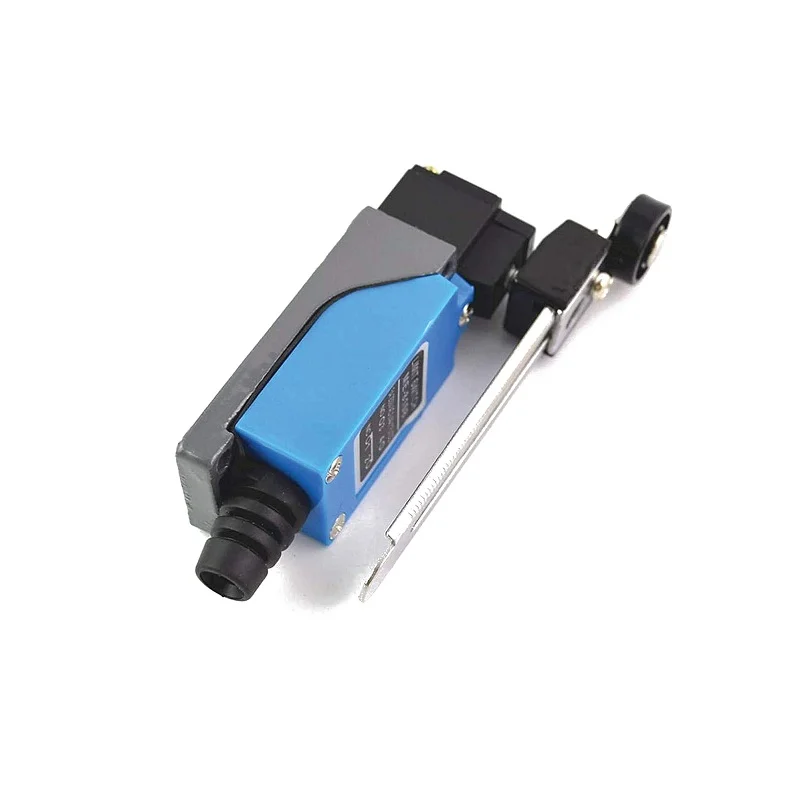

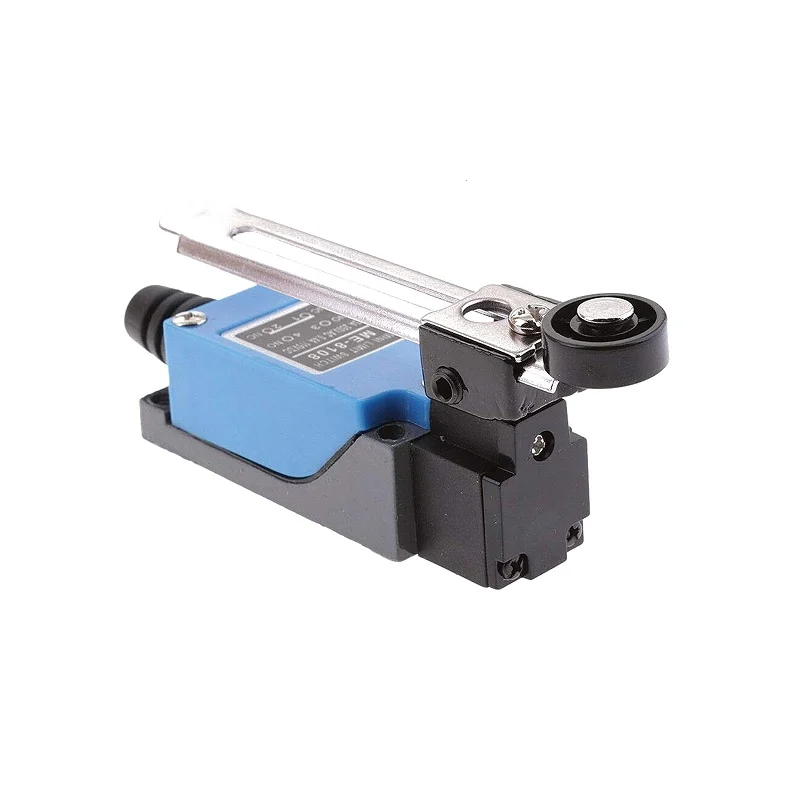

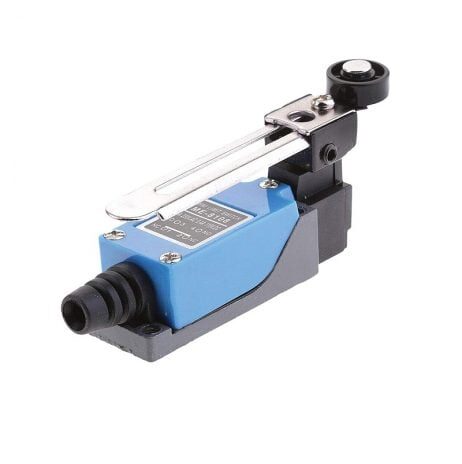

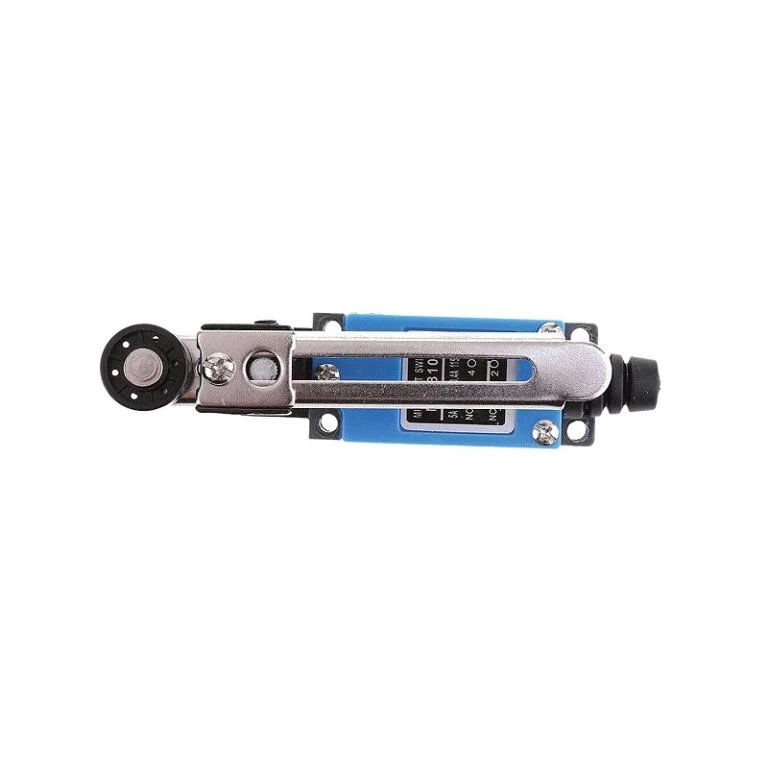

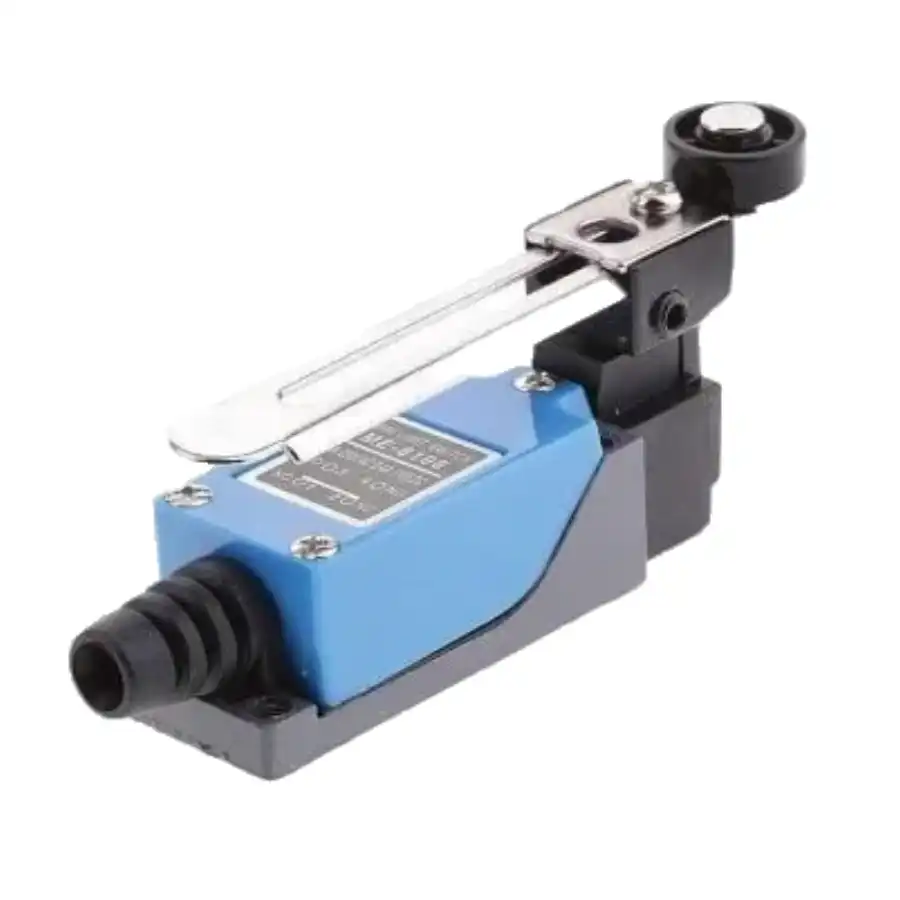

ME-8108 Rotary Adjustable Roller Lever Arm Mini Limit Switch
The ME-8108 Rotary Adjustable Roller Lever Arm Mini Limit Switch, also known as a POSITION SWITCH, is a commonly employed electrical device used in various industries. It functions by activating the contacts through collisions with moving parts in production machinery or segmented control circuits, thereby achieving specific control objectives.
Featuring a lever arm that can be rotated up to 90° degrees to the left and right, this limit switch is ideal for mechanical and industrial applications requiring precise control. It serves as an effective means to monitor the position of moving parts in machines and plants, ensuring optimal operation and safety.
It’s important to note the Voltage Rating of the limit switch and ensure compatibility with the voltage requirements of your location to ensure proper functionality. With its versatile design and reliable performance, the ME-8108 Limit Switch is a valuable component in any control system.
Features:
- Actuator action: momentary.
- Actuators type rotary adjustable lever arm with a roller.

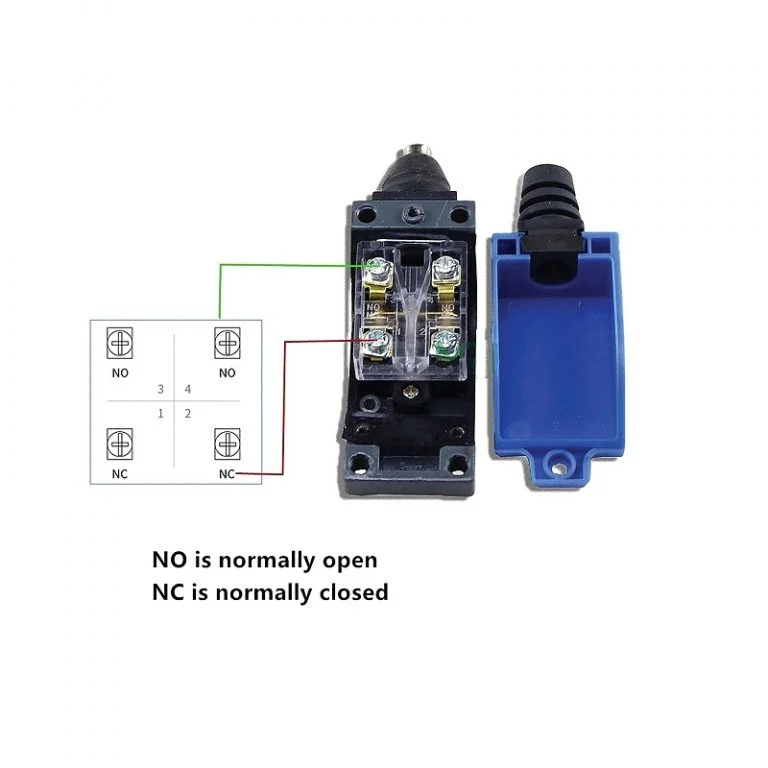

- Contact configuration 2 NC 2 NO.

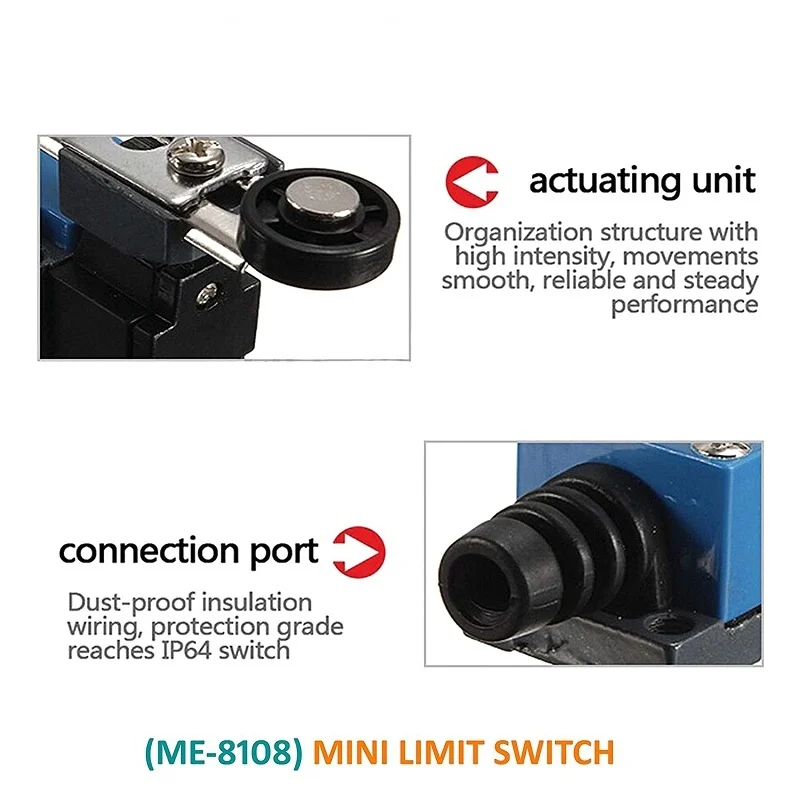

- IP Rating: IP66
Specification:
- Type: Rotary Adjustable Lever Arm with Roller
- Voltage Rating: AC 250V 5A, DC 115V 0.4A

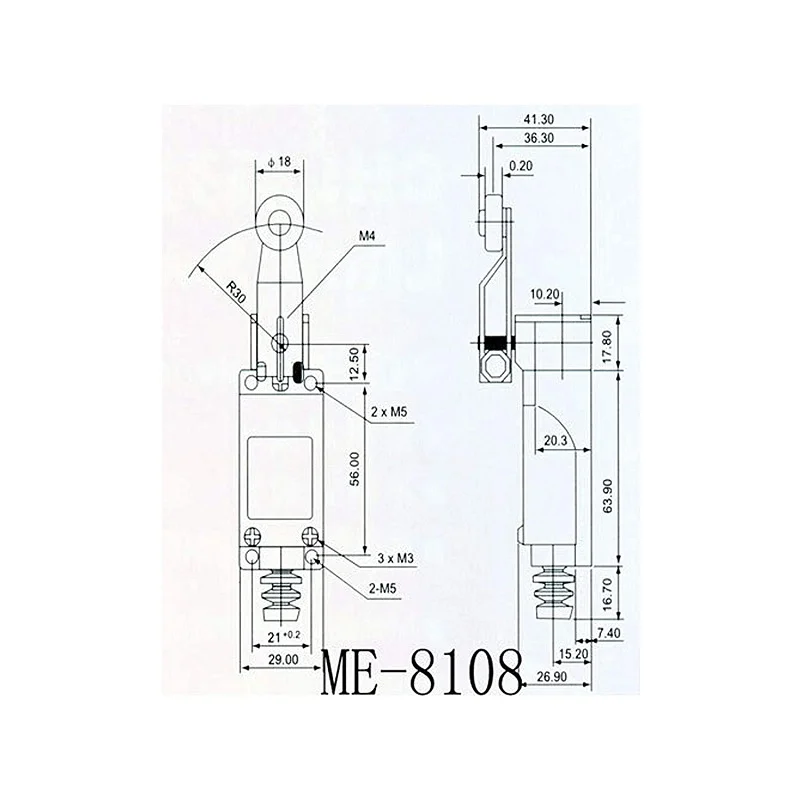

- Roller Dimension: 1.8 x 0.7cm
- Lever Arm Length: 10cm
Package Includes:
1 x ME-8108 Rotary Adjustable Roller Lever Arm Mini Limit Switch
