This is the Blue variant of the MARK5 5inch 225mm FPV Carbon Fiber Frame (Blue) in Drone Frame and Accessories. Available at ₹4,195.80 (₹3,996.00 + GST) with free shipping across India.

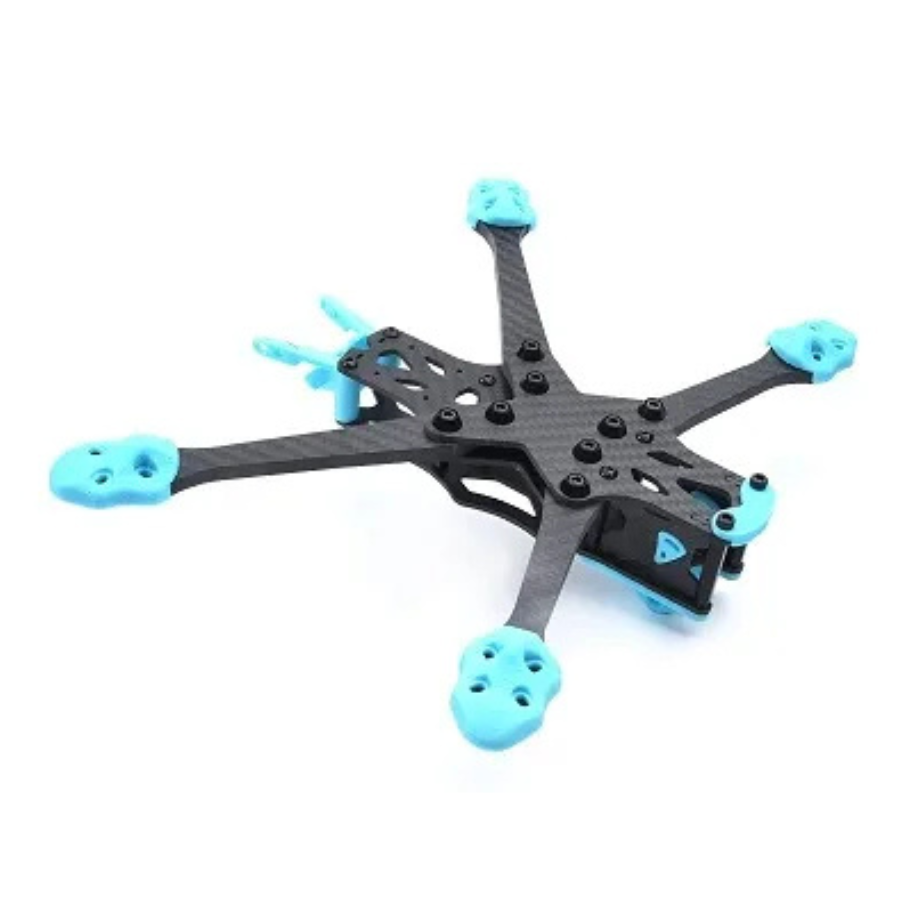

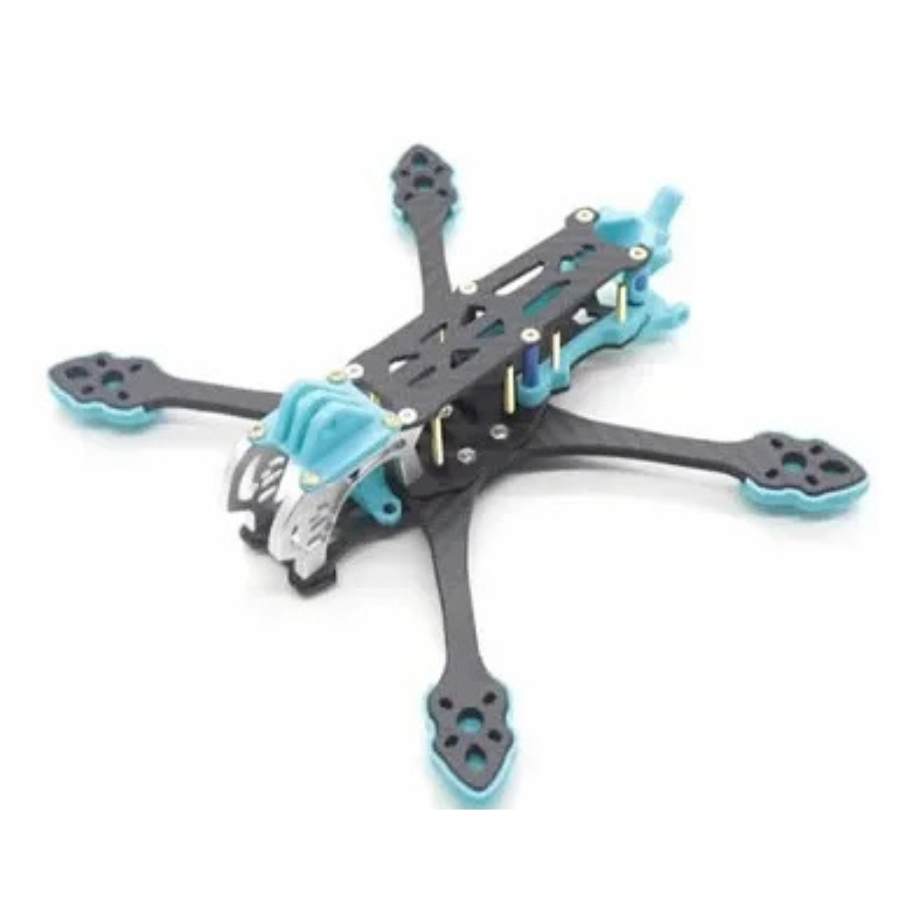

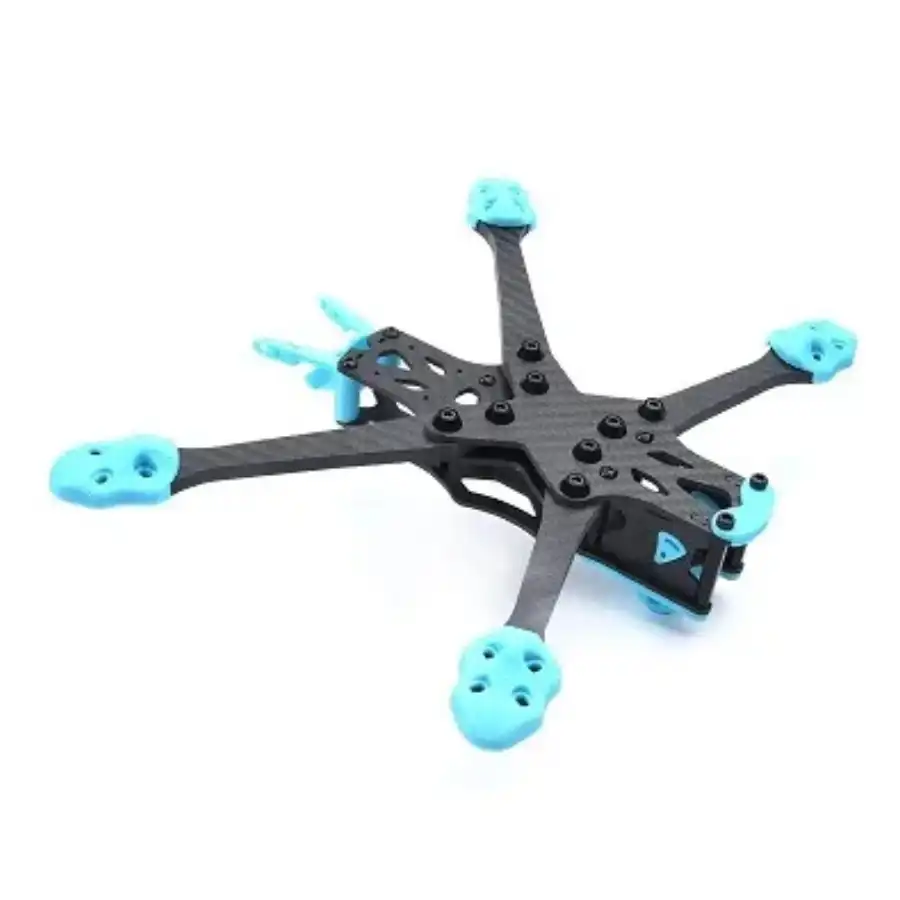

MARK5 5inch 225mm FPV Carbon Fiber Frame

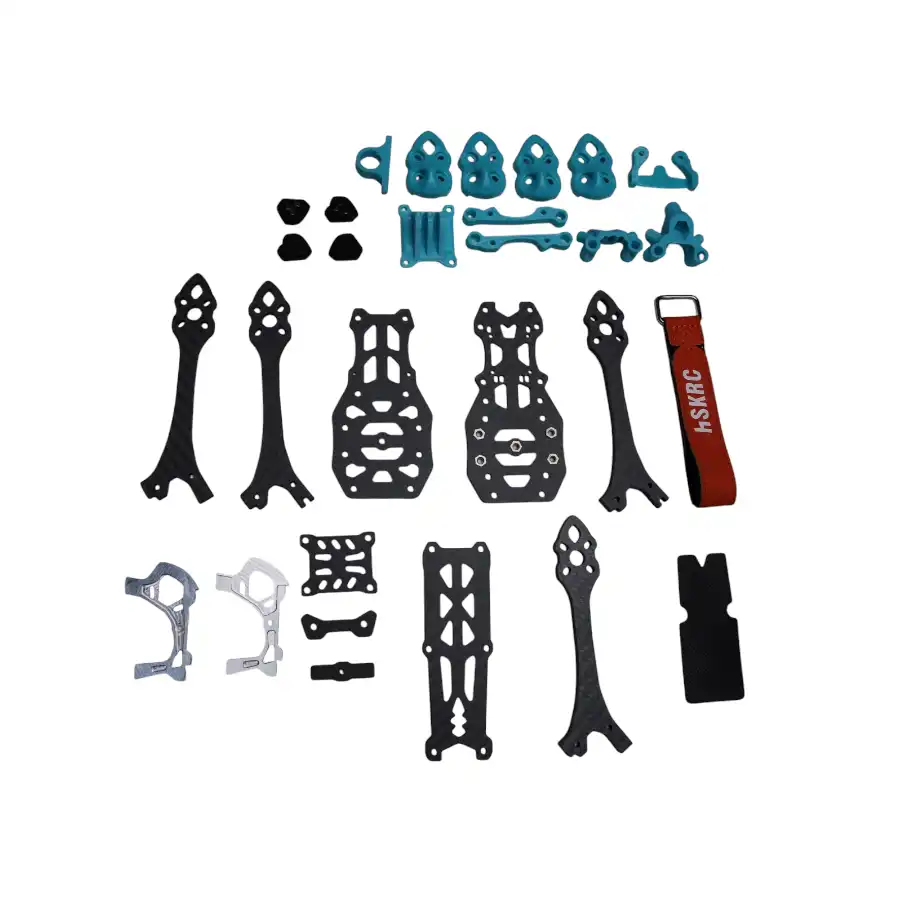

A drone frame is primarily composed of two main components: the body and the arms. The body protects and houses the electronic components, such as the flight controller, 4-in-1 ESC, FPV camera, and VTX. It typically consists of a bottom plate, top plate, and standoffs to secure everything. The arms are designed to mount the motors.
This frame features a 7075 aluminum alloy side plate, enhancing both aesthetics and durability while effectively safeguarding the FPV lens. Its wide X-arm design promotes stable and flexible flight dynamics. The video transmission mounting holes are compatible with both the DJI Air Unit Vista and analog systems, and it accommodates lenses measuring 19-20mm in width, allowing for direct installation of the original DJI lens.
Additionally, the frame supports motor mounting holes of 16 x 16mm and 19 x 19mm. Its shock-absorbing design ensures stable drone operation and a secure environment for electronic components. With a TPU base, the frame also allows for the mounting of GoPro cameras, including models like the GoPro 8.
Features:
- Highly Durable, Strong material
- Lightweight
- Easy to assemble
- Best for your Drone DIY build
Specifications:
- Product: Drone Frame Kit
- Material: Carbon Fiber
- Wheelbase: 225mm
- Other plate thickness: 2.5mm/2mm
- Arm thickness: 5.0mm
- Flight control installation hole: 30.5 x 30.5mm
- Image transmission installation hole: 30.5 x 30.5mm / 20 x 20mm
- Motor mounting hole: 16 x 16mm
- Lens size: 19-20mm
- Suitable for propeller size: 5 inch propeller
- wight : about 210g
Packages Includes:
1 x MARK5 5inch 225mm FPV Carbon Fiber Frame blue
Drone Motor KV Rating Explained: How to Pick the Right Motor
Table of ContentsWhat is KV Rating in a Drone Motor?How KV Affects RPM and PerformanceLow KV vs High...
Read More →
Betaflight RPM Filter: Eliminate Motor Noise for Smooth FPV Flying
Table of ContentsWhat Is the Betaflight RPM Filter?Why Motor Noise Ruins Your FPV ExperienceHardware Requirements for RPM FilterEnabling...
Read More →
Drone Winch System: Pick and Place Payload Delivery UAV
Drone Winch System: Pick and Place Payload Delivery UAV The idea of drones that can autonomously pick up...
Read More →Technical Specifications
| Model | MARK5 |
|---|---|
| Size | 225mm |
| Display Size | 5" |
| Color | Blue |
| SKU | AI1148 |
| Weight | 0.35 kg |
| Availability | In Stock |
Applications & Use Cases
The MARK5 5inch 225mm FPV Carbon Fiber Frame (Blue) is a versatile drone frame and accessories used across a wide range of applications including FPV racing builds, freestyle drones, cinematic drones, and agricultural spraying platforms.
Common use cases:
- Building a new racing quad
- Replacing a broken frame arm after a crash
- Mounting a camera gimbal on a custom platform
This product is ideal for FPV builders, drone racing enthusiasts, and commercial drone operators.
Technical Tip: Carbon fiber frames offer the best strength-to-weight ratio. Ensure motor-to-motor distance matches your propeller size.
