MAD XC3000 T2 Shadow brushless motor 1200KV (Pack Of 4)
Description:

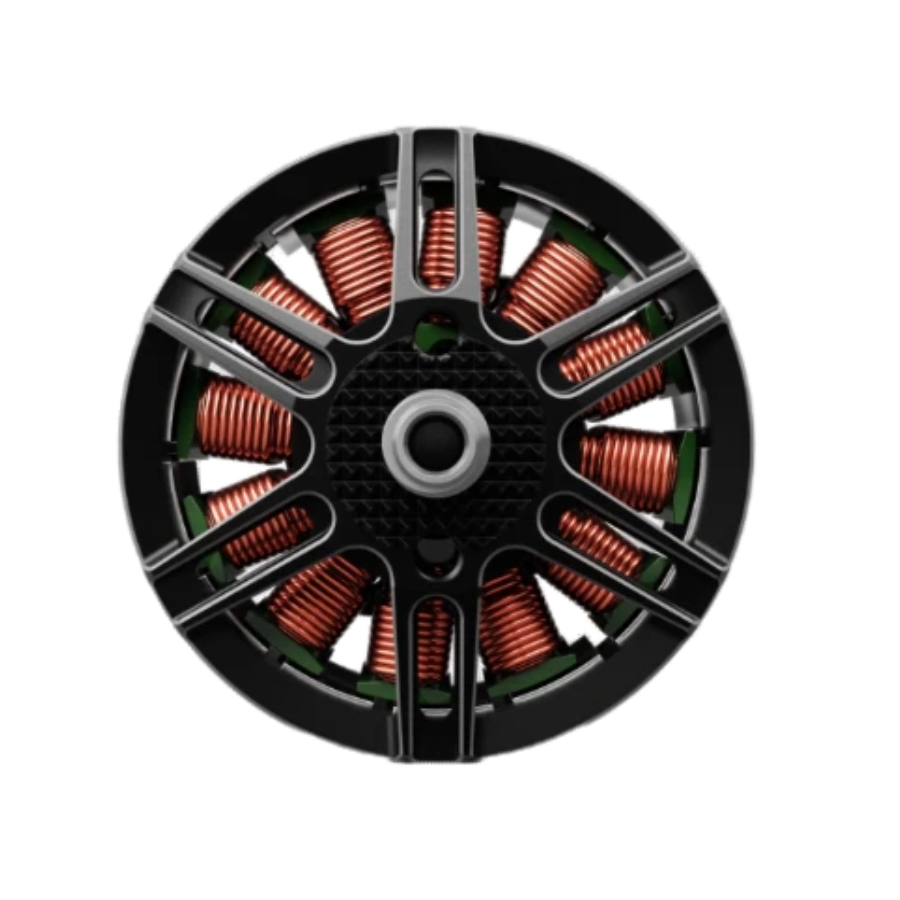

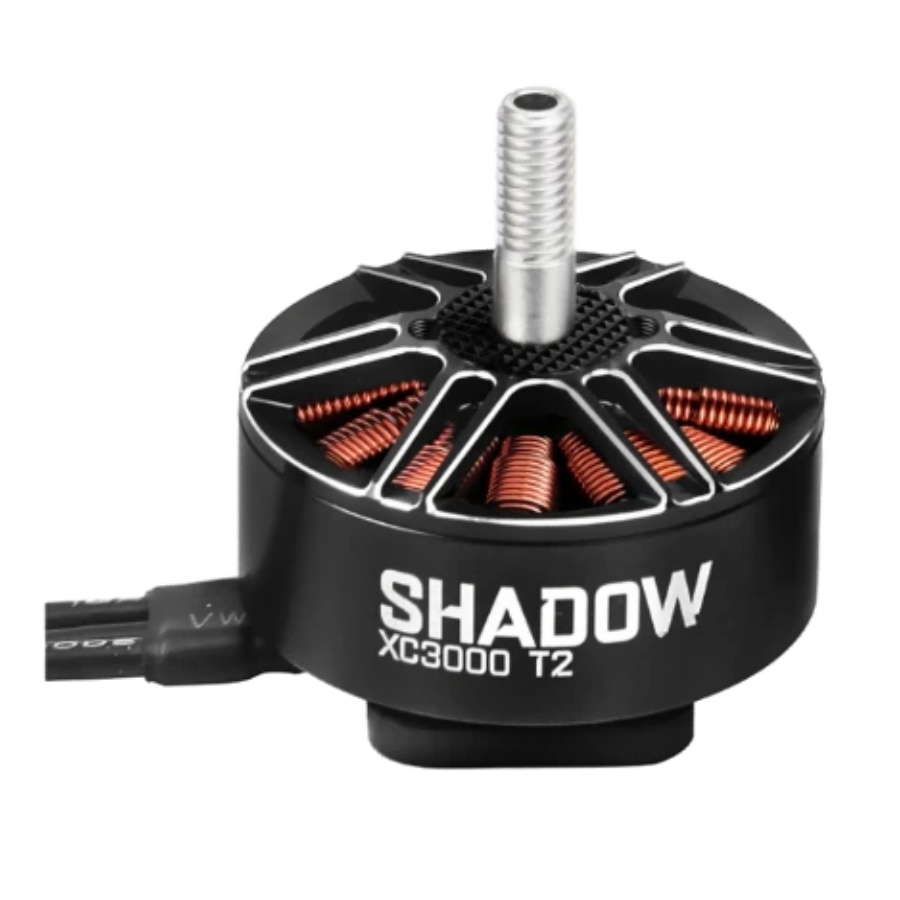

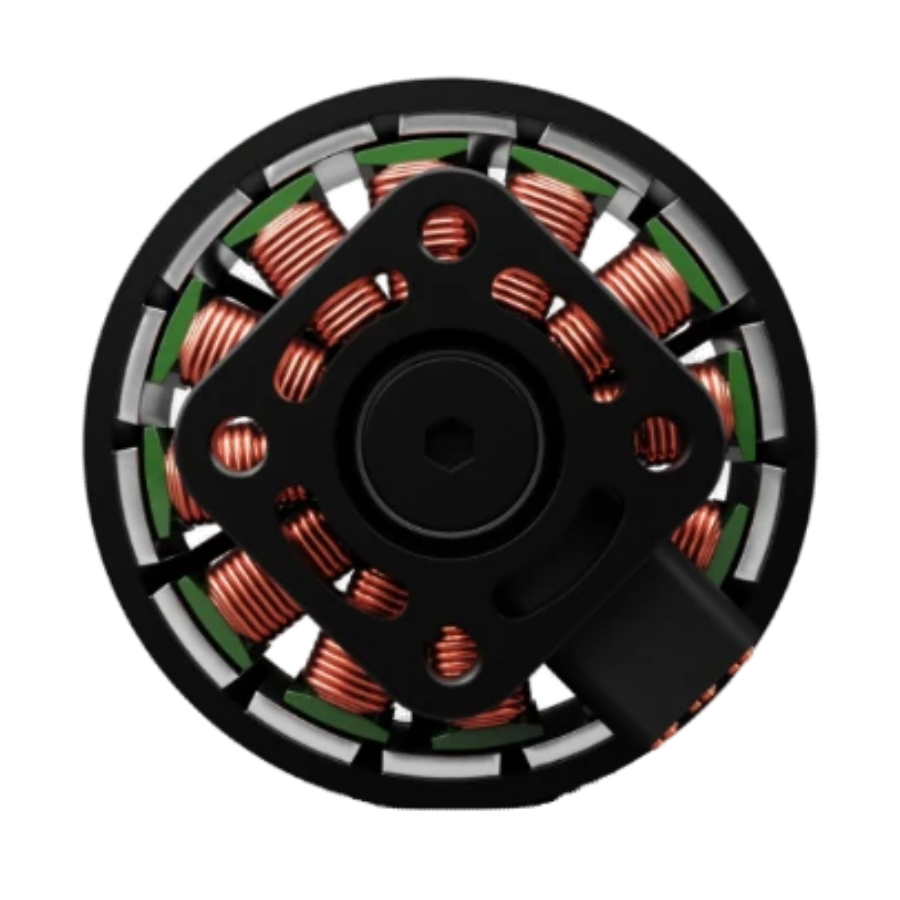

The MAD XC3000 T2 Shadow Brushless Motor 1200KV is engineered for drone and RC enthusiasts seeking high performance with energy efficiency. This Extreme Edition motor weighs just 70 grams, offering an optimized lightweight design that delivers a maximum thrust of 2.5 kgf. With a 1200KV rating, it supports 6S LiPo batteries and operates smoothly up to 98°C, ensuring durability under demanding conditions. Featuring a 7035×3 propeller compatibility, it provides excellent thrust and power balance. The motor’s internal resistance of 39mΩ and no-load current of 1.6A ensure minimal power loss. Perfect for competitive flying and long endurance missions, the MAD Shadow XC3000 T2 offers reliable thrust and efficiency in a compact form factor, packaged conveniently as a set of four for multi-rotor setups.
Dimensional Diagram
Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:
- High efficiency brushless motor with 1200KV rating
- Lightweight design at only 70 grams per motor
- Maximum thrust of 2.5 kgf for powerful lift
- Compatible with 6S LiPo batteries
- Supports 7035×3 propeller for optimal performance
- Operates reliably up to 98°C for heat resistance
- Low internal resistance (39mΩ) for energy efficiency
- Pack of 4 motors ideal for quadcopters and multi-rotors
Specification:
| Motor KV (RPM/V): | 1200 |
|---|---|
| Model No: | XC3000 |
| Motor Type: | Brushless Outrunner |
| Compatible LiPO Batteries: | Up to 6S (22.2V) |
| Framework | Standard Multi-rotor (Quadcopter/Hexacopter) |
| Shaft Diameter (mm): | 5 |
| Motor Outer Diameter(mm) | 35.7 |
| Max. Power (W) | 981 |
| Maximum Thrust (gm) | 2500 gm (2.5 kgf) |
| No-load current (A) | 1.6 @ 10V |
| No-Load Current (mA) | 1600 |
| Motor Size (mm): | D:35.7 × 40.55 |
Package Includes:

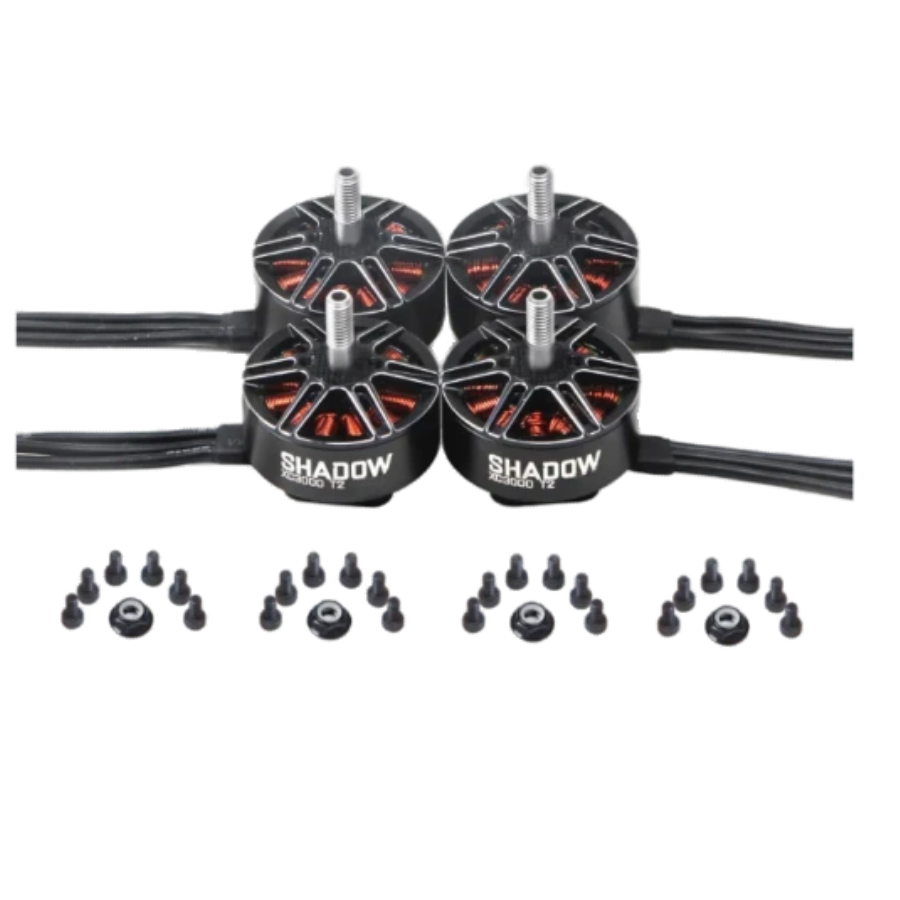

4 x MAD XC3000 T2 Shadow brushless motor 1200KV (Pack Of 4)
1 x Accessory Set
DIY Drone Payload Release Mechanism: Step-by-Step Build
Table of ContentsIntroduction: Why Add a Payload Release to Your Drone?Types of Payload Release MechanismsComponents RequiredBuilding a Servo-Based...
Read More →
Stepper Motor Acceleration & Deceleration: AccelStepper Library Guide
Stepper motors are brilliant for precise open-loop position control — no encoder required. But if you simply jump...
Read More →
High Speed DC Motor: 12V 300RPM to 10000RPM Buying Guide
Whether you are building a combat robot, an electric go-kart, a drone, or an industrial conveyor system, the...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 1200KV |
| Package Quantity | 4 pcs |
| SKU | AI8110 |
| Weight | 0.542 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD XC3000 T2 Shadow brushless motor 1200KV (Pack Of 4) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
