MAD – XC3000 POLAR brushless motor 650KV (Pack Of 4)
Description:
Experience extreme efficiency and performance with the MAD – XC3000 POLAR brushless motor 650KV. Designed for drone enthusiasts and professionals alike, these motors deliver optimized thrust, superior heat dissipation, and long-lasting durability. Each motor is precisely engineered to handle high voltage up to 12S, with outstanding thrust-to-weight performance at just 70g per motor. MAD – XC3000 POLAR brushless motor 650KV pack of four offers consistent power, reliability, and precision control – perfect for cinematic drones, FPV racers, or heavy-lift multirotors.
Dimensional Diagram
Features:
- High Performance 650KV brushless motor for reliable power.
- Max Thrust up to 2.8 kgf, ideal for medium to heavy drones.
- Compatible with up to 12S LiPo batteries.
- Low internal resistance (112mΩ) ensures less heat and higher efficiency.
- Thermal resilience up to 129°C peak operation.
- Lightweight design – only 70g per motor.
- Optimized for 7×4.5×3 to 10×4.5 props.
- Ideal for cinema drones, mapping UAVs, or industrial quads.
Specification:
| Motor KV (RPM/V): | 650 |
|---|---|
| Model No: | XC3000 |
| Motor Type: | Brushless Outrunner |
| Compatible LiPO Batteries: | 6S to 12S |
| Framework | Multirotor (Drone/UAV), Cinematic Drones, FPV/Heavy Lift |
| Shaft Diameter (mm): | 4 |
| Motor Outer Diameter(mm) | 35.7 |
| Max. Efficiency Current (A) | 10.33 |
| Max. Power (W) | 1330 |
| Maximum Thrust (gm) | 2800 |
| No-load current (A) | 0.6 at 10V |
| No-Load Current (mA) | 600 |
| No of poles | 14 |
| Operating Temperature (°C): | -20 to 129 |
| Motor Size (mm): | D:35.7 × 40.55 |
| Weight (g): | 70(Each) |

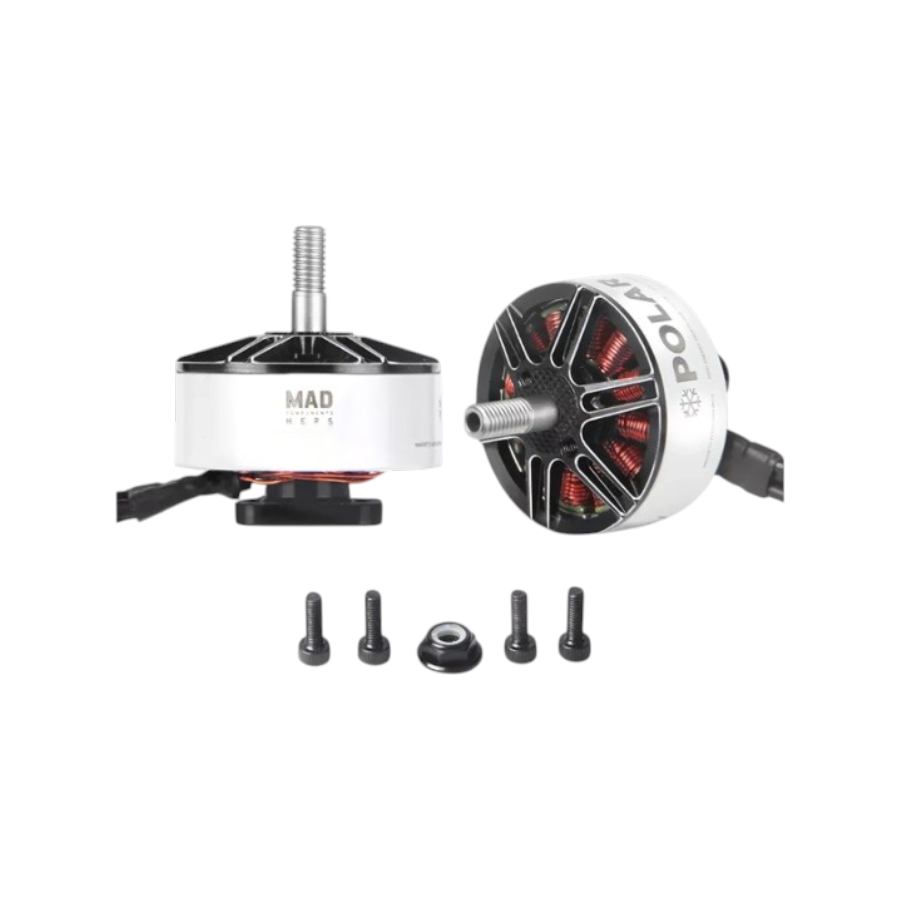

Package Includes:
4 x MAD – XC3000 POLAR brushless motor 650KV
1 x Accessory Set
Linear Actuator with Feedback: Position Control Projects India
Linear actuators convert rotary motor motion into straight-line push-pull movement. They are indispensable for solar panel trackers, motorised...
Read More →
Long Range Cruiser Drone: 7-Inch Build for Exploration
Table of Contents Understanding Long Range Cruiser Drone Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
RC Servo Tester: How to Test Servos Without a Microcontroller
You have a bag of servo motors from your last robotics project, a spare SG90 from a crashed...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 650KV |
| Package Quantity | 4 pcs |
| SKU | AI8112 |
| Weight | 0.541 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD – XC3000 POLAR brushless motor 650KV (Pack Of 4) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine MAD COMPONENTS product sourced from authorized channels
