This is the Red variant of the MAD CO – FS 2306 Thruster FPV Drone motor (Red) 1960KV-6S in Drone Motor. Available at ₹2,117.84 (₹1,794.78 + GST) with free shipping across India.

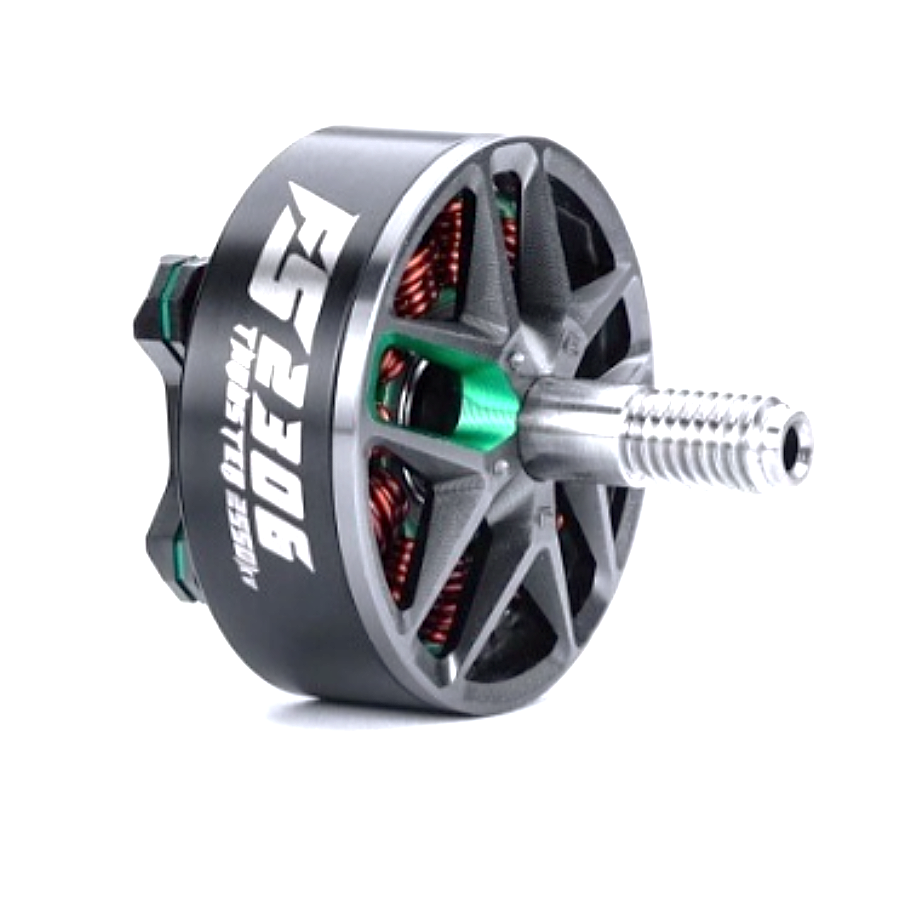

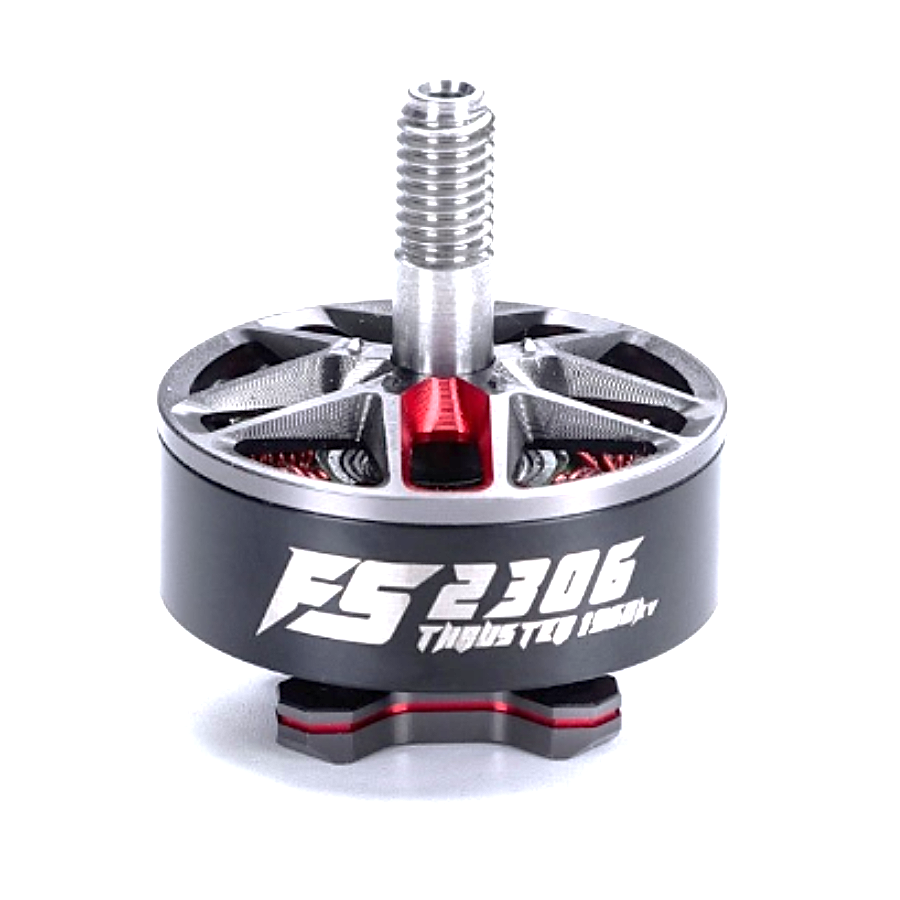

MAD CO – FS 2306 Thruster FPV Drone motor (Red) 1960KV-6S
Description:
The MAD CO FS 2306 Thruster Drone motor is engineered for FPV drone pilots looking for reliable performance and responsiveness. With a KV rating of 1960, this motor is optimized for use with 6S LiPo batteries, providing strong thrust and stability in the air. Drone motor compact design and high-quality materials make it suitable for both racing and freestyle applications.
Features:
- Model: MAD Thruster FS2306 V1.0
- Configuration: 12N14P (12 slots, 14 poles) for enhanced efficiency.
- Rotor Balance: ≤ 5 mg for stable flight performance.
- Propeller Mounting Holes: M5 Nut for secure attachment.
- Shaft Diameter: 4 mm, standard size for compatibility.
- Cable Length: 150 mm, 20# AWG silicone for flexibility and durability.
Specification:
| Specification | Details |
|---|---|
| Product Name | FS 2306 Thruster FPV Drone Motor |
| Brand | MAD Components (MAD CO) |
| KV Rating | 1960KV |
| Motor Type | Brushless |
| Color | Red |
| Stator Size | 23 × 6 mm |
| Configuration | 12N14P |
| Recommended Voltage | 6S LiPo |
| Shaft Diameter | 4 mm |
| Propeller Mount | M5 Shaft Nut |
| Mounting Pattern | Standard FPV Mount |
| Cable Length | ~150 mm |
| Wire Type | 20AWG Silicone Wire |
| ESC Compatibility | 30A – 60A |
| Propeller Size | 5–6 inch |
| Material | Aluminum Alloy |
| Application | FPV Racing / Freestyle Drones |
| Performance | High Thrust, Smooth Operation |

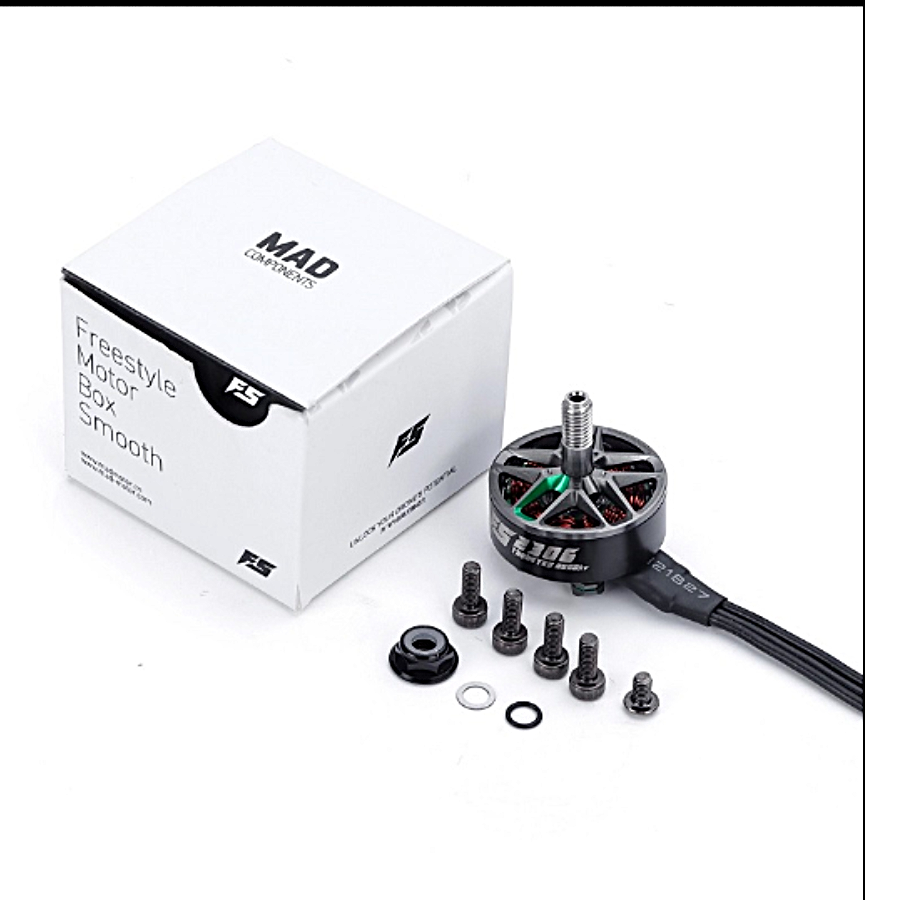

Package include:
1 x MAD CO – FS 2306 Thruster FPV Drone motor (Red) 1960KV-6S
Long Range Cruiser Drone: 7-Inch Build for Exploration
Table of Contents Understanding Long Range Cruiser Drone Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
FPV Receiver Binding: ELRS, SBUS and SmartPort Explained
Table of Contents Understanding FPV Receiver Protocols ELRS (ExpressLRS) Binding Guide SBUS: Wiring and Configuration SmartPort Telemetry: Setup...
Read More →
Solenoid Valve Control with Arduino: 12V & 24V Guide
Table of ContentsWhat Is a Solenoid Valve?Types of Solenoid ValvesWhy You Cannot Drive a Solenoid Directly from ArduinoMethod...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| Cell Configuration | 6S |
| KV Rating | 1960KV |
| Color | Red |
| SKU | AI8046 |
| Weight | 0.055 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD CO – FS 2306 Thruster FPV Drone motor (Red) 1960KV-6S is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
