This is the Green variant of the MAD CO – FS 2004 DYNAMO FPV Drone motor (Green) 2950KV in Drone Motor. Available at ₹3,078.60 (₹2,608.98 + GST) with free shipping across India.

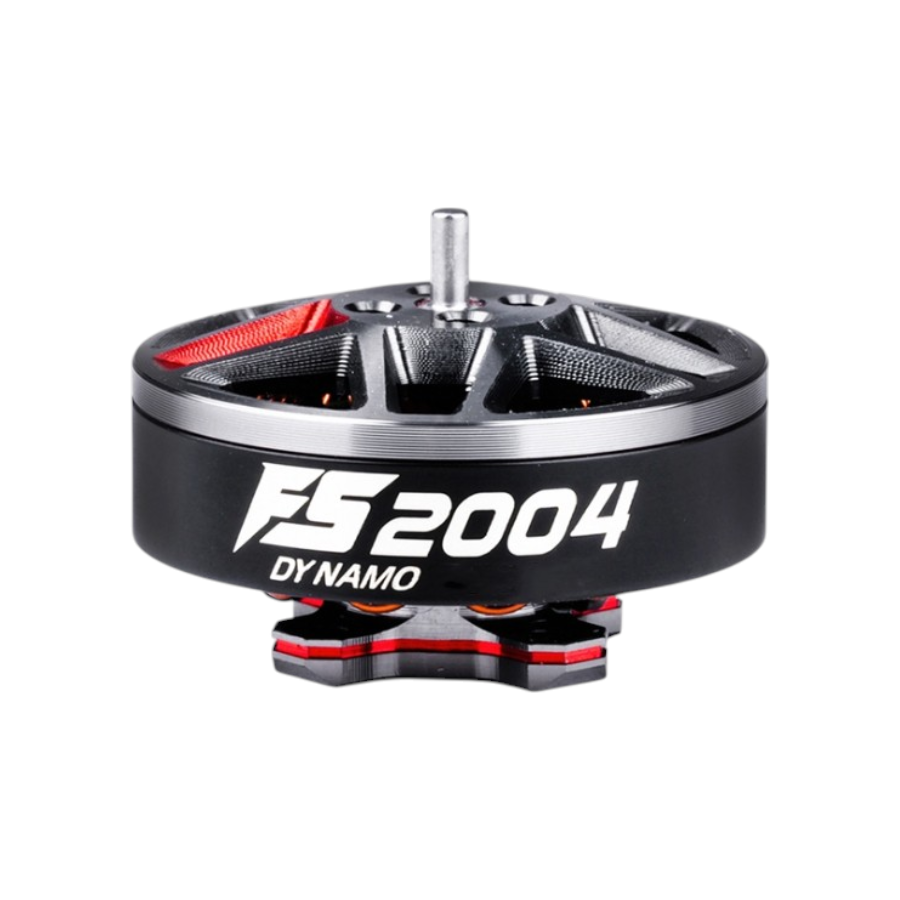

MAD CO – FS 2004 DYNAMO FPV Drone motor (Green) 2950KV
Description:
The FS series of MAD FPV brushless motors is designed for freestyle flying. The development process involved six months of rigorous testing, resulting in refined aesthetics and functionality.
The main difference between the FS and BSC series is the superior quality of the materials used.
Features:
- titanium shaft.
- 0.15mm silicon steel sheet.
- High-temperature magnets.
- Secondary anodizing.
Specifications:
| Color: | Green |
|---|---|
| Max Current (A) | 31 |
| Internal Resistance(mOhm) | 65.8 |
| Max. Power (W) | 744 |
| Motor KV (RPM/V): | 2950 |
| Motor Type: | Brushless Motor |
| Compatible LiPO Batteries: | 6S |
| Framework | 12N14P |
| Shaft Diameter (mm): | 1.5 |
| No of poles | 14 |
| Outer Diameter (mm): | 24.3 |
| Height (mm): | 17.25 |
| Weight (g): | 17 |

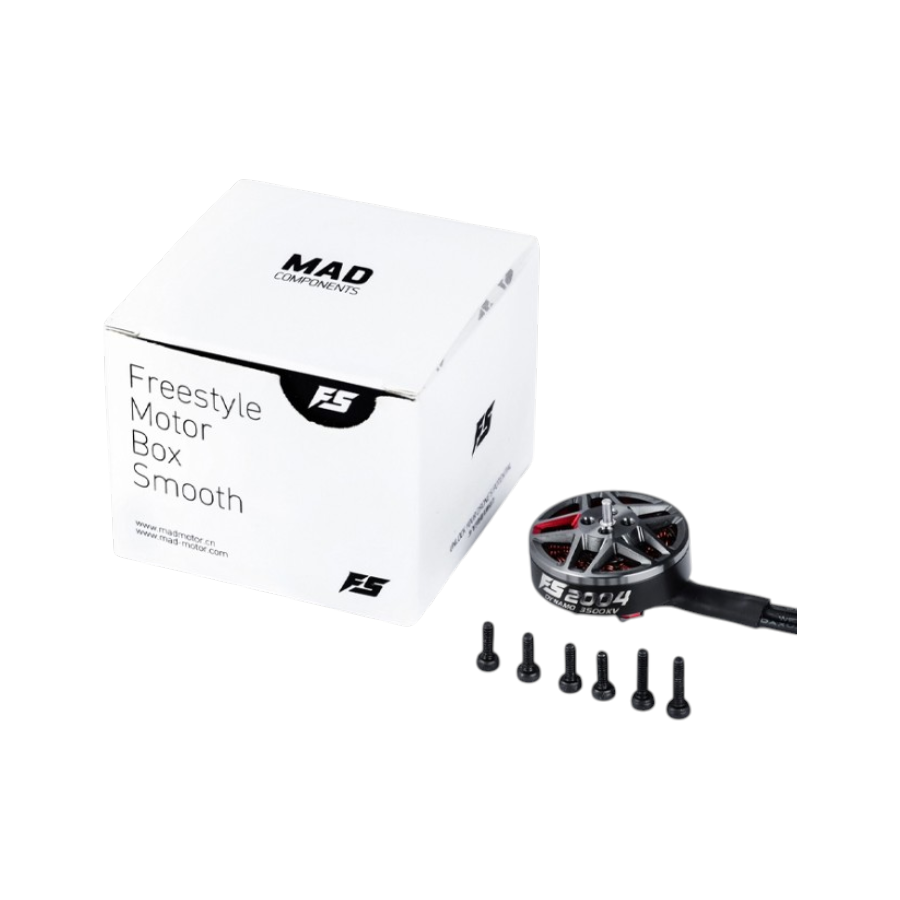

Package Includes:
1 x MAD CO – FS 2004 DYNAMO FPV Drone motor (Green) 2950KV
How to Choose Motor Driver for Your DC Motor: Formula Guide
Picking the wrong motor driver is one of the most common and expensive mistakes in robotics. Too weak...
Read More →
Soft Start Circuit for DC Motor: Reduce Inrush Current with Arduino
When a DC motor starts from rest, it draws a massive burst of current — typically 5 to...
Read More →
RC ESC Calibration: Setting Throttle Range Step by Step
If your RC vehicle, drone, or boat is not performing as expected — if the motor does not...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 2950KV |
| Color | Green |
| SKU | AI8057 |
| Weight | 17 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD CO – FS 2004 DYNAMO FPV Drone motor (Green) 2950KV is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
