MAD CO 4014 IPE Brushless Motor 450KV (Pack Of 2)
Description:

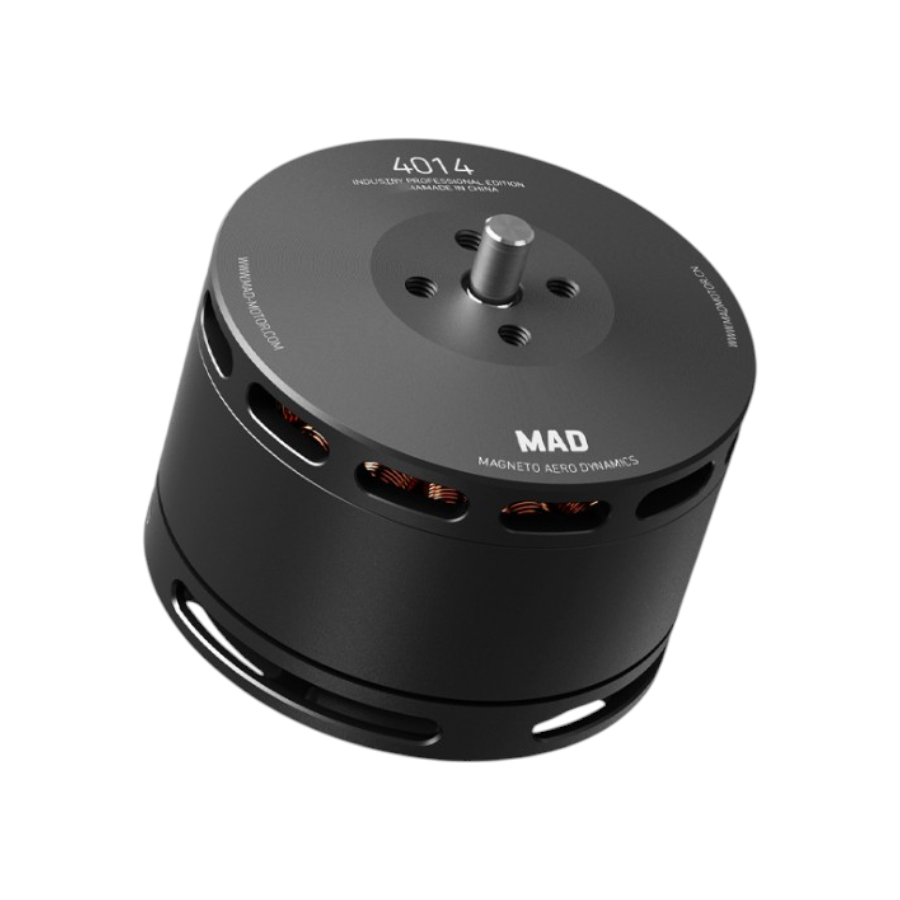

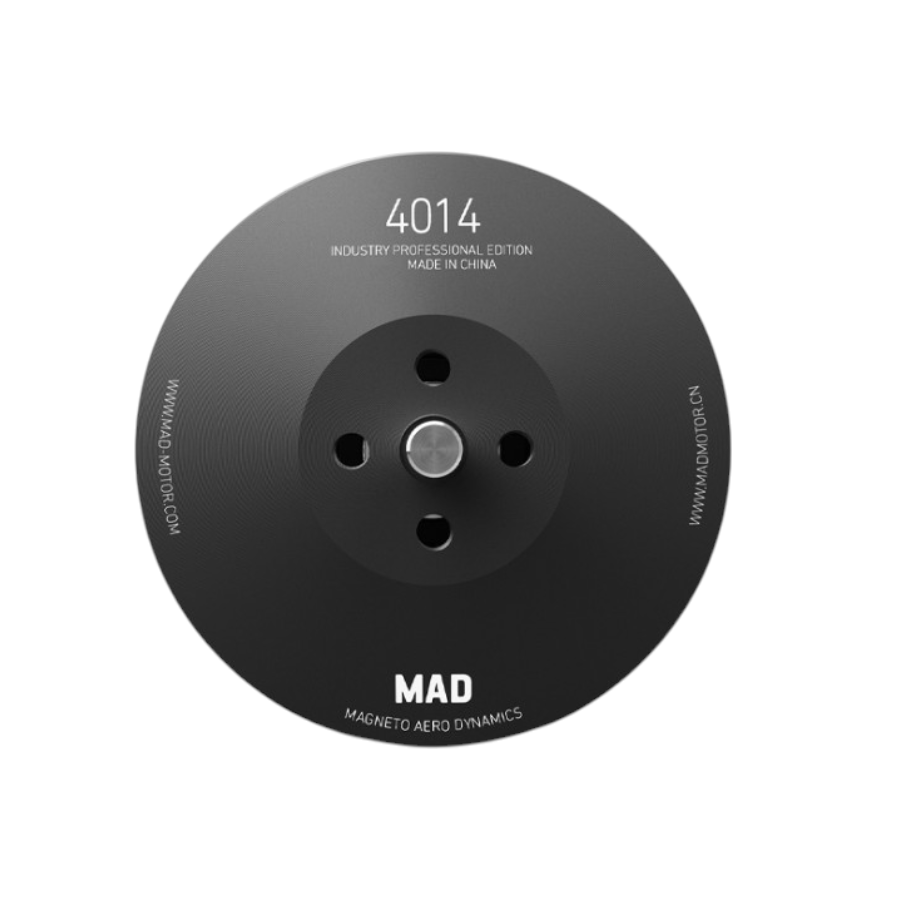

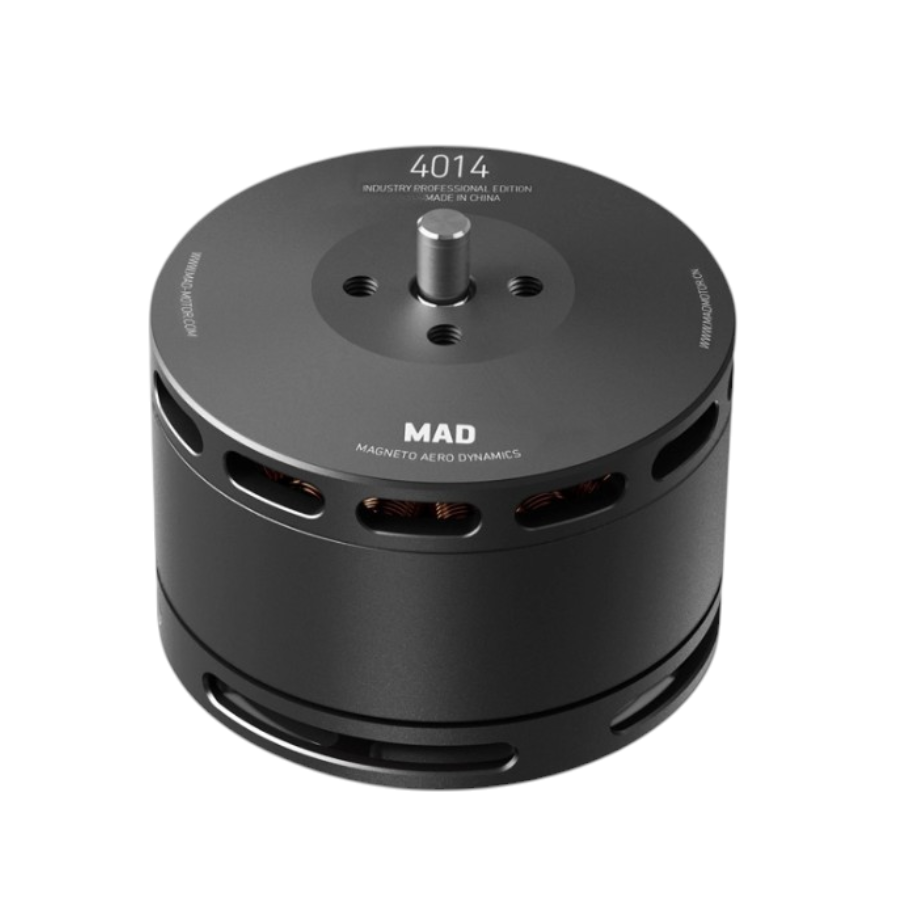

The MAD CO 4014 IPE 450KV Brushless Drone Motor 450KV (Pack of 2) is engineered for UAV enthusiasts who demand high efficiency, reliability, and superior performance. Built with a Taiwan-made stator and anticorrosive varnished wire, this motor ensures durability even under extreme conditions. With IP35 protection, centrifugal heat dissipation, and balanced rotors, it delivers smooth operation with minimal vibration. Designed for professional drones, it offers a maximum thrust of 3.6 kg, maximum power of 761W, and operates seamlessly with 6S LiPo batteries. Whether for quadcopters, hexacopters, or octocopters, this motor guarantees stable flights, longer endurance, and consistent power delivery.
Features:
- High-performance 450KV brushless motor for UAVs
- IP35 protection against dust and light rain
- Centrifugal heat dissipation for stable long-term operation
- Rotor balance ≤5 mg, motor balance ≤10 mg ensures smooth flights
- Maximum thrust of 3.6 kg with up to 761W power output
- Lightweight at only 170g per motor for optimized efficiency
Applications:
- Heavy-Lift Cinematography:
- Safely carries Sony Venice 2 + DJI Ronin 4D (3.2kg payload)
- Ultra-smooth operation for 8K video stabilization
- Industrial Logistics
- 8km delivery range with 2kg cargo (VTOL compatible)
- Shock-resistant design for urban environments
- Defense & Surveillance
- Radar-absorbent coating option available
Specifications:
| Item Type: | Drone motor |
|---|---|
| Motor KV (RPM/V): | 450 |
| Model: | IPE Brushless Drone Motor |
| Model No: | 4014 |
| Compatible LiPO Batteries: | 6S |
| Shaft Diameter (mm): | 05 |
| Max. Power (W) | 761 |
| Maximum Thrust (gm) | 3600 |
| No of poles | 12 (24 poles) |
| Bearing | 685ZZ*1, 695ZZ ×1 |
| Propeller Mount Holes | D:12 M3×4 |
| Motor Mount Holes | D:25 M3×4 |
| Weight (g): | 168(each) |

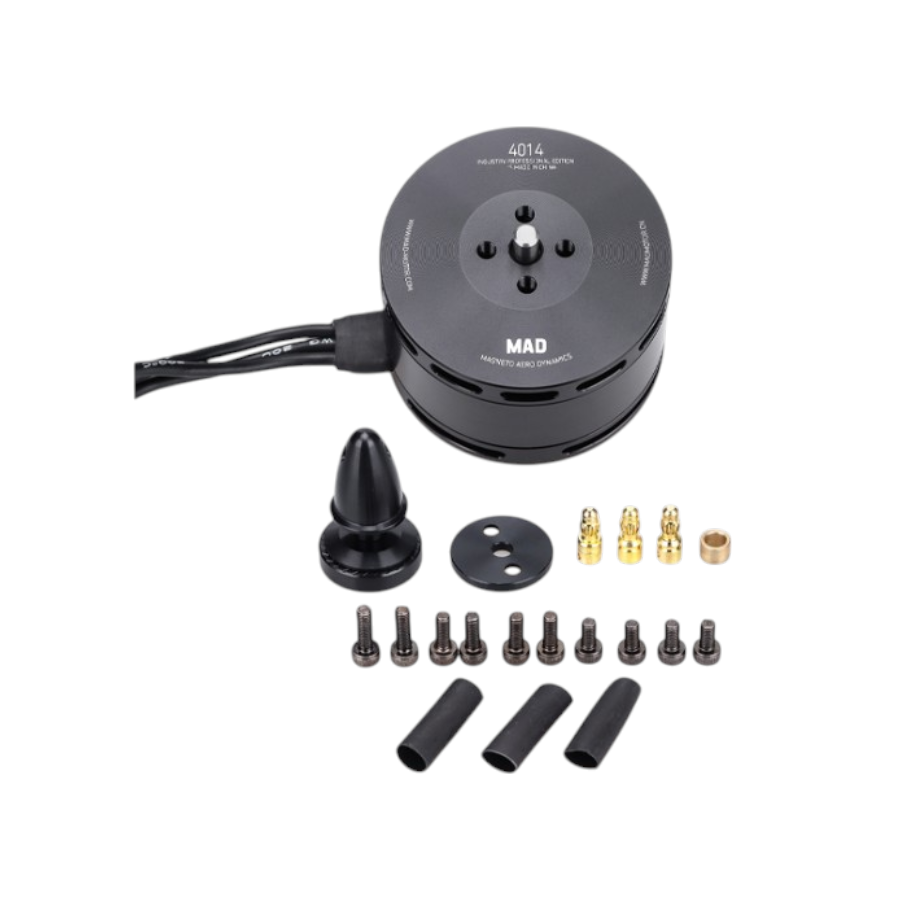

Package Includes:
2 × MAD CO 4014 IPE brushless motor 450KV (Pack Of 2)
2 × Propeller Plates
2 × Prop Adapters
2 × M6 Bullet Adapter Plates
6 × 3.5mm Bullet Connectors
2 × Ø4–6 Adapter Rings
6 × Heat Shrink Tubes
8 × M3×6 Motor Mounting Screws
8 × M3×8 Prop Adapter Screws
4 × M3×10 Propeller Screws
2 × Branding Stickers
