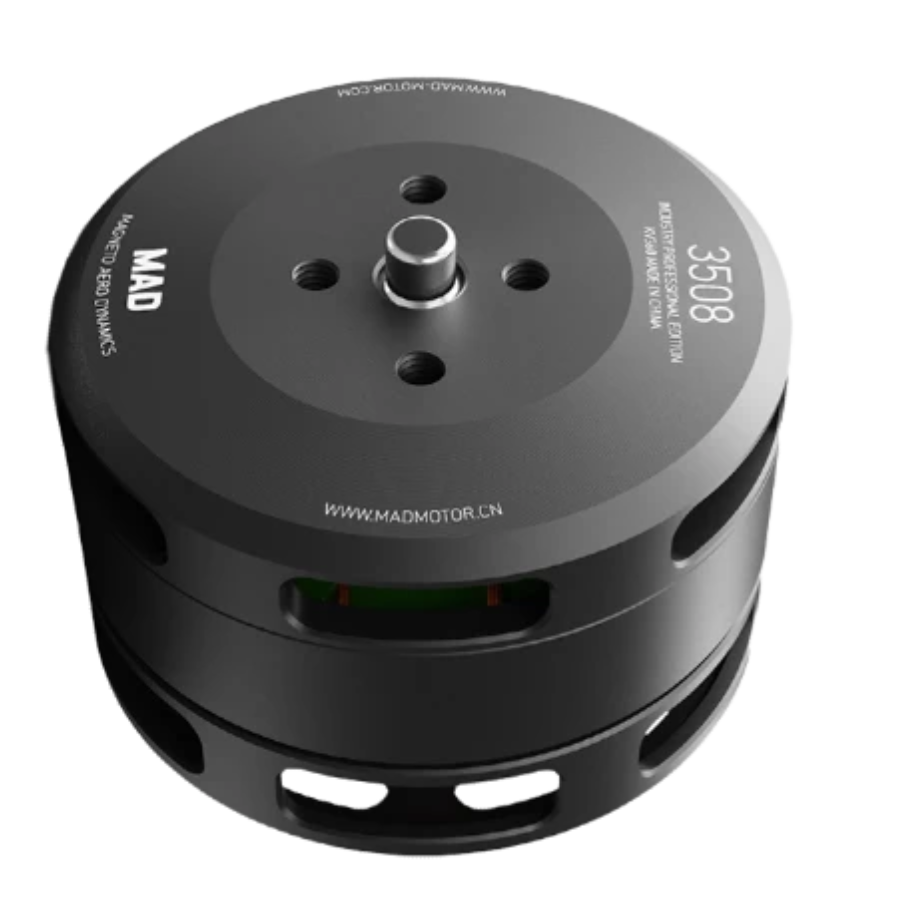

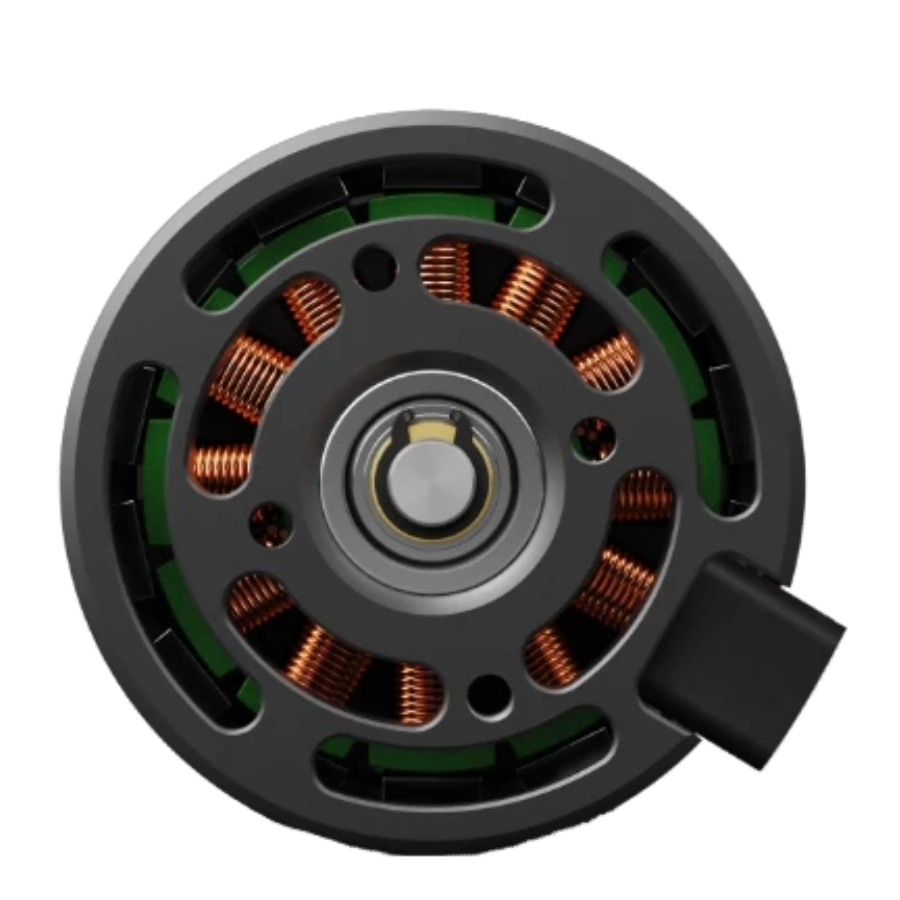

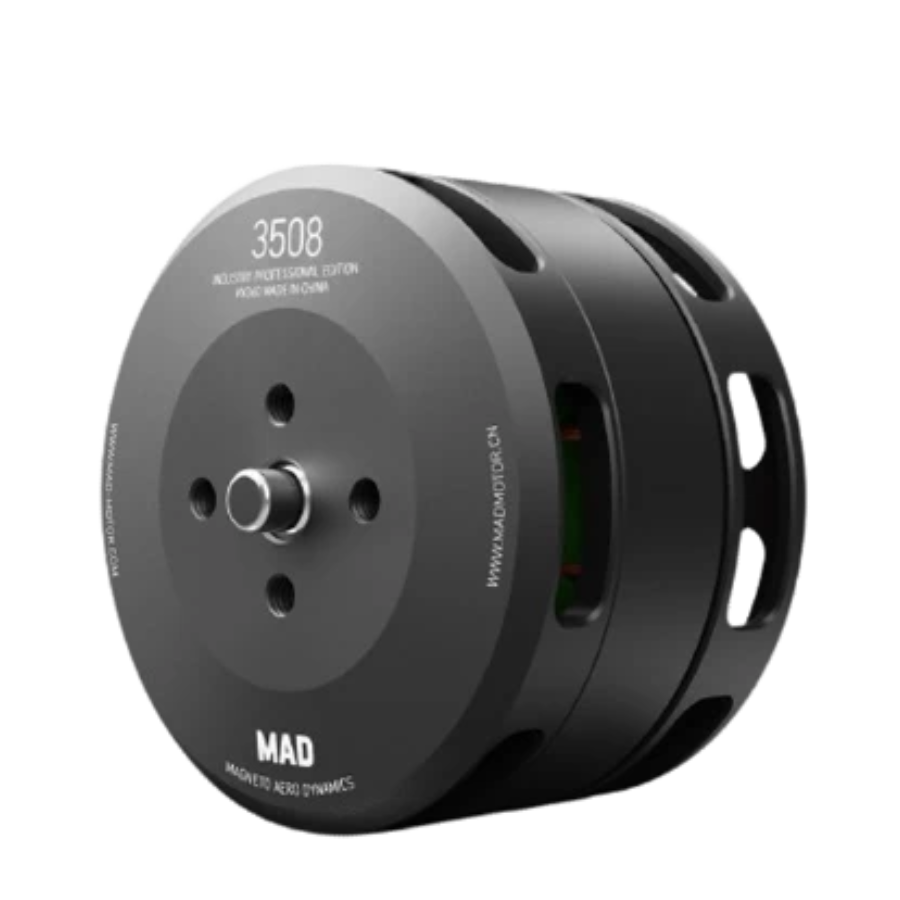

MAD CO 3508 IPE Brushless Drone Motor 360KV (Pack Of 2)
Description:
The MAD CO 3508 IPE 360KV brushless motor is a high-efficiency, precision-engineered solution for professional drone applications. Designed for ultra-lightweight performance at just 99g per motor, it delivers a powerful maximum thrust of 1.6kg per axis, making it ideal for heavy-lift UAVs, cinematic drones, and agricultural setups. With support for 13–16″ carbon fiber propellers and up to 245W power output, it ensures smooth, stable flight with minimal vibration. Built with anti-corrosive varnished wire and IP35-rated protection, it’s robust and reliable for industrial use. This pack of 2 motors comes boxed and balanced for performance and durability in the most demanding conditions.
Features:
- High Torque & Thrust: Up to 1.6kg per axis
- Efficient Power: 245W max power at 10.3A
- Cinematic Stability: Smooth & vibration-free operation
- Durable Build: IP35 protection, anti-corrosive components
- Easy Installation: Compatible with 13–16″ propellers
- Ultra-Lightweight: Just 99g per motor
Application:
- Cinematic drones – For stable heavy camera setups
- Industrial UAVs – Ideal for inspections & mapping
- Agricultural drones – For spraying & crop monitoring
- Heavy-lift multirotors – Quad, Hexa, or Octocopters
- R&D projects – Reliable for testing & prototyping
- Payload drones – Lifts up to 700g per motor
Specification:
| Item Type: | Drone motor |
|---|---|
| Model No: | 3508 |
| Motor KV (RPM/V): | 360 |
| Motor Type: | IPE Brushless Drone Motor |
| Compatible LiPO Batteries: | 4S–6S LiPo battery |
| No-load current (A) | 0.37A @ 20V |
| Max Current (A) | 10.3 |
| Max Power Output (W) | 245 |
| Torque: | 1.6 kg |
| Max Thrust | 0.277 Nm |
| Shaft Diameter (mm): | 5 |
| Mounting Hole(mm) | 685ZZ*1, 695ZZ*1 |
| Motor Size (mm): | D:42.5 × 30.5 |
| Motor Outer Diameter(mm) | 42.5 |
Package Includes:
1 x MAD CO 3508 IPE Brushless Drone Motor 360KV (Pack Of 2)
2 x Propeller Plate
6 x 3.5mm Bullet Connector
2 x 04-6 Adapter Ring
6 x Heat Shrinkable Tube
8 x M3*6 Motor Screws
4 x M3*10 Propeller Screws
2 x Sticker
ArduCopter Guided Mode: Complete Mission Planner Waypoint Tutorial
Table of ContentsIntroductionPrerequisites and HardwareMission Planner Installation and ConnectionPre-Flight ConfigurationUnderstanding AUTO Mode vs Guided ModeCreating a Waypoint MissionKey...
Read More →
Stepper Motor Max Speed: Calculation & Tuning for Best Performance
One of the most common questions from builders commissioning a new CNC machine, 3D printer, or robot is:...
Read More →
Drone Motor Testing: Thrust Stand Build and KV Measurement
If you are building a drone, selecting the right motor-propeller combination is critical for flight performance. A drone...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 360KV |
| Package Quantity | 2 pcs |
| SKU | AI8103 |
| Weight | 0.356 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD CO 3508 IPE Brushless Drone Motor 360KV (Pack Of 2) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine MAD COMPONENTS product sourced from authorized channels
Reviews
There are no reviews yet.
