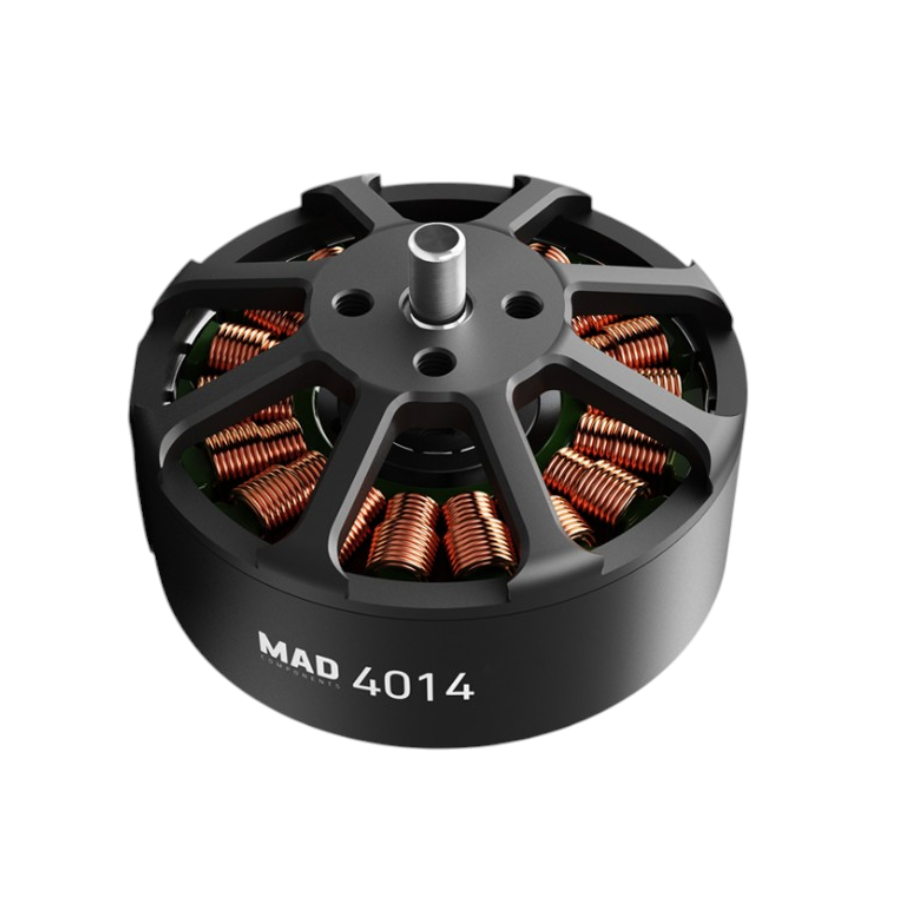

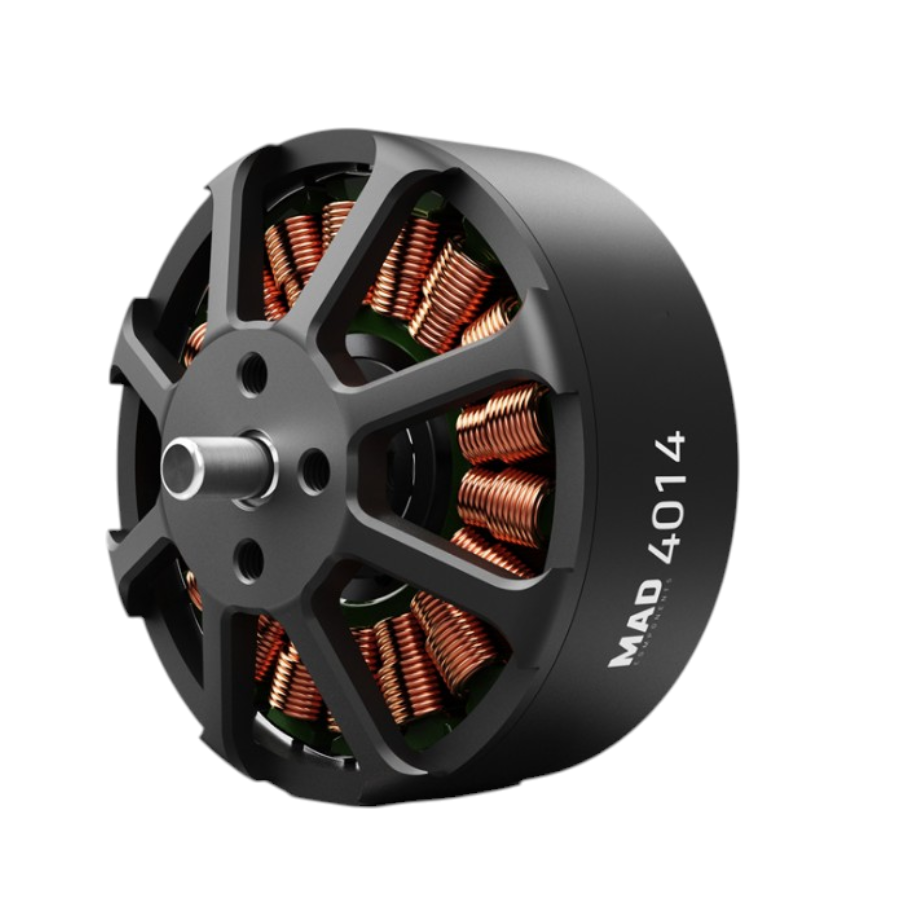

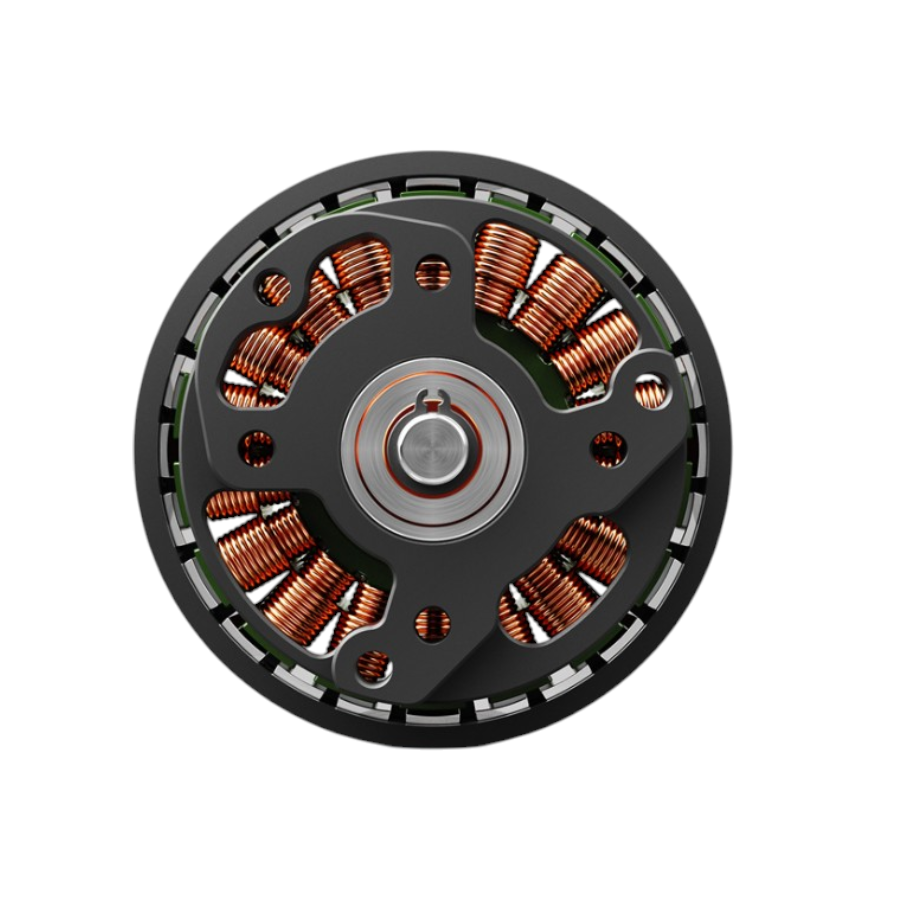

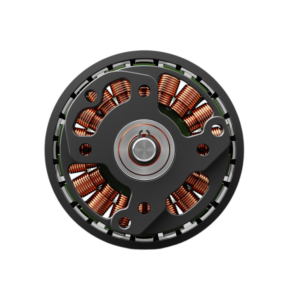

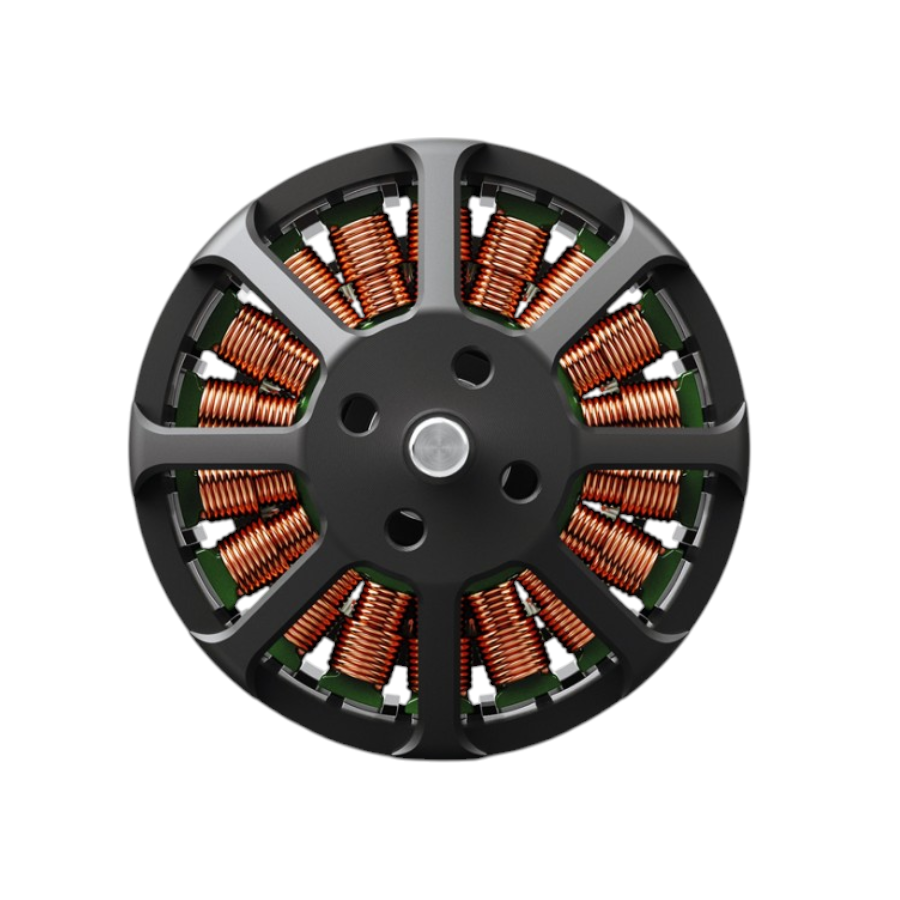

MAD 4014 EEE Brushless Motor 370KV (Pack Of 2)
Description:
Introducing the MAD CO 4014 EEE Brushless Motor (370 KV) – Pack of 2, a high-performance solution for industrial, mapping, inspection, and cinematography drones. Engineered for endurance flight and heavy-lift capability, each motor delivers exceptional thrust, thermal resilience, and weight efficiency. With a robust output of up to 3.1 kg of thrust per motor, these motors are ideal for multi-rotor UAVs carrying high-value payloads such as professional camera systems or surveying equipment.
Optimized for 6S LiPo setups, the 4014 EEE offers smooth, efficient power delivery, while the IP-rated construction ensures reliable performance even in challenging environments. Whether you’re flying in demanding industrial zones or capturing aerial footage in remote terrains, this dual-motor pack offers the perfect blend of power, protection, and precision.
Dimensional Diagram:
Features:
- High Payload Capability — Supports 1–1.5 kg of payload per rotor, making it ideal for professional aerial cameras, LiDAR scanners, and other inspection equipment.
- Strong Thrust Output — Each motor delivers up to 3.1 kg of thrust, providing powerful lift and stable flight dynamics for heavy-lift drone applications.
- Optimized for 6S LiPo Systems — Designed to operate efficiently with 6-cell LiPo batteries, offering consistent power delivery for long-endurance missions.
- Durable, IP-Rated Design — Engineered with rain-resistant housing, high-quality bearings, and corrosion-resistant stator coatings for extended reliability in harsh environments.
- Lightweight Build — Weighing approximately 166 g per motor, it strikes the perfect balance between performance, efficiency, and flight time.
Applications:
- Heavy-Lift Cinematography:
- Safely carries Sony Venice 2 + DJI Ronin 4D (3.2kg payload)
- Ultra-smooth operation for 8K video stabilization
- Industrial Logistics
- 8km delivery range with 2kg cargo (VTOL compatible)
- Shock-resistant design for urban environments
- Defense & Surveillance
- Radar-absorbent coating option available
Specifications:
| Motor Type: | EEE Brushless Motor |
|---|---|
| Model No: | 4014 |
| Motor KV (RPM/V): | 370 |
| Compatible LiPO Batteries: | 6S |
| Shaft Diameter (mm): | 5 |
| Motor Outer Diameter(mm) | 45 |
| Max. Power (W) | 507 |
| Maximum Thrust (gm) | 3100 |
| No-load current (A) | 0.91 |
| No-Load Current (mA) | 910 |
| No of poles | 14 |
| Torque: | 0.636 Nm |
| Motor Size (mm): | D:44.9 × 39.9 |
| Propeller Mount Holes | Size-D:12 M3×4 |
| Bearing | EZO 685ZZ*1 / EZO 695ZZ*1 |
| Cable | 600 mm 18# Awg(Black) silicone |
| Motor Mount Holes | D:25 M3×4, D:32 M2.5×3 |
| Weight (g): | 120(each) |

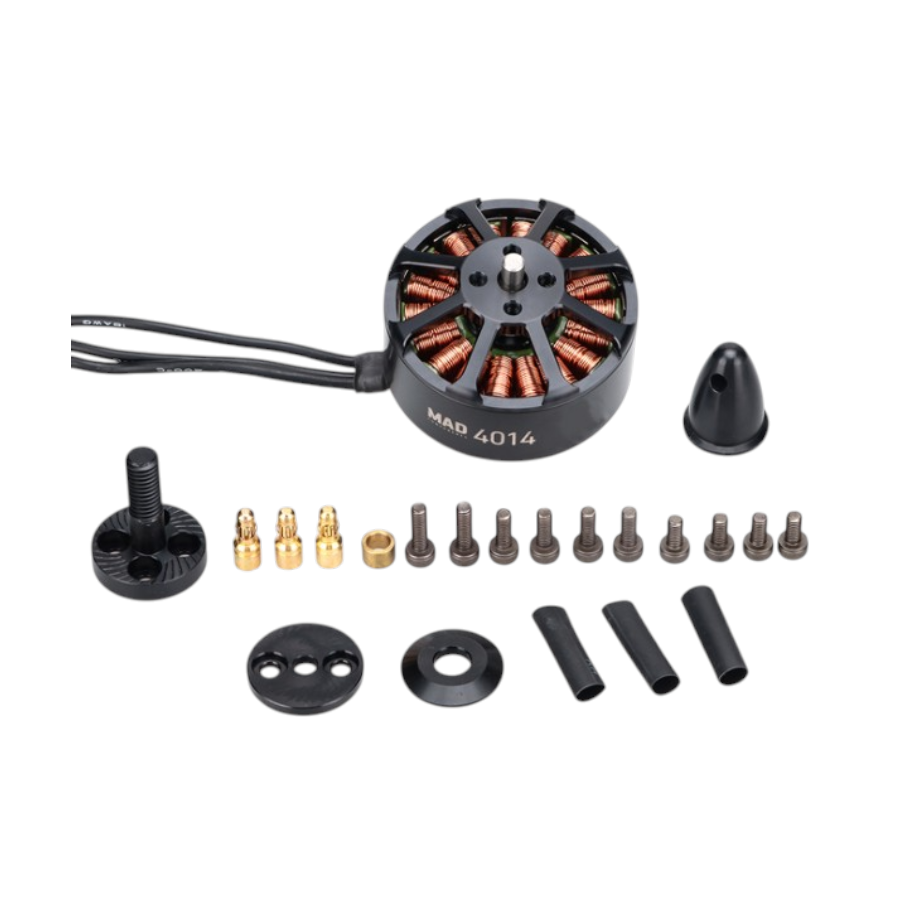

Package Includes:
2 x MAD 4014 EEE Brushless Motor 370KV
2 x Propeller Plates
2 x Prop Adapters
2 x Adapter Propeller Plate M6 Bullet
8 x M3×6 Motor Mounting Screws
8 x M3×8 Prop Adapter Screws
4 x M3×10 Propeller Screws
2 x 3.5mm Bullet Connectors
6 x Adapter Rings (Ø4–6)
6 x Heat Shrink Tubes
2 x MAD Motor Stickers
