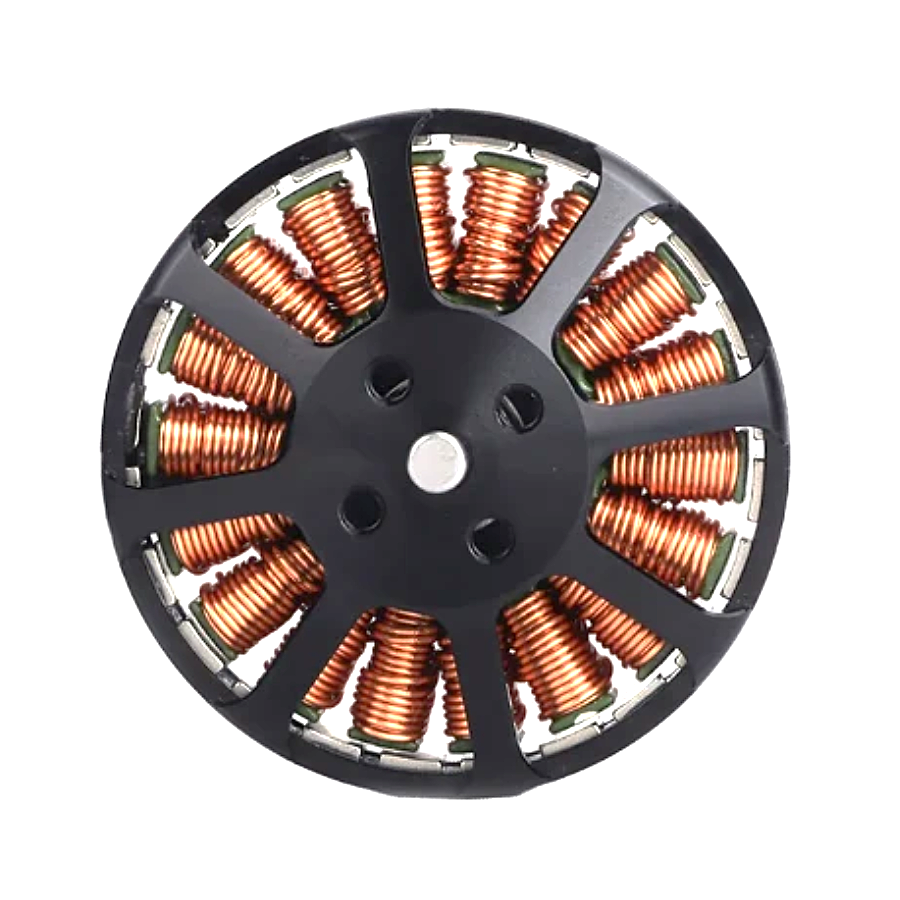

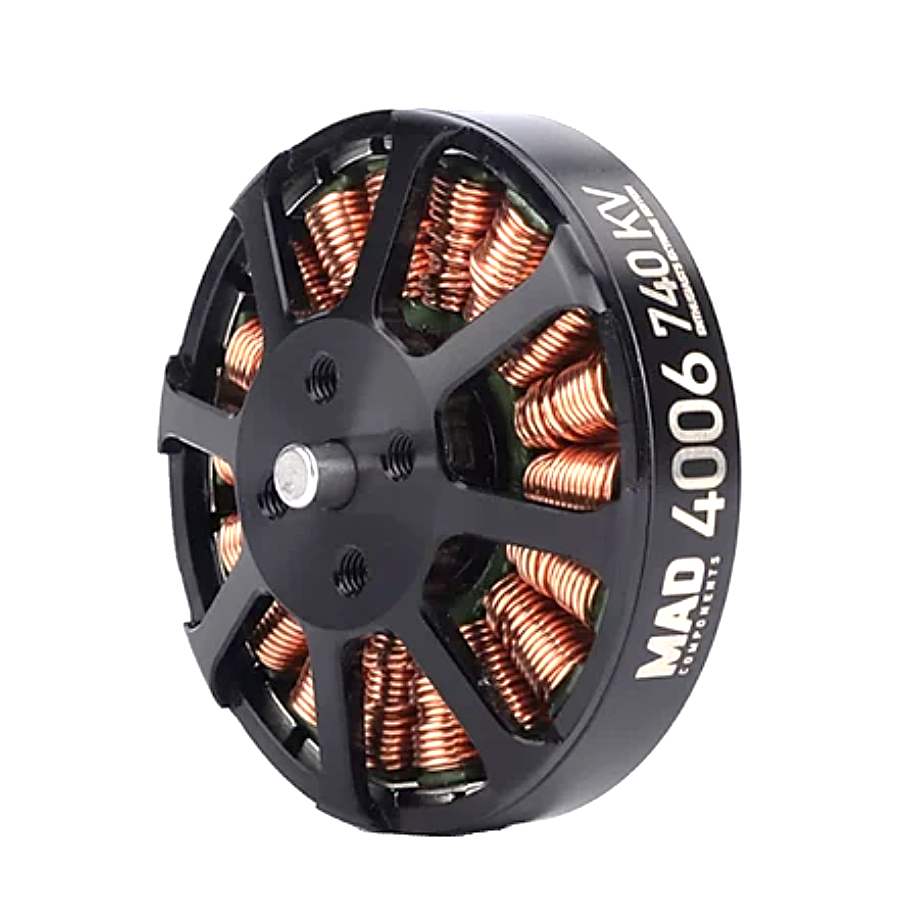

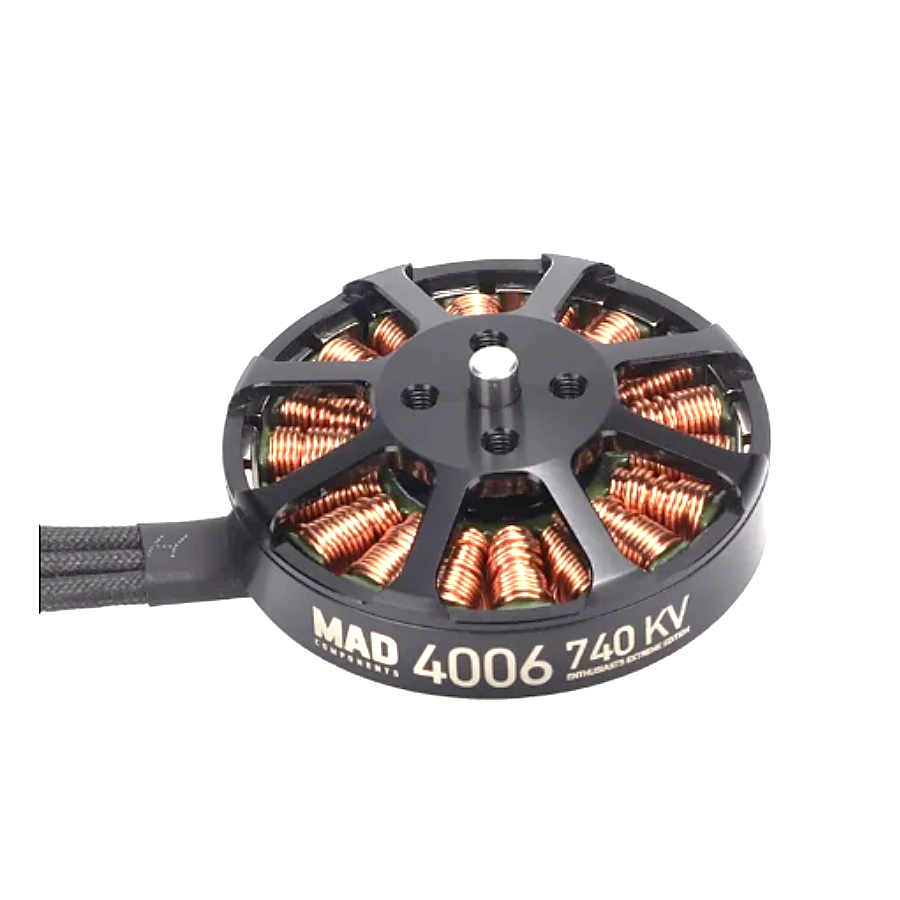

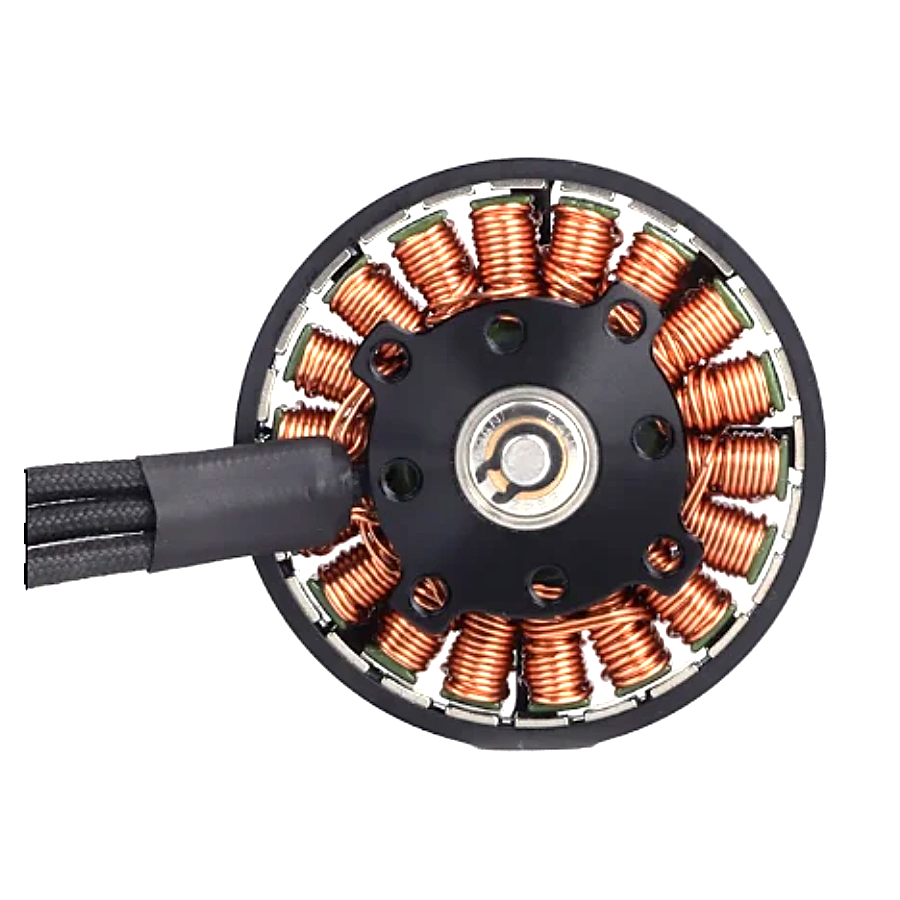

MAD 4006 EEE Brushless Motor 740KV (Pack Of 2)
Description:
The MAD 4006 EEE Brushless Motor 740KV – Pack of 2 merges featherweight design with potent aerial lift. Each motor tips the scales at just 72 g, yet pushes a surprising 2.2 kg of maximum thrust—thanks to an outstanding 30.5:1 thrust-to-weight ratio. EEE Brushless Motor 740KV designed for 13–16″ carbon fiber propellers and built to endure, this motor shines in ** cinematic heavy-lift drones**, industrial inspection rigs, and even hybrid cine‑whoops.
Thoughtfully engineered for smooth, extended flights on 6S–8S LiPo battery systems, the MAD 4006 EEE ensures stable, efficient, and low-vibration performance—every time
Features:
- Ultra-lightweight motor—only 72 g each
- Efficient 740 KV performance for rapid aerial ups
- Outstanding thrust-to-weight efficiency (30.5:1)
- Compatible with 13–16″ carbon fiber props
- Built for 6S–8S LiPo systems and long endurance flights
Applications:
- Professional cinematography drones (Red Komodo, Sony FX3 payloads)
- Industrial inspection platforms (LiDAR/thermal imaging systems)
- Advanced FPV racing (hybrid cinewhoop builds)
- Agricultural monitoring (multispectral sensor arrays)
Specification:
| Motor KV (RPM/V): | 740 |
|---|---|
| Motor Type: | Brushless Motor |
| Model No: | 4006 |
| Compatible LiPO Batteries: | 6S–8S |
| Max. Power (W) | 455 |
| No of poles | 12 (24 poles) |
| Motor Size (mm): | D:44.5 × 24.1 |
| Bearing | 694ZZ*2 |
| Propeller Mount Holes | D:12 M3×4 |
| Motor Mount Holes | D:19 M3×4, D:25 M3×4 |
Package Includes:
2 x MAD 4006 EEE Brushless Motor 740KV
1 x Accessory Set
5V DC Motor vs 12V DC Motor: Which to Use in Arduino Projects
Table of ContentsIntroductionDC Motor Basics: Voltage, Torque & Speed5V DC Motors: Strengths & Limitations12V DC Motors: Strengths &...
Read More →
Gimbal Stabilizer Motor: How Brushless Motors Work in 2-Axis Gimbals
A gimbal stabilizer feels almost magical: a camera balances perfectly in mid-air while the drone pitches and rolls...
Read More →
Hall Effect Sensor for Motor Speed Measurement with Arduino
Accurate motor speed measurement is the foundation of any closed-loop control system. Without knowing how fast your motor...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 740KV |
| Package Quantity | 2 pcs |
| SKU | AI8098 |
| Weight | 0.49 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD 4006 EEE Brushless Motor 740KV (Pack Of 2) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
