LPC4320FBD144,551 ARM Microcontroller
The LPC4320FBD144,551 is a microcontroller from NXP Semiconductors, featuring an ARM Cortex-M4 core. Here’s a detailed description of its features:
Core: The LPC4320FBD144,551 is powered by a dual-core ARM Cortex-M4 processor running at speeds up to 204 MHz. The Cortex-M4 core offers advanced DSP (Digital Signal Processing) capabilities and a high level of performance suitable for demanding embedded applications.
Memory: This microcontroller includes 256 KB of flash memory for program storage and 136 KB of SRAM for data storage. The ample memory resources allow for efficient execution of code and manipulation of data in various applications.
Peripherals: It features a wide range of integrated peripherals, including GPIO (General Purpose Input/Output) pins for digital interfacing, UART (Universal Asynchronous Receiver/Transmitter) for serial communication, SPI (Serial Peripheral Interface) for interfacing with SPI devices, I2C (Inter-Integrated Circuit) for communication with I2C devices, ADC (Analog-to-Digital Converter) for analog sensor interfacing, and Ethernet MAC (Media Access Controller) for networking applications.
Security Features: The LPC4320FBD144,551 incorporates security features such as a unique device identifier (UID), hardware AES (Advanced Encryption Standard) encryption engine, and secure boot loader to ensure data security and integrity.
Power Management: With its low-power Cortex-M4 core and multiple power modes, including sleep and deep sleep modes, the LPC4320FBD144,551 is suitable for battery-powered applications and those requiring energy efficiency.
Package: It is available in a 144-pin LQFP (Low-profile Quad Flat Package), making it suitable for space-constrained applications.
Operating Voltage: The microcontroller operates in the voltage range of 1.62 V to 3.6 V, making it compatible with various power supplies.
Operating Temperature Range: It can operate in temperatures ranging from -40°C to +85°C, making it suitable for use in harsh environmental conditions.
Development Tools: NXP provides a comprehensive set of development tools, including software development kits (SDKs), integrated development environments (IDEs), and debugging tools, to facilitate rapid prototyping and software development for the LPC4320FBD144,551 microcontroller.
Note:
For more technical details, go through the datasheet in the attachments

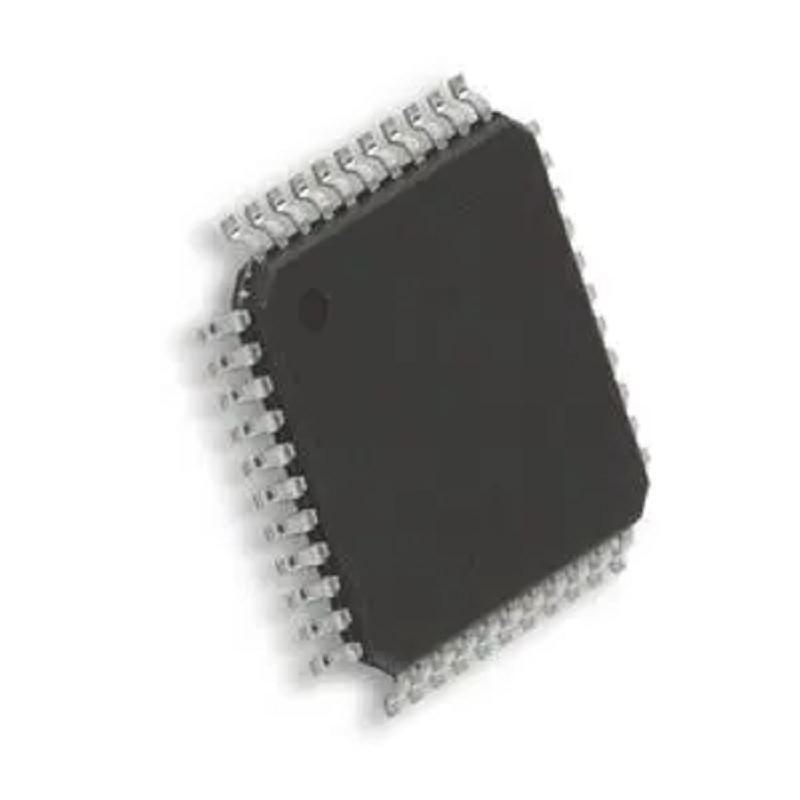

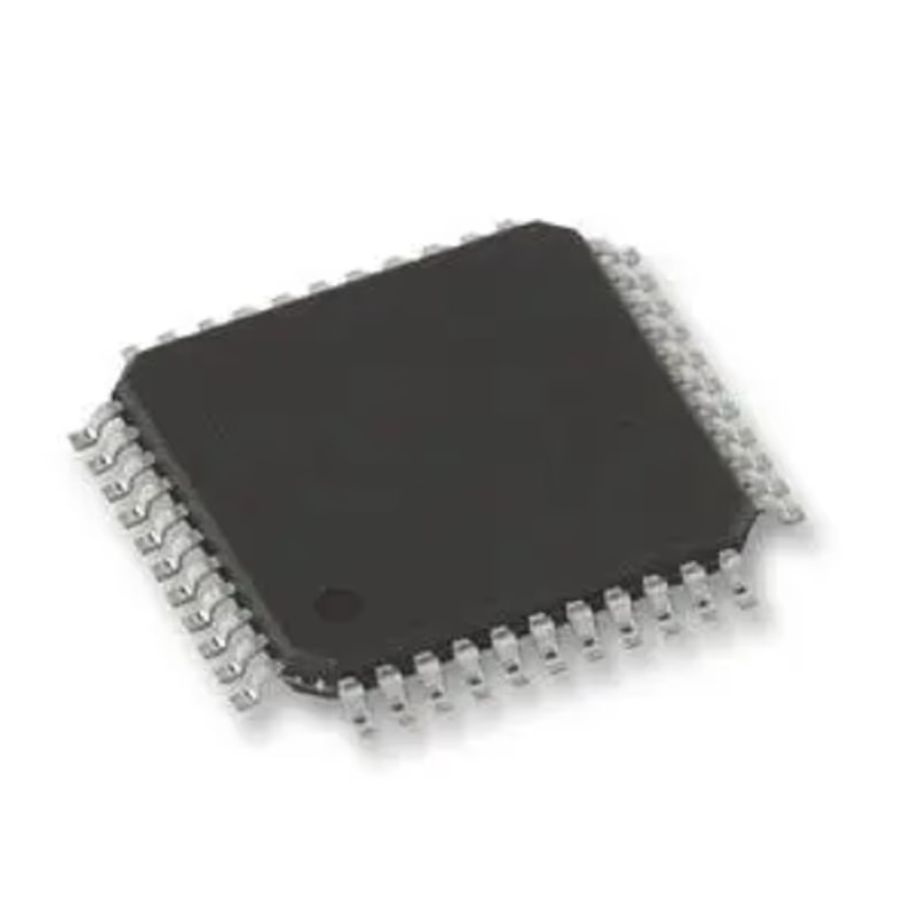

Image may vary from actual product in terms of brand and value printed
Specification:
Specification | Value |
---|---|
Core | Dual-core ARM Cortex-M4 |
Maximum Frequency | Up to 204 MHz |
Flash Memory | 256 KB |
SRAM | 136 KB |
GPIO | Up to 90 pins |
UART | Supported |
SPI | Supported |
I2C | Supported |
ADC | Supported |
Ethernet MAC | Supported |
Security Features | Unique device identifier, AES encryption |
Power Management | Multiple power modes |
Package | 144-pin LQFP |
Operating Voltage | 1.62 V to 3.6 V |
Operating Temperature Range | -40°C to +85°C |
Development Tools | NXP’s SDKs, IDEs, debugging tools |
Packages Includes:
1 x LPC4320FBD144,551 ARM Microcontroller
