PRODUCT DESCRIPTION
The LM10UU 10 MM Linear Motion Bearing is a device that enables precise, safe and reliable linear motion system. It is commonly used in 3D printers and CNC (Computer Numerical Control) machines. It can offer low friction motion along a single axis, which makes it suitable for various applications in DIY and robotics prototyping.

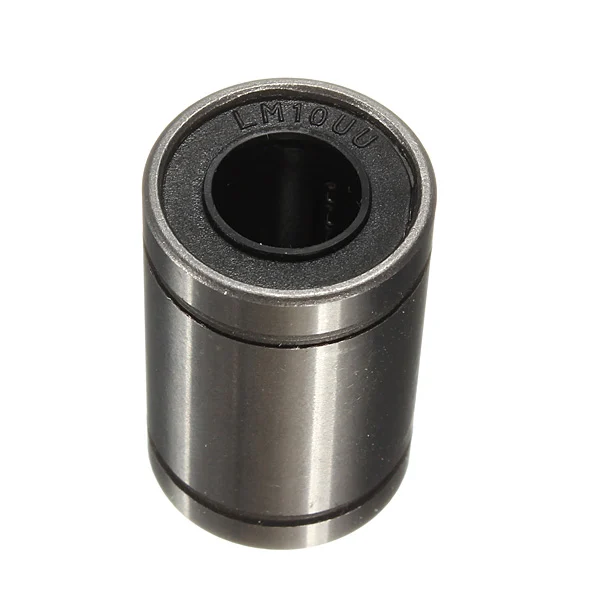

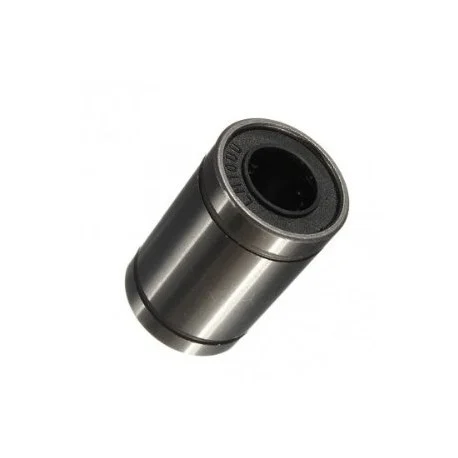

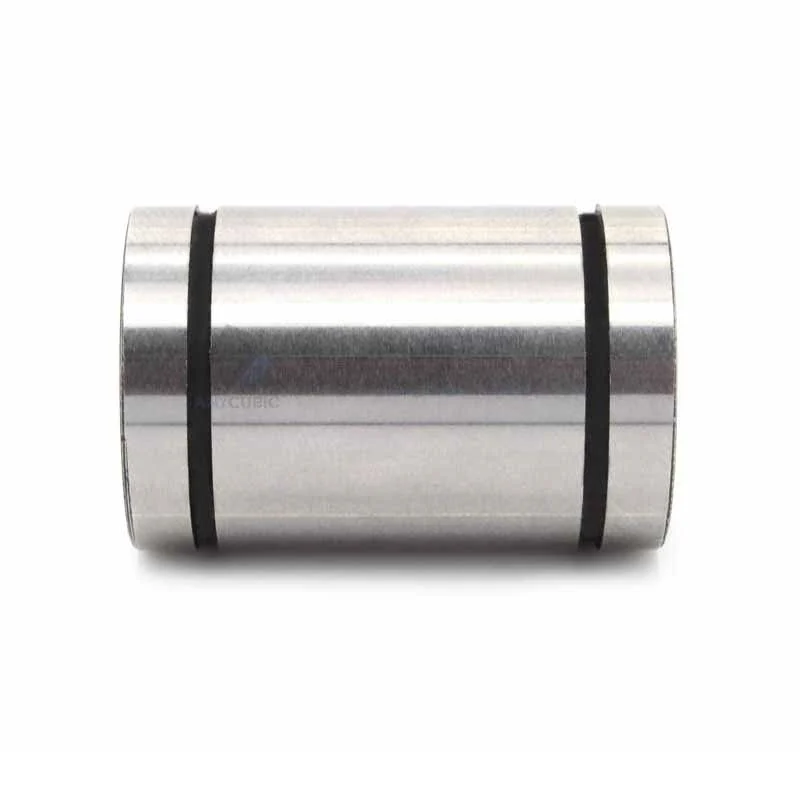

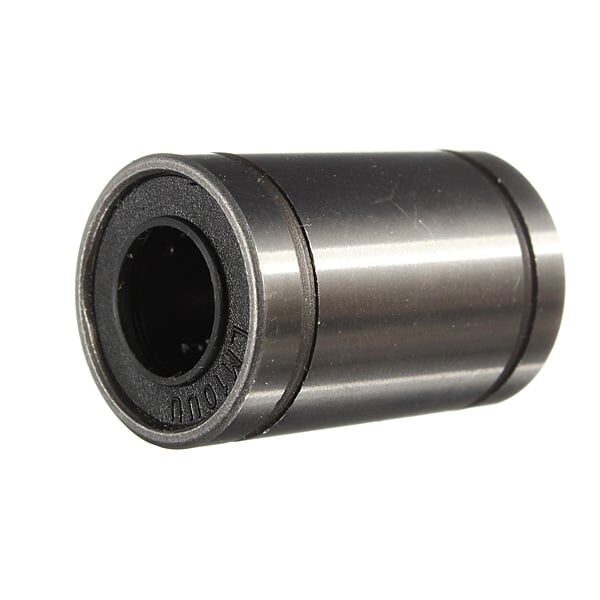

This LM10UU 10 MM Linear Motion Bearing is a closed type ball bushing with a 10mm bore and a 19mm outer diameter. It can be used in a mounted slide unit to carry components. It has standardized parts that are interchangeable, so you don’t have to worry about replacing any worn parts.
The linear motion ball bushing has a high-carbon chromium steel case for strength and rigidity, a synthetic resin retainer plate for accurate ball guidance and low noise. The universal ball bearings can be replaced easily if they are damaged, which can improve the efficiency and save the energy. The balls in the cage loop run along a smooth ball guide surface, which ensures low noise even at high-speed operation.
For reliable and smooth motion, the shaft that the linear motion bearings slide along must be lubricated. The quality of the shaft directly affects the quality of the linear motion. Therefore, using a chrome plated and hardened shaft may be beneficial.
Features :
- Outer Casing: Chromium Steel
- Low friction, optimum loading capacity, long life.
- It has linear bearing ball cage, hardened coat at both end rings.
- No worry if replacement of any worn part.
- Low noise even in high-speed operation.
Specification:
| Ball Circuits | 3 |
|---|---|
| Color: | silver |
| Length (mm): | 29 |
| Model | LM10UU |
| Outer Casing | Chromium Steel |
| Outer Diameter(mm) | 19 |
| Shaft ID(mm) | 10 |
| Width (mm) | 19 |
| Shipping Weight | 0.099 kg |
| Shipping Dimensions | 3 × 2 × 1 cm |
Package Includes:
1 x LM10UU 10 MM Linear Motion Bearing.
Technical Specifications
| Model | LM10UU |
|---|---|
| Size | 10mm |
| SKU | AI2907 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The LM10UU 10 MM Linear Motion Bearing is a versatile bearings used across a wide range of applications including 3D printer motion systems, CNC machines, conveyor belts, robotic joints, and motor shafts.
Common use cases:
- Replacing worn bearings in a 3D printer
- Building a CNC linear motion system
- Adding smooth rotation to a robotic arm joint
This product is ideal for mechanical engineers, 3D printer owners, and CNC builders.
Technical Tip: Linear bearings (LM8UU) for smooth rail motion; ball bearings for rotational applications. Keep bearings lubricated for long life.
