Product Description

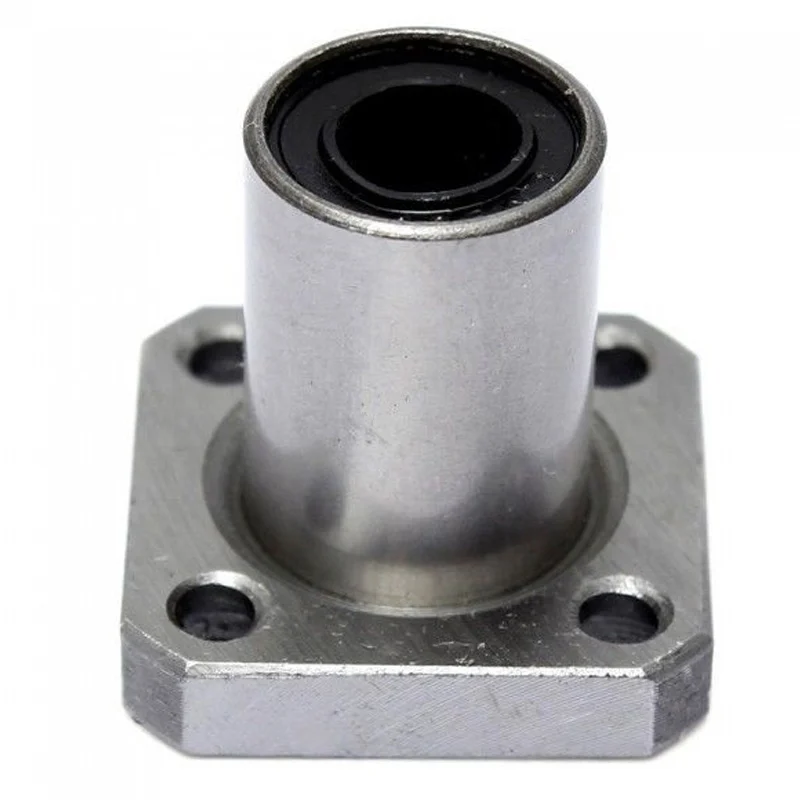

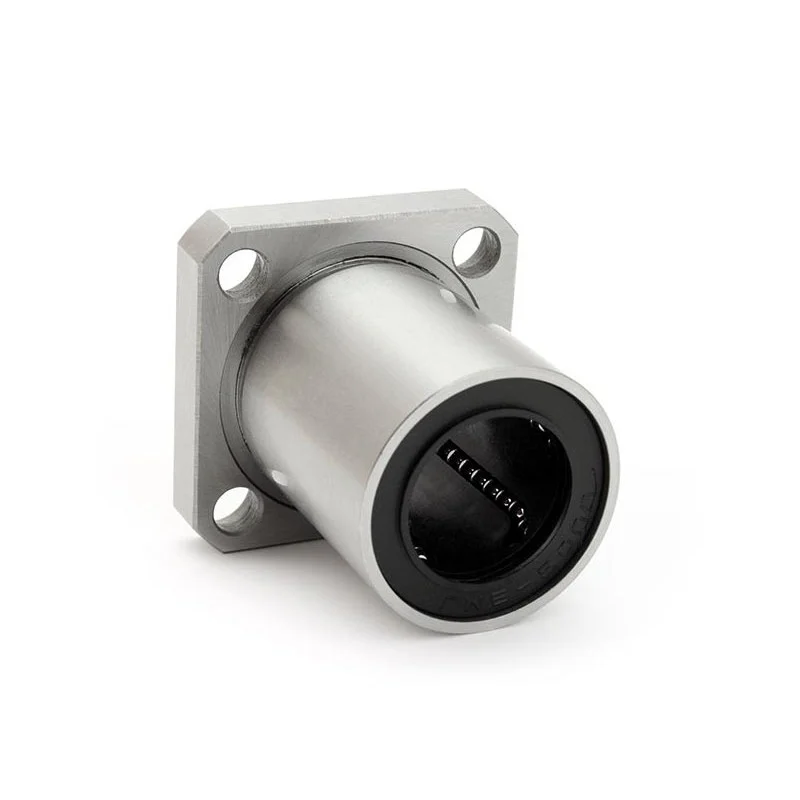

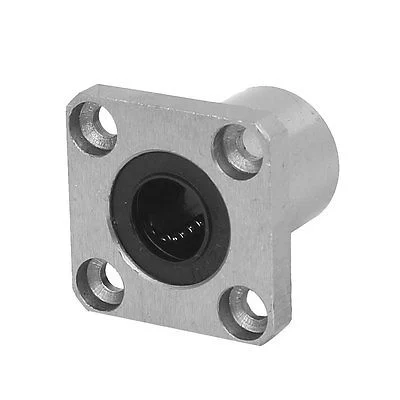

Linear Bearing LMK12UU 12mm Square Flange Bushing is an economical linear motion system that allows unlimited travel along a cylindrical shaft.
These bearings have a small working load because the ball and the shaft only touch at a point. The balls can rotate with minimal friction, resulting in high-precision and smooth movement.
The universal Ball Bearings are ideal for replacing the damaged Ball Bearings in your devices to improve efficiency and save energy. They are widely used in home appliances, industrial, low noise and high-speed electric motors, construction machinery, automotive components, pumps, and machinery.
They offer smooth movement, low friction, high rigidity, and long life. They are also easy to maintain and replace.
Specification:
| Ball Circuits | 4 |
|---|---|
| Color: | Metallic Steel |
| Length (mm): | 30 |
| Model | LMK12UU |
| Outer Casing | Mild Steel |
| Outer Diameter(mm) | 21 |
| Shaft ID(mm) | 12 |
| Width (mm) | 32 |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 5 × 4 × 1 cm |
Package Includes:
1 x Linear Bearing LMK12UU 12mm Square Flange Bushing
