PRODUCT DESCRIPTION
The 4 x 4 matrix keypad usually is used as input in a project. It has 16 keys in total, which means the same input values. The 4 x 4 Matrix Keypad Module is a matrix non-encoded keypad consisting of 16 keys in parallel. The keys of each row and column are connected through the pins outside pin R1-R4 as labelled beside control the rows, when L1-L4, the columns.
A 4×4 matrix keypad consisting of microswitch pushbuttons. The module has four holes 3mm (M3) holes for mounting. The pin designations on each PCB are shown on each PCB. Four pins are thus used as an x coordinate and the other 4 as a y coordinate.
The module is already equipped with soldered pin headers.
Application: outside the expansion of the MCU button, the application of electronic building blocks, etc.
Features:
- 4×4 Matrix Keyboard Module with 16 buttons
- Small in size and hence Save space
- More convenient to use
- Expanded development application modules for single chip
Package Includes:

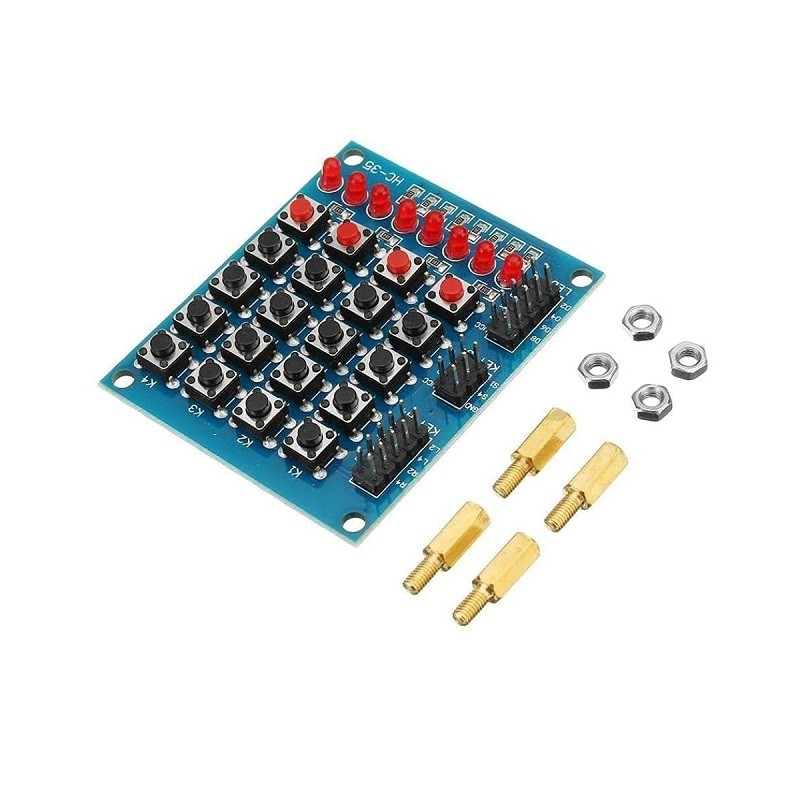

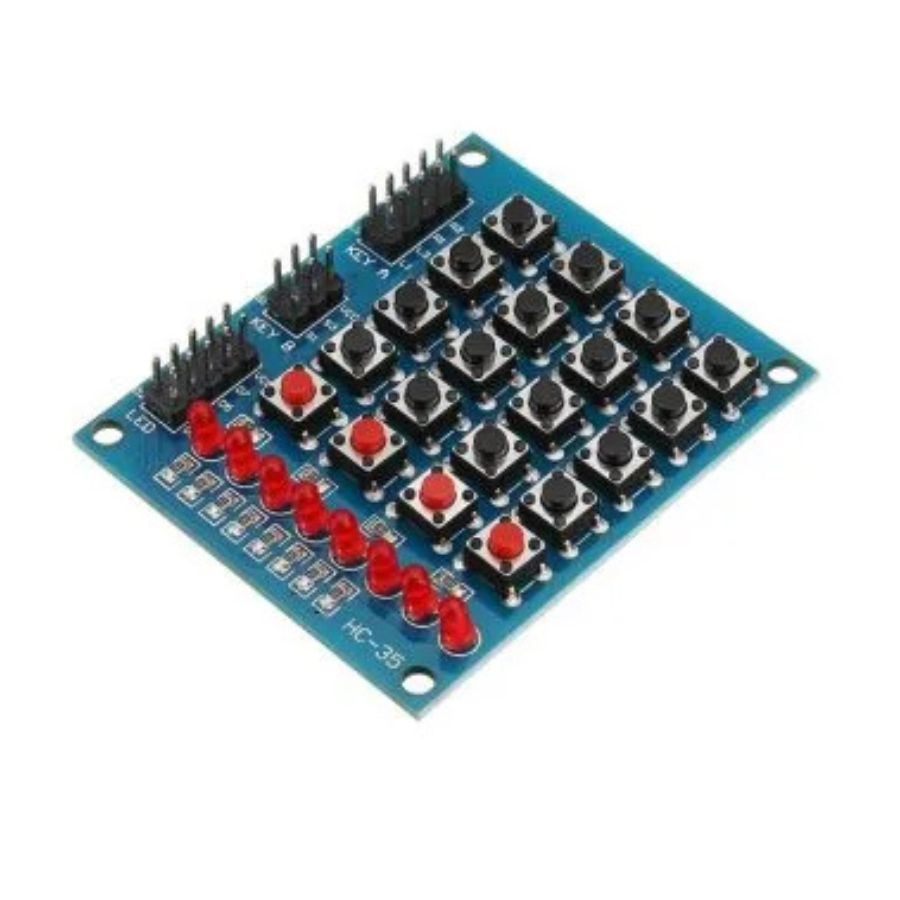

1 x 4×4 Push Button Switch 16 Keys 8LEDs Matrix Independent Keyboard Module
LED Scroller Matrix keyboard Overview
The LED Scroller Matrix keyboard is a 4×4 momentary keypad module offering 16 tactile pushbuttons in a compact board. Designed for microcontroller and embedded projects, it provides a reliable input interface with standard 2.54 mm pin spacing.
Key Features of LED Scroller Matrix keyboard
- 16 microswitch pushbuttons arranged in a 4×4 matrix for efficient I/O scanning
- Standard 2.54 mm pin spacing and pre-soldered 8-pin header for plug-and-play connections
- Compact dimensions (57 × 33 × 6 mm) and lightweight design (10 g) for space-constrained projects
- Four M3 mounting holes for secure installation in enclosures or panels
- Parallel row/column matrix wiring (R1–R4, L1–L4) simplifies microcontroller interfacing
- Fast shipping across India from Zbotic to get your project up and running quickly
Applications and Use Cases
- Numeric PIN entry for security panels and access control systems
- Menu navigation and parameter adjustment in DIY instrumentation
- User input interface for Arduino, Raspberry Pi, ESP32 and other microcontrollers
- Custom remote controls or handheld devices requiring multiple button inputs
- Robotics controller panels for mode selection and manual override
- Prototyping control surfaces in 3D printers, CNC machines, and automation equipment
How to Use LED Scroller Matrix keyboard
Mount the module via its M3 holes or secure it in your enclosure, then connect the eight row and column pins to digital I/O lines on your controller. Use internal pull-up resistors and scan the matrix in your firmware to detect key presses. Libraries such as the Arduino “Keypad” library simplify matrix polling and debounce handling.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I wire the matrix keyboard to an Arduino?
Connect the R1–R4 pins to four Arduino digital inputs and L1–L4 to four more. Enable internal pull-up resistors in your sketch, then use a keypad-scanning routine (or the Arduino “Keypad” library) to cycle through rows and detect column signals when a key is pressed.
Can I mount this module in a custom enclosure?
Yes. The PCB includes four M3 mounting holes at the corners. Use M3 standoffs or screws to fix the keypad securely in panels, control boxes, or front bezels.
Does the module include a connector cable?
The keyboard comes with a pre-soldered 8-pin male header for direct wiring or ribbon cable attachment, but a separate cable or IDC connector is not included.
