This is the 6V variant of the LA-T8-100 Stroke Length 100MM 150MM/S 6.4N DC6V Electric Putter Electric Linear Actuator Putter for Doors /Windows in Linear Actuators. Available at ₹3,149.00 (₹2,668.64 + GST) with free shipping across India.
Looking for La-t8 100 Stroke? LA-T8-100 Stroke Length 100MM 150MM/S 6.4N DC6V Electric Putter Electric Linear Actuator Putter for Doors /Windows is available at Zbotic with fast shipping across India.

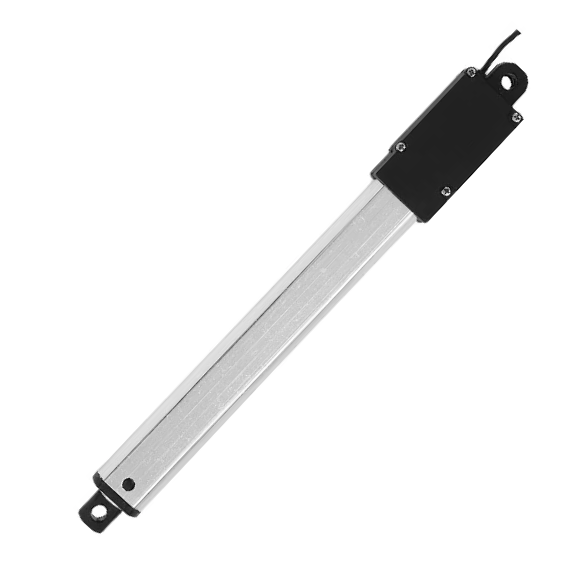

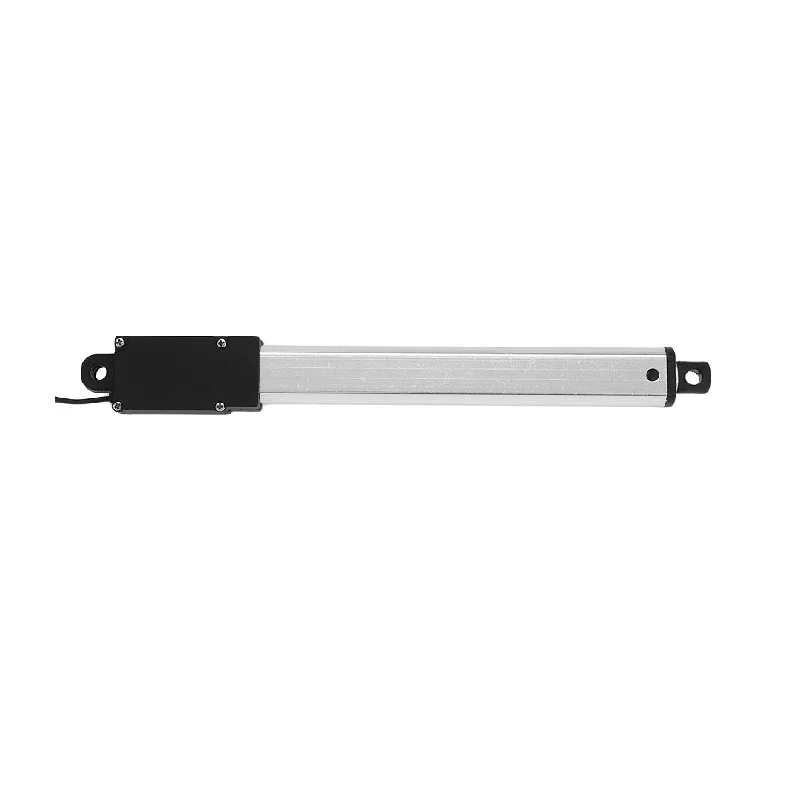

LA-T8-100 Stroke Length 100MM 150MM/S 6.4N DC6V Electric Putter Electric Linear Actuator Putter for Doors /Windows
Features:
- Max Load:235N
- Max stroke:150mm
- Max speed:150mm/s,Hall sensor options
- Material: Metal
- Brand New product
- Lightweight
- highly precise
- Low power consumption
Specifications:
| Name | Electric linear actuator,linear motor,window motor,DC linear actuator |
| Type | LA-T8 |
| Input | 6V |
| Limited switch | Yes |
| Duty cycle | 10% |
| House material | plastic |
| Inner tube material | Aluminum alloy |
| Stroke length option | 10,17.5,21,25,30,50,75,100,150, mm |
| Hall sensor | Options |
| Noise level | ≤ 55 dB |
| Color option | Black |
| Max IP class | IP54 |
| Certificate | CE Rohs UL |
Packages Includes:
1 x Electric Putter Electric Linear Actuator
LA-T8-100 Stroke Length 100MM 150MM/S 6.4N DC6V Electric Overview
The LA-T8-100 is a compact DC6V electric linear actuator with a 100 mm stroke, capable of delivering 6.4 N of thrust at up to 150 mm/s. Designed for precise push–pull applications, it is ideal for automating small doors, windows, or any mechanism requiring controlled straight-line movement.
Key Features of LA-T8-100 Stroke Length 100MM 150MM/S 6.4N DC6V Electric
- Stroke length: 100 mm for moderate-range extension and retraction
- Speed: up to 150 mm/s for smooth, rapid actuation
- Thrust force: 6.4 N, suitable for light-duty push/pull tasks
- Operating voltage: DC 6 V, compatible with low-voltage control systems
- Inner tube material: durable aluminum alloy for corrosion resistance
- Lightweight design: approximately 87 g for easy integration
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Automatic window opening and closing in smart homes
- Small cabinet or hatch actuation in DIY projects
- Model railroad or scale model control requiring precise linear motion
- Lightweight door automation for pet flaps and access panels
- Adjustable vent or louver positioning in enclosed spaces
- Prototype and robotics experiments needing repeatable push–pull action
How to Use LA-T8-100 Stroke Length 100MM 150MM/S 6.4N DC6V Electric
Mount the actuator using compatible end brackets at both ends, ensuring alignment with the desired motion axis. Connect the red and black leads to a regulated 6 V DC power supply or motor controller, observing polarity for extension/retraction direction. Secure all wiring and test the stroke under no-load conditions before integrating into your final assembly.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What maximum load can the LA-T8-100 handle?
This actuator provides a continuous thrust of 6.4 N, which equates to roughly 0.65 kg of light push/pull load under ideal conditions. Exceeding this may reduce speed or stall the motor.
Can I control the extension speed?
Speed is determined by the internal gearing and 6 V input; for finer control, use a PWM motor driver to vary voltage duty cycle and adjust actuation speed.
Is end-of-stroke protection built in?
Yes. The LA-T8-100 includes internal limit switches that automatically stop motion at both fully extended and retracted positions, preventing overrun.
Technical Specifications
| Model | LA-T8-100 |
|---|---|
| Operating Voltage | 6V |
| Size | 100mm |
| SKU | AI0993 |
| Availability | Out of Stock |
Applications & Use Cases
The LA-T8-100 Stroke Length 100MM 150MM/S 6.4N DC6V Electric Putter Electric Linear Actuator Putter for Doors /Windows is a versatile linear actuators used across a wide range of applications including automated doors, adjustable furniture, solar tracker systems, robotics, and agricultural equipment.
Common use cases:
- Building a solar panel tilt mechanism
- Motorizing a standing desk
- Creating a linear motion system for robotics
This product is ideal for automation engineers and DIY furniture builders.
Technical Tip: Check stroke length, force rating, and speed. Larger stroke = longer actuator body. Use limit switches for end-stop protection.
