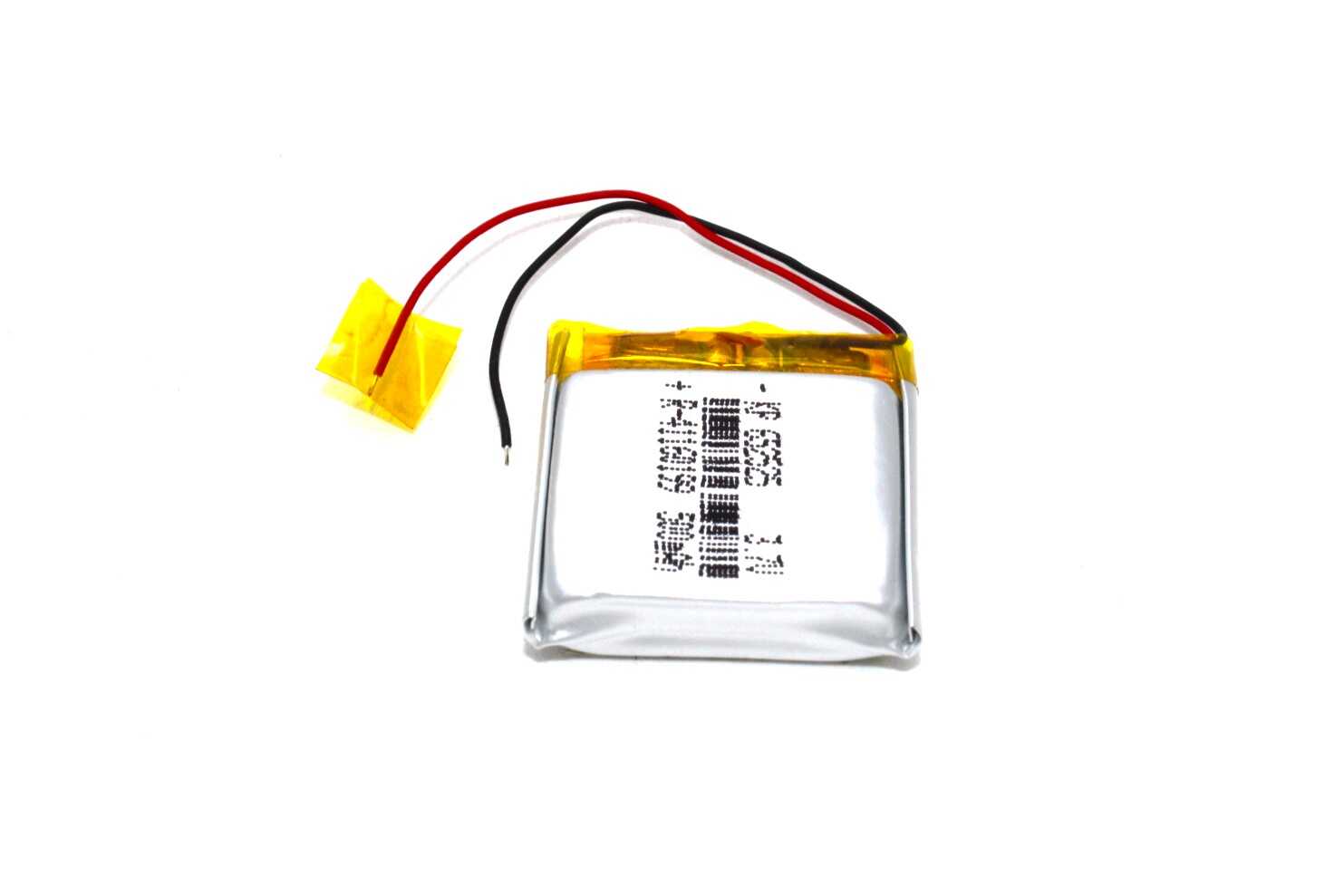

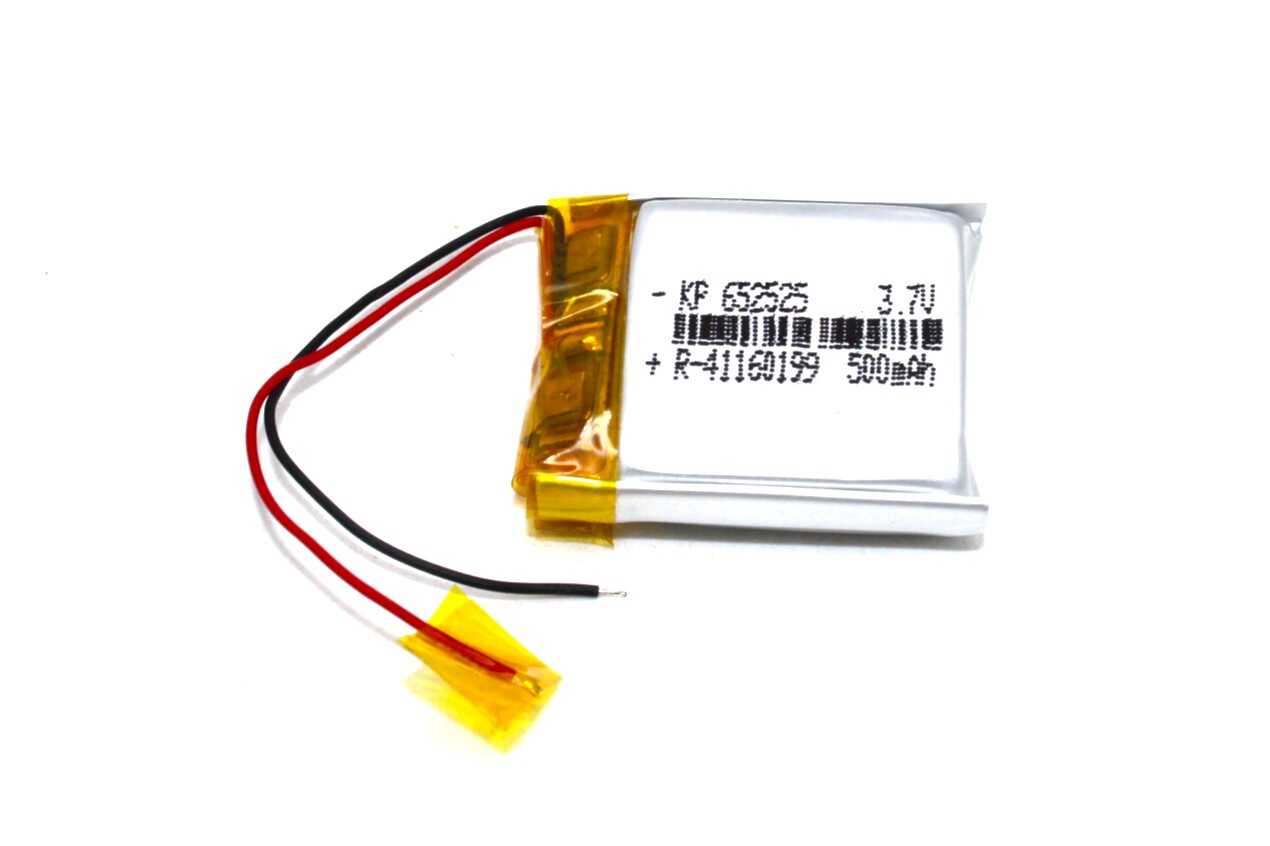

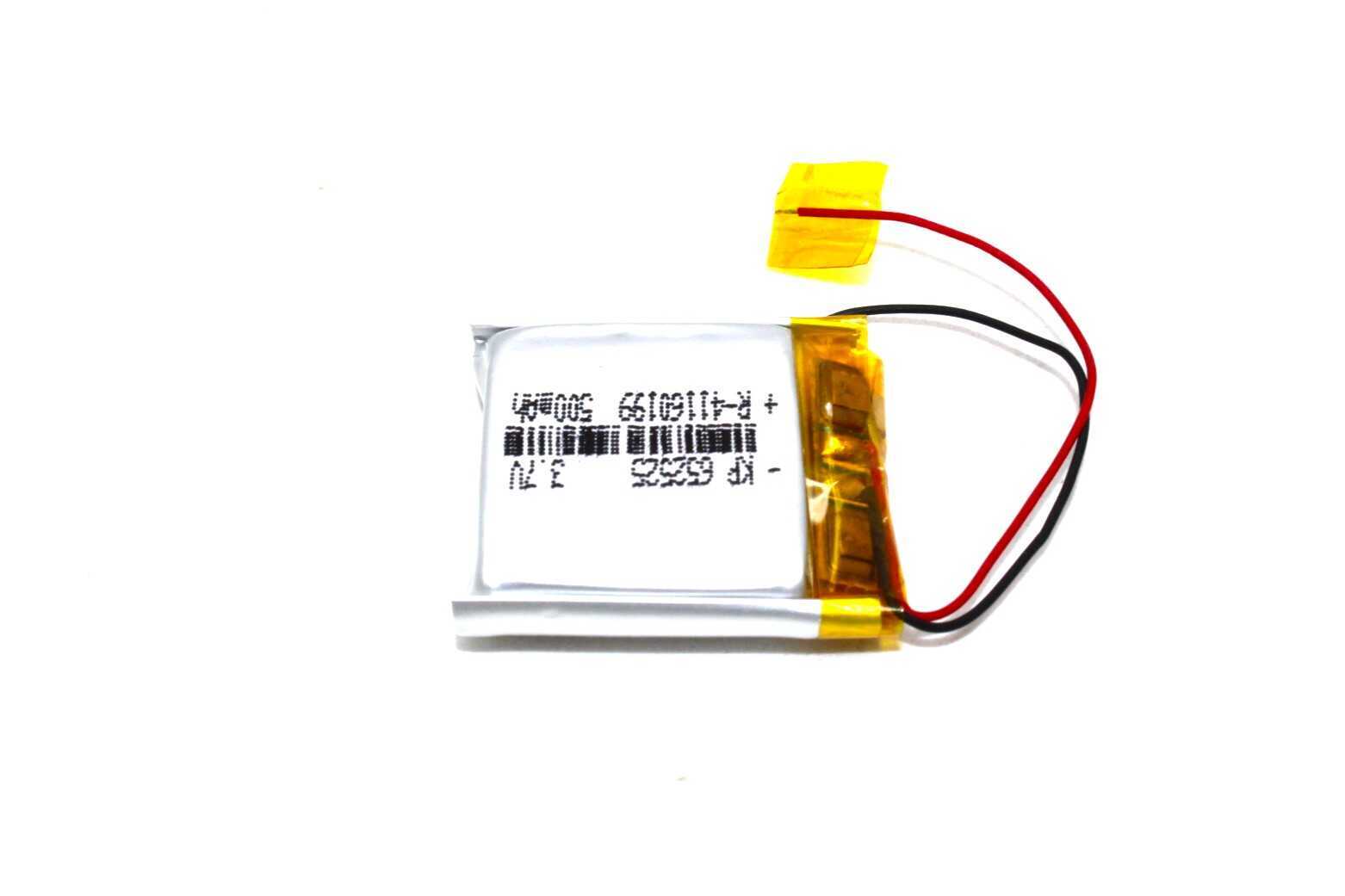

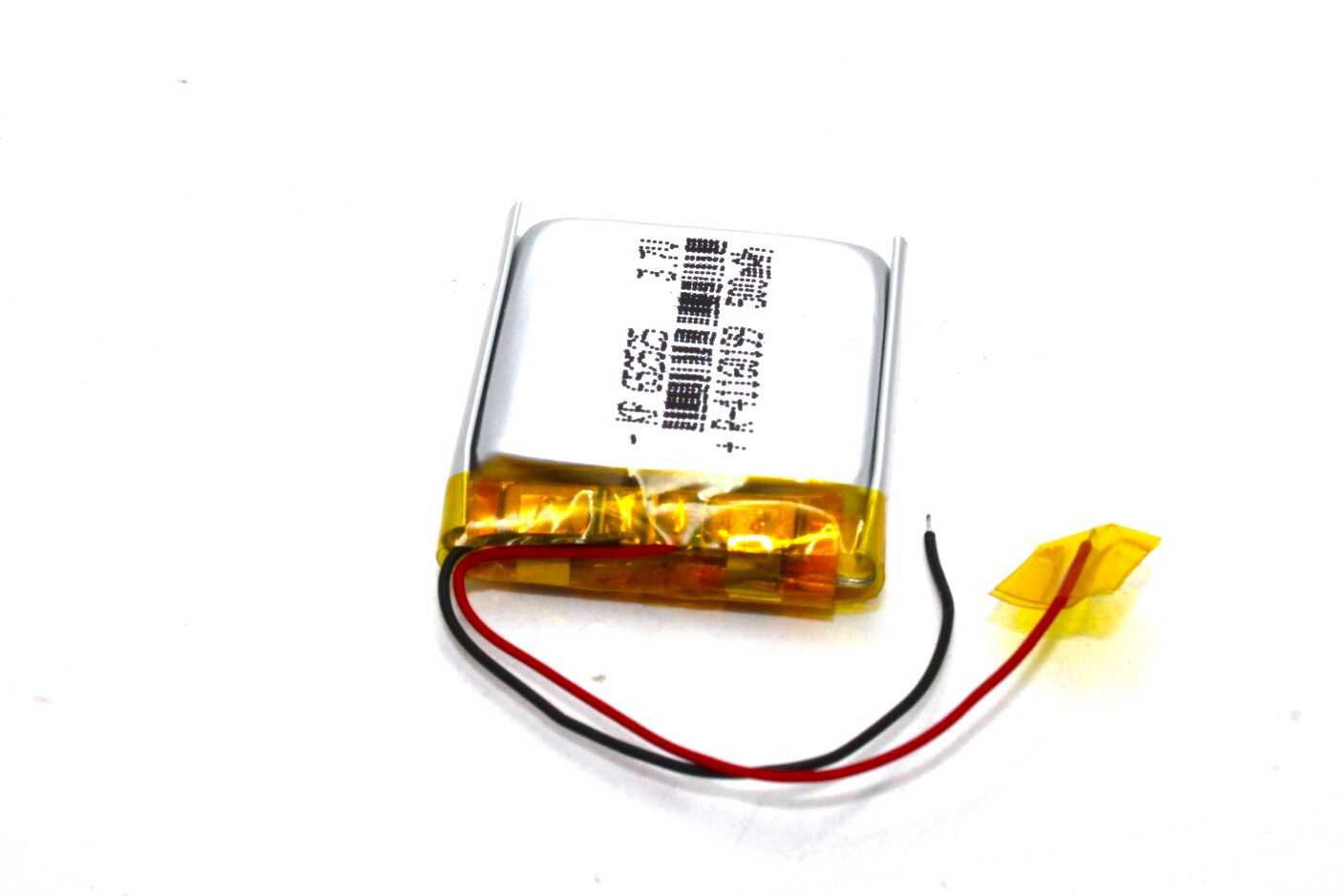

652525 3.7V 500mAh Lithium Polymer (LiPo) Rechargeable Battery
Product Description:
The 652525 3.7V Lithium Polymer (LiPo) rechargeable battery is designed for compact and efficient power delivery in a variety of electronic devices. With a capacity of 500mAh, this battery provides a reliable energy source for wearables, IoT devices, and other portable electronics. Featuring advanced safety mechanisms, this LiPo battery is the perfect choice for both hobbyists and professionals seeking dependable performance.
Technical Specifications:
- Model Number: 652525
- Type: Lithium Polymer (LiPo)
- Nominal Voltage: 3.7V
- Capacity: 500mAh
- Dimensions:
- 28mm x 25mm x 6.5mm (L.B.H.)
- Weight: Approximately 18 grams
- Discharge Rate: 1C (maximum continuous)
- Charge Rate: 1C (maximum)
- Charging Voltage: 4.2V ± 0.05V
- Discharge Cut-off Voltage: 3.0V
- Cycle Life: Up to 300-500 cycles (depending on usage conditions)
- Connector Type: JST connector or customizable options available
- Operating Temperature Range:
- Charge: 0°C to 45°C
- Discharge: -20°C to 60°C
- Storage Conditions: Recommended storage at 40-60% charge in a cool, dry place for optimal performance.
- Safety Features:
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Thermal protection
Application Areas:
- Wearable devices (smartwatches, fitness bands)
- IoT applications and smart home devices
- Remote controls and handheld gadgets
- Medical devices and portable monitoring systems
- Robotics and DIY electronics projects
Package Includes:
- 1 x 652525 500mAh 3.7V LiPo Battery
Active vs Passive Battery Balancer: Which Is More Efficient?
Active vs Passive Battery Balancer: Which Is More Efficient? If you have ever built or maintained a multi-cell...
Read More →
Power Supply Design: Ripple Noise Reduction Techniques
Every electronics project eventually hits the same wall: sensitive circuits misbehaving because the power supply is noisy. Microcontrollers...
Read More →
3.3V Power Supply: LDO and Buck Options for ESP32
Table of ContentsWhy 3.3V Matters AMS1117-3.3 LDO Regulator Buck Converter for 3.3V Voltage Level Shifting Noise Considerations for...
Read More →Technical Specifications
| Brand | KP |
|---|---|
| Battery Capacity | 500mAh |
| Interface / Protocol | BLE |
| SKU | AI6802 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The KP Original 652525 500mAh 3.7Vsingle cell Rechargeable LiPo Battery is a versatile single cell micro lipo battery used across a wide range of applications including FPV drones, RC vehicles, portable electronics, robotics, and airsoft guns.
Common use cases:
- Powering an FPV racing drone
- Running a high-current RC car
- Portable power for field robotics
This product is ideal for drone pilots, RC enthusiasts, and robotics builders.
Technical Tip: Never discharge below 3.5V per cell. Store at 3.8V per cell. Always use a balance charger and never leave charging unattended. Use a LiPo bag for safety.
