Description:

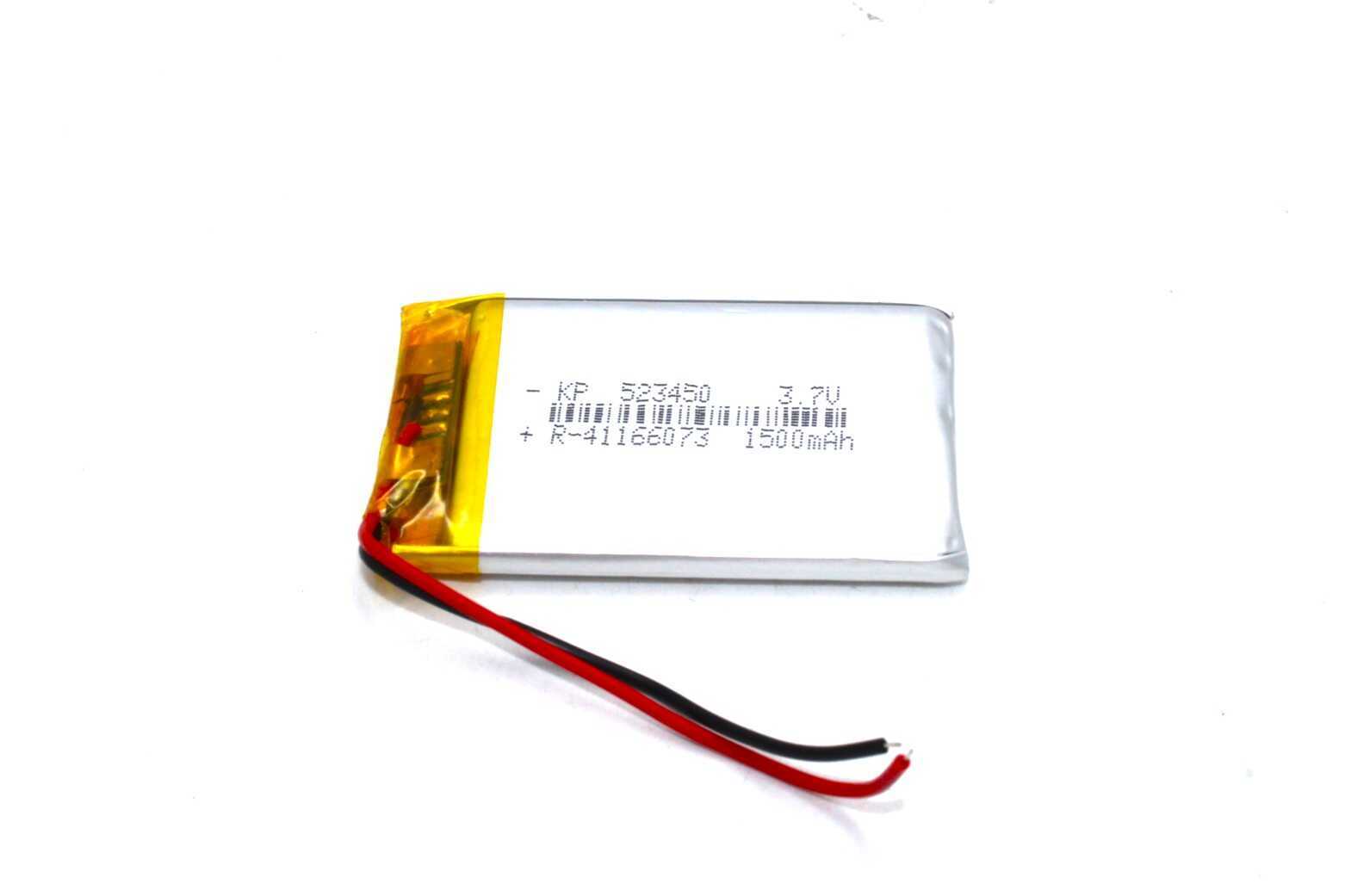

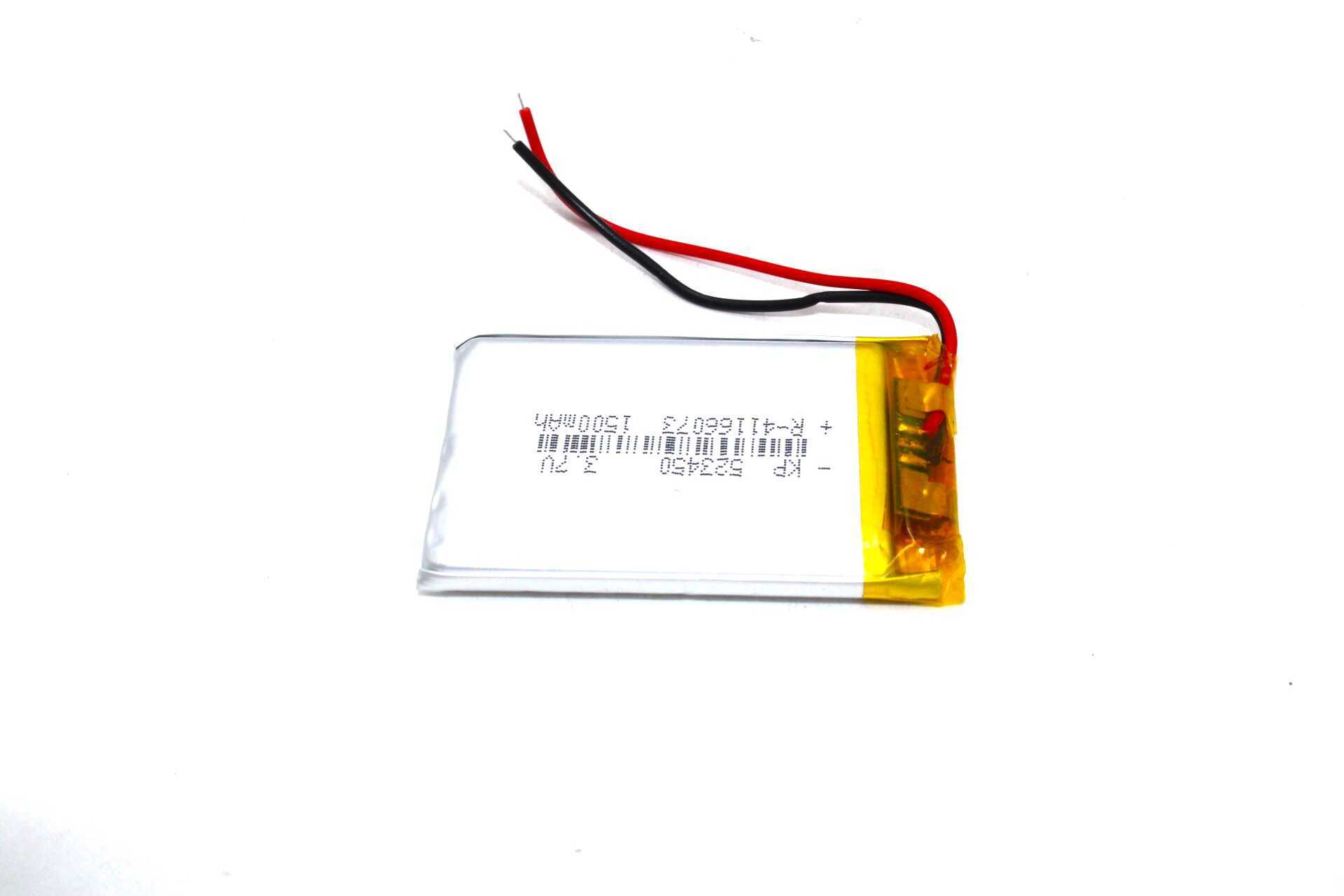

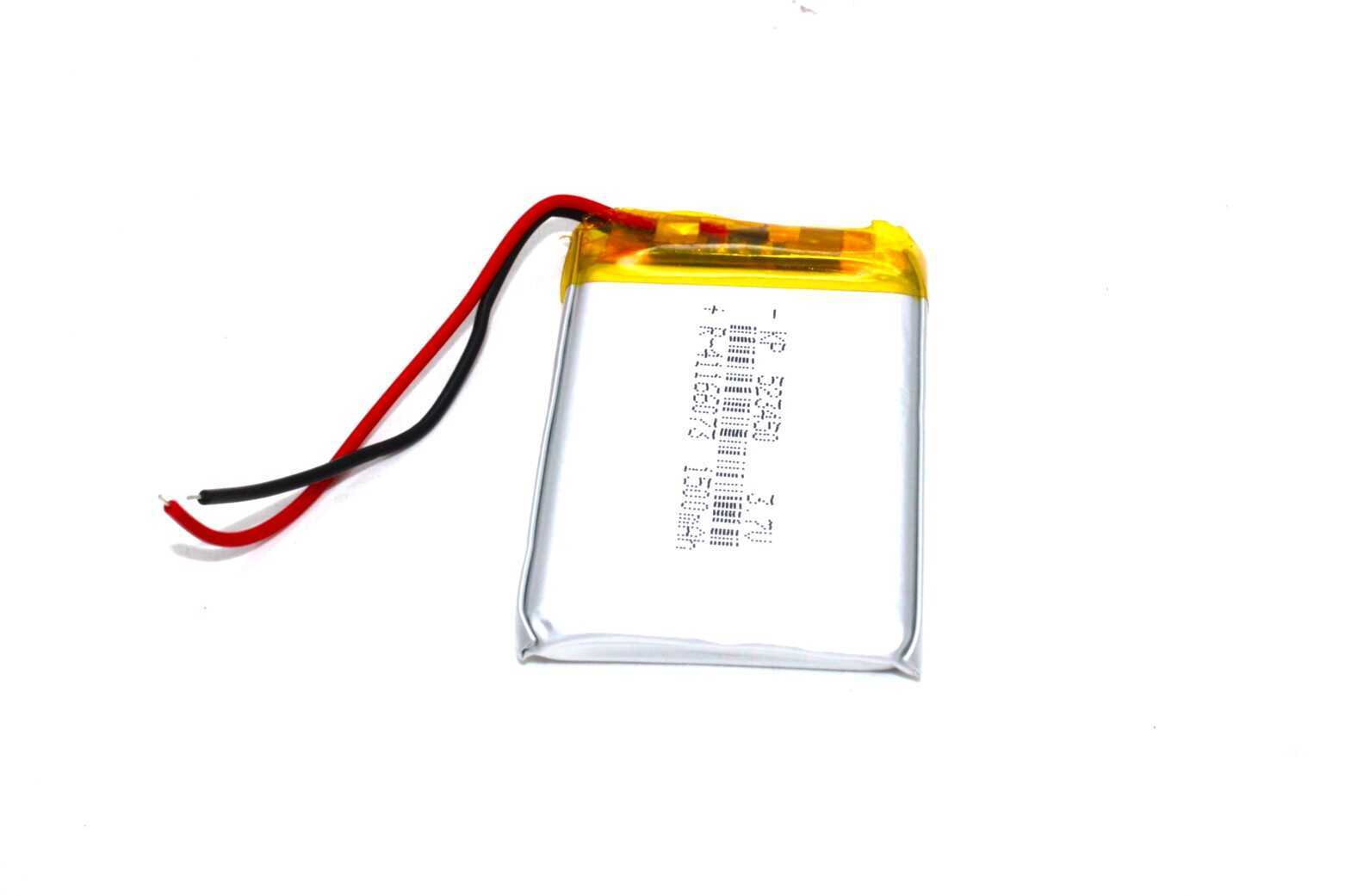

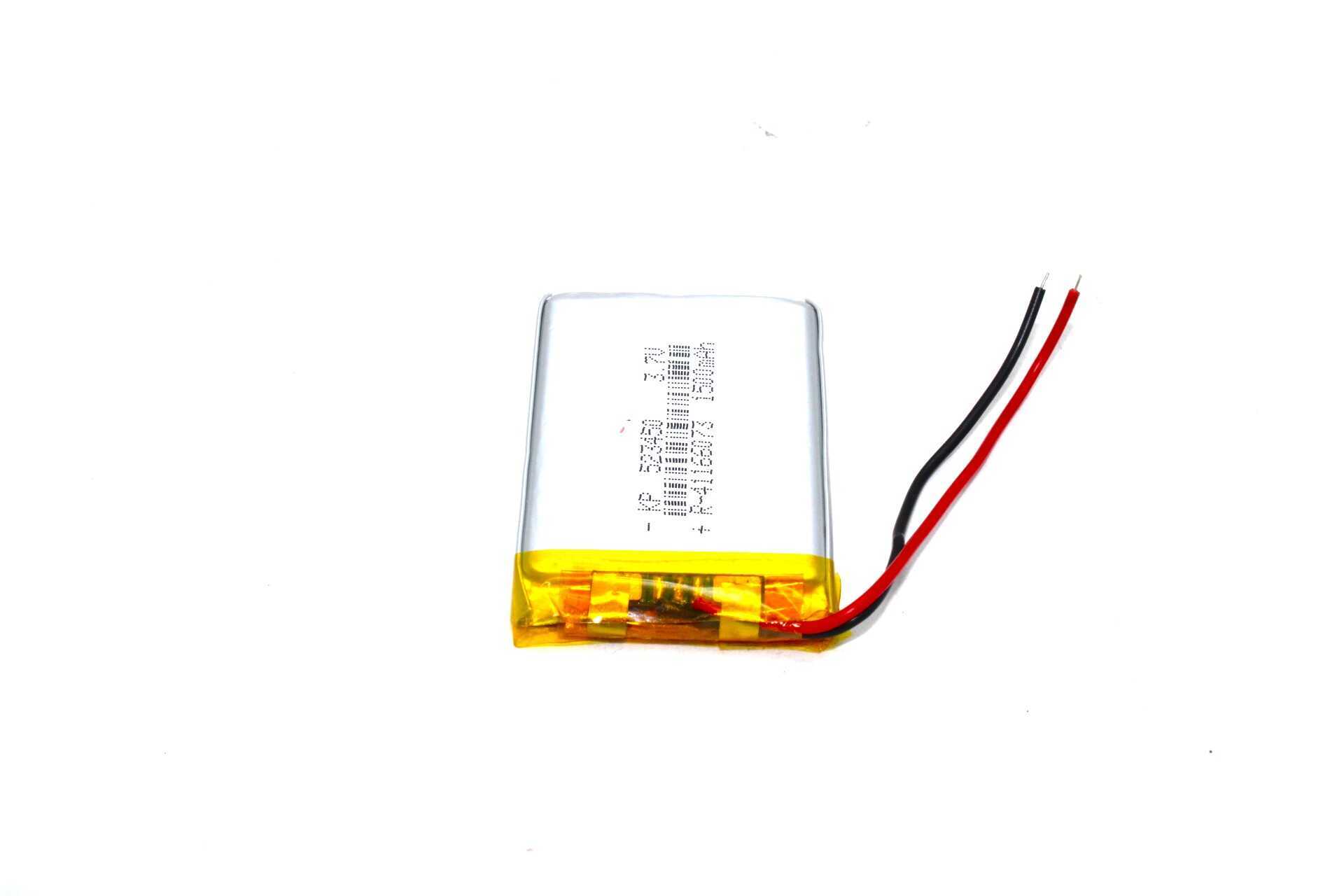

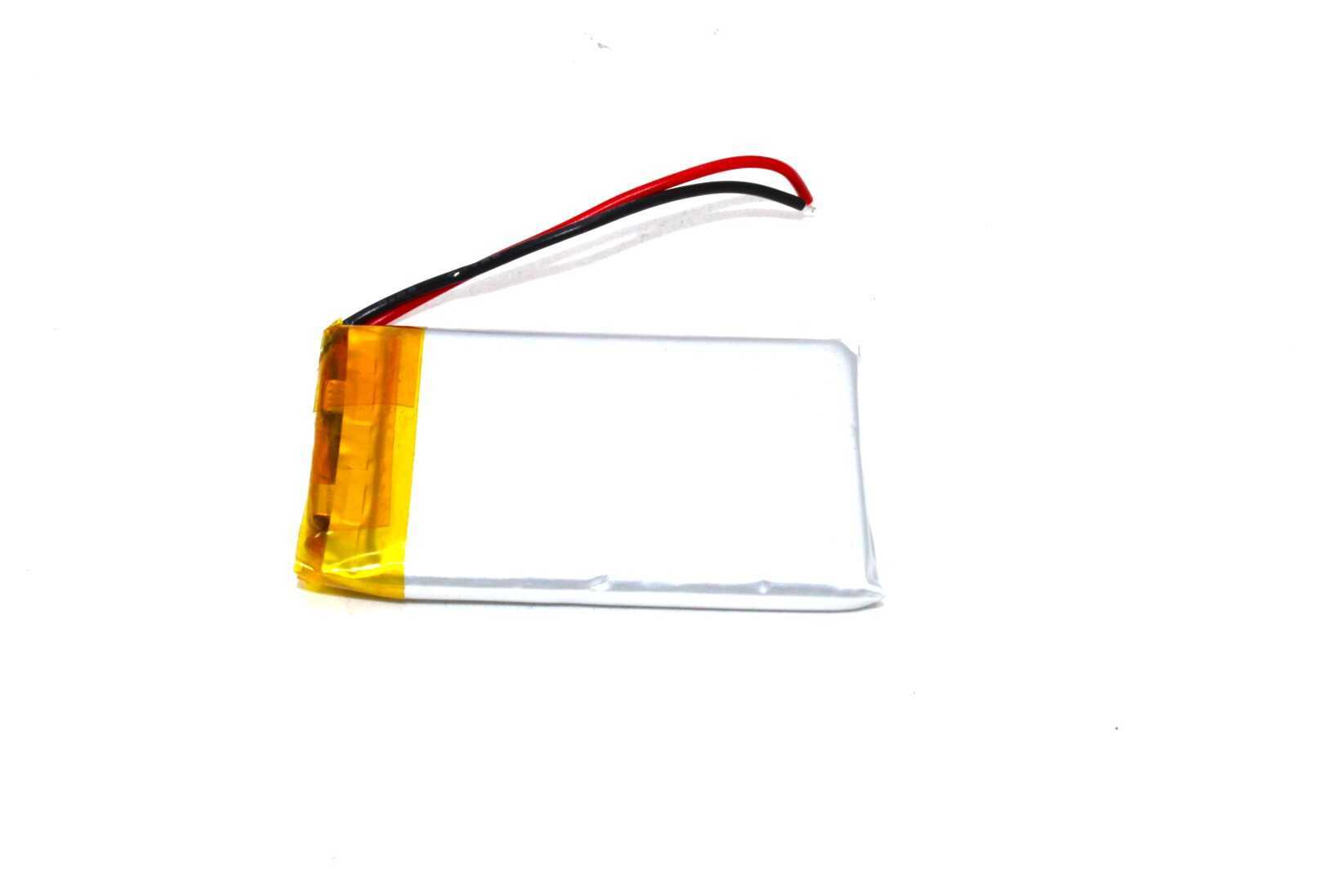

Introducing the 523450 1500mAh 3.7Vsingle cell Rechargeable LiPo Battery, designed for compact electronic devices requiring reliable power in a small form factor. With its high energy density and lightweight design, this battery is ideal for applications in drones, remote controls, wearables, and other portable electronics.
Safety Features:
- Overcharge Protection: Yes
- Over-discharge Protection: Yes
- Short Circuit Protection: Yes
- Fire Resistance: Designed with protective layers to minimize fire hazards.
Specifications:
- Model Number: 523450
- Type: Lithium Polymer (LiPo)
- Configuration: Single Cell
- Nominal Voltage: 3.7V
- Capacity: 1500 mAh
- Discharge Rate: 1C (1500 mA continuous current)
- Charge Voltage: 4.2V (maximum)
- Discharge Cut-off Voltage: 3.0V (minimum)
- Dimensions: 57 x 47 x 6.0 mm
- Temperature Range for Charging: 0°C to 45°C
- Temperature Range for Discharging: -20°C to 60°C
- Cycle Life: Approximately 300-500 cycles at standard charge/discharge rates
- Self-Discharge Rate: Approximately 3-5% per month
- Charging Method: Constant current / constant voltage (CC/CV)
- Recommended Charge Current: 0.5C to 1C (750 mA – 1500 mA)
- Charge Time: Approximately 1.5 to 3 hours, depending on charge current.
Applications:
- Remote control devices
- Drones and UAVs
- Mobile devices and electronics
- Wearable technology
- Portable power applications
Package Includes:
- 1 x KP Original 523450 1500mAh 3.7Vsingle cell Rechargeable LiPo Battery
Battery Tab Welding vs Soldering: Which Method to Use
Table of ContentsThe Case Against Soldering Batteries How Spot Welding Protects Cells When Soldering Is Acceptable Solder Tab...
Read More →
Thermoelectric Harvester: Power from Waste Heat
A thermoelectric harvester converts temperature differences into electrical energy using the Seebeck effect, enabling power generation from waste...
Read More →
LM317 Voltage Regulator: Adjustable Power Supply Circuit Guide
LM317 Voltage Regulator: Adjustable Power Supply Circuit Guide The LM317 voltage regulator adjustable IC is one of the...
Read More →Technical Specifications
| Brand | KP |
|---|---|
| Battery Capacity | 1500mAh |
| Interface / Protocol | BLE |
| SKU | AI6770 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The KP Original 523450 1500mAh 3.7Vsingle cell Rechargeable LiPo Battery is a versatile single cell micro lipo battery used across a wide range of applications including FPV drones, RC vehicles, portable electronics, robotics, and airsoft guns.
Common use cases:
- Powering an FPV racing drone
- Running a high-current RC car
- Portable power for field robotics
This product is ideal for drone pilots, RC enthusiasts, and robotics builders.
Technical Tip: Never discharge below 3.5V per cell. Store at 3.8V per cell. Always use a balance charger and never leave charging unattended. Use a LiPo bag for safety.
