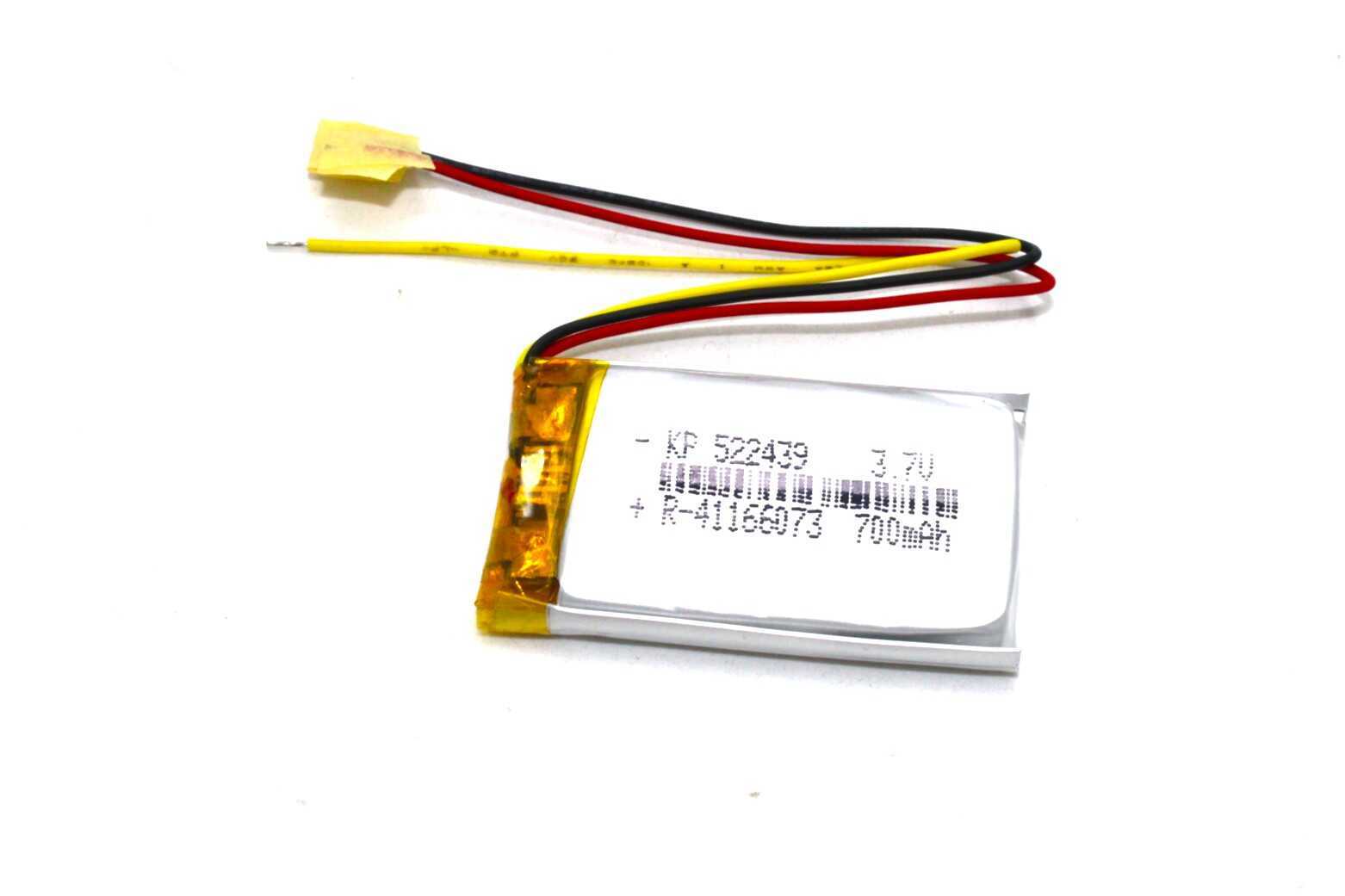

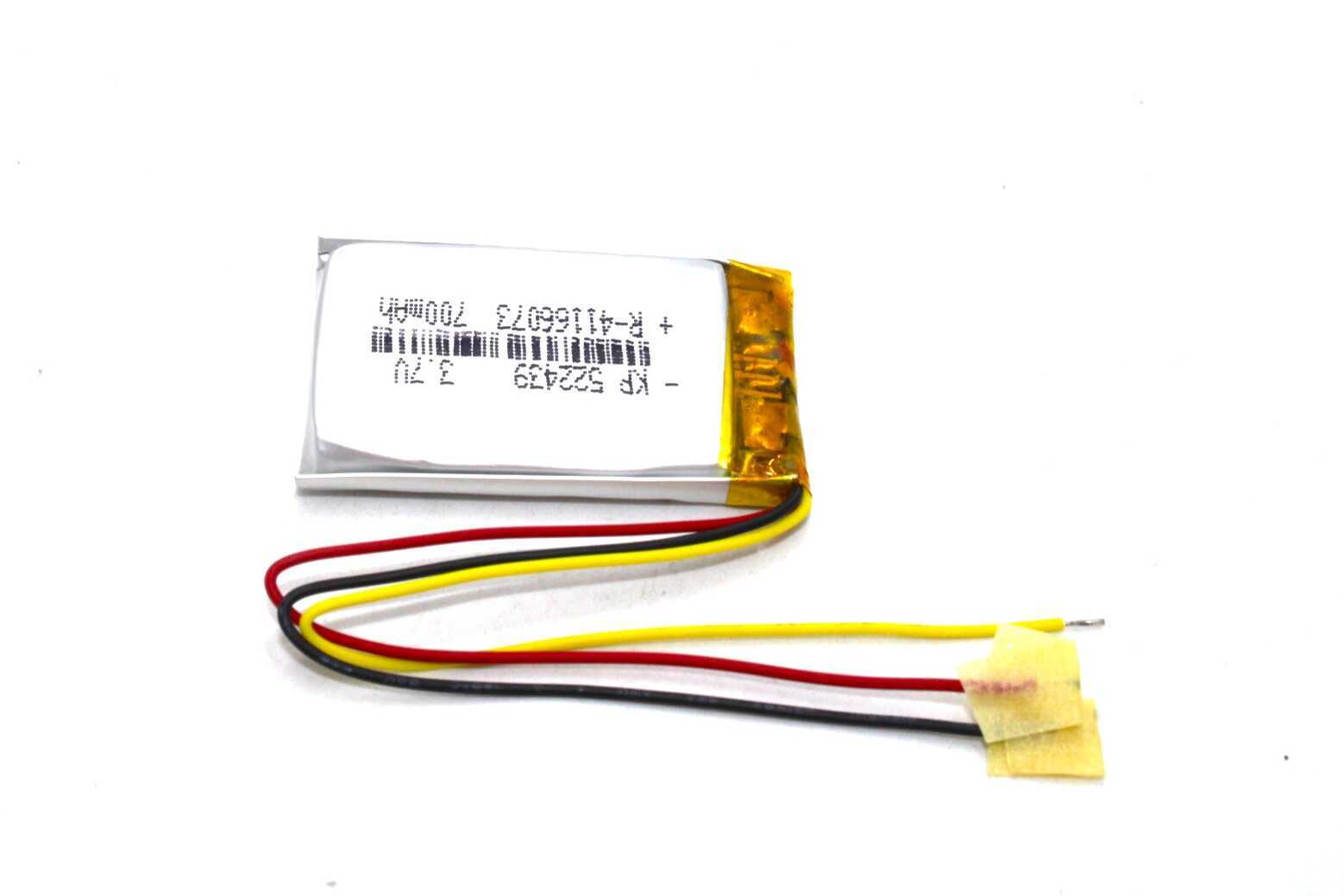

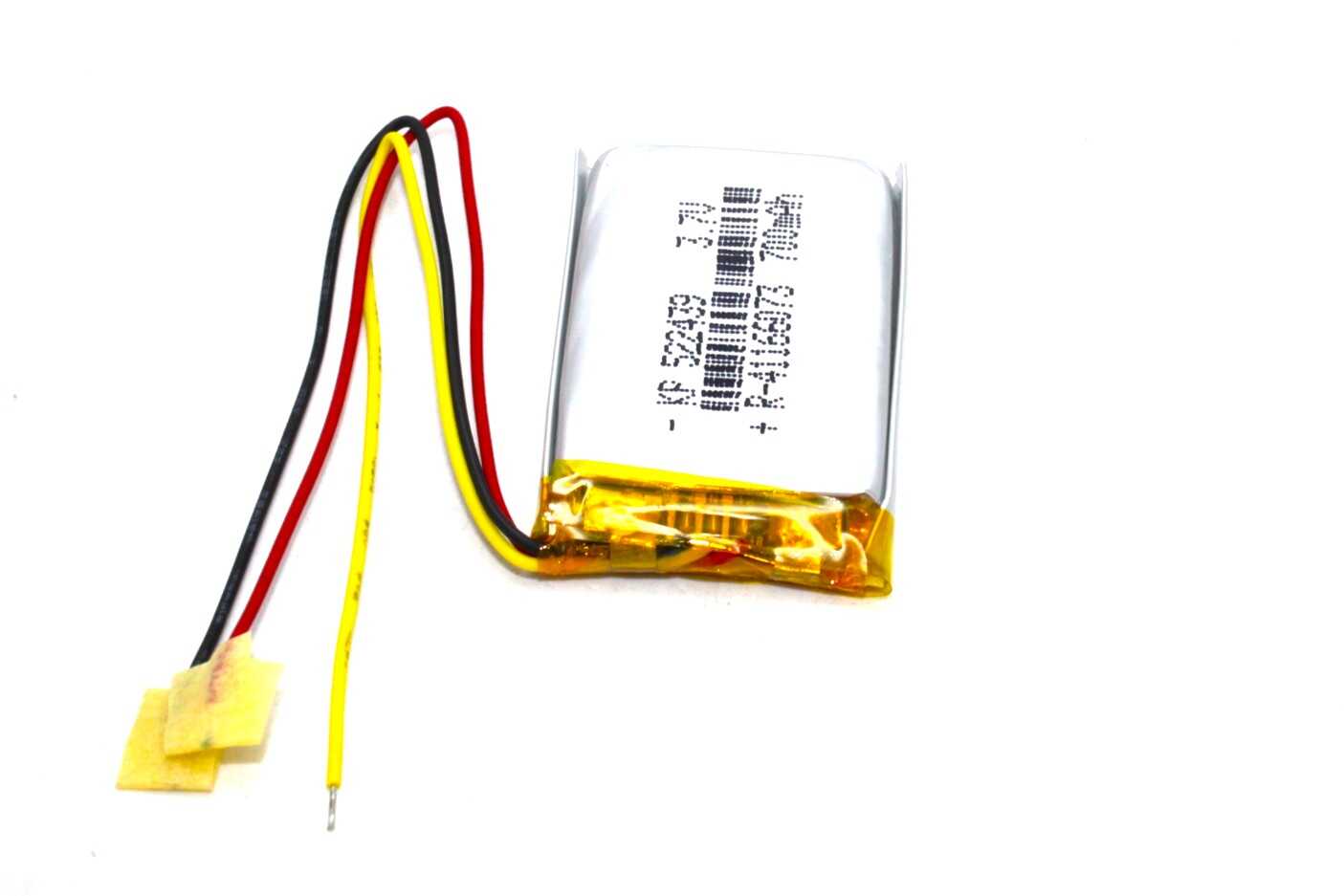

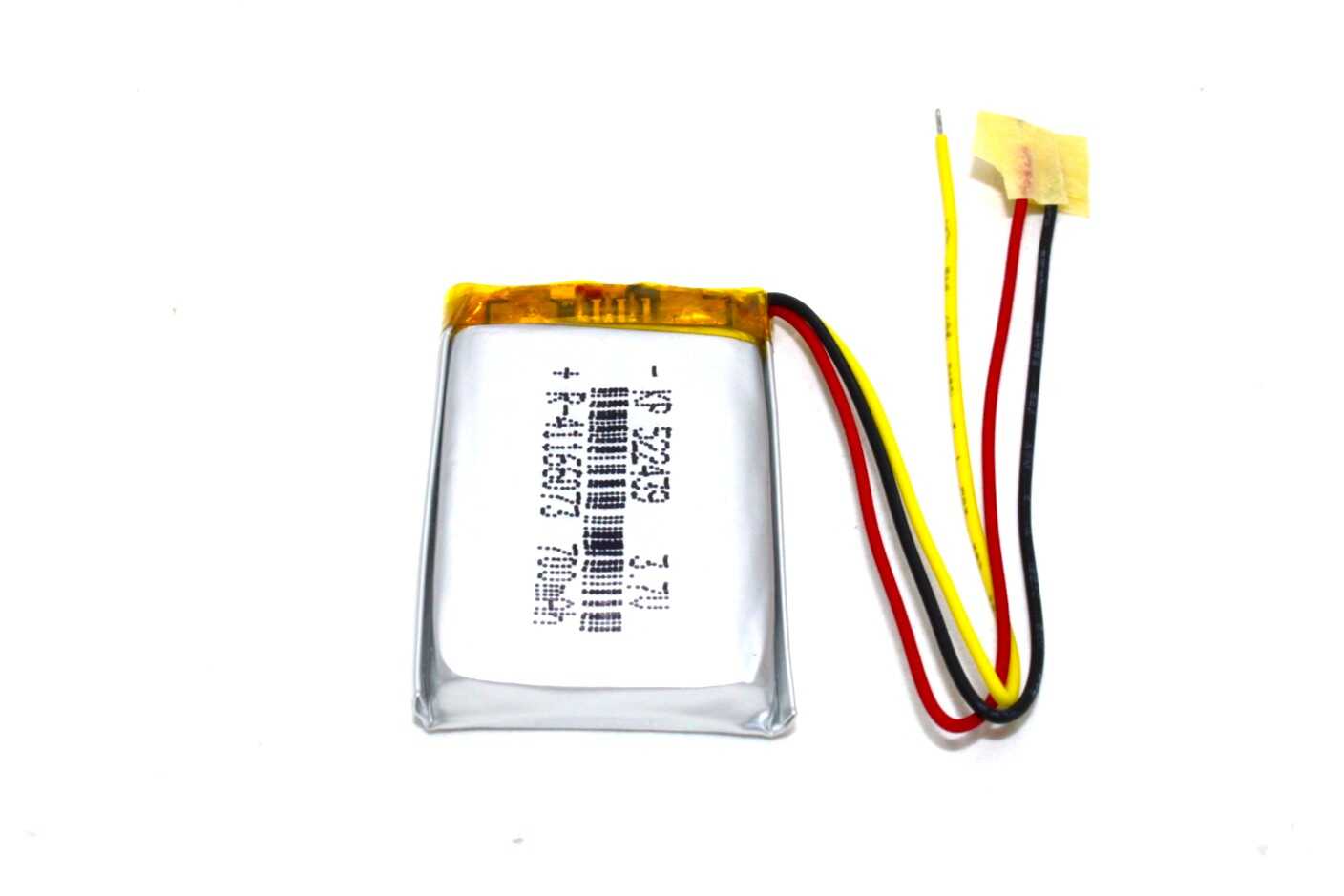

KP Original 522439 700mAh 3.7Vsingle cell Rechargeable LiPo Battery
Product Description:
The 522439 3.7V Lithium Polymer (LiPo) rechargeable battery is meticulously designed for high efficiency and reliability in a compact form factor. With a capacity of 700mAh, this lightweight battery is perfect for powering a variety of portable electronic devices. Ideal for applications in wearables, IoT devices, remote controls, and small electronics, the 522439 LiPo battery offers consistent performance and a robust lifespan.
Technical Specifications:
- Model Number: 522439
- Type: Lithium Polymer (LiPo)
- Nominal Voltage: 3.7V
- Capacity: 700mAh
- Dimensions:
- Length: 38 mm
- Width: 24.5 mm
- Height: 5 mm (thickness)
- Weight: Approximately 20 grams
- Discharge Rate: 1C (maximum continuous)
- Charge Rate: Up to 1C (maximum)
- Charging Voltage: 4.2V ± 0.05V
- Discharge Cut-off Voltage: 3.0V
- Cycle Life: Approximately 300-500 cycles (dependent on charge/discharge practices)
- Connector Type: JST connector (customization available upon request)
- Operating Temperature Range:
- Charge: 0°C to 45°C
- Discharge: -20°C to 60°C
- Storage Conditions: Store between 40-60% charge in a cool and dry environment for optimum longevity.
- Safety Features:
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Thermal overload protection
Application Areas:
- Wearable technology (smartwatches, fitness bands)
- Internet of Things (IoT) devices
- Consumer electronics (remote controls, small handheld devices)
- Medical equipment (portable monitors and diagnostic tools)
- Robotics and electronic DIY projects
Package Includes:
- 1 x KP Original 522439 700mAh 3.7Vsingle cell Rechargeable LiPo Battery
XL4016 Buck Converter: High Current 8A Adjustable Power Supply Guide
When your project demands high current, the XL4016 buck converter is one of the most capable and cost-effective...
Read More →
XL6009 Boost Converter: Adjustable Output Voltage Guide
XL6009 Boost Converter: Adjustable Output Voltage Guide The XL6009 boost converter module is one of the most popular...
Read More →
Piezoelectric Energy: Generate Power from Movement
Table of ContentsPiezoelectric Effect Explained Piezo Element Types Harvesting Circuit Design Rectification and Storage Practical Power Output Applications...
Read More →Technical Specifications
| Brand | KP |
|---|---|
| Battery Capacity | 700mAh |
| Interface / Protocol | BLE |
| SKU | AI6805 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The KP Original 522439 700mAh 3.7Vsingle cell Rechargeable LiPo Battery is a versatile single cell micro lipo battery used across a wide range of applications including FPV drones, RC vehicles, portable electronics, robotics, and airsoft guns.
Common use cases:
- Powering an FPV racing drone
- Running a high-current RC car
- Portable power for field robotics
This product is ideal for drone pilots, RC enthusiasts, and robotics builders.
Technical Tip: Never discharge below 3.5V per cell. Store at 3.8V per cell. Always use a balance charger and never leave charging unattended. Use a LiPo bag for safety.
