ISB-TS45D Infrared Thermopile Sensor

This is the Red variant of the ISB-TS45D Infrared Thermopile Sensor in PIR / IR and Optical Sensor. Available at ₹101.48 (₹86.00 + GST) with free shipping across India.

Looking for Ts45d Sensor? ISB-TS45D Infrared Thermopile Sensor is available at Zbotic with fast shipping across India.

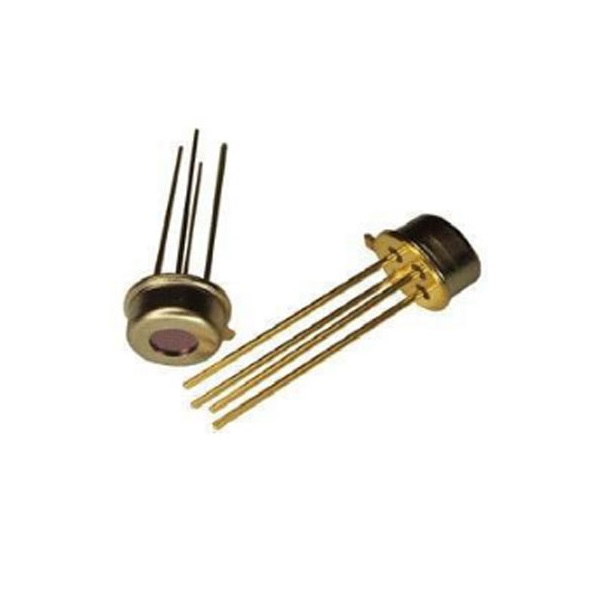

ISB-TS45D Infrared Thermopile Sensor

The Infrared Thermopile Sensor allows for non-contact temperature measurement by detecting the infrared energy emitted from an object. As the object’s temperature rises, it emits more infrared energy, which the sensor captures. This sensor is built with thermocouples on silicon chips that absorb this energy and generate output signals. The ISB-TS45D Infrared Thermopile Sensor is highly versatile, suitable for a range of non-contact temperature measurement applications. It includes infrared filters, thermistors, and other essential components, all housed in a robust TO-46 metal casing for enhanced reliability and sensitivity.

Features

1. TO-46 package High sensitivity NTC thermistor compensation
2. Fast response 5μm Long-wave pass filter

Design restrictions:

1. The sensor is designed for indoor use.
2. Make sure to use the suitable optical filters and moisture-proof structures in outdoor applications using.
3. In order to prevent the secondary failures caused by operational failures or malfunctions, the fail-safe features can be added in advance.

Use restrictions:

1. In order to prevent sensor failure, operational failure or any other malfunction, do not use this sensor under the conditions below.
2. A.Severe changes in ambient temperature.
3. B.Strong vibration or vibration.
4. C.The detecting area is full of barrier material (glass, fog, etc.)
5. D.In liquids, corrosive gases, and seawater.
6. E.Continuous use in a high-humidity atmosphere.
7. F.Static electric field or strong electromagnetic radiation.
8. G.Corrosive gas or sea breeze.
9. H.Dirty and dusty environment that may contaminate the optical window.

Welding restrictions:

1. A.Soldering with soldering iron. The welding temperature should be under 260°C in 10 seconds. Long time overheating of the sensor pins should be avoided.
2. B.All flux must be washed off after soldering and rinsed with a brush. Using an ultrasonic cleaner may cause performance problems.
3. Usage restrictions
4. Use and sell should be under any applicable law or regulation.
5. The sensor failure caused by incorrect handling or storage is not the responsibility of the manufacturer.

Application:

1. Non-contact Temperature Measurement
2. Ear Thermometer, Forehead Thermometer
3. Industrial Continuous Temperature Control

Specification:

• Detection angle: 90°
• Thermopile resistance: 95 to 140 KΩ
• Noise voltage: 45 nV/Hz1/2
• NEP: 0.27 nW/Hz1/2
• Voltage Response: 20.11 Vmm2/w
• Responsivity: 124

Package Includes

• 1 x ISB-TS45D Infrared Thermopile Sensor

Datasheet

ISB-TS45D Infrared Thermopile Sensor Overview

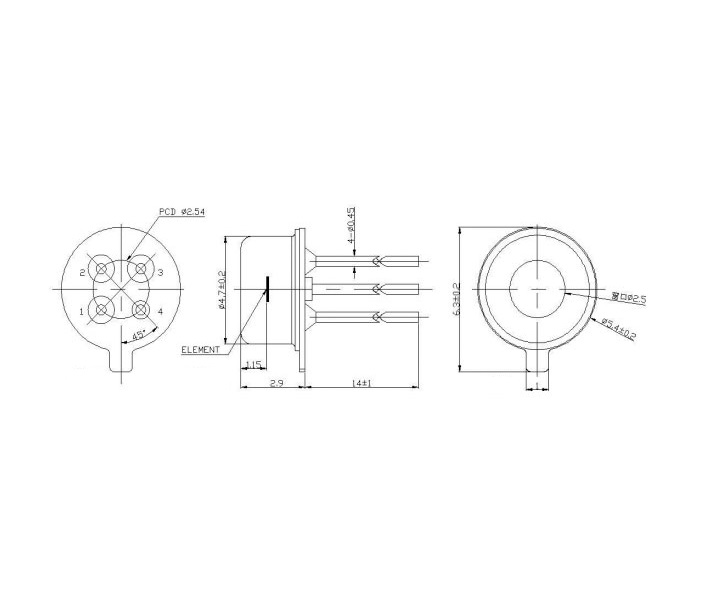

The ISB-TS45D Infrared Thermopile Sensor is a precision non-contact temperature detector housed in a TO-46 metal can package. It captures infrared radiation emitted by objects and converts it into an analog voltage output, making it ideal for integration in thermal monitoring and control systems.

Key Features of ISB-TS45D Infrared Thermopile Sensor

• Non-contact temperature measurement using silicon-based thermopile elements
• Wide field of view for monitoring larger target areas without moving parts
• Low-noise design delivers stable analog output in diverse environments
• Integrated infrared filter and ambient thermistor for on-board temperature compensation
• Durable TO-46 metal housing ensures consistent performance and mechanical protection
• Fast shipping from Zbotic ensures rapid delivery across India

Applications and Use Cases

• Industrial process monitoring to track surface temperatures on production lines
• HVAC system diagnostics for airflow and heater efficiency assessments
• Food processing and safety checks in packaging and storage operations
• Environmental sensing in weather stations and agricultural monitoring
• Medical and wellness devices for non-invasive skin temperature checks
• Consumer electronics temperature management for battery and component safety

How to Use ISB-TS45D Infrared Thermopile Sensor

Position the ISB-TS45D so its sensing aperture faces the target object, then connect its analog output to a high-resolution ADC on your microcontroller. Use the integrated thermistor reading for ambient compensation, and employ a low-noise amplifier if needed before applying the conversion formula from the datasheet to calculate object temperature.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

How do I convert the sensor’s output voltage to temperature?

Refer to the responsivity value in the ISB-TS45D datasheet to map the measured voltage to temperature change. First, calibrate the zero-voltage offset at a known reference temperature, then apply the linear conversion equation to determine the object’s temperature.

Is ambient temperature compensation required?

The ISB-TS45D features an on-board thermistor that measures ambient temperature internally. Use this thermistor reading to correct the thermopile’s output, ensuring accurate measurements despite fluctuations in surrounding temperature.

What is the recommended mounting method for this sensor?

This device uses a TO-46 metal can package. You can solder it directly onto a PCB footprint or use a compatible sensor socket for easy replacement. Ensure the sensor’s window is unobstructed and oriented toward the target within its designed field of view.
