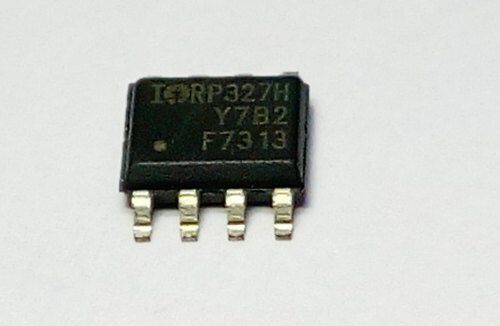

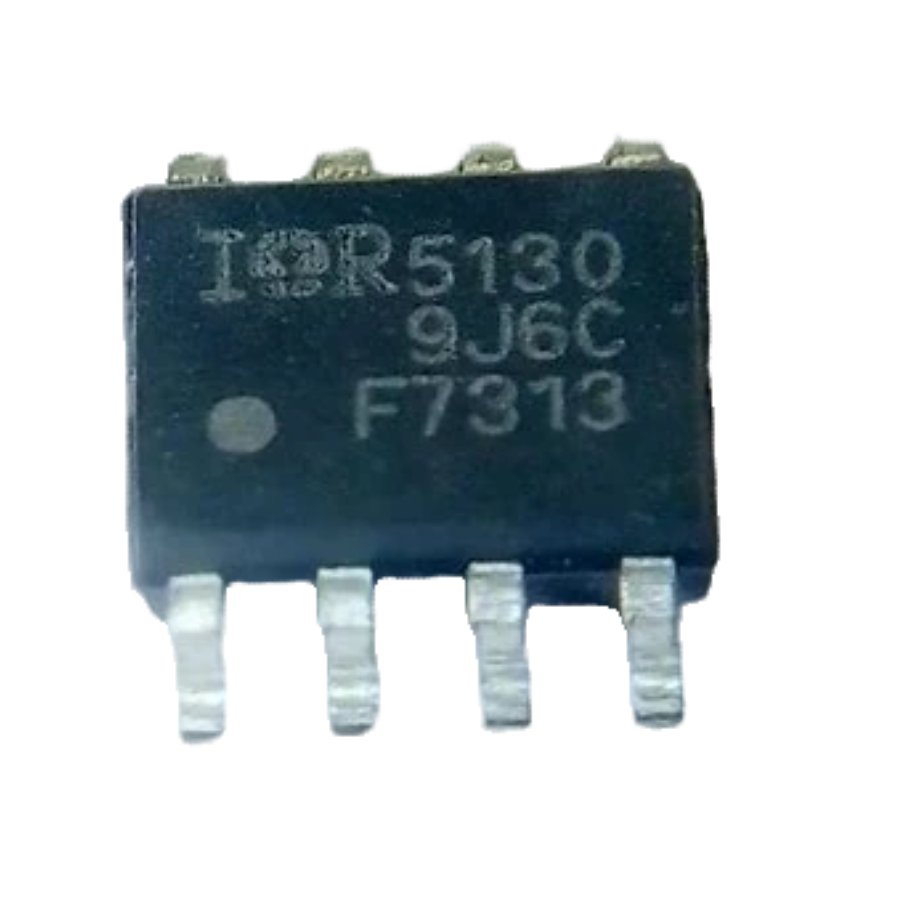

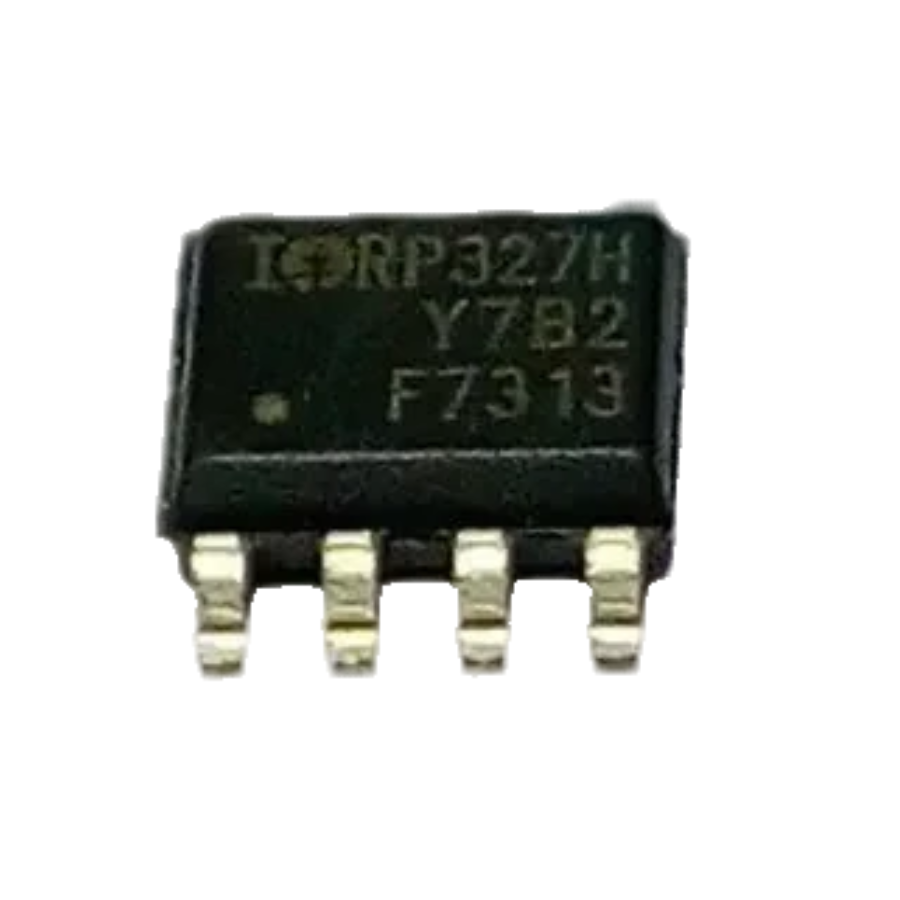

IRF7313 SMD IC SO8

The IRF7313 is a Surface Mount Device (SMD) integrated circuit (IC) packaged in the SO-8 (Small Outline, 8 leads) package. Here are some key characteristics and features of the IRF7313 SMD IC SO8:

1. Type: The IRF7313 is a dual N-Channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) in a single SO-8 package.
2. Functionality: MOSFETs are commonly used in electronic circuits for switching and amplification purposes. Being a dual N-channel MOSFET, the IRF7313 can control two separate channels or circuits.
3. Package Type: The SO-8 package is a surface mount package with 8 leads, which is widely used for its compact size and ease of mounting on printed circuit boards (PCBs).
4. Applications: MOSFETs like the IRF7313 find applications in various electronic circuits such as power supplies, motor control, LED lighting, audio amplifiers, and other high-frequency switching applications.
5. Specifications: The IRF7313 has specific electrical characteristics including threshold voltage, drain-source voltage ratings, drain current ratings, and on-resistance, which determine its suitability for different applications.
6. Temperature Range: The operating temperature range of the IRF7313 is also an important consideration for its use in different environments.

Overall, the IRF7313 SMD IC SO8 is a versatile component used in a wide range of electronic devices and circuits, offering efficient switching performance and reliable operation in compact and space-constrained designs.

Package Includes

1 x IRF7313 SMD IC SO8

IRF7313 SMD IC SO8 Overview

The IRF7313 SMD IC SO8 is a dual N-channel MOSFET in an 8-pin Small Outline (SO-8) surface-mount package, designed for fast switching and low on-resistance. It’s ideal for efficient power switching in DC-DC converters, motor drivers and other compact power management circuits.

Key Features of IRF7313 SMD IC SO8

• Dual N-Channel MOSFET: Two independent channels in one SO-8 package for space-saving designs
• Low RDS(on): Reduces conduction losses for higher efficiency
• Fast Switching: Supports high-frequency PWM and rapid power transitions
• Dynamic dv/dt Rating: Resists false turn-on during fast voltage changes
• RoHS Compliant: Environmentally friendly, lead-free construction
• Available at Zbotic: Genuine IC with fast shipping across India

Applications and Use Cases

• DC-DC buck and boost converters for embedded power supplies
• Motor driver circuits in robotics and automation
• Fast-switching LED driver modules
• Battery protection and charging systems
• Load switching in telecom and networking equipment

How to Use IRF7313 SMD IC SO8

Solder the IRF7313 onto the matching SO-8 PCB footprint, observing proper pin orientation. Drive each gate with the recommended voltage (typically 10–12 V) for full enhancement. Incorporate copper pours or thermal vias beneath the package to manage heat. Refer to the datasheet for detailed electrical characteristics and safe operating area.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What voltage range can IRF7313 handle?

The IRF7313 dual MOSFET is rated for a maximum drain-source voltage (V_DS) of 30 V per channel. Always derate according to your application’s thermal environment.

How do I minimize switching losses?

Use a dedicated gate driver with fast rise/fall times and ensure the gate voltage fully enhances the MOSFET. Optimize PCB layout to reduce parasitic inductances and keep trace lengths short.

Is heat sinking required in high-current applications?

Yes. The SO-8 package has limited thermal dissipation. Improve heat transfer with copper pours, thermal vias, and a solid PCB ground plane to keep junction temperature below safe limits.
