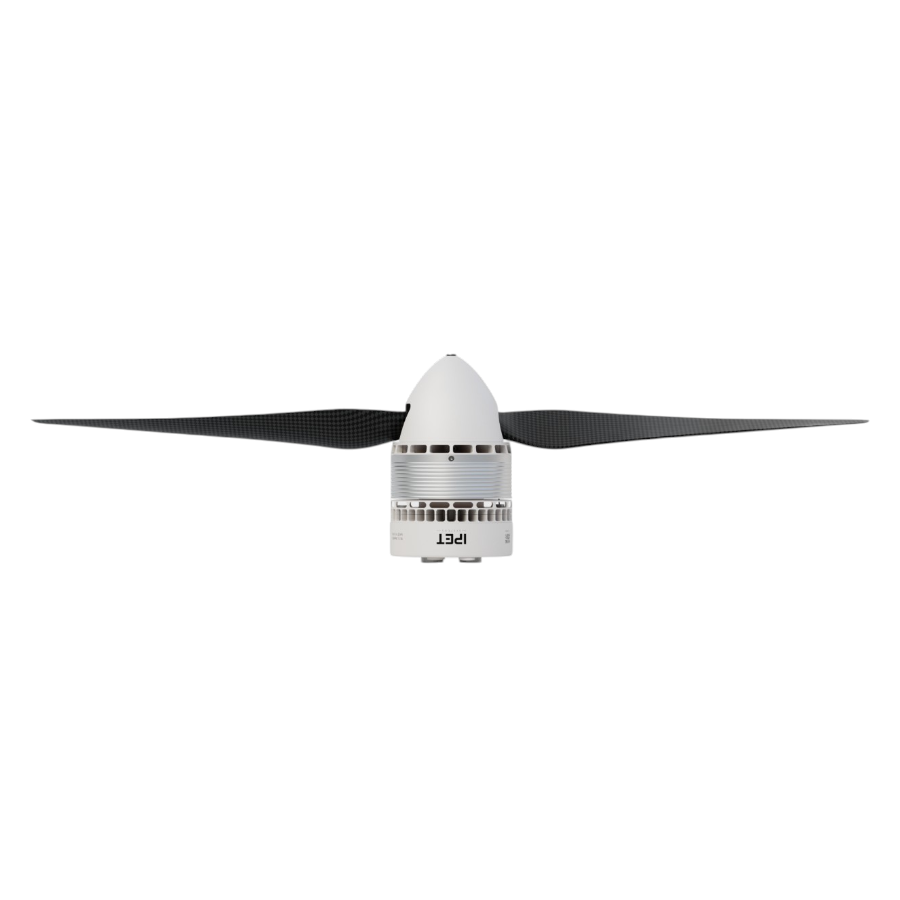

IPET IV7215 200KV Integrated Propulsion System (Made in Singapore)

Description:

The IPET IV7215 200KV Integrated Propulsion System is a high-efficiency fixed-wing UAV power solution designed for professional and industrial drone applications. Developed and manufactured in Singapore, this integrated system combines the IV7215 motor and 14S FOC IV150A ESC into a compact and reliable setup for smooth cruise performance, simplified installation, and reduced wiring complexity. Supporting 12S LiPo batteries, the system delivers stable power output, fast throttle response, and efficient long-endurance operation for fixed-wing and VTOL UAV platforms. With PWM and CAN communication support, IPX5 protection, and durable industrial-grade construction, the IV7215 200KV system is ideal for mapping, surveillance, inspection, logistics, and long-range UAV applications.

Key Features

Integrated motor and 14S FOC IV150A ESC design
200KV high-efficiency fixed-wing propulsion system
Supports 12S LiPo batteries
Optimized for fixed-wing and VTOL UAV platforms
Stable cruise performance with low power consumption
Fast 300ms throttle response speed
PWM and CAN communication support
IPX5 protection for outdoor operation
Lightweight and durable industrial-grade construction
Ideal for mapping, surveillance, inspection, and logistics UAV

Technical Drawing

Specification:

Specification	IV7 (7215) KV170	IV7 (7215) KV200
Model No.	IV7 (7215) KV170	IV7 (7215) KV200
Stator Size	72 × 15mm	72 × 15mm
KV Rating	170KV	200KV
Setup	IV7215 Motor + 14S FOC IV150A ESC	IV7215 Motor + 14S FOC IV150A ESC
Recommended Propeller	22×10, 19×12, 20×10	19×12, 20×10
Voltage	12–14S LiPo	12S LiPo
Max. Continuous Power	665W	684W
Power Cables	Silicone wires red/black 10AWG – 1800mm	Silicone wires red/black 10AWG – 1800mm
Signal Wires	Shielded wire OD4.2 5C – 1200mm	Shielded wire OD4.2 5C – 1200mm
Weight	1100g ±2%	1100g ±2%
IP Rating	IPX5	IPX5
Recommended Ambient Temperature	-30°C ~ 60°C	-30°C ~ 60°C
Throttle Position Range	1040 ~ 1940us (Fixed)	1040 ~ 1940us (Fixed)
Protocol	DroneCAN, UAVCAN	DroneCAN, UAVCAN
Control Method	PWM / CAN	PWM / CAN
Throttle Refresh Rate	50–500Hz	50–500Hz
Maximum Voltage	60V	60V
Peak Output Current (Lasts for 3s)	150A (Open environment with temperature ≤60°C)	150A (Open environment with temperature ≤60°C)
BEC	No	No
Throttle Response Speed	300ms	300ms

Test Data

Type	Throttle (%)	Voltage (V)	Current (A)	Thrust (g)	Motor efficiency (%)	Overall efficiency (gf/W)	Operating temperature (℃)
IV7215 KV170 + 14S FOC IV150A + 22*10	30	48.02	2.15	1179	72.1	11.4	52 (Ambient temperature: 25)
	35	48.00	3.26	1644	77.3	10.5
	40	47.95	4.74	2186	80.5	9.6
	45	47.91	6.63	2807	84.0	8.8
	50	47.84	8.96	3490	85.6	8.1
	55	47.76	11.84	4251	86.5	7.5
	60	47.66	15.29	5079	86.6	7.0
	65	47.55	19.43	5994	85.6	6.5
	70	47.41	24.12	6949	86.1	6.1
	75	47.25	29.71	7996	85.5	5.7
	80	47.07	36.23	9101	85.1	5.3
	85	46.86	43.73	10284	84.7	5.0
	90	46.61	52.53	11532	83.9	4.7
	95	46.31	63.16	12895	83.6	4.4
	100	45.82	79.67	14713	81.9	4.0
IV7215 KV170 + 14S FOC IV150A + 19*12	30	60.21	2.28	1225	74.4	8.9	54 (Ambient temperature: 25)
	35	60.17	3.48	1732	77.7	8.3
	40	60.12	5.05	2317	80.1	7.6
	45	60.07	7.10	2987	83.2	7.0
	50	60.00	9.57	3704	83.3	6.5
	55	59.92	12.60	4505	85.3	6.0
	60	59.80	16.25	5397	88.0	5.6
	65	59.68	20.51	6328	87.3	5.2
	70	59.54	25.52	7350	86.9	4.8
	75	59.40	31.36	8426	86.3	4.5
	80	59.20	38.10	9546	86.1	4.2
	85	58.98	46.11	10747	86.0	4.0
	90	58.68	57.01	11369	84.6	3.4
	95	58.28	70.67	12039	83.1	2.9
	100	58.00	80.47	12671	82.0	2.7
IV7215 KV170 + 14S FOC IV150A + 20*10	30	60.21	1.87	1082	68.8	9.6	48 (Ambient temperature: 25)
	35	60.19	2.81	1526	76.3	9.0
	40	60.15	4.05	2044	76.6	8.4
	45	60.11	5.66	2632	81.3	7.7
	50	60.04	7.63	3287	83.2	7.2
	55	59.98	10.08	4018	83.5	6.6
	60	59.88	13.05	4828	84.3	6.2
	65	59.79	16.55	5697	85.0	5.8
	70	59.69	20.68	6641	84.9	5.4
	75	59.55	25.52	7656	84.6	5.0
	80	59.39	31.33	8787	84.4	4.7
	85	59.19	37.91	9965	84.3	4.4
	90	58.96	46.02	11260	86.4	4.2
	95	58.69	55.81	12679	85.7	3.9
	100	58.29	69.75	14017	83.7	3.4
IV7215 KV200 + 14S FOC IV150A + 19*12	30	48.01	2.82	1175	70.4	8.7	64 (Ambient temperature: 25)
	35	47.96	4.26	1650	75.4	8.1
	40	47.91	6.18	2227	78.5	7.5
	45	47.83	8.64	2867	80.6	6.9
	50	47.78	11.68	3588	82.0	6.4
	55	47.64	15.44	4395	83.7	6
	60	47.52	19.83	5230	83.8	5.6
	65	47.36	25.08	6173	83.2	5.2
	70	47.20	31.27	7166	83.0	4.9
	75	46.98	38.51	8199	82.8	4.5
	80	46.74	47.17	9330	82.3	4.2
	85	46.44	57.61	10527	82.8	3.9
	90	46.05	71.25	11599	82.9	3.5
	95	45.48	91.42	11798	79.4	2.8
	100	45.49	91.24	11805	79.1	2.8
IV7215 KV200 + 14S FOC IV150A + 20*10	30	48.00	2.51	1037	68.5	8.6	62 (Ambient temperature: 25)
	35	47.96	3.74	1484	73.1	8.3
	40	47.91	5.40	2011	77.3	7.8
	45	47.86	7.52	2615	79.1	7.3
	50	47.77	10.13	3290	80.8	6.8
	55	47.69	13.35	4044	82.5	6.4
	60	47.58	17.20	4862	85.0	5.9
	65	47.45	21.77	5756	84.2	5.6
	70	47.30	27.18	6696	83.4	5.2
	75	47.12	33.39	7711	83.4	4.9
	80	46.91	40.81	8823	83.5	4.6
	85	46.65	49.61	9997	85.4	4.3
	90	46.37	60.20	11267	85.8	4.0
	95	45.98	73.69	12688	83.8	3.7
	100	45.55	88.75	13943	81.7	3.4
Note: Motor temperature is the motor surface temperature at 100% throttle running 3mins. (Data above based on IPET SYSTEMS benchtest are for reference only. Final interpretation rights reserved by IPET SYSTEMS)

Package Include:

1x IPET IV7215 200KV Integrated Propulsion System (Made in Singapore)

Technical Specifications

Brand	IPET
KV Rating	200KV
SKU	AI8220
Weight	0.870 kg
Availability	In Stock

Applications & Use Cases

The IPET IV7215 200KV Integrated Propulsion System (Made in Singapore) is a versatile drone kit used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.

Common use cases:

Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups

This product is ideal for electronics enthusiasts, engineers, and students.

Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.

Shipping & Delivery

Free shipping on orders above ₹999 across India
Dispatched within 1-3 business days
Expected delivery: 3-7 business days depending on location
Secure packaging to ensure safe transit of electronic components
Genuine IPET product sourced from authorized channels

Weight	0.870 kg

Country Of Origin: Singapore
