IPET I11 70 KV Integrated Propulsion System (Made in Singapore)
Description:

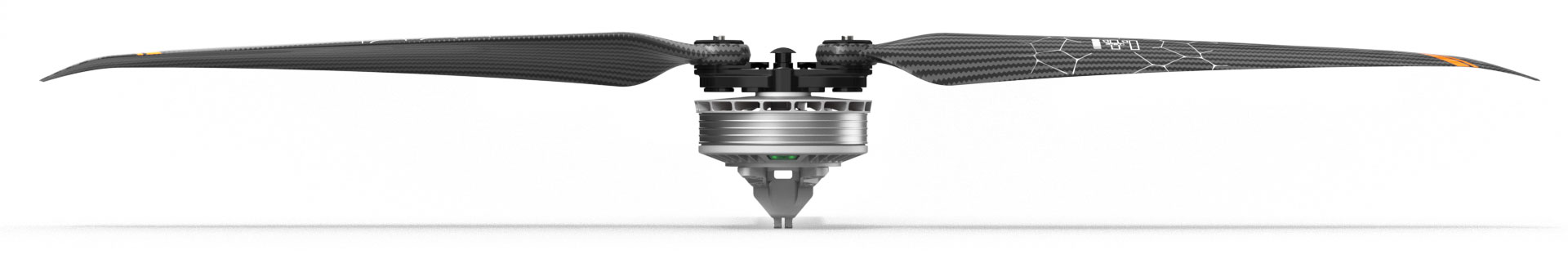

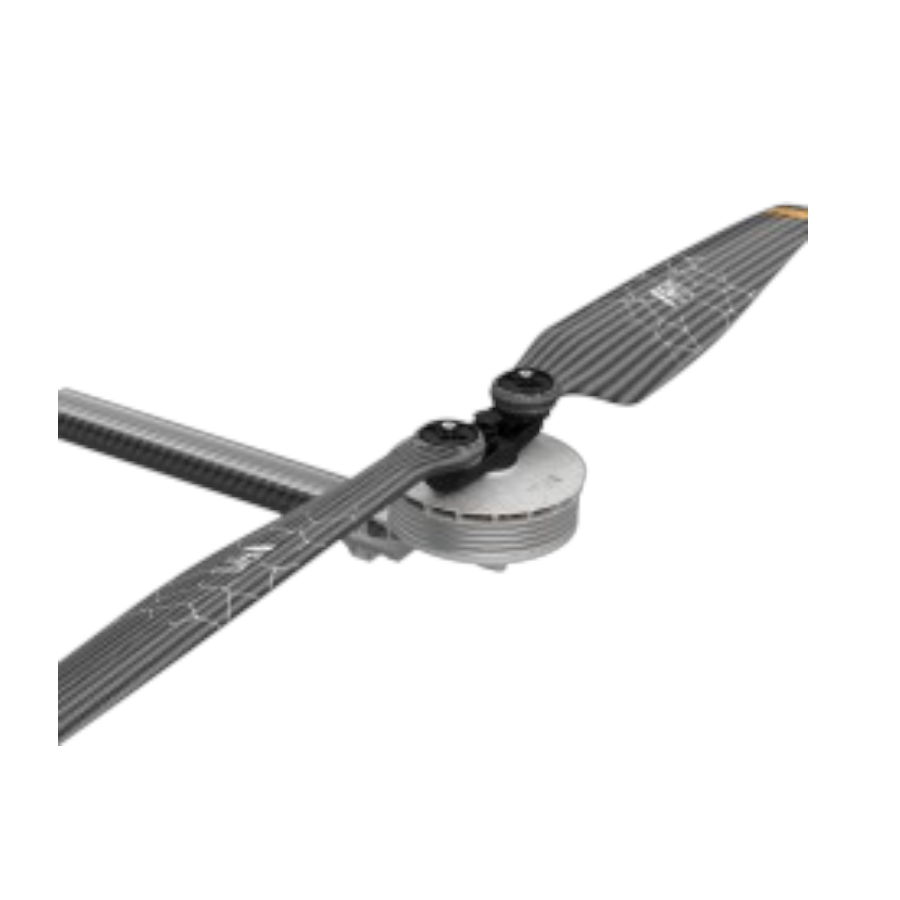

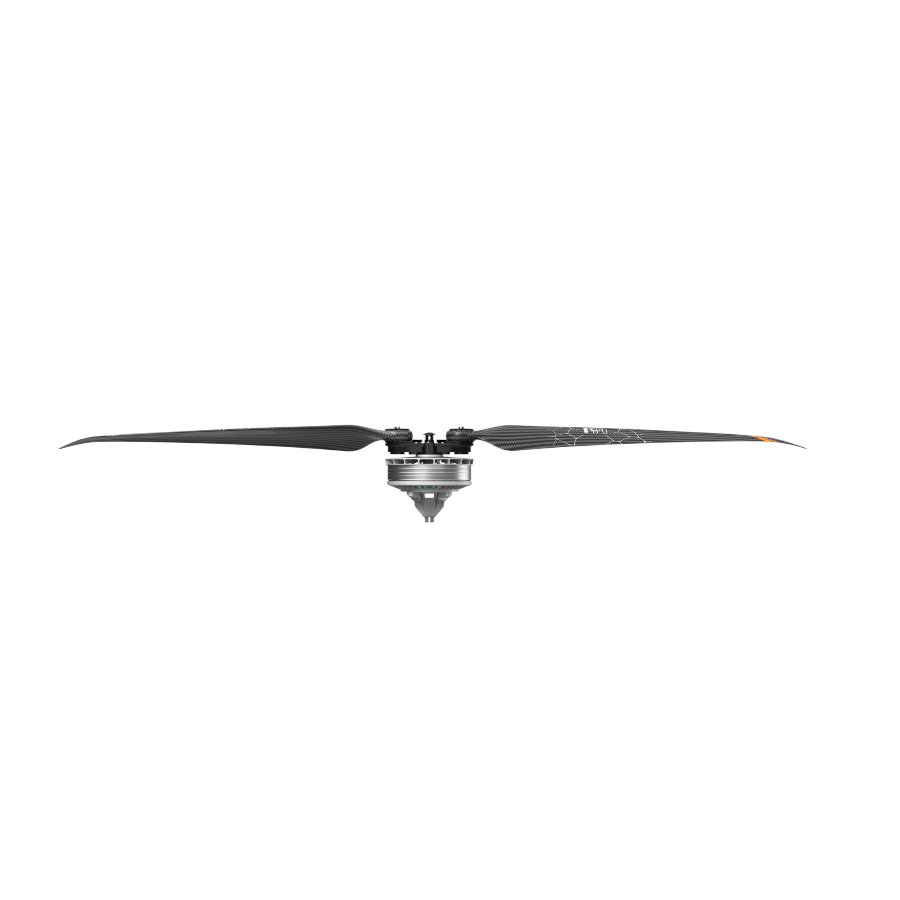

The IPET I11 70 KV Integrated Propulsion System is a high-performance all-in-one electric propulsion solution designed for heavy-lift professional multirotor drones. It integrates the motor, ESC (Electronic Speed Controller), and carbon-fiber propeller into a compact unit for improved efficiency, reliability, and simplified installation. The system is optimized for large UAV platforms with quadcopter MTOW of 36–38 kg and hexacopter MTOW of 54–56 kg. It features a 14S 70A FOC ESC, 42-inch propellers, low-noise operation, intelligent health monitoring, and long service life, making it suitable for industrial, agricultural, logistics, mapping, and surveillance drone applications.
System Specs:
| Model No. | I11 KV70 |
| Tube size | 50mm |
| Setup | I11 (Motor)+14S FOC 70A (ESC)+I42 (Prop) |
| Recommended battery | 12~14S (LiPo) |
| Wire length | 900±5mm |
| Rated thrust | 10~12kg |
| Weight | 2000±1%g (Incl. wires+prop) |
| Efficiency at rated thrust | 9.3g/W (10.8kg) |
| IP | IP46 |
| Max. thrust | 28.5kg |
| Recommended ambient temperature | -30～50℃ |
Motor Specs:
| KV | 70 |
| Throttle range | 1050~1950us (Fixed) |
| Max. voltage | 61V |
| Protocol | DRONE CAN, UAV CAN |
| Peak current (for a short time) | 70A (Openenvironment andtemperature≤60℃) |
| Control method | PWM/CAN |
| BEC | NO |
Prop Specs:
| Model No. | I42 (Fipet-imagesing carbon fibre propeller) |
| Length | 42 Inch (1073mm) |
Test Data:
| Type | Voltage (V) |
Throttle (%) |
Current (A) |
Thrust (g) |
Motor efficiency (%) |
Overall efficiency (g/W) |
Operating temperature (℃) |
|---|---|---|---|---|---|---|---|
| I11 KV70 + 14S FOC 70A + I42 |
59.97 | 30% | 3.85 | 3492 | 83.4 | 15.1 | 113 (Ambient temperature: 30) |
| 59.89 | 35% | 6.20 | 4962 | 85.8 | 13.4 | ||
| 59.77 | 40% | 9.29 | 6635 | 86.8 | 12.0 | ||
| 59.62 | 45% | 13.23 | 8463 | 87.5 | 10.7 | ||
| 59.45 | 50% | 18.03 | 10375 | 87.5 | 9.7 | ||
| 59.24 | 55% | 23.66 | 12381 | 87.1 | 8.8 | ||
| 59.04 | 60% | 30.45 | 14595 | 86.5 | 8.1 | ||
| 58.76 | 65% | 37.92 | 16763 | 85.9 | 7.5 | ||
| 58.47 | 70% | 46.29 | 18973 | 84.9 | 7.0 | ||
| 58.16 | 75% | 54.97 | 20996 | 82.9 | 6.6 | ||
| 57.85 | 80% | 64.28 | 22915 | 82.2 | 6.2 | ||
| 57.54 | 85% | 73.63 | 24647 | 80.8 | 5.8 | ||
| 57.21 | 90% | 83.23 | 26297 | 79.1 | 5.5 | ||
| 56.86 | 95% | 92.74 | 27709 | 77.4 | 5.3 | ||
| 56.59 | 100% | 100.70 | 28781 | 75.8 | 5.1 |
Package Includes:

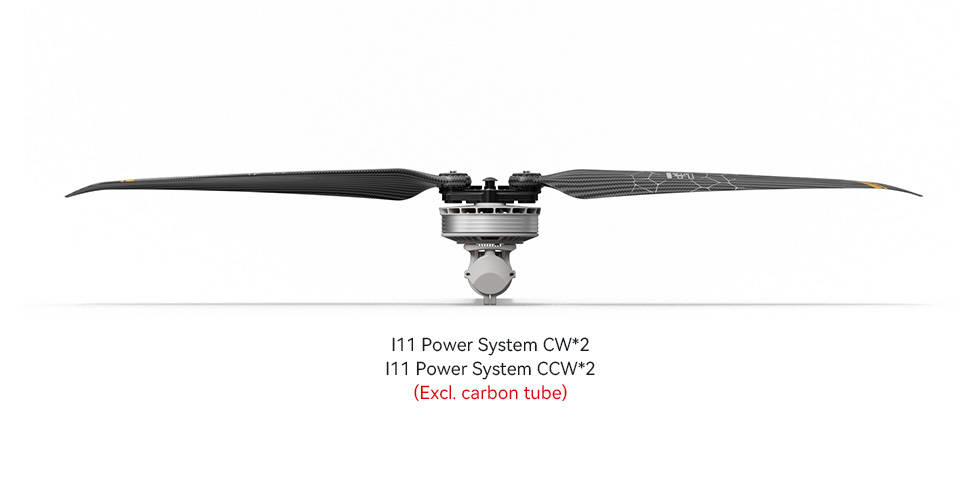

1xIPET I11 70 KV Integrated Propulsion System (Made in Singapore)
