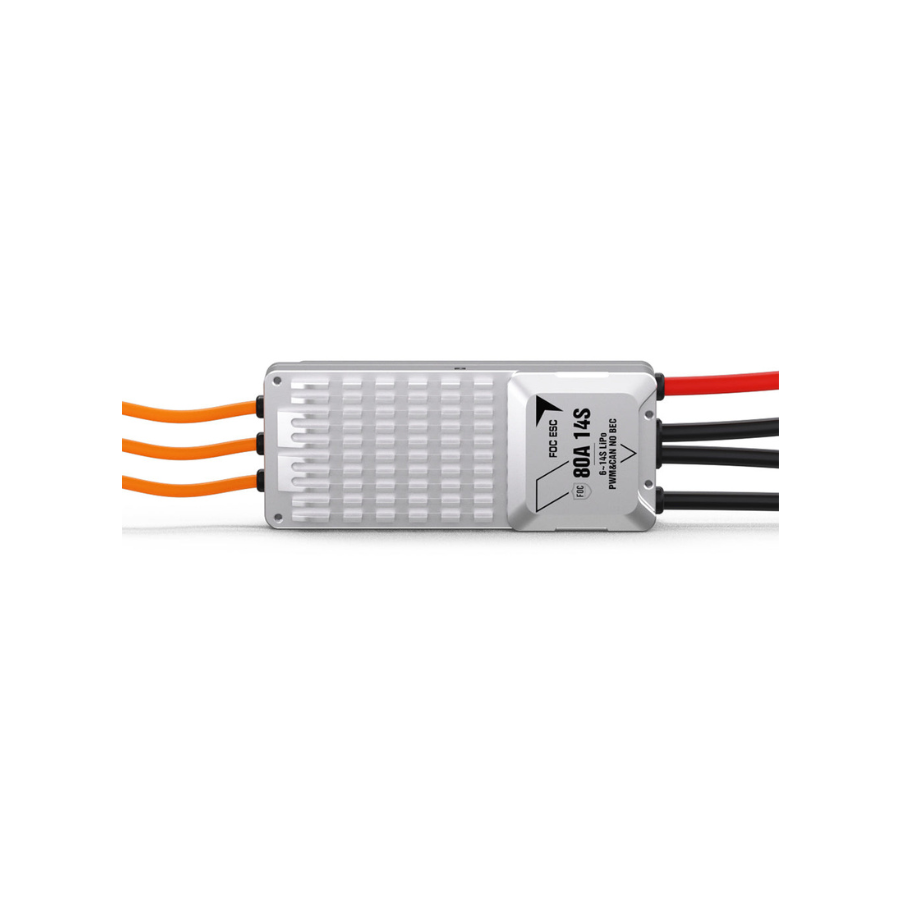

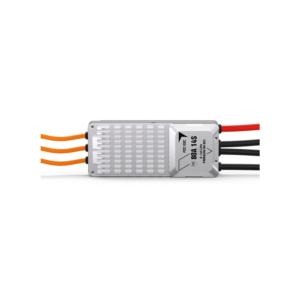

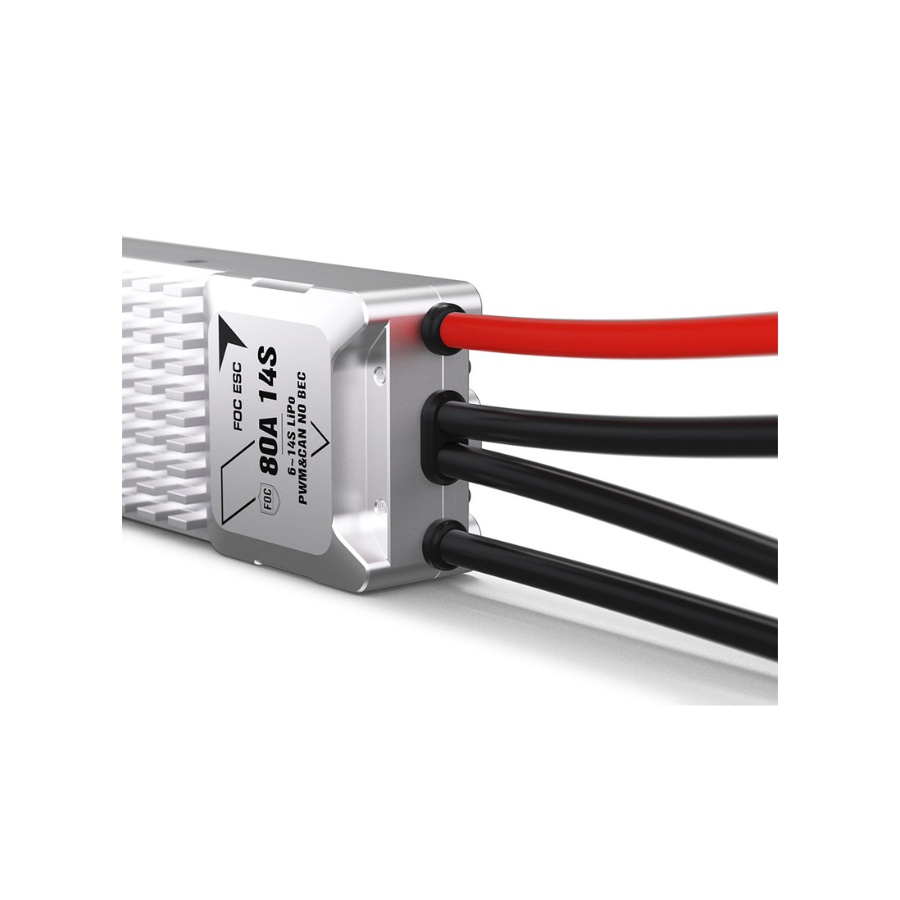

T-MOTOR V80A 14S VTOL UAV Drone ESC
Description:
The T-MOTOR V80A 14S is a professional-grade FOC brushless UAV ESC supporting 6–14S LiPo batteries, delivering 40A continuous and 80A peak current output. Featuring PWM/CAN communication, encoder support, telemetry feedback, and efficient thermal management, it is designed for high-performance industrial drones and VTOL platforms.
Key Features:
- Supports 6S–14S LiPo batteries
- 40A continuous and 80A peak current
- Advanced FOC motor control
- PWM and CAN communication
- Telemetry and data feedback support
- Magnetic encoder compatibility
- Fast throttle response and precise speed regulation
- Low-noise operation
- Compact, lightweight aluminum design
- Suitable for industrial UAVs, VTOL aircraft, inspection, mapping, and heavy-duty drone applications
Specifications:
| Parameter | Specification |
|---|---|
| Model | V80A 14S |
| ESC Type | Industrial BLDC FOC (Field-Oriented Control) UAV ESC |
| Support Voltage | 6S–14S LiPo (18–60 V) |
| Continuous Current | 40 A |
| Peak Current | 80 A (10 seconds) |
| Control Protocol | PWM / CAN |
| Throttle Range | 1040–1940 μs |
| Throttle Refresh Frequency | 50–500 Hz |
| Throttle Response Speed | 300 ms |
| BEC | No |
| Standby Consumption | ≤50 mA @ 48 V |
| Weight (Without Cables) | 78 g |
| Weight (With Cables) | 110 g |
| Dimensions (L × W × H) | 84 × 35 × 19 mm |
| Input Cable | Silicone Wire, Red/Black, 12 AWG, 180 mm |
| Output Cable | Silicone Wire, Orange, 14 AWG, 110 mm |
| Encoder Interface | M6 Aviation Connector |
| Application Type | Industrial UAVs, VTOL Aircraft, Heavy-Lift Drones |
Packing Includes:
- 1 x T-Motor V80A 14S UAV ESC
- 1 x Accessories pack
