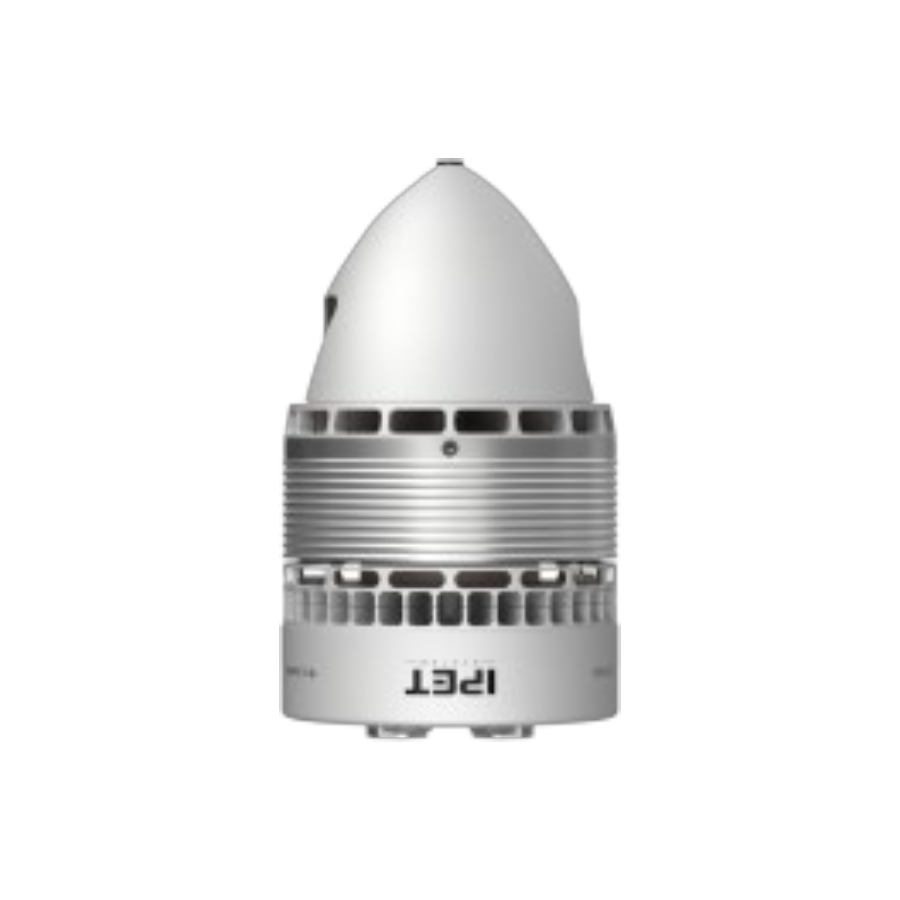

IPET IV7224 190KV Integrated Propulsion System (Made in Singapore)
Description:

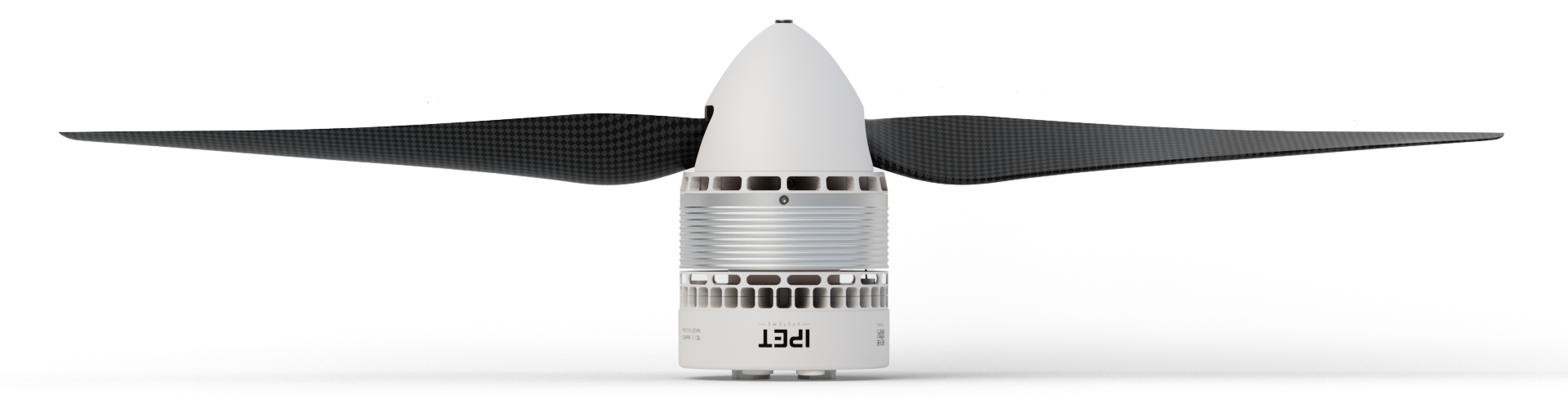

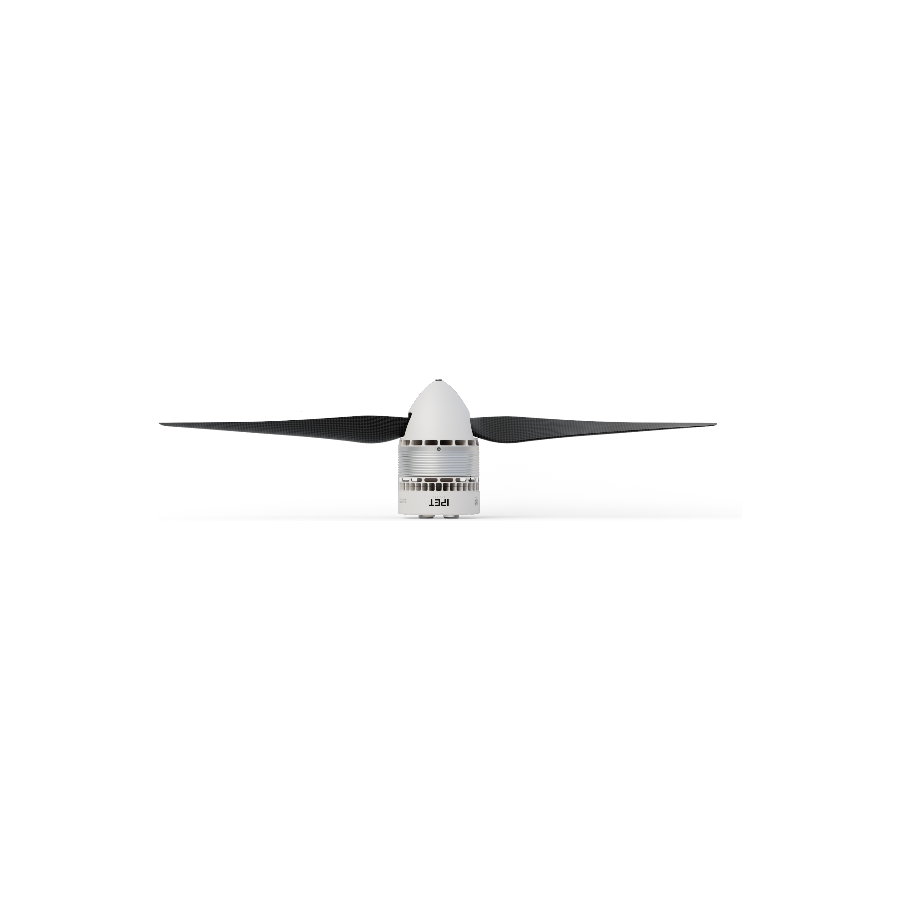

The IPET IV7224 190KV Integrated Propulsion System is a high-performance integrated electric propulsion solution developed for fixed-wing and VTOL UAVs with 28–32 kg maximum take-off weight (MTOW). It combines a 190KV motor and a 14S 150A FOC ESC into a compact all-in-one design, reducing wiring complexity, weight, and installation time. The system supports 12S LiPo batteries and delivers up to 5300W maximum power with a 22×10 propeller configuration. It features advanced shared cooling channels, adaptive propeller locking, real-time health monitoring, and multiple built-in safety protections for reliable long-endurance UAV operations. Manufactured by IPET Ststem in Singapore.
Specification:
| Model No. | IV9 (7224) KV160 |
| Setup | IV9 (7224) Motor+14S FOC IV150A ESC |
| Propeller | 22*10, 24*10, 24*12 |
| Voltage | 12~14S (LiPo) |
| Max. Continuous Power | 956W |
| Power Cables | Silicone Wires-Red/Black-10AWG-1800mm |
| Signal Wires | Shielded Wire-Black-OD4.2-5C-1200mm-JP-3P*2-Black Blank White-Green Yellow Grey |
| Weight | 1300±2%g |
| IP | IPX5 |
| Recommended Ambient Temperature | -30～60℃ |
| Model No. | IV9 (7224) KV190 |
| Setup | IV9 (7224) Motor+14S FOC IV150A ESC |
| Propeller | 22*10 |
| Voltage | 12S (LiPo) |
| Max. Continuous Power | 881W |
| Power Cables | Silicone Wires-Red/Black-10AWG-1800mm |
| Signal Wires | Shielded Wire-Black-OD4.2-5C-1200mm-JP-3P*2-Black Blank White-Green Yellow Grey |
| Weight | 1300±2%g |
| IP | IPX5 |
| Recommended Ambient Temperature | -30~60℃ |
Motor Specs:
| Stator Size | 72*24mm |
| KV | 160 |
| Stator Size | 72*24mm |
| KV | 190 |
| Throttle Pos. Range | 1040~1940us (Fixed) |
| Max. Voltage | 60V |
| Protocol | DRONE CAN, UAV CAN |
| Peak Output Current (Last For 3s) | 150A (Open Environment With Temperature≤60℃) |
| Control Method | PWM/CAN |
| BEC | No |
| Throttle Refresh Rate | 50~500Hz |
| Throttle Response Speed | 300ms |
Package Includes:
1xIPET IV7224 190KV Integrated Propulsion System (Made in Singapore)
