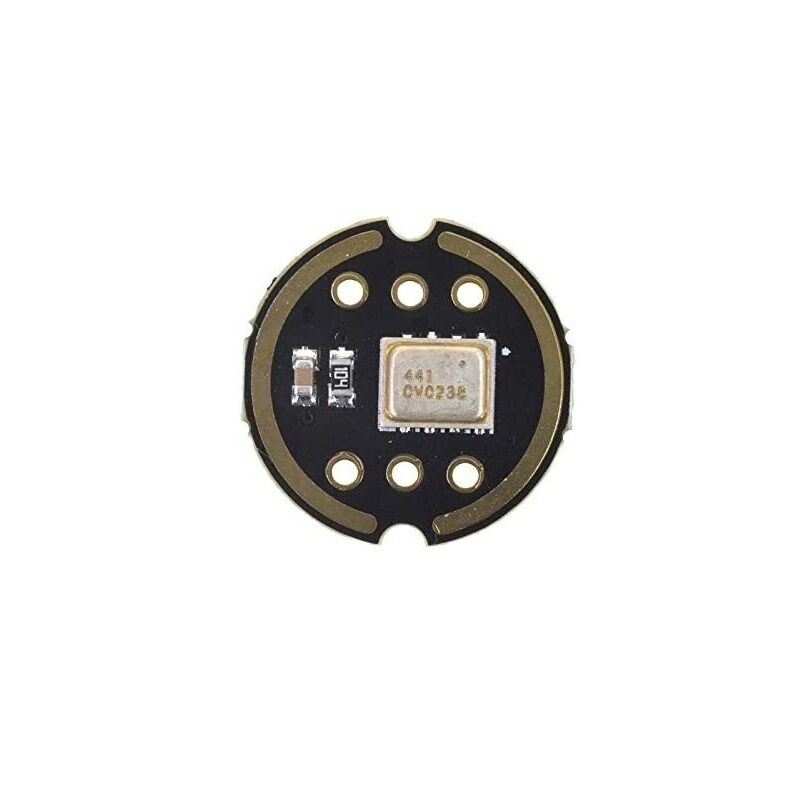

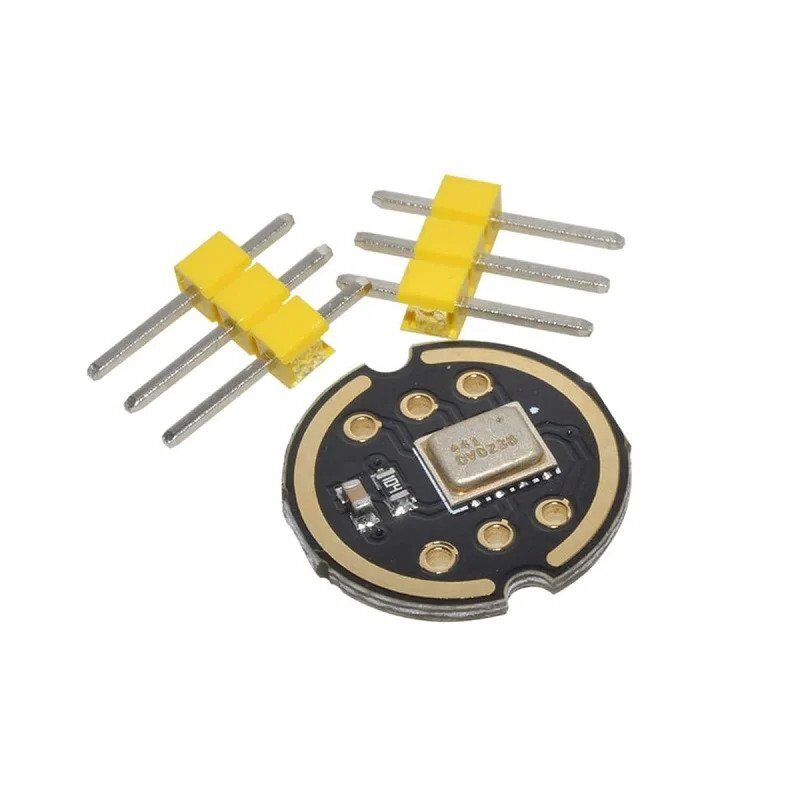

INMP441 MEMS High Precision Omnidirectional Microphone Module I2S
The INMP441 is a high-performance, low-power, digital output, omnidirectional MEMS microphone with a bottom port. The complete INMP441 solution consists of a MEMS sensor, signal conditioning, analog to digital converter, anti-aliasing filter, power management, and industry-standard 24-bit I2S interface.
The I2S interface allows the INMP441 to be directly connected to digital processors such as DSPs and microcontrollers without the need for an audio codec for use in the system. The INMP441 has a high signal-to-noise ratio and is an excellent choice for near-field applications. The INMP441 has a flat wideband frequency response that results in a high definition of natural sound.

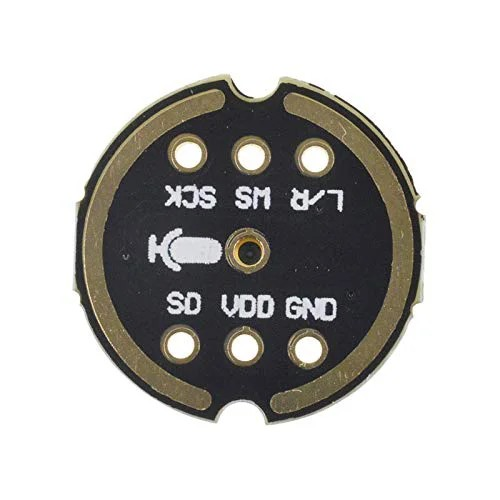

Interface definition
SCK: Serial data clock for I2S interface
WS: Serial data word selection for I2S interface
L/R: Left/Right channel selection.
When set to low, the microphone outputs a signal on the left channel of the I2S frame.
When set to high level, the microphone outputs signals on the right channel
SD: Serial data output of the I2S interface.
VCC: Input power, 1.8V to 3.3V.
GND: power ground
NMP441 connection with ESP32
SCK -GPIO14
SD – GPIO32
WS – GPIO15
L/R – GND
GND – GND
VDD – VDD3.3
Features
Digital I2S interface with high precision 24-bit data
High signal to noise ratio is 61 dBA
High sensitivity – 26 dBFS
Stable frequency response from 60 Hz to 15 kHz
Low power consumption: low current consumption 1.4 mA
High PSR: -75 dBFS
Specifications:
S/N Ratio (dB)
61 dBA
High Sensitivity
26 dBFS
Stable Frequency Response
60 Hz to 15 kHz
Power Consumption (mA)
1.4 mA
High PSR
-75 dBFS
Package Included
1 x INMP441 MEMS High Precision Omnidirectional Microphone Module I2S
The INMP441 MEMS Omnidirectional Microphone Module High Precision / SNR Low Power I2C Interface Supports ESP32 is a versatile sound sensor used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
