Waveshare Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount
Industrial-grade Ethernet Switches are specifically designed to connect devices in network environments that are subject to extreme operating temperatures of -40°C to 75°C, vibrations, and shocks. They are built to exceed the specifications of commercial switches with industrial safety certification and approval for hazardous locations, making them ideal for use at sites with harsh environmental conditions.
Ethernet switches that feature Industrial Protocol Management support, superior reliability, advanced security, network redundancy, and easy installation and configuration. The IDS Switch portfolio includes support for 10/100/1000 Ethernet and fiber-in unmanaged switches, managed switches, and PoE switches.
Applications:
Dimensions
Features:
- Onboard switch chip, 5x ports 10/100/1000M non-blocking switch architecture
- Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode)
- Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support
- Allow forwarding 9216 bytes huge data packet on linear speed
- Over-voltage protection, effectively preventing damages caused by other high voltage power supply

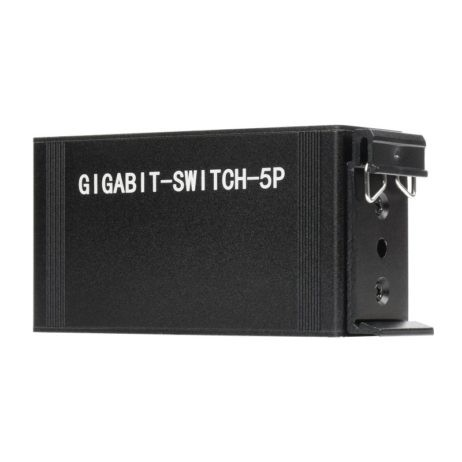

- Industrial grade alloy case, solid and durable, with DIN rail mount support for easy installing
Specifications:
| Brand | Waveshare |
|---|---|
| Type | Ethernet Switch |
| Full-Duplex | 10/100/1000M |
| Voltage Range Power Supply | 5~36V |
| Temperature | -40°C to 75°C |

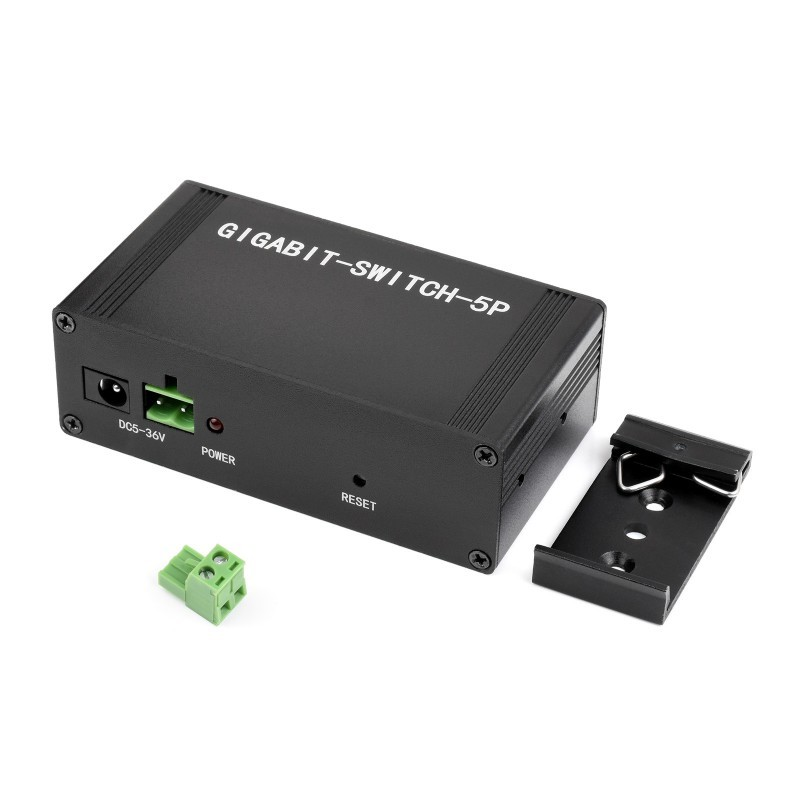

| Dual Power Inputs | (DC Jack And Screw Terminal) |

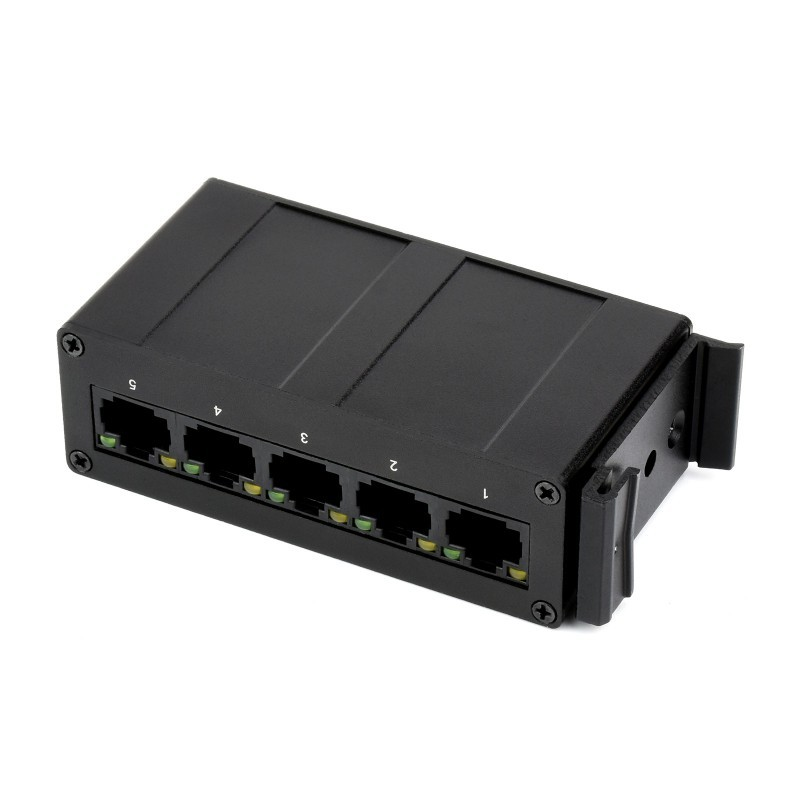

| Ethernet Ports | 5x 10/100/1000M With Auto MDI/MDI-X Support |
Packages Includes:
1 x Waveshare Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount
Waveshare Industrial 5P Gigabit Ethernet Switch, Overview
The Waveshare Industrial 5P Gigabit Ethernet Switch is a rugged, five-port switch designed for harsh environments. With full-duplex 10/100/1000 Mbps throughput and DIN rail mounting, it connects industrial devices reliably under extreme temperatures, vibrations, and shocks.
Key Features of Waveshare Industrial 5P Gigabit Ethernet Switch
- Five Gigabit Ethernet ports with auto-negotiation (10/100/1000 Mbps) and full-duplex support
- Industrial-grade design certified for hazardous locations
- Wide operating temperature range from –40°C to 75°C
- Shock and vibration resistance to meet IEC standards
- DIN rail mounting bracket for quick installation in control cabinets
- Fast shipping from Zbotic for immediate deployment
Applications and Use Cases
- Factory automation networks connecting PLCs, HMIs, and sensors
- SCADA and process-control systems in oil, gas, and chemical plants
- Transportation infrastructure: railway, subway, and traffic signaling
- Renewable energy sites, wind farms, and solar arrays
- Outdoor CCTV and surveillance systems (in weatherproof enclosures)
- Power substations and smart grid installations
How to Use Waveshare Industrial 5P Gigabit Ethernet Switch
Mount the switch on a standard 35 mm DIN rail, connect a compatible power supply, and attach your Ethernet cables to the five RJ45 ports. The switch offers plug-and-play auto-negotiation, so devices will establish link speeds automatically. Status LEDs on each port indicate link/activity and speed for easy monitoring.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What operating temperature range does this switch support?
The switch operates reliably between –40°C and 75°C, making it suitable for extreme industrial environments.
How do I install the switch on a DIN rail?
Align the rear mounting clip with the rail and slide downward until it locks in place. No tools are required for mounting or removal.
Does the switch require configuration before use?
No initial configuration is needed. The switch is unmanaged and supports auto-negotiation on each port for seamless plug-and-play connectivity.
