Looking for Tekko32 Esc 45a? Holybro Tekko32 F4 45A ESC (4 Pcs) is available at Zbotic with fast shipping across India.
The Tekko32 F4 45A ESC represents the newest addition to HolyBro’s BLHeli32 lineup. Operating alongside an ARM 32bit compatible F4 MCU, this ESC delivers lower latency for input signals, higher processing rates, and a smoother RPM band. It supports voltage and current monitoring, limits, and allows for brake force customization upon stopping. With significant potential for growth, the Tekko32 ESC promises broad compatibility with upcoming products.
Features:
- F4 MCU with BLHELI32 firmware Dshot1200 up to 32kHz
- PWM up to 48k
- Small size & low weight
- Auto Timing Feature
- On-Board RGB LED
- Build in Current sensor
- Smooth Response
specification
| Input | 2-6 S |
|---|---|
| External Capacitor(uF) | recommended for 6s (330uf 35v for 6s usage.) |
| Input Current (A) | 45 |

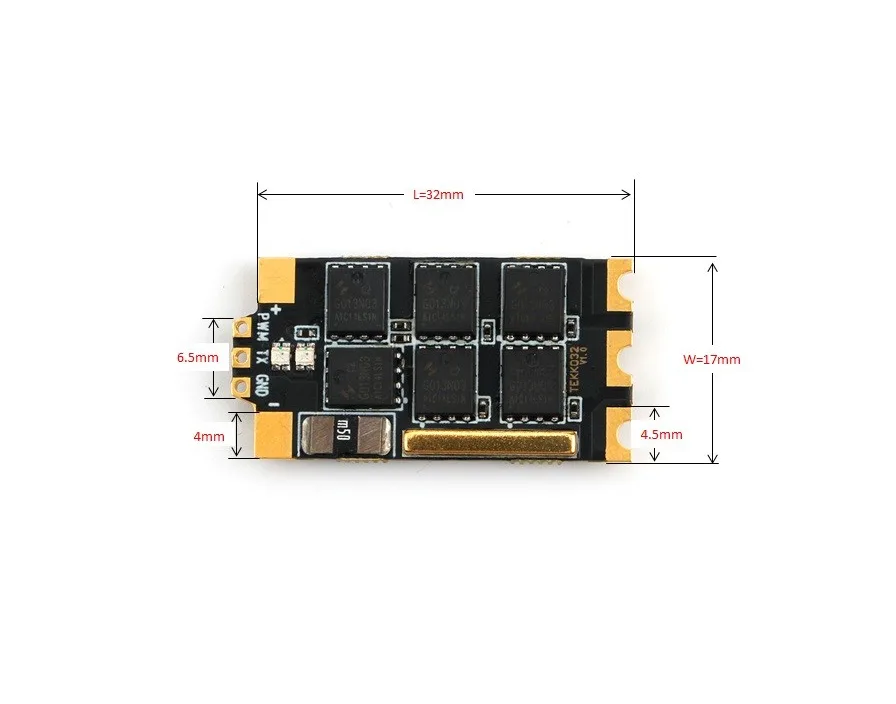

| Size (mm): | 17.3*34.3*4.5 |

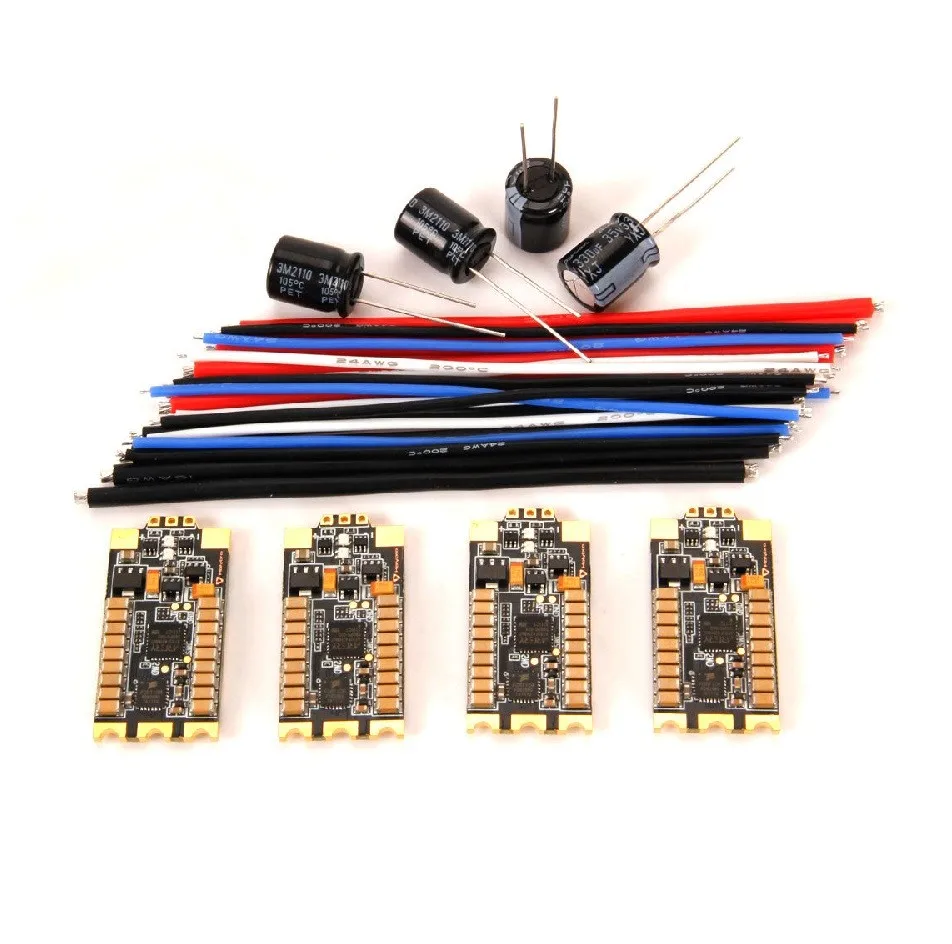

Package:
- Tekko32 F4 45A ESC
- Electrolytic capacito: 330uF 35v
- 24AWG 100mm Black wire
- 24AWG 100mm White wire
- 24AWG 100mm Blue wire
- 16AWG 100mm Red wire
- 16AWG 100mm Black wire
Holybro Tekko32 F4 45A ESC Overview
The Holybro Tekko32 F4 45A ESC (4 Pcs) is a compact, high-performance brushless electronic speed controller designed for multi-rotor drones and UAVs. Featuring an ARM 32-bit F4 MCU with BLHeli32 firmware, it delivers low latency, smooth motor response and built-in current monitoring for precision flight control.
Key Features of Holybro Tekko32 F4 45A ESC
- F4 ARM 32-bit MCU running BLHeli32 firmware with Dshot1200 support
- High PWM frequency up to 48 kHz for finer throttle resolution
- Compact, lightweight design ideal for space-constrained drone frames
- Auto Timing feature for optimized motor commutation without manual tuning
- On-board RGB LED for status indication and easy troubleshooting
- Integrated current sensor and voltage monitoring for real-time telemetry
- Customizable brake force settings upon motor stop
- Smooth response and wide compatibility with upcoming BLHeli32 milestones
- Genuine Holybro product with fast shipping from Zbotic across India
Applications and Use Cases
- 5″ and 6″ FPV racing drones requiring precise throttle control
- Freestyle quadcopters where smooth RPM transitions are essential
- Long-range multirotor builds with onboard current telemetry
- Cinewhoop craft that demand compact ESCs and reliable performance
- Heavy-lift drones using 4S–6S setups for aerial photography
- Custom drone prototypes and research projects needing programmable ESC features
How to Use Holybro Tekko32 F4 45A ESC
Mount the ESC on your drone frame, connect each three-phase output to the corresponding brushless motor, and hook up the signal/input wires to your flight controller. Power the ESC with a compatible LiPo battery (4S–6S) and configure the controller via BLHeliSuite to set Dshot1200, throttle calibration and brake force. Use the on-board RGB LED to verify arm status and telemetry feedback during pre-flight checks.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I upgrade the firmware on the Tekko32 F4 45A ESC?
Yes. The ESC runs BLHeli32 firmware and can be upgraded or reconfigured using BLHeliSuite over a compatible USB-to-UART adapter.
Does the ESC provide real-time current and voltage telemetry?
Absolutely. It features a built-in current sensor and voltage monitoring pins, allowing your flight controller to display accurate power usage stats in real time.
What battery and motor setups are supported?
The Tekko32 F4 45A ESC is optimized for 4S–6S LiPo batteries and brushless motors commonly used on 5″ to 6″ FPV quads, handling continuous currents up to 45 A with ease.
