Looking for S500 Motor? Holybro S500 V2 Kits (Included Motor, Prop and ESC) is available at Zbotic with fast shipping across India.
The Holybro S500 V2 Kit is an affordable, lightweight, and simple-to-assemble option that requires no soldering. It’s a comprehensive kit that includes nearly everything required for flight; only a battery and an RC system are needed (the latter being optional). It’s fully compatible with various Holybro Flight Controllers, including the Pixhawk6C and Pix32 v6.

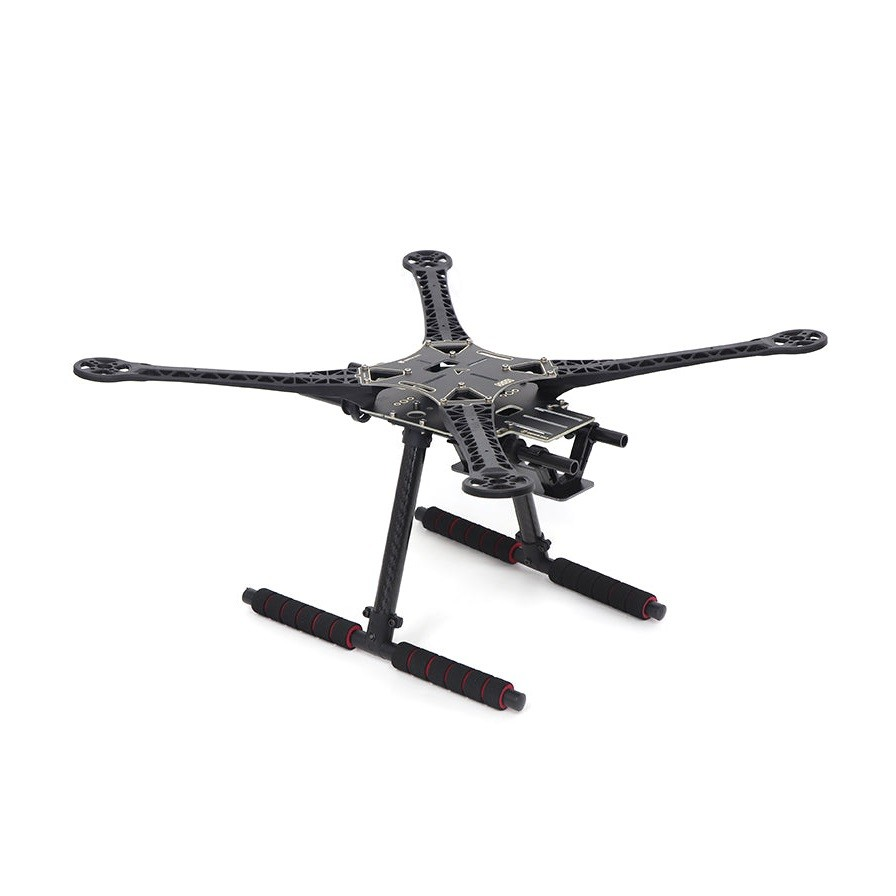

The S500 frame is made from a blend of materials. Its arms consist of a high-strength, ultra-durable polyamide-nylon composite, reinforced with a carbon fiber rod at the center. The landing gear is made of 16mm and 10mm diameter carbon fiber tubes, joined by plastic tee connectors that have been thickened and strengthened compared to the previous version.
This quadcopter frame is both strong and lightweight, featuring landing gear and 1.5mm top and bottom plates. The bottom plate includes a built-in power distribution board (PDB) for clean and easy wiring, along with an adjustable battery mount to ensure optimal weight distribution. The frame is also designed to accommodate a variety of camera mounts and gimbals, making it ideal for multiple applications.
The frame’s assembly is exceptionally straightforward, thanks to pre-threaded sleeves for all frame bolts, eliminating the need for lock nuts. It requires only one size of bolt for the entire build, meaning only one hex size is needed for assembly.

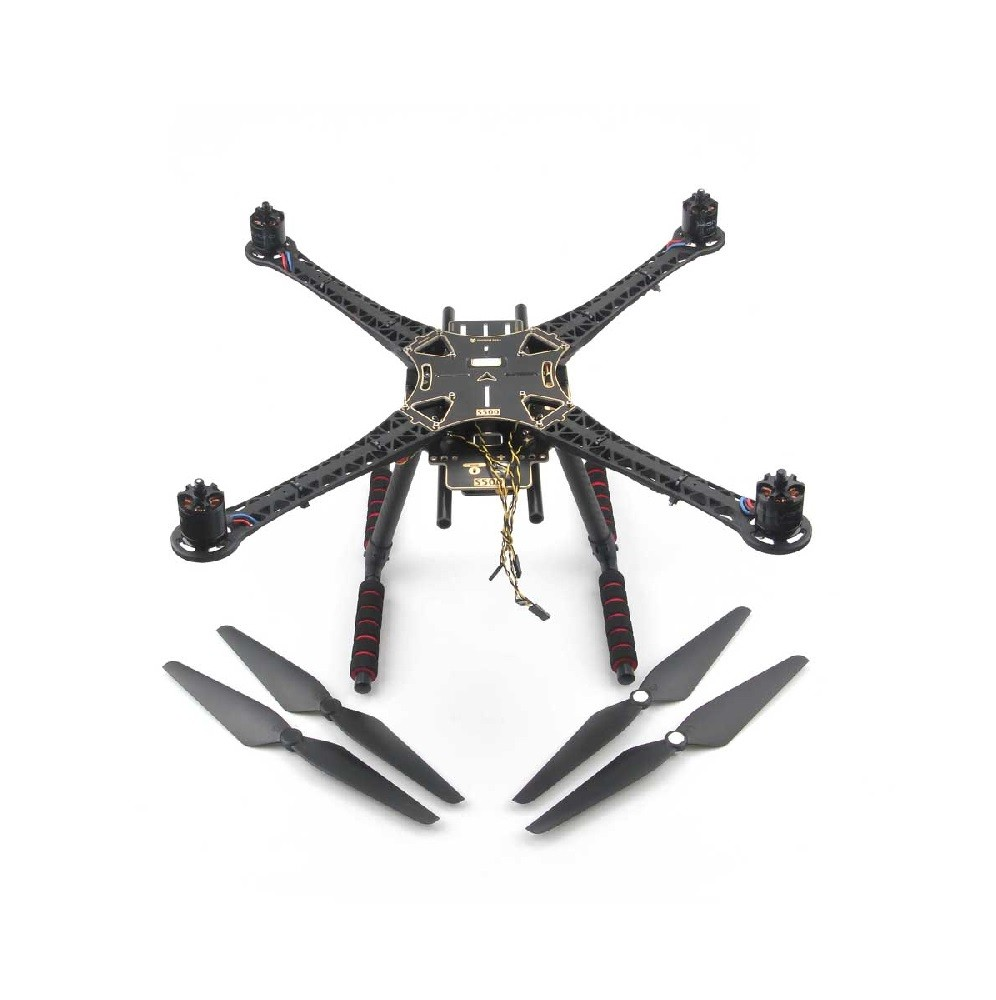

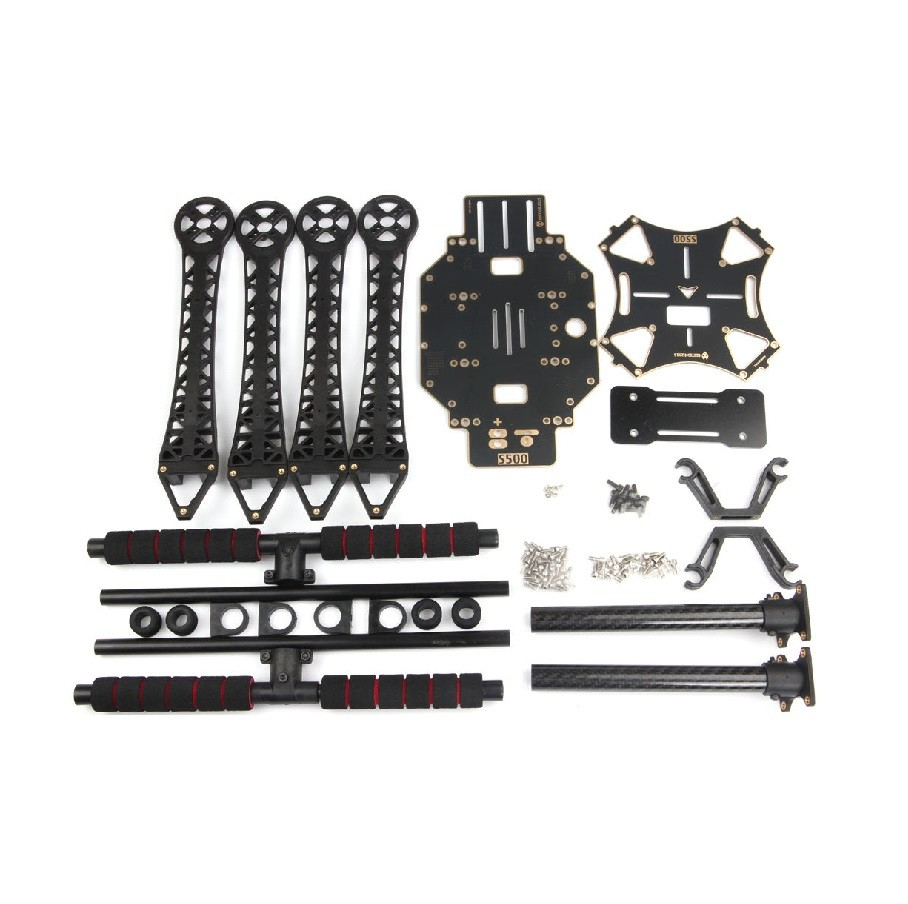

S500 V2 ARF Kit Contents:
- ARM adopts high strength plastics

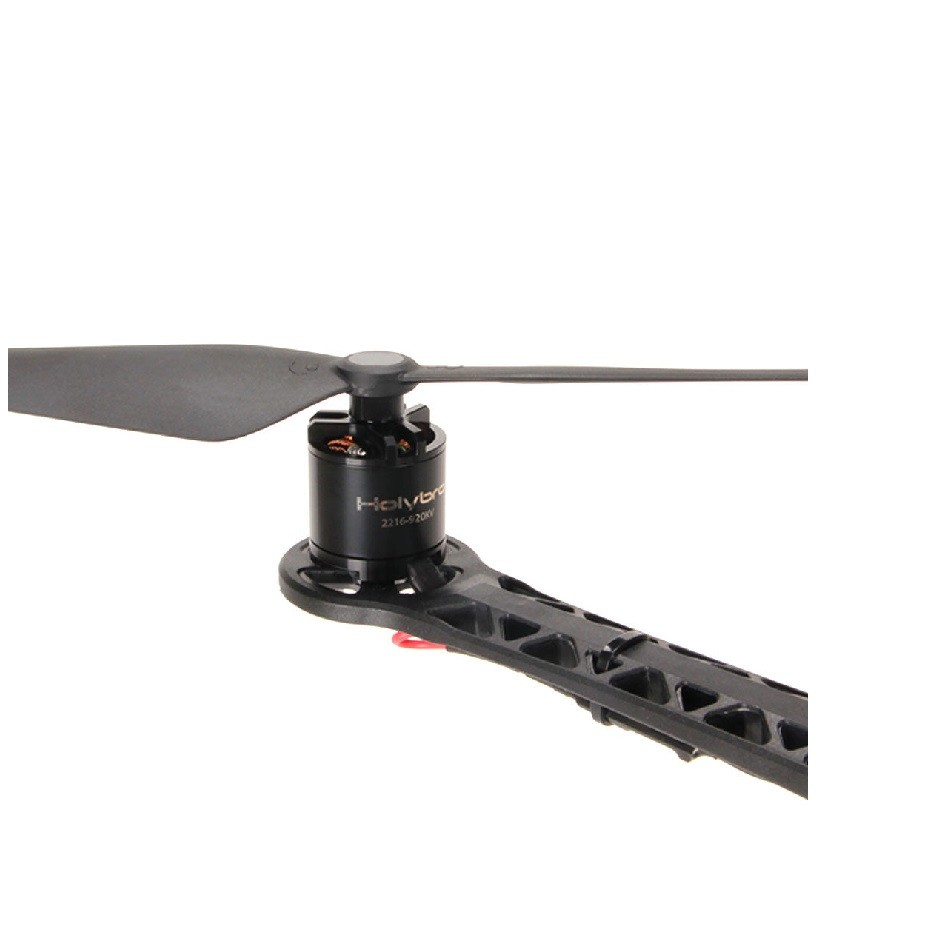

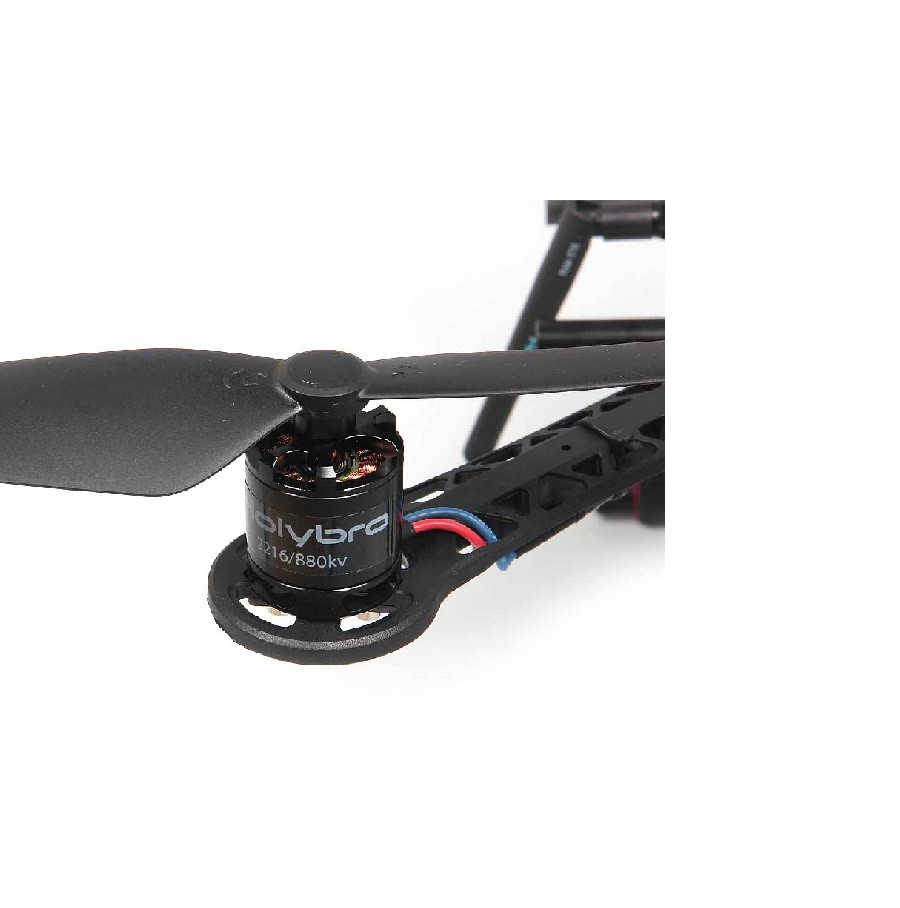

- Motors – 2216 KV920（ V2 Update）
- BLHeli S ESC 20A
- Built-in PDB (Cont: 60A, Burst: 100A)
- Propeller 1045（ V2 Update）
- Battery Straps
- Dimensions:383*385*240mm
- Wheelbase:480mm
- Weight:782g
Recommendation Combination (Not Included):
Flight Controller – Pixhawk 6C, Pixhawk 6X, Pixhawk 5x, Pixhawk 4, Pixhawk 4 Mini, Durandal, Pix32 v5
Power Module – PM02D, PM03D Power Module, PM02 V3,
GPS – DroneCAN M8N/M9N GPS, Holybro M8N/M9N GPS, H-RTK M8P/F9P Rover Lite & Helical
Recommended Battery Specification: 4S 5000mAh Lipo
Payload: 1500g (without Battery, 70% Throttle)
Holybro S500 V2 Kits Overview
The Holybro S500 V2 Kits (Included Motor, Prop and ESC) is an almost-ready-to-fly quadcopter frame kit designed for hobbyists and professionals. It combines a durable polyamide-nylon composite frame reinforced with carbon fiber rods, precision-matched motors, props, and electronic speed controllers for quick drone builds.
Key Features of Holybro S500 V2 Kits
- All-in-one ARF kit including four motors, props, ESCs and built-in power distribution
- Lightweight polyamide-nylon composite arms reinforced by carbon fiber rods for strength
- Adjustable battery mount accommodates various battery sizes without additional hardware
- No soldering required – quick plug-and-play connectors simplify assembly
- Landing gear built from 16 mm and 10 mm carbon fiber tubes with durable plastic tee joints
- Fully compatible with Holybro flight controllers such as Pixhawk6C and Pix32 v6
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Aerial photography and videography platforms with custom gimbals
- FPV racing or freestyle drones for competitive flying
- Industrial inspection drones for powerlines, pipelines and rooftop surveys
- Agricultural mapping and crop monitoring applications
- Search and rescue training drones for scenario simulations
- Academic and research UAV prototypes in university labs
How to Use Holybro S500 V2 Kits
Begin by mounting the quadcopter arms and landing gear, then secure the motors, props, and ESCs using the plug-and-play connectors into the built-in power distribution board. Install your chosen flight controller (e.g., Pixhawk6C or Pix32 v6) on the top plate, attach the adjustable battery mount, connect the battery and an RC receiver, then configure flight parameters in your ground-station software before takeoff.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What components are included in the Holybro S500 V2 Kit?
The kit includes the S500 V2 frame with carbon fiber–reinforced arms, landing gear tubes, four matched motors, props, electronic speed controllers, built-in power distribution board and an adjustable battery mount.
Do I need to solder any wires during assembly?
No soldering is required. All motors and ESCs connect via pre-wired plug-and-play connectors to the integrated power distribution board.
Which flight controllers can I use with this kit?
The S500 V2 Kit is fully compatible with Holybro flight controllers such as Pixhawk6C and Pix32 v6. Other standard Autopilot boards with similar mounting patterns can also be used.
