Looking for Holybro Remote Id Case? Holybro Remote ID Without Case is available at Zbotic with fast shipping across India.

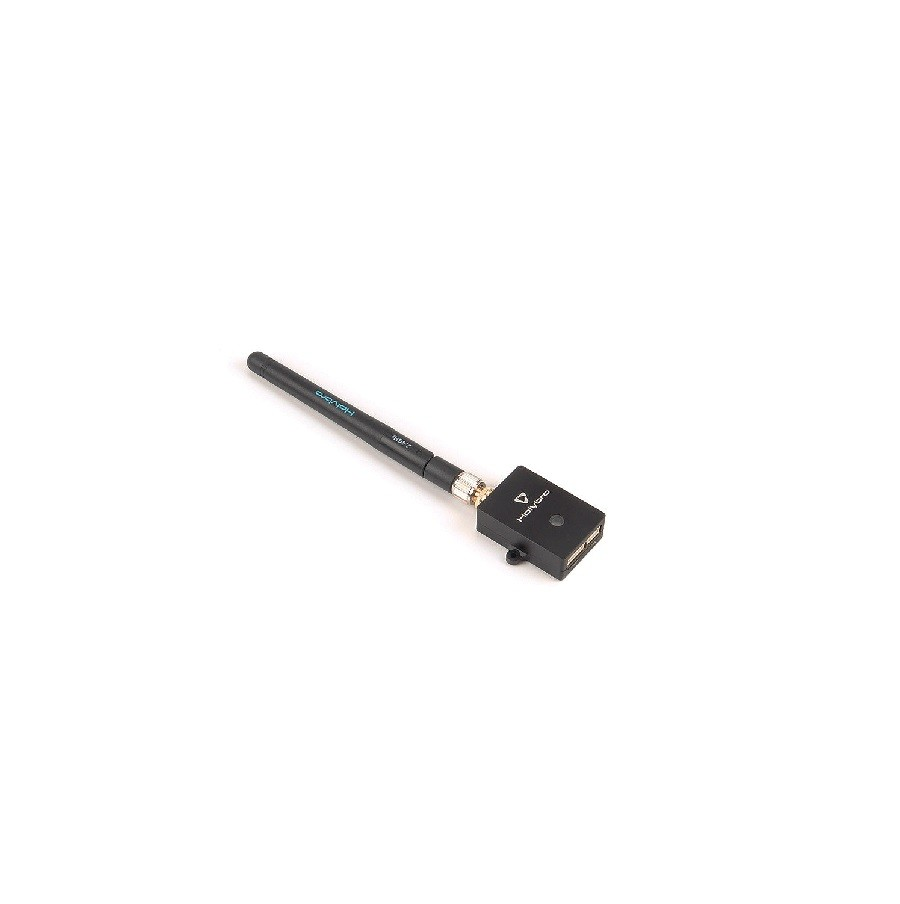

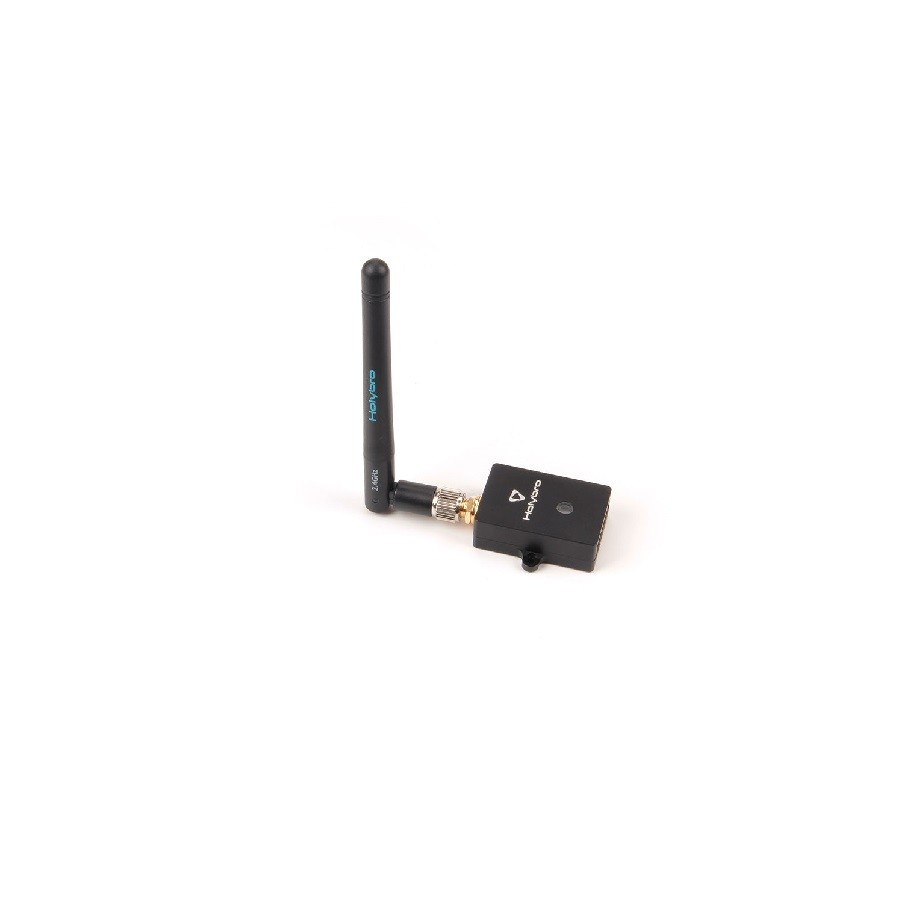

The Holybro RemoteID Module is an affordable, compact, and lightweight device that transmits UAV flight information via WiFi and Bluetooth. It accommodates both CAN and serial protocols and is certified by the FCC and CE as a radio module. Running on open-source ArduRemoteID firmware, it offers a standard Remote ID solution mainly for drone manufacturers and system integrators.
Note: Aimed at the Standard Remote ID Solution for drone manufacturers and system integrators, this product requires you to undertake your own FAA approval process (DoC submission) in the USA. For the most current and precise information on this subject, please consult the official governance website of your country.
Features:
- Remote ID Broadcasting: Low-cost module broadcasting UAV flight data via WiFi and Bluetooth.
- Protocol Support: Supports CAN and serial protocols for versatile connectivity.
- Regulatory Compliance: FCC and CE-certified, designed for Standard Remote ID Solution.
- Open-Source Firmware: Runs on Espressif ESP-C3 with ArduRemoteID firmware.
- Compact and Lightweight: Small form factor with CNC case, antenna options, and M2 screw mount.
- Upgradeable and Versatile: Supports firmware upgrades via web interface, compatible with PX4 & Ardupilot.
specification
| Radio module | 1. Espressif ESP-C3 module. 2. Bluetooth and WiFi 2.4GHz (ERP): + 20 dBm (100 mW) 3. FCC & CE certified radio module |
|---|---|
| Firmware | 1 ArduRemoteID (https://github.com/ArduPilot/ArduRemoteID). 2. Supports upgrading firmware via the web interface (“OTA”) 3. Supported in PX4 & Ardupilot |
| Protocols | CAN & Serial |

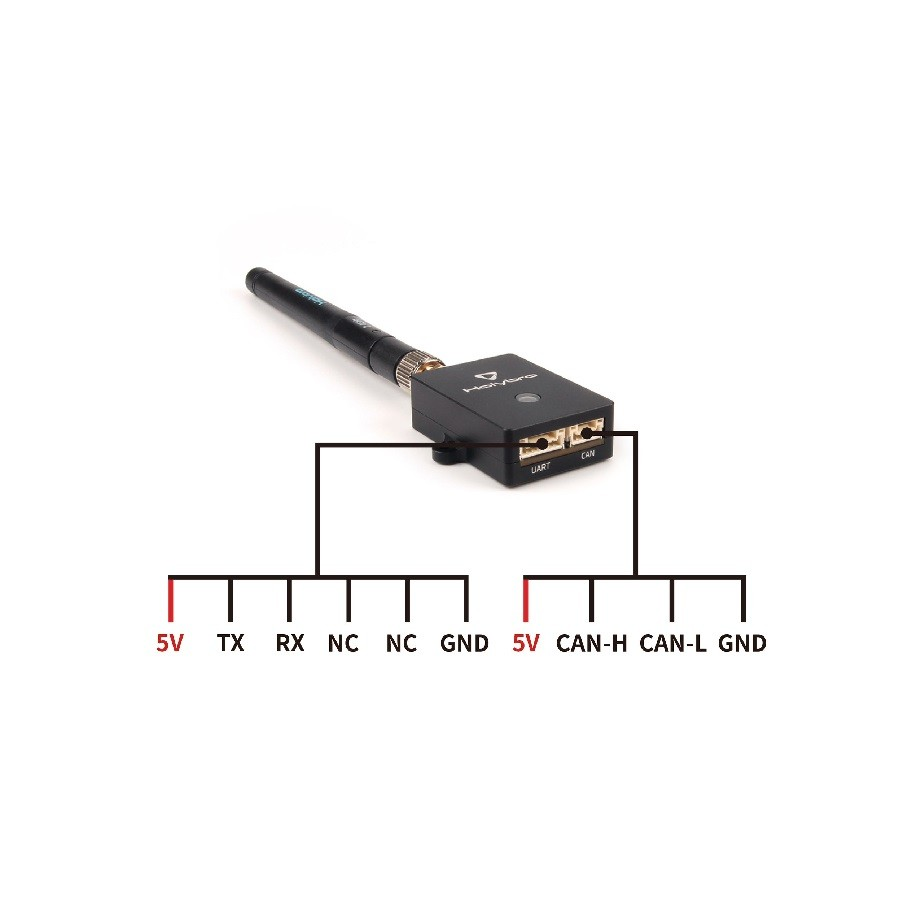

| Interface | 1. 1x JST GH 4-pin CAN (CAN) port
2. 1x JST GH 6-pin TELEM (UART) port |

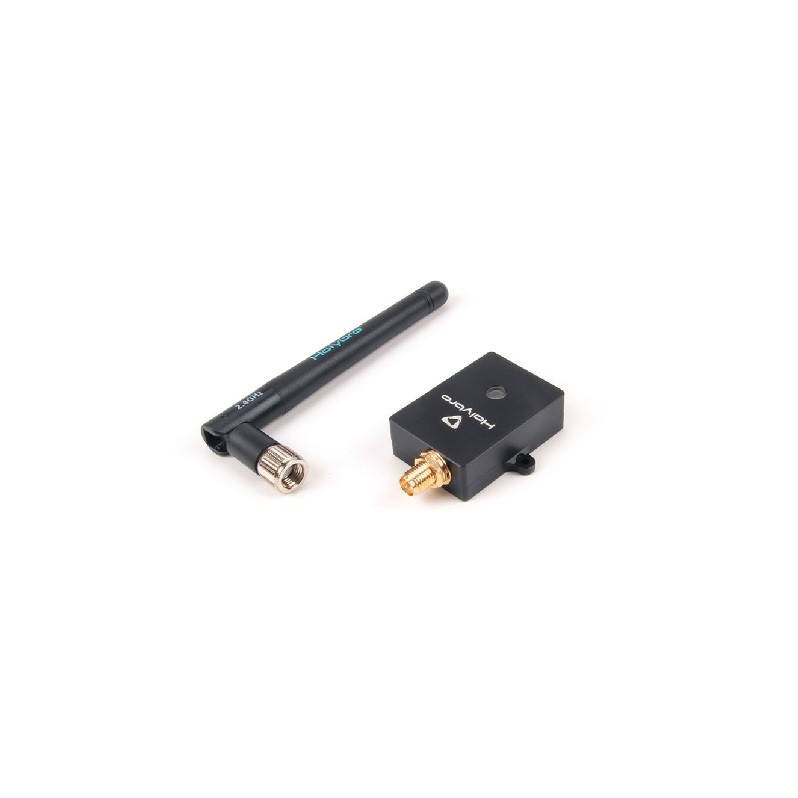

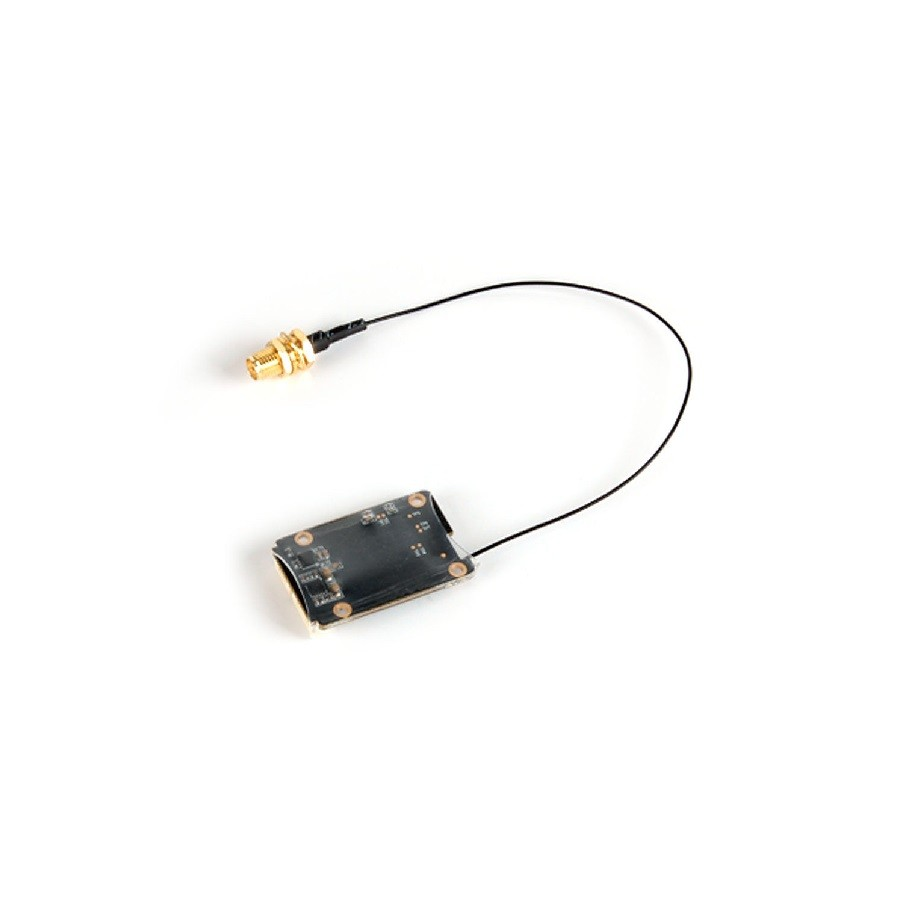

| Antenna Connector type | 1. On CNC Case: SMA connector 2. On PCB: IPEX Connector |
| Range | 5km detection range |
| Power | 5V supplied from TELEM or CAN port |
| LED lights | Bright RGB status LED |
| Size | 1. Without case: 35.3 x 23.5 mm (not including antenna)
2. With CNC case: 38 x 26.5 x 11.5 mm (not including antenna) |
| Mount | M2 screws |
| Operating temperature | -40°C to +85°C |
Package Includes：
1x Remote ID
1x Antenna
1x JST GH 6pin 150mm Cable
1x JST GH 4pin 150mm Cable
Holybro Remote ID Without Case Overview
The Holybro Remote ID Without Case is a compact, lightweight module designed to broadcast UAV flight information via WiFi and Bluetooth. Ideal for drone manufacturers and system integrators, it provides a cost-effective Standard Remote ID solution certified by FCC and CE.
Key Features of Holybro Remote ID Without Case
- Transmits real-time flight data over dual channels: WiFi and Bluetooth Low Energy
- Supports both CAN bus and UART serial interfaces for seamless integration
- Certified radio module (FCC & CE) for compliant airspace operations
- Runs open-source ArduRemoteID firmware, enabling customization and upgrades
- Ultra-compact, lightweight design ideal for tight drone frames
- Fast shipping across India from Zbotic
Applications and Use Cases
- Integrating Standard Remote ID capability into commercial drones
- Building prototype UAV systems for regulatory trials
- Retrofitting existing drone fleets to meet ID requirements
- Conducting research on airspace monitoring and traffic management
- Equipping surveying and inspection drones with compliant ID broadcasting
How to Use Holybro Remote ID Without Case
Connect the module’s power (5V) and ground to your drone’s power distribution board, then link either the CAN bus or UART pins to your flight controller. Flash or configure the included ArduRemoteID firmware with your network details, mount the unit securely on your airframe, and verify the broadcast via a ground-station app or BLE scanner before flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does the Holybro Remote ID Module support both WiFi and Bluetooth?
Yes, the Holybro Remote ID Without Case simultaneously broadcasts UAV identity and flight data over 2.4 GHz WiFi and Bluetooth Low Energy for versatile ground-station reception.
How do I connect the module to my flight controller?
You can choose CAN bus or UART serial: wire the power (5 V) and ground pins plus your selected data lines, then adjust the ArduRemoteID firmware settings to match your controller’s communication protocol.
Is FAA approval included with this module?
No, while the module itself holds FCC and CE certification, U.S. operators must complete their own FAA Declaration of Conformity (DoC) process before deploying it in American airspace.
