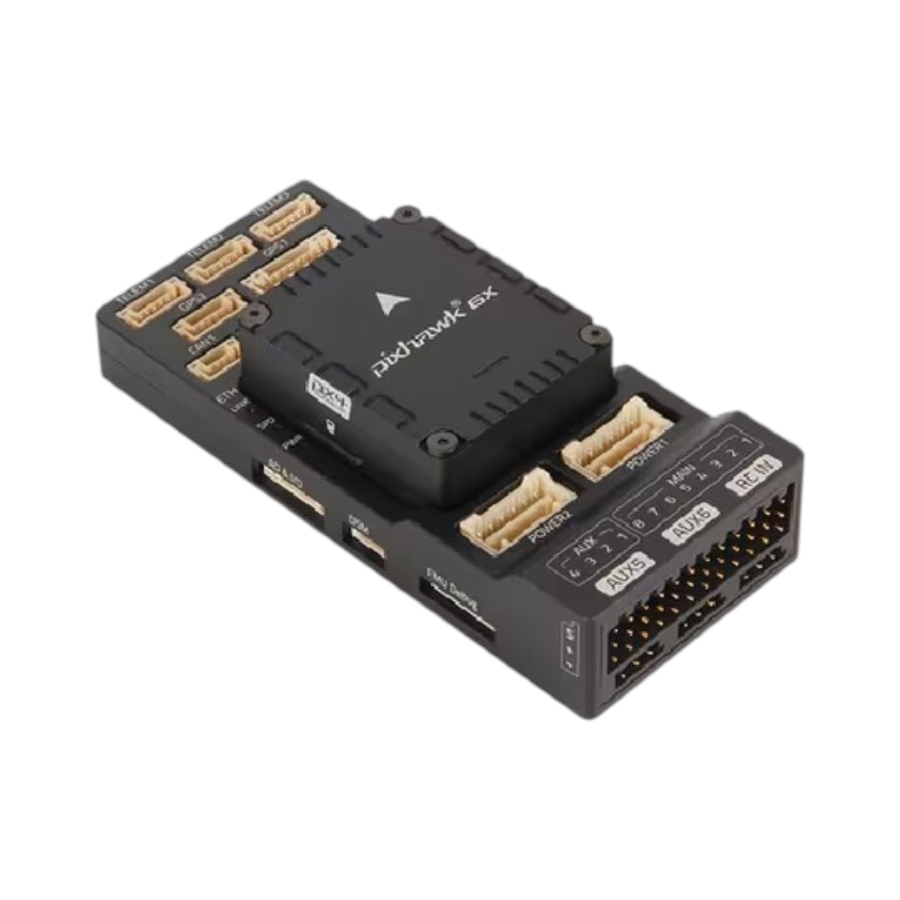

Holybro Pixhawk 6X Standard Set v2A
Description:

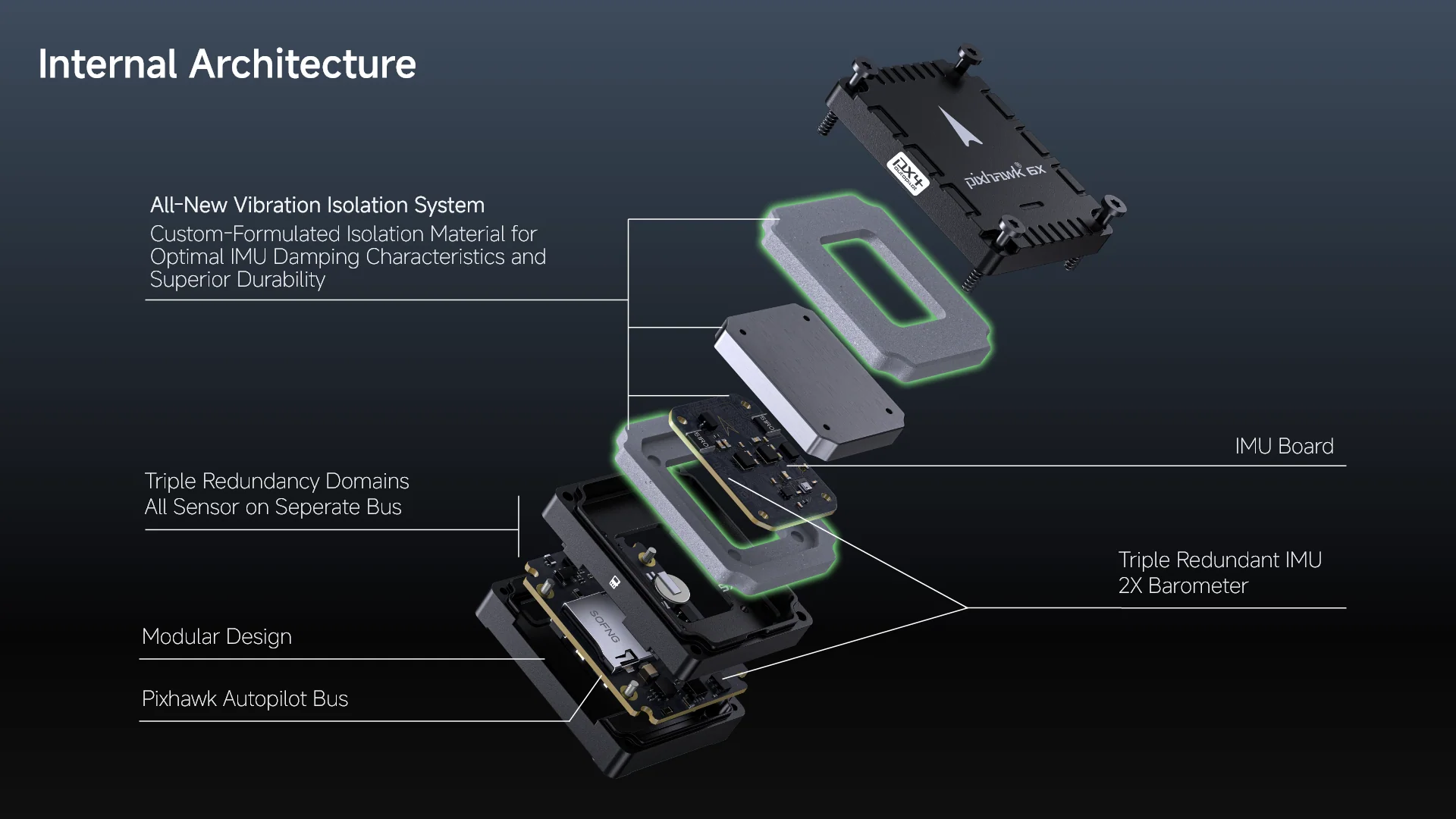

The Holybro Pixhawk 6X Standard Set v2A features a robust design for high-performance drone applications. The system is equipped with completely isolated sensor domains, separate power control, and advanced vibration isolation using a custom-formulated durable material, which provides optimal IMU damping with a higher resonance frequency. It features a wide voltage range, robust electrical data handling, and a secure NXP EdgeLock SE050 element for data security, making it a reliable choice for industrial and commercial drones. Compact and lightweight, it provides an efficient solution for high-performance UAVs.
Features:
- Advanced Isolation Material: Utilizes custom-formulated, durable isolation material, similar to the Pixhawk 6X Pro, for superior performance.
- Optimized Damping: Offers optimal IMU damping characteristics for enhanced stability and precision.
- High Resonance Frequency: Resonance frequency in the higher spectrum, ideal for industrial and commercial drone applications.
- Extensive Testing: Backed by thorough research and development to ensure reliable performance in demanding environments.
- Improved Durability: More durable and effective than traditional foam isolation systems.
Applications:
- Industrial Drones: Precision inspections and monitoring.
- Commercial Drones: Aerial photography, videography, and delivery.
- Autonomous Systems: Robotics and unmanned vehicles.
- R&D: Testing advanced flight algorithms.
- Agricultural Drones: Precision farming and crop monitoring.
Specification:
| Item Type: | Other Accessories |
| FMU Processor | STM32H753 |
| IO Processor | STM32F103 |
| Sensor | Accel/Gyro: 3x ICM-45686; Barometer: ICP20100 & BMP388; Mag: BMM150 |
| Voltage Input | 6V |
| USB Power Input | 4.75 to 5.25V |
| Servo Rail Input | 0 to 36V |

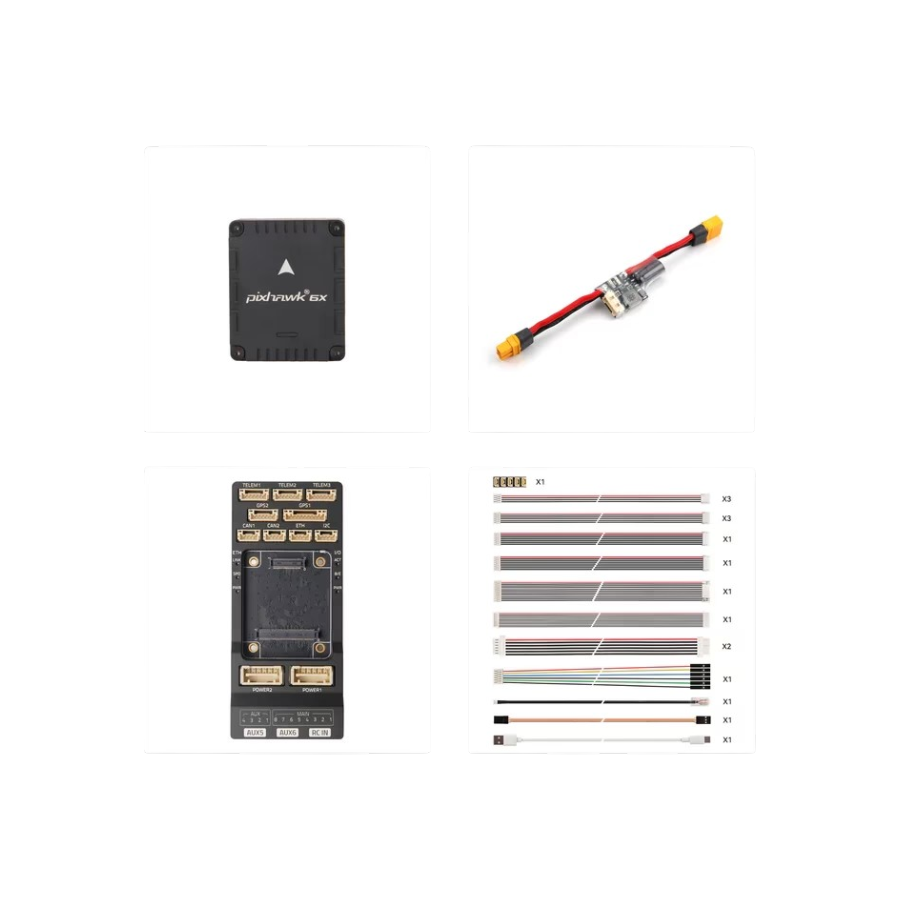

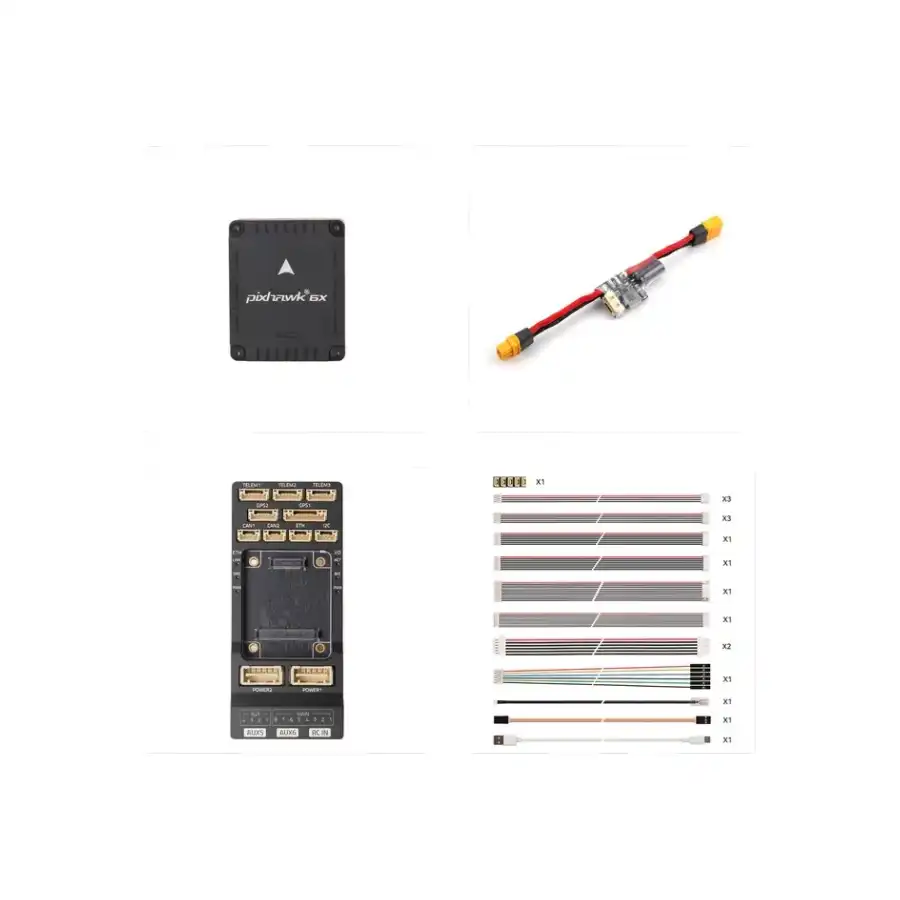

Package Includes:

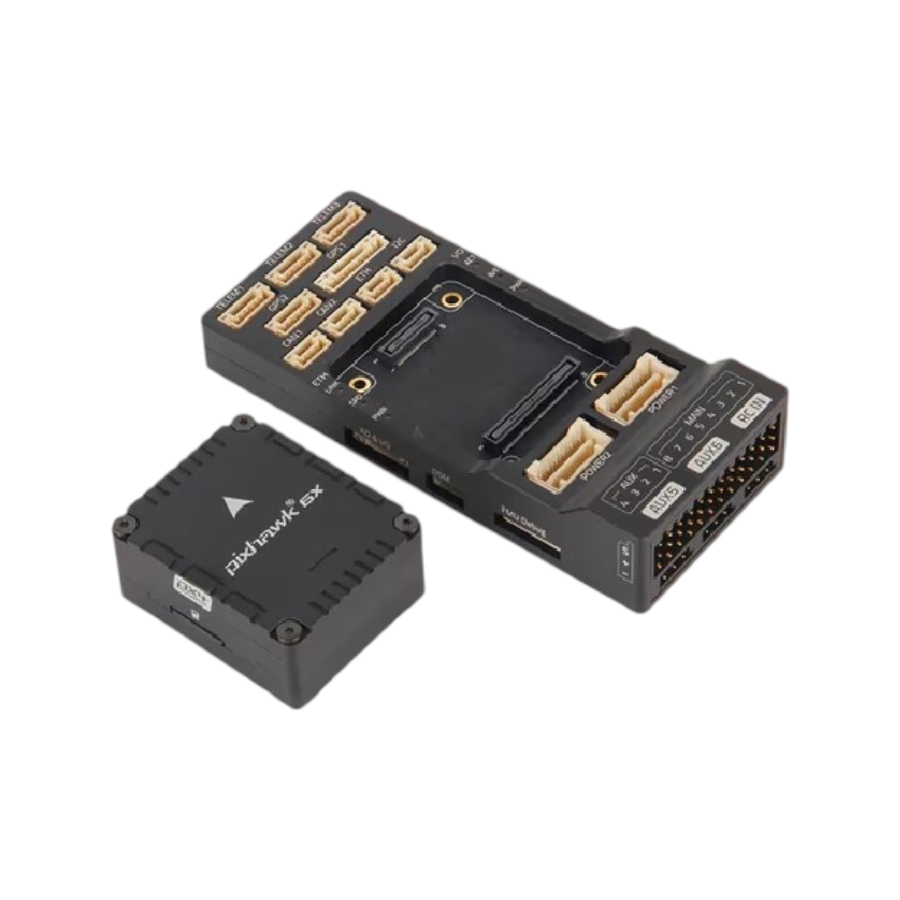

- 1 x Pixhawk 6X Flight Controller Module
- 1 x Mini Baseboard
- 1 x PM02D Power Module
- 1 x Cable Set
Drone Magnetometer Calibration: Fix Compass Errors Fast
Drone Magnetometer Calibration: Fix Compass Errors Fast Nothing is more frustrating than watching your drone drift sideways, spin...
Read More →
Drone 3D Printing: Camera Mounts, Pods, and Accessories
Table of Contents Understanding Drone 3D Printing Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
ESC Protocols Explained: DShot, OneShot, and PWM
The communication protocol between your flight controller and ESCs directly affects how responsive and reliable your drone feels....
Read More →Technical Specifications
| Brand | Holybro |
|---|---|
| SKU | AI8235 |
| Weight | 0.263 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Holybro Pixhawk 6X Standard Set v2A is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Holybro product sourced from authorized channels
Reviews
There are no reviews yet.
