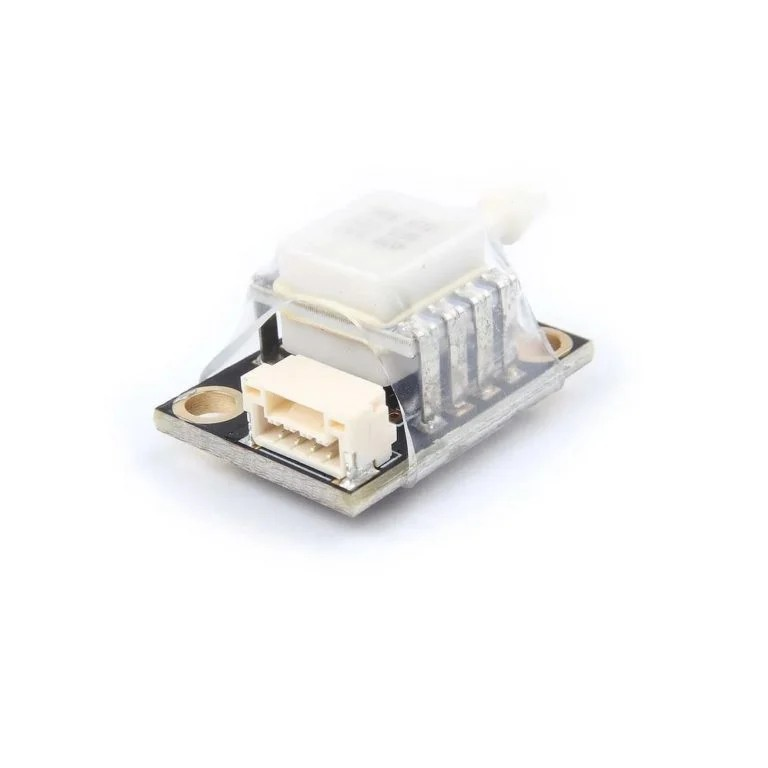

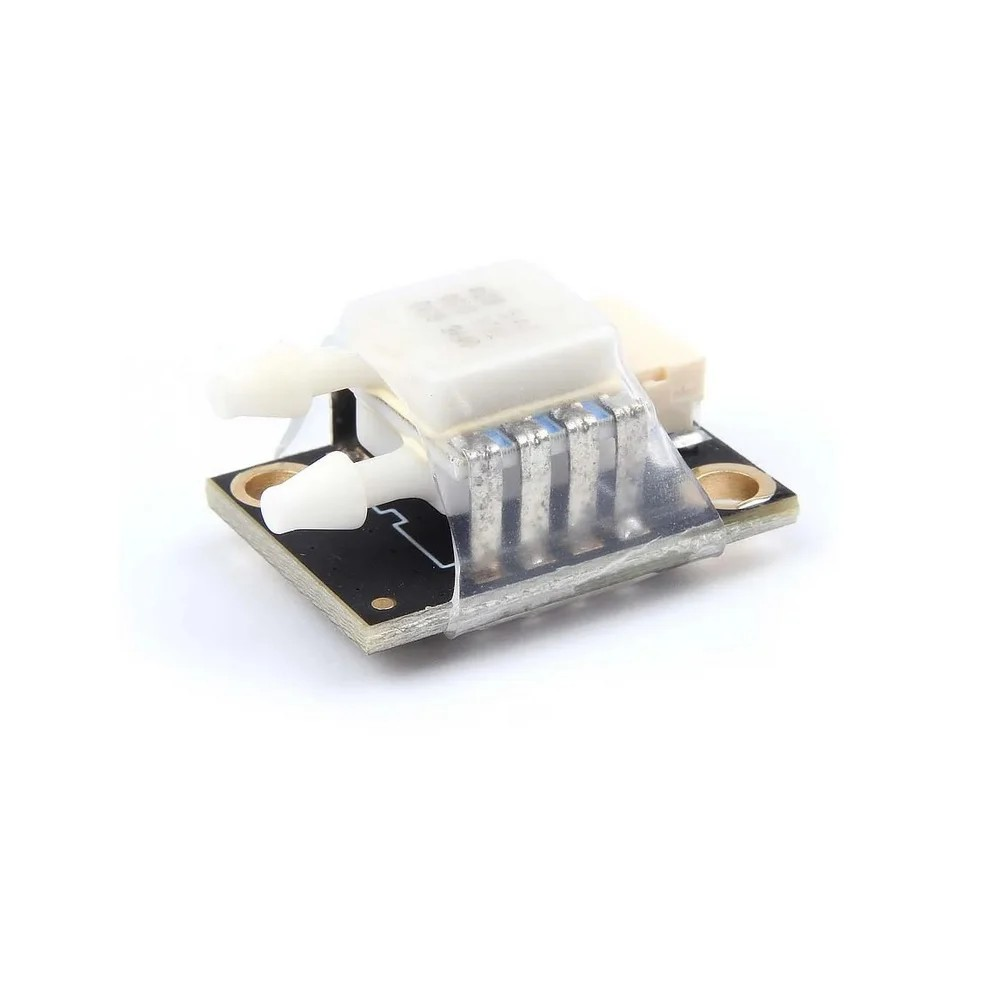

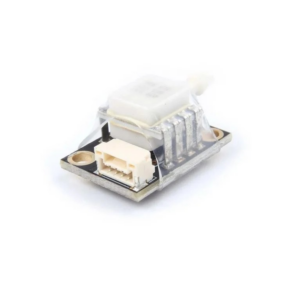

The Holybro MS4525DO Digital Airspeed Sensor boasts a very low offset, high resolution, and is not affected by noise from long cables or ratio-metric output offsets found in other airspeed sensors. It is compatible with all Holybro Autopilot Flight Controller Boards running Ardupilot & PX4.
This sensor features the Measurement Specialties 4525DO model, which has a 1 psi measurement range (equivalent to approximately 100 m/s, 360 km/h, or 223 mph), offering a resolution of 0.84 Pa. Data is provided at 14 bits from a 24-bit delta-sigma ADC. Additionally, it measures temperature, enabling the calculation of true airspeed from indicated airspeed using the MS5611 static pressure sensor on Pix32. Unaffected by the heat from nearby processing components, it provides a temperature reading more accurate to the air temperature than previous analog sensor setups and includes M3 / 6-32 mounting holes.
Features:
- Low power consumption
- Easy to use
- Best for your projects
- Plug-and-play devices
- Does not suffer from the noise-induced
Specification-
| Sensor Model Number | MS4525DO-DS5AI001DP |
|---|---|
| Measurement range | 1 psi (roughly up to 100 m/s or 360 km/h or 223 mp/h) |
| Communication | I2C |
| I2C Address | 0x28H |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 11 × 8 × 2 cm |

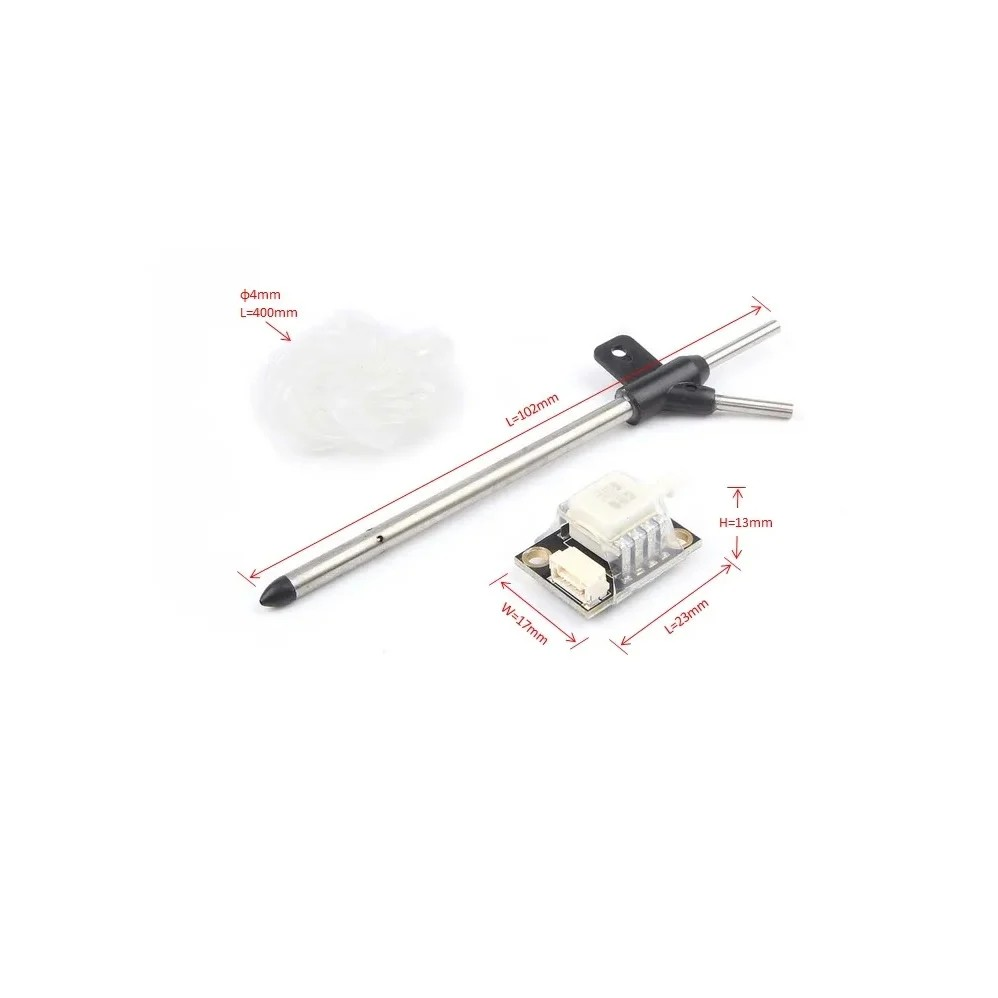

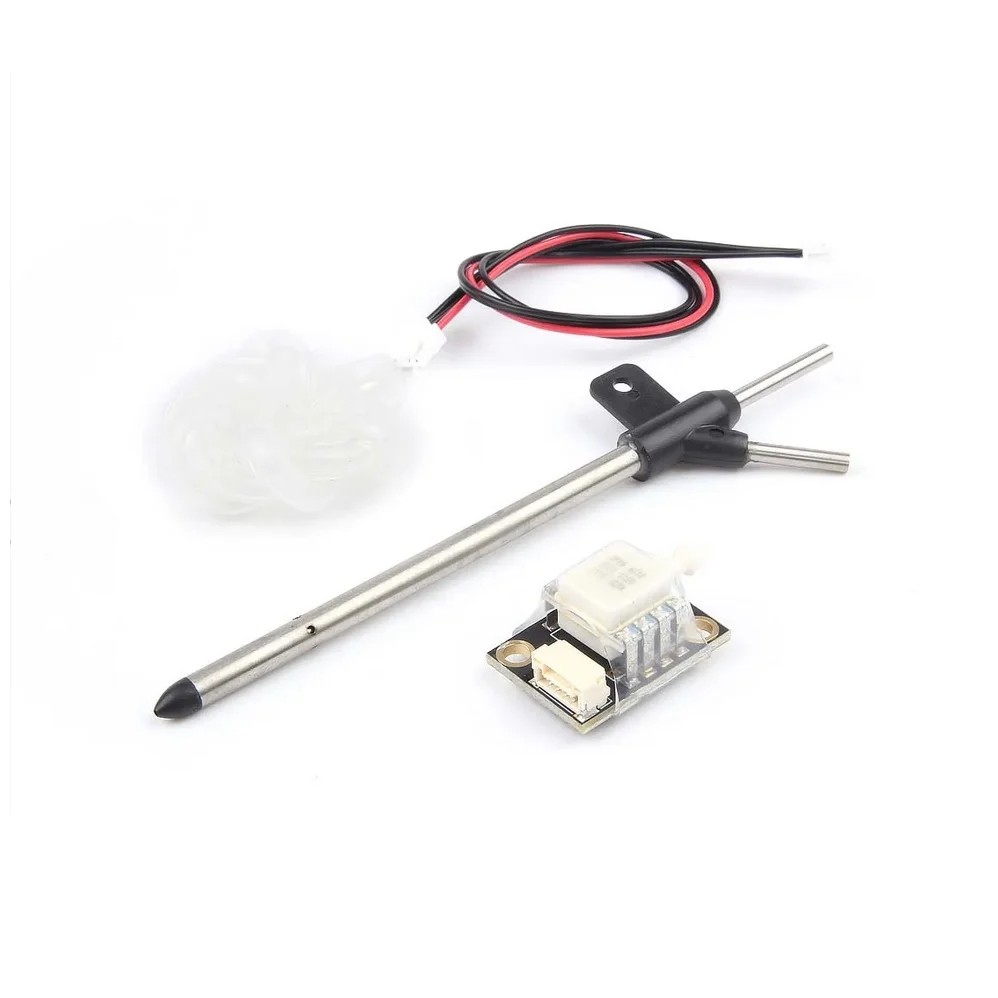

Packages Include:
1 x Digital Air Speed Sensor
1 x GH 4pin 150mm cable
1 x Molex 4pin 150mm cable
1 x Rubber tubing 400mm
1 x Pitot tube
Drone Blackbox Analysis: Debug Crashes and Tune PIDs
Table of Contents Understanding Drone Blackbox Analysis Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
DigiSky Commercial Drone License: DGCA Process Step-by-Step
Obtaining a DGCA commercial drone license in India through the DigiSky platform is mandatory for anyone operating drones...
Read More →
Tiny Whoop Build: 65mm Indoor FPV Drone Guide
Table of Contents Understanding Tiny Whoop Build Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Brand | Holybro |
|---|---|
| Model | MS4525DO |
| SKU | AI5724 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Holybro MS4525DO Digital Airspeed Sensor is a versatile drone accessories used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Holybro product sourced from authorized channels
