Looking for M10 Gps Pix? Holybro M10 GPS for Pix 32 is available at Zbotic with fast shipping across India.
The Holybro M10 GPS is equipped with a multi-constellation GNSS, powered by the u-blox M10 series. This concurrent GNSS receiver is capable of receiving and tracking various GNSS systems simultaneously. Thanks to its multi-band RF front-end architecture, it can concurrently receive signals from all four major GNSS constellations: GPS, Galileo, GLONASS, and BeiDou.
Additionally, it includes the IST8310 compass, a tricolored LED indicator, buzzer, and safety switch. It offers three different connector options to serve various purposes. The module is configured with a baud rate of 115200 at 5Hz.
Its high-gain 25 x 25 mm patch antenna delivers superior performance, and its omnidirectional radiation pattern provides increased installation flexibility. The module also boasts active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.
Firmware support for the M10 GPS includes PX4 1.14, ArduPilot 4.3, INAV 5.0.0, and Betaflight 4.3.0 or later versions.
Features
- Newest Ublox 10th Gen GNSS
- Fast & Accurate Positioning
- High-gain 25*25*4mm antenna
- IST8310 Compass
- Internal Buzzer, Safety switch
- Ultra Bright UI RGB LED
specification
| GNSS Receiver | 1. Ublox M10 2. Up to 4 GNSS 3.BeiDou |
|---|---|
| Number of Concurrent GNSS | 1. Galileo 2. GLONASS 3. GPS 4. QZSS |
| Frequency Band | 1. GPS L1 2. Galileo E1 3. GLONASS L1 4. BeiDou B1 5. SBAS L1 6. QZSS L1 |
| Compass | IST8310 |
| Output Protocol | 1. UBX (U-blox) 2. NMEA |
| Accuracy | 2.0m CEP |
| Nav. Update Rate | 1. Up to 25 Hz (single GNSS), 2. Up to 10 Hz (4 concurrent GNSS) |
| GNSS Augmentation System | 1. EGNOS, GAGAN, MSAS and WAAS 2. QZSS: L1S |
| Default Baud Rate | 115200 |
| Input Voltage | 4.7-5.2V |

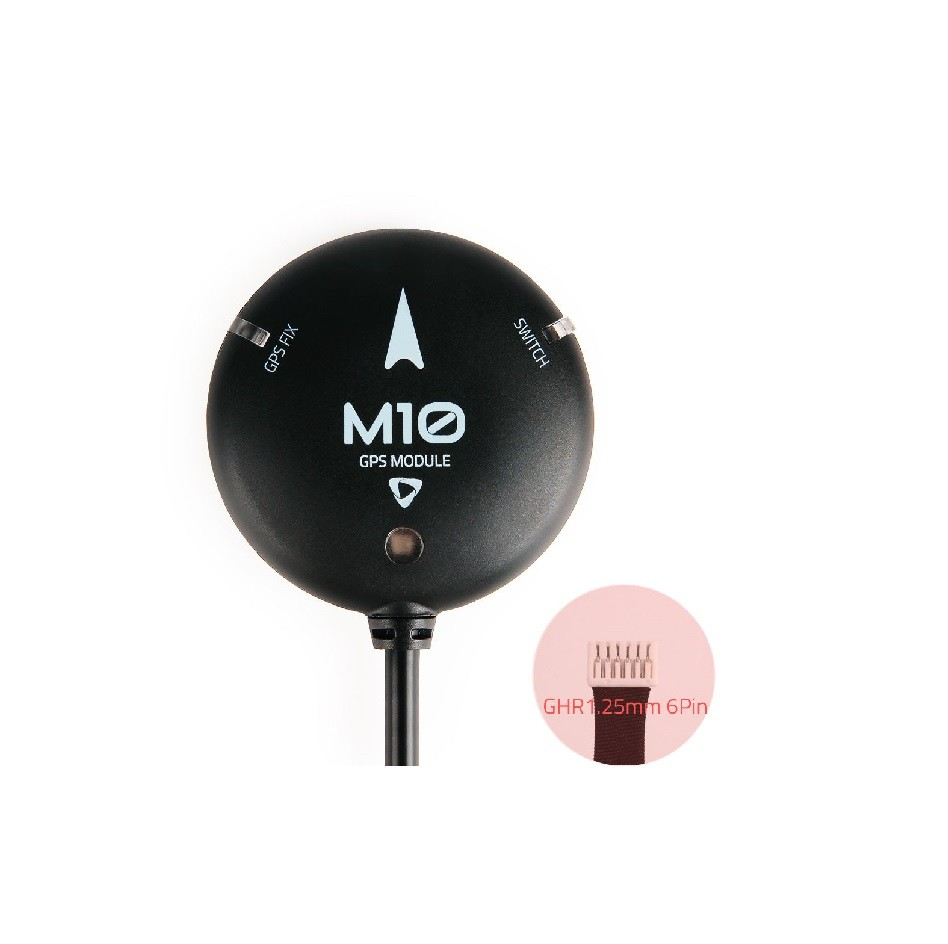

| Port Type | JST-GH-10P |
| Antenna | 25 x 25 x 4 mm ceramic patch antenna |
| Power consumption | Less than 200mA @ 5V |
| Operating Temperature | -40~80C |
| Dimension | φ50 x14.4 mm |

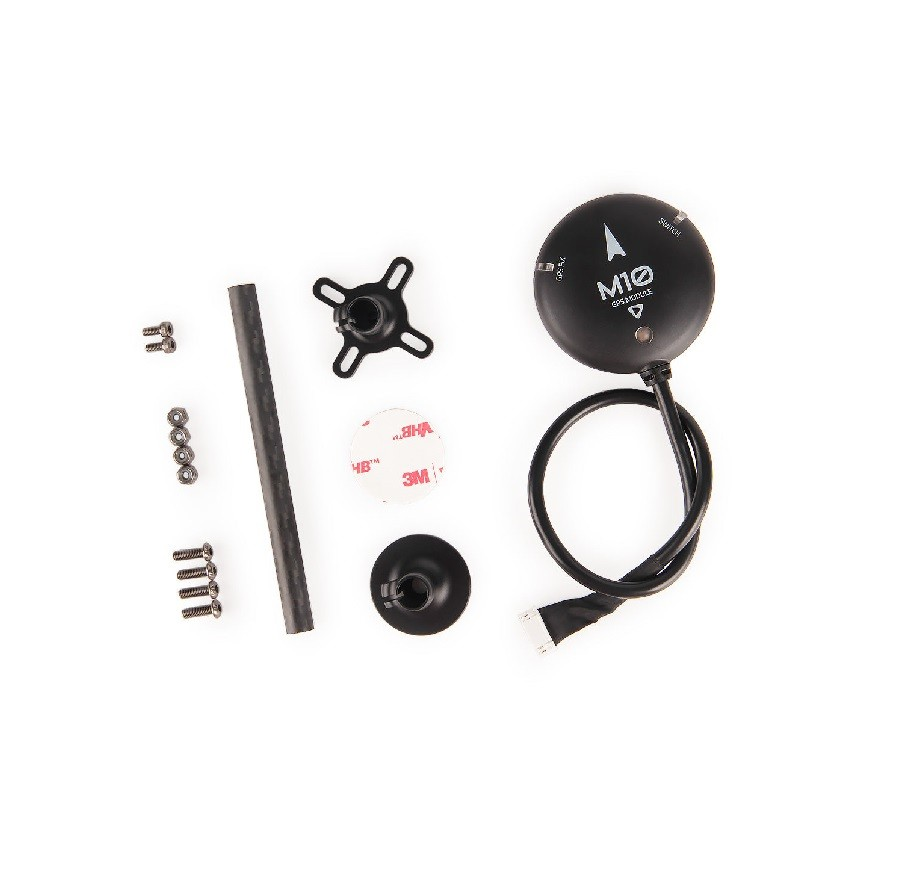

Package Includes:
1x M10 GPS Module
1x Fixed Carbon Fiber GPS mount
Holybro M10 GPS for Pix 32 Overview
The Holybro M10 GPS for Pix 32 is a multi-constellation GNSS module designed specifically for Pixhawk-based flight controllers. It delivers reliable positioning by concurrently tracking GPS, Galileo, GLONASS, and BeiDou signals, while its integrated compass, LED indicator, buzzer, and safety switch streamline drone navigation and rescue procedures.
Key Features of Holybro M10 GPS for Pix 32
- u-blox M10 series receiver: Multi-band RF front end for GPS, Galileo, GLONASS, BeiDou
- High-gain 25×25 mm patch antenna for enhanced satellite reception
- Built-in IST8310 compass, tricolor LED status indicator, buzzer and safety switch

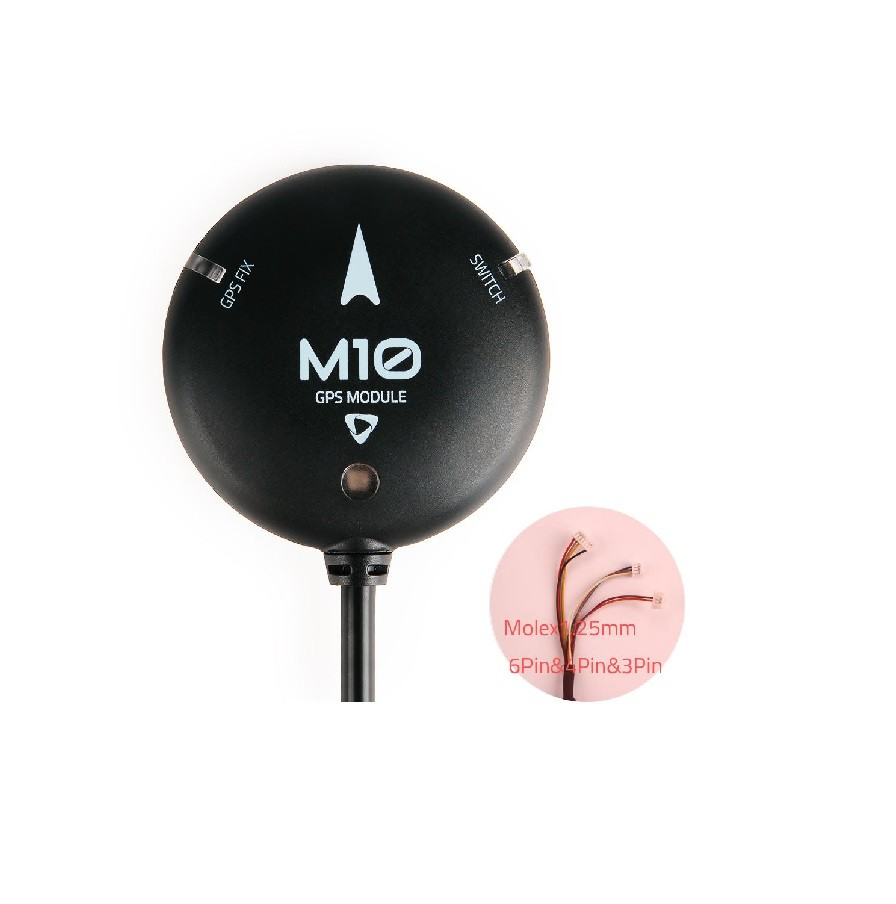

- Three connector options: UART, I2C and CAN for versatile integration
- Preconfigured at 115200 baud and 5 Hz update rate for plug-and-play use
- Genuine Holybro module with fast shipping from Zbotic across India
Applications and Use Cases
- Autonomous drone navigation for multirotor and fixed-wing UAVs
- Precision agriculture: waypoint guidance for crop spraying and monitoring
- Aerial mapping and surveying with real-time kinematic (RTK) setups
- Search and rescue operations requiring reliable positioning data
- Environmental monitoring and wildlife tracking using UAV platforms
- Inspection of infrastructure: power lines, pipelines and remote assets
How to Use Holybro M10 GPS for Pix 32
Mount the M10 GPS module on your drone frame away from power wires and motors to minimise interference. Connect the supplied cable to the GPS port on your Pixhawk or Pix32 controller. Power up the flight controller and verify the LED indicator for satellite lock. In Mission Planner or QGroundControl, confirm the baud rate (115200) and 5 Hz update rate, then perform compass calibration before first flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the M10 GPS compatible with all Pixhawk flight controllers?
Yes. The Holybro M10 GPS is designed for Pix32 and Pixhawk 4 series. It plugs directly into the GPS port and works with ArduPilot and PX4 firmwares without additional adapters.
Can I track multiple GNSS constellations simultaneously?
Absolutely. The u-blox M10 receiver supports concurrent tracking of GPS, Galileo, GLONASS, and BeiDou, improving accuracy and satellite lock speed in challenging environments.
What is the default update rate and can it be changed?
The module ships factory-configured at 5 Hz with a 115200 baud serial rate. You can adjust these settings using u-blox’s u-Center software if higher update rates or different baud rates are required.
