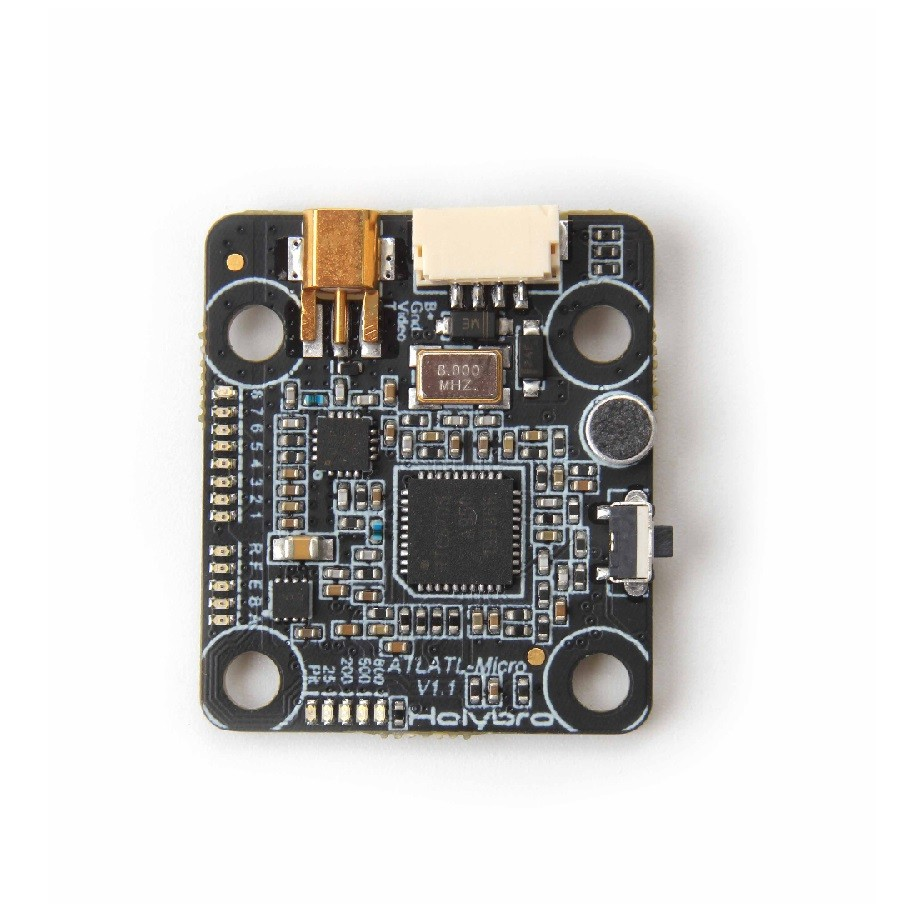

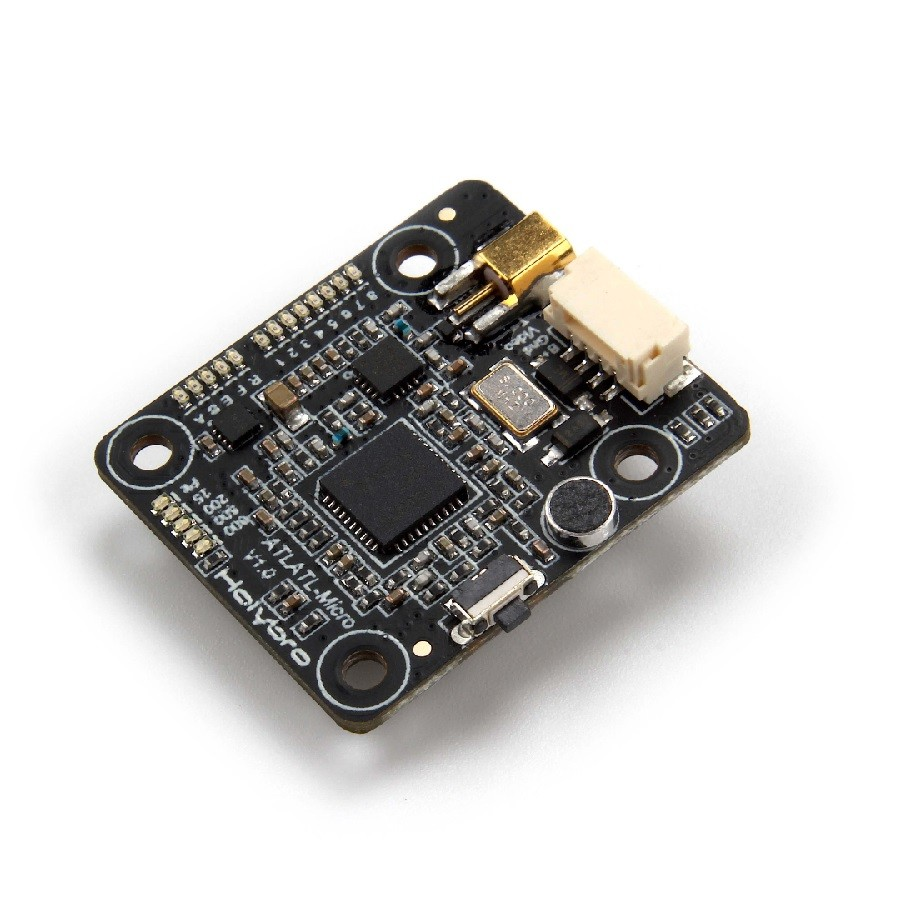

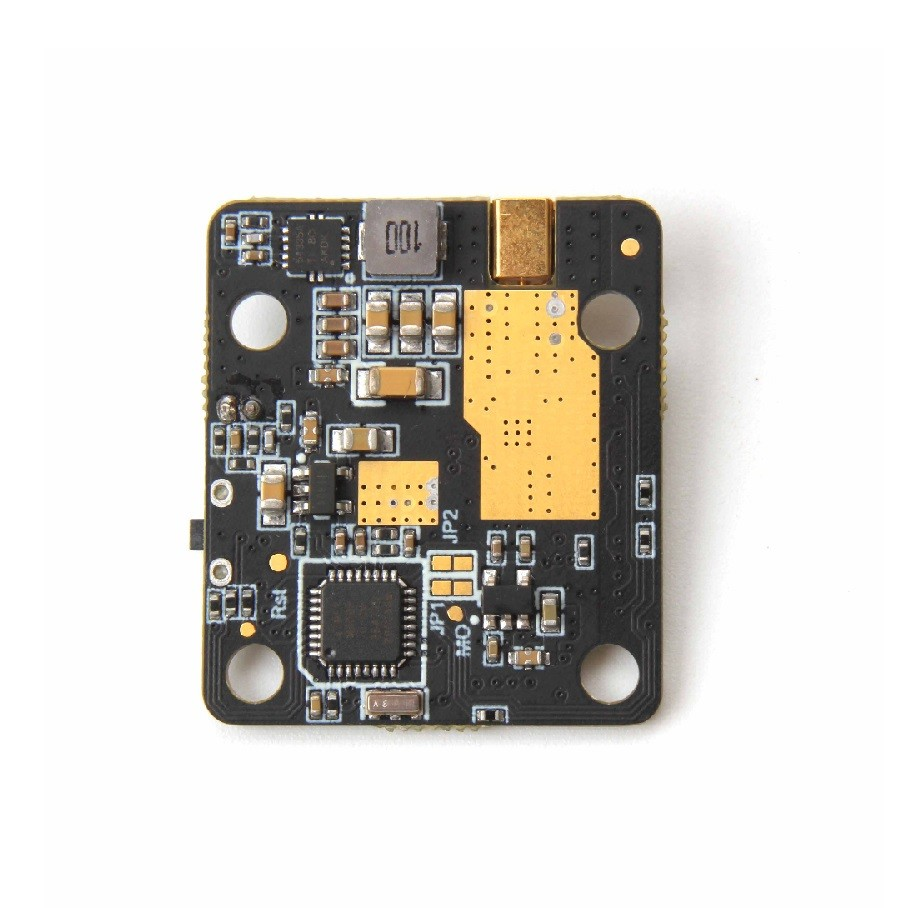

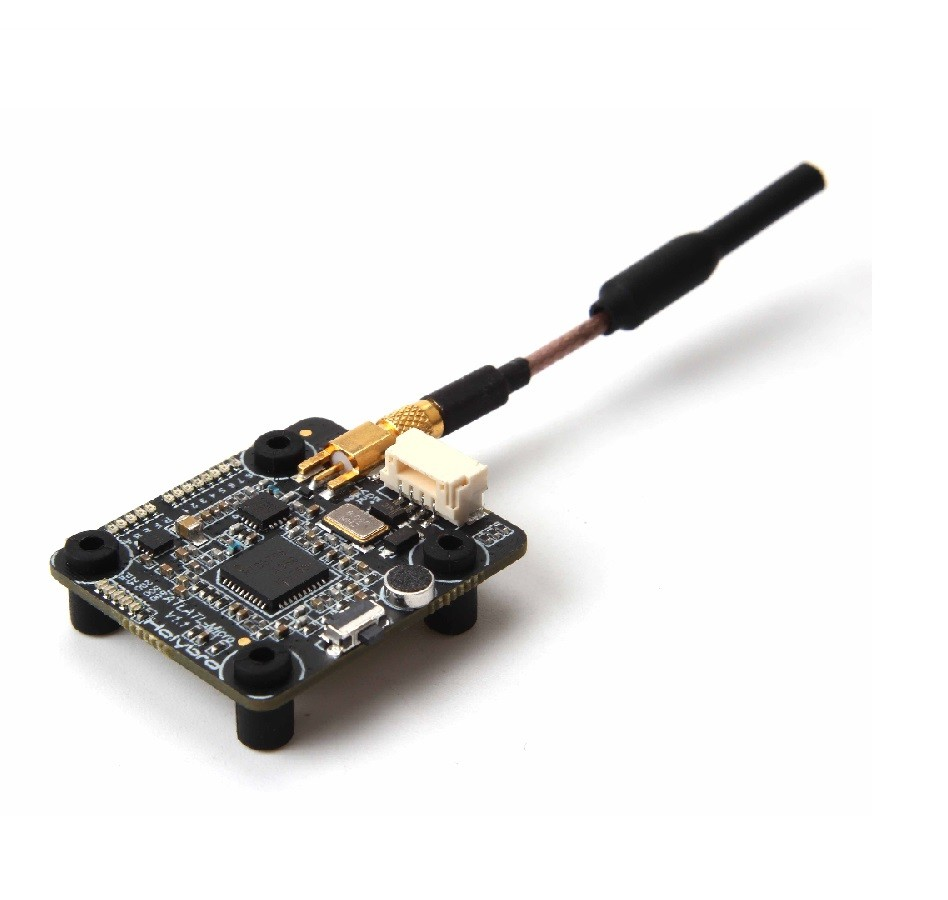

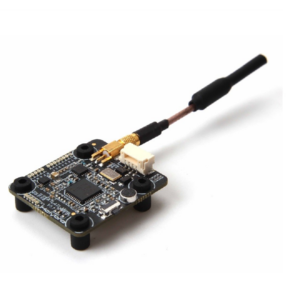

The Atlatl HV V2 Video Transmitter is designed for seamless compatibility with major FPV receivers, supporting the standard 40-channel set and SmartAudio input for remote control. It features a robust MMCX connector, LED indicators, and adjustable power output ranging from 25mW to 800mW, making it suitable for both racing and freestyle drones. The inclusion of a 0.5mW True Pit Mode enhances safety during events, while the integrated microphone provides an immersive flying experience. Its compact size of 26mm and light weight of 3.6g allow for straightforward integration into your flight controller stack.
Features:
- Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.
- Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.
- SmartAudio input allows remote control by the flight controller. Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.
- All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used.
- MMCX connector is durable and easy to use. Rated for 100’s of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors.
- LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad.
- Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.
- 0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
- Built in microphone, so you can listen to your motors while you fly, no matter how far away you fly.
- Standard 26mm form factor allows you to mount the Atlatl directly on your flight controller stack.
specification
| Rated output power | 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW |
|---|---|
| Audio | 6.5 MHz Mono |
| Protocols | smart audio2.0 |
| Antenna Connector | MMCX |
| Input Voltage (V) | 7 to 28 volts (2-6S LiPo) |
| Dimensions (L x W x H) mm | 30x26mm |
| Mounting holes | Standard 20mm square to center of holes (M3) |

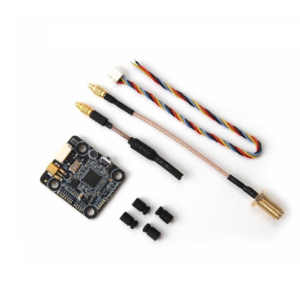

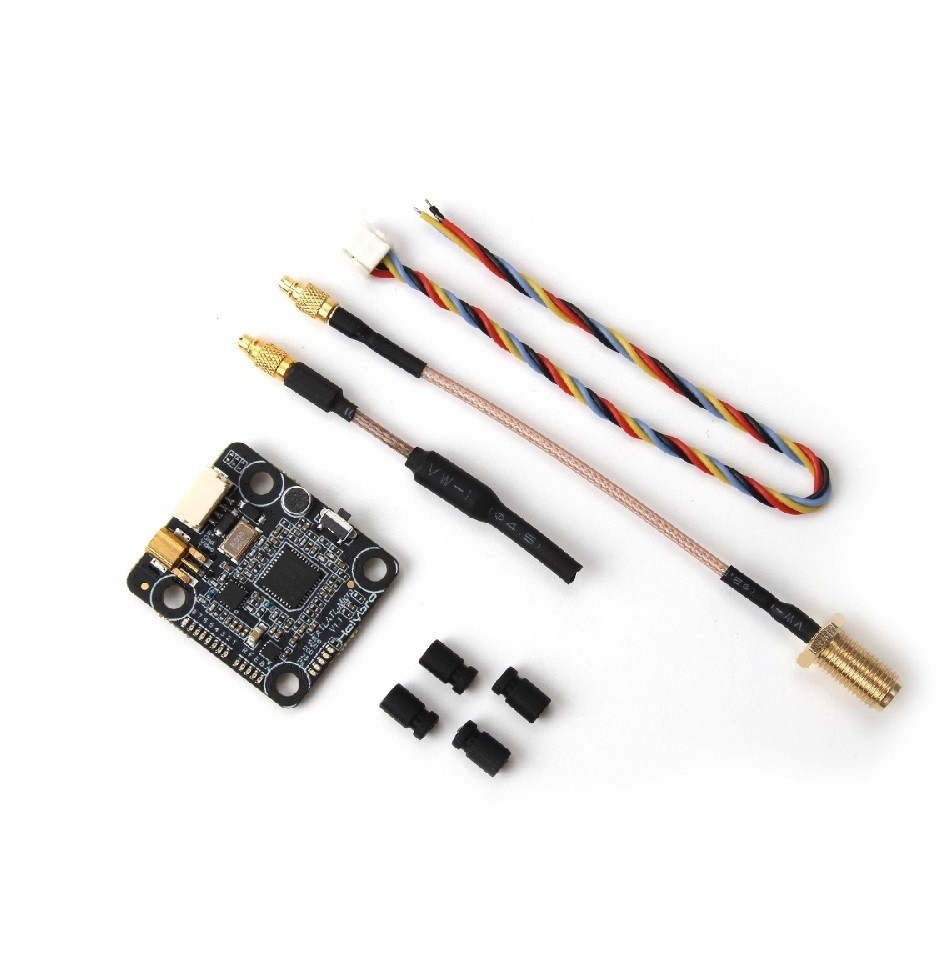

Package Includes:
1 x Holybro Atlatl HV micro (VTX & OSD)
1 x 80mm SMA–MMCX Cable
1 x 60mm Antenna
1 x 150mm 4pin JST GH wire
4 x M2 Anti-Vibration Silicone Grommet Insert
Holybro_Atlatl_HV_micro_Manual_V1.1
Holybro Atlatl HV micro Overview
The Holybro Atlatl HV micro (VTX & OSD) is a compact high-voltage video transmitter and on-screen display module designed for FPV drone pilots. Integrating SmartAudio control, a built-in microphone and versatile channel support, it delivers clear video feeds and real-time telemetry overlay in a 26 mm form factor weighing just 3.6 g.
Key Features of Holybro Atlatl HV micro
- Wide Channel Support: Standard 40-channel FPV compatibility for Raceband and other common bands.
- SmartAudio Control: Remotely adjust channels, power levels and Pit Mode via flight controller.
- Variable Power Output: Selectable 25 mW, 200 mW, 500 mW and 800 mW for racing or long-range flights.
- True Pit Mode: 0.5 mW ultra-low output for safe on-ground checks at events.
- Durable MMCX Connector: Secure antenna attachment with long-lasting durability.
- Built-in Microphone: Captures onboard audio for an immersive FPV experience.
- Compact & Lightweight: 26 mm diameter, 3.6 g weight fits easily into flight controller stacks.
- Fast Shipping from Zbotic: Get genuine Holybro units delivered swiftly anywhere in India.
Applications and Use Cases
- FPV drone racing on indoor and outdoor circuits
- Freestyle aerial maneuvers requiring lightweight gear
- Long-range cruising with adjustable high-power output
- Onsite tuning during competitions using Pit Mode
- Aerial cinematography with live telemetry overlay
- Beginner flight school setups for safe power testing
How to Use Holybro Atlatl HV micro
Mount the Atlatl HV micro between your flight controller and frame using the 26 mm footprint, solder video input and SmartAudio wires to the designated pads, then connect your antenna via the MMCX port. Power up the drone (2S–6S battery), and use your transmitter’s SmartAudio protocol or Betaflight OSD menu to select channels, adjust power levels, enable Pit Mode and activate the onboard microphone feed.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What power output levels does the Atlatl HV micro support?
It offers adjustable settings of 25 mW, 200 mW, 500 mW and 800 mW, plus a 0.5 mW True Pit Mode for on-ground testing.
How do I change channels and power remotely?
Connect SmartAudio from the VTX to your flight controller and use your transmitter’s protocol or Betaflight OSD to switch channels, set power levels and activate Pit Mode without additional soldering.
Is the built-in microphone compatible with my FPV gear?
Yes. The integrated microphone connects through the VTX’s audio input, allowing audio to be transmitted alongside video to your FPV goggles or monitor.
