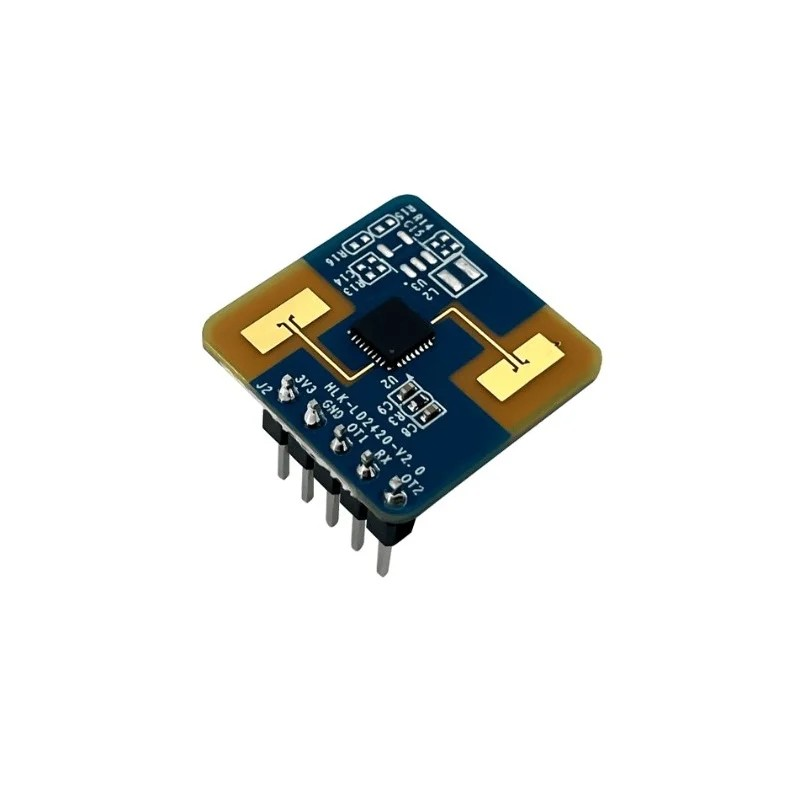

The Hi-Link HLK-LD2420 is a high-performance 24 GHz radar module equipped with one transmitter and one receiver antenna. It employs a human sensing algorithm that utilizes millimeter-wave radar for distance measurement and S3 series chips’ advanced signal processing technology, enabling precise detection of moving, stationary, and micro-movements in human bodies. The HLK-LD2420 is primarily designed for indoor use, detecting the presence of moving or stationary human bodies within its vicinity and updating detection results in real-time. It boasts a maximum sensing distance of 8 meters and offers customizable settings for distance range, sensitivity, and refresh rates across different zones. Additionally, it supports GPIO and UART interfaces for easy plug-and-play integration, making it versatile for various smart applications and end products.
Features:
- Ultra-small module size: 20 mm × 20 mm
- Load default body sensor configuration, plug and play
- 24 GHz ISM band with FCC, CE, and Commission-free spectrum regulatory approvals
- 3.3 V power supply, supports 3.0 V ~ 3.6 Wide voltage range
- Average operating current 50 mA
- Detection target for motion, micro-motion human body
Specifications:
- Power supply: 3.3 V (3.0 V ~ 3.6)
- Operating Current: 50 mA
- Band: 24 GHz
- Size: 20 mm × 20 mm
Package Includes:
Hi-Link HLK-LD2420 24Ghz human body micro motion sensing detection radar sensor module HLK-LD2410 low cost solution
ADXL345 Accelerometer: Tilt and Vibration Sensing with Arduino
Table of ContentsWhat Is the ADXL345?How MEMS Accelerometers WorkADXL345 Key FeaturesWiring ADXL345 via I2CWiring ADXL345 via SPIArduino Code:...
Read More →
Load Cell and HX711 Advanced: Multi-Channel Weighing Systems
Building a precise multi-channel weighing system using load cells and the HX711 24-bit ADC amplifier is one of...
Read More →
Rain Sensor and Raindrop Detection Module: Arduino Guide
A rain sensor module detects the presence of water droplets on its surface, giving Arduino a simple signal...
Read More →Technical Specifications
| Brand | Hi-Link |
|---|---|
| Model | HLK-LD2420 |
| Interface / Protocol | 4G |
| Frequency | 24Ghz |
| SKU | AI6097 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hi-Link HLK-LD2420 24Ghz human body micro motion sensing detection is a versatile ultrasonic sensors and modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
