Description:

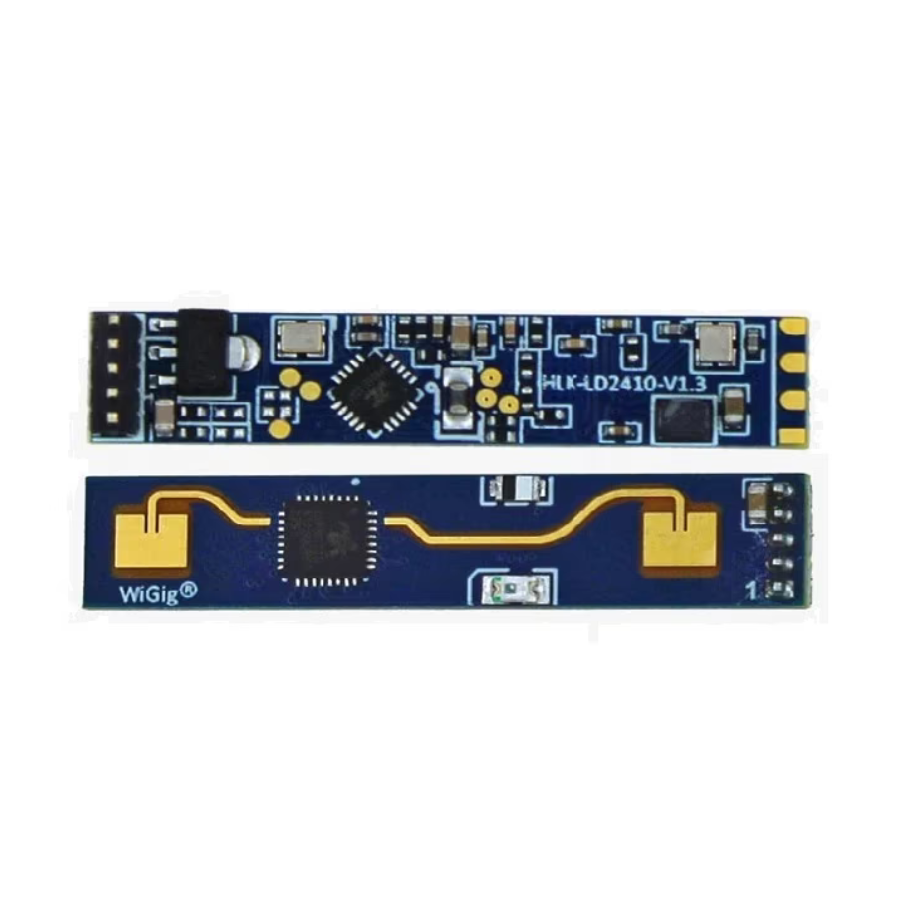

HI-LINK HLK-LD2410B-P Human Presence Detection Sensor Modules ROHS is a high-sensitivity 24GHz human presence status sensing module developed by Hilink Electronics. Its working principle is to use FMCW frequency-modulated continuous wave to detect human targets in the set space. Combined With Radar signal processing and accurate human body sensing algorithms, it realizes high-sensitivity human presence status sensing, and can identify human bodies in motion and stationary states. And auxiliary information such as the distance of the target can be calculated.
HI-LINK HLK-LD2410B-P Human Presence Detection Sensor Modules ROHS product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time.The farthest sensing distance can reach 5 meters, and the distance resolutionis0.75m.Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time
Note: The actual product may vary in slight variation in electronic components/marking/resemblance with the image shown depending upon quantity availability.
Specification:
| Item Type: | Sensor Module |
| Model No. / Name: | HLK LD2410B |
| Detection range | Up to 5 meters |
| Detection Angle | ±60° |
| Output Interface | GPIO and UART |
| Input Power | 5V |
Features:
- Plug and play, easy assembly
- The longest sensing distance is up to 5 meters
- Large detection angle, coverage up to ±60 degrees
- Accurate identification within the interval, support the division of the sensing range, and shield interference outside the interval
- Multi-level intelligent parameter adjustment can be realized through Bluetooth or serial port to meet the needs of scene changes
- Visual debugging and configuration tools
- Small and simple, the minimum size is only 7mmx35mm
- Supports various installation methods such as ceiling hanging and wall hanging
- 24GHz ISM band, can be certified by FCC and CE spectrum regulations
Package Include:
1 x HI-LINK HLK-LD2410B-P Human Presence Detection Sensor Modules ROHS
