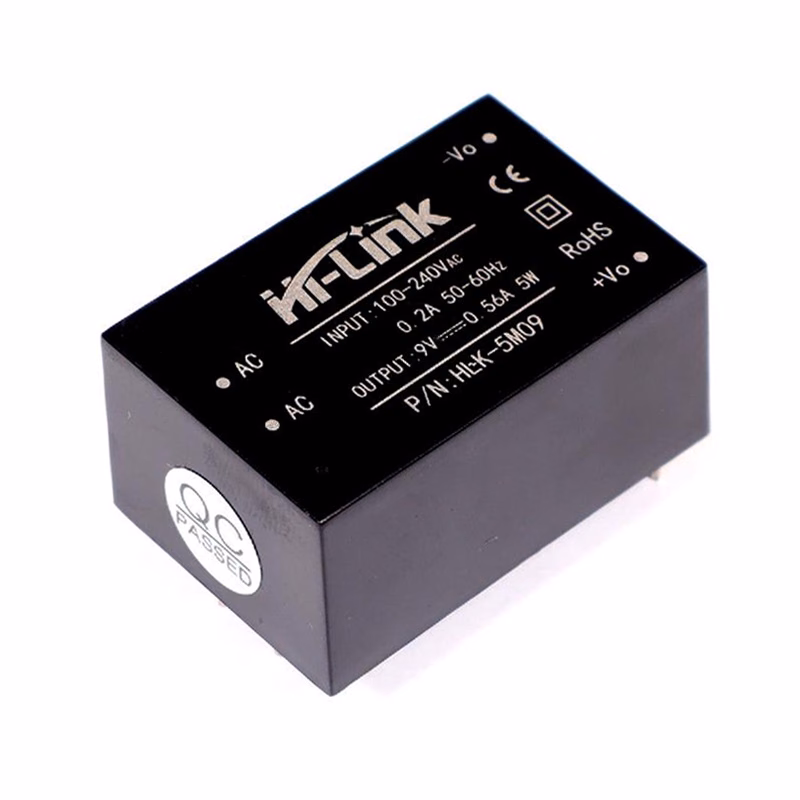

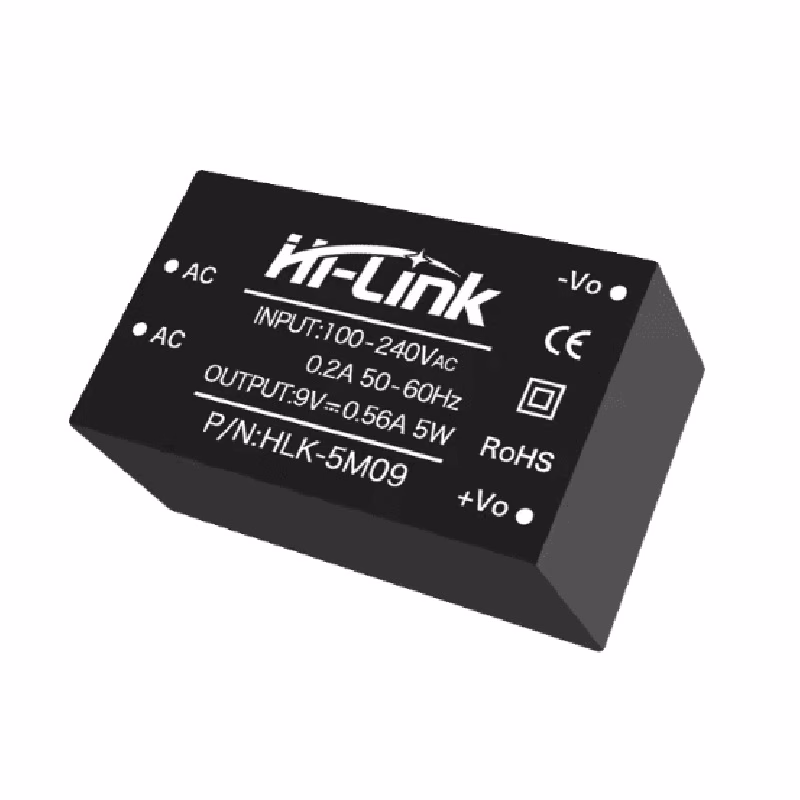

Hi-Link HLK-5M09 AC to DC 9v5w Step Down Mini Intelligent Household Switch Power Supply Module Converter
Description:
Hi-Link HLK-5M09 is a compact and intelligent AC to DC Step Down Mini Power Supply Module. With a 9V output and a power capacity of 5W, it efficiently converts household AC power. This module is designed for various intelligent household applications, offering a reliable and space-saving solution for powering electronics with a lower voltage requirement.
Features:
- Global universal input voltage(90-264VAC)
- Input and output isolation voltage 3000VAC
- Low power consumption, green environment protection, no-load loss＜0.1W
- High efficiency, high power density
- Long life design, continuous working time is greater then 100,000hours
- High output-quality environmentally friendly waterproof thermal conductive glue potting, dustproof,moisture-proof, shockproof, flame-retardant
- Meet UL/CE/EMC and safety testing requirements
- Can be used in medical, industrial control, electric power, instrumentation, communication, railway, and other fields
Specifications:
Environment Condition
- Model: HLK-5M09
- Working Temperature: -25—+60 ℃
- Storage temperature: -40—+80 ℃
- Relative humidity: 5—95 %
- Thermal methods: Natural cooling
- Atmospheric pressure: 80—106 Kpa
- Altitude: ≤2000 m
- Vibration coefficient: 10~500Hz,2G10min./1cycle, 60min.each along the X, Y, and Z axes. Meets secondary road transportation requirements
Input Features( test at room temperature)
- Rated input voltage: 100-240Vac
- Input voltage range: 85-264VAC
- maximum input voltage is 270VAC
- maximum input Current: ≤0.2A
- Input inrush current: ≤10A
- Input low start: ≤50mS
- Long-term reliability MTBF≥100000H
- External fuse recommended: 1A
Output Features
- Full-load rated output voltage: 9.0±0.2%
- Load regulation: ±0.5%
- Switching on/off overshoot amplitude: 5mS(115VAC
- Output over-current protection Output maximum load: 110-150% A
- Ripple/Noise: ≤100mVp-p(Typ:50)
Package Includes:
Hi-Link HLK-5M09 AC to DC 9v5w Step Down Mini Intelligent Household Switch Power Supply Module Converter
Technical Specifications
| Brand | Hi-Link |
|---|---|
| Model | HLK-5M09 |
| SKU | AI4881 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hi-Link HLK-5M09 AC to DC 9v5w Step Down Mini Intelligent Household Switch Power Supply Module Converter is a versatile hi-link power supply module used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
- Powering a development board or test setup
- Driving LED strip installations
- Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
