This is the 5V variant of the Hi-Link B0524S-1WR3, 1W Isolated DC-DC Converter, 5V to 24V, 42mA, 220µF, SIP-4 Module in Hi-Link Power Supply Module. Available at ₹111.72 (₹94.68 + GST) with free shipping across India.

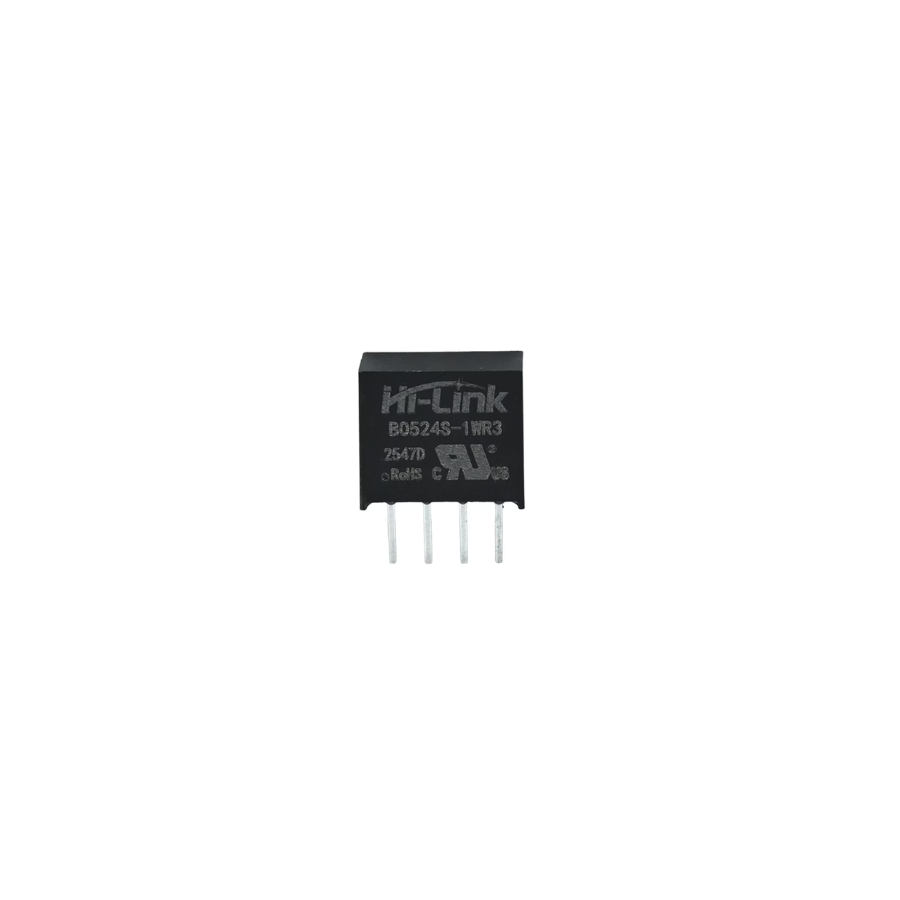

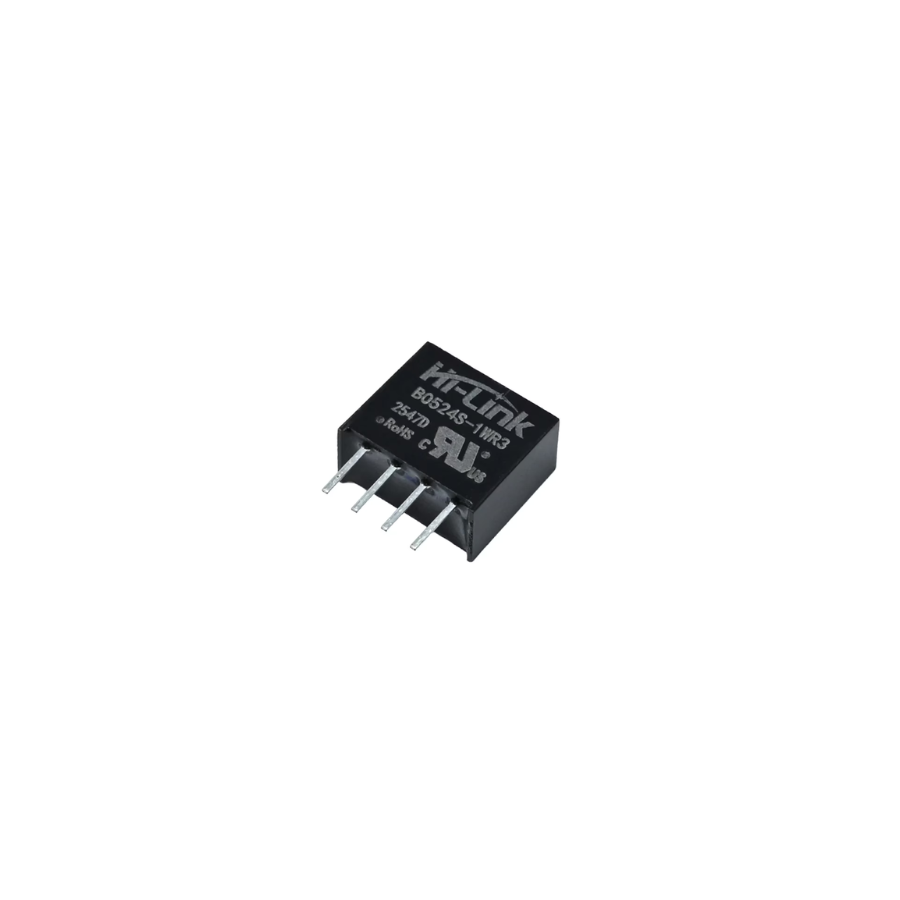

Hi-Link B0524S-1WR3, 1W Isolated DC-DC Converter, 5V to 24V, 42mA, 220µF, SIP-4 Module
Description:
The B0524S-1WR3 Hi Link DC DC Converter is a compact and reliable DC-DC converter designed to efficiently step up 5V input to a stable 24V output. With up to 88% efficiency, this module minimizes power loss while delivering consistent performance, making it ideal for embedded systems, industrial electronics, and DIY projects.
Its SIP-4 package ensures easy integration into space-constrained designs, while Hi Link DC DC Converter isolation≤1500VDC enhances safety and protects sensitive circuits. Whether you’re powering sensors, relays, or communication modules, this converter offers a dependable and energy-efficient solution.
Features:
- High Efficiency Conversion: Delivers up to 88% efficiency for reduced power loss
- 5V to 24V DC Conversion: Provides stable isolated 24V output from a 5V input
- Compact SIP-4 Package: Easy integration into compact PCB designs
- Continuous Short-Circuit Protection: Enhances reliability during fault conditions
- Low Ripple and Noise Output: Suitable for sensitive electronic applications
- Wide Operating Temperature Range: Operates reliably from -40°C to +85°C
- Industrial Grade Reliability: Suitable for industrial control and automation systems
- Fully Regulated Output: Ensures stable voltage performance under varying loads
Specifications :
- Product Type : Isolated DC-DC Converter Module
- Model : B0524S-1WR3
- Rated Input Voltage : 5V DC
- Input Voltage Range : 4.5V – 5.5V DC
- Output Voltage : 24V DC
- Output Current : 42mA
- Output Power : 1W
- Isolation Voltage : ≤1500VDC
- Efficiency : Up to 88%
- Ripple & Noise : 30mVp-p (Typ, 20MHz Bandwidth)
- No-Load Input Current : ≤5mA
- Maximum Capacitive Load : 220µF
- Operating Temperature : -40℃ to +85℃
- Package Type : SIP-4
Package Includes:
1 x Hi-Link B0524S-1WR3, 1W Isolated DC-DC Converter, 5V to 24V, 42mA, 220µF, SIP-4 Module
Technical Specifications
| Brand | Hi-Link |
|---|---|
| Model | B0524S-1WR3 |
| Voltage Range | 5V - 24V |
| Current Rating | 42mA |
| Power Rating | 1W |
| SKU | AI4865 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hi-Link B0524S-1WR3, 1W Isolated DC-DC Converter, 5V to 24V, 42mA, 220µF, SIP-4 Module is a versatile hi-link power supply module used across a wide range of applications including electronics workbench, LED lighting, industrial equipment, embedded system power, and CCTV installations.
Common use cases:
- Powering a development board or test setup
- Driving LED strip installations
- Providing regulated DC power to equipment
This product is ideal for electronics labs, makers, and system integrators.
Technical Tip: Ensure output voltage and current match your load requirements. Switching power supplies are more efficient but may introduce noise; consider linear for sensitive analog circuits.
