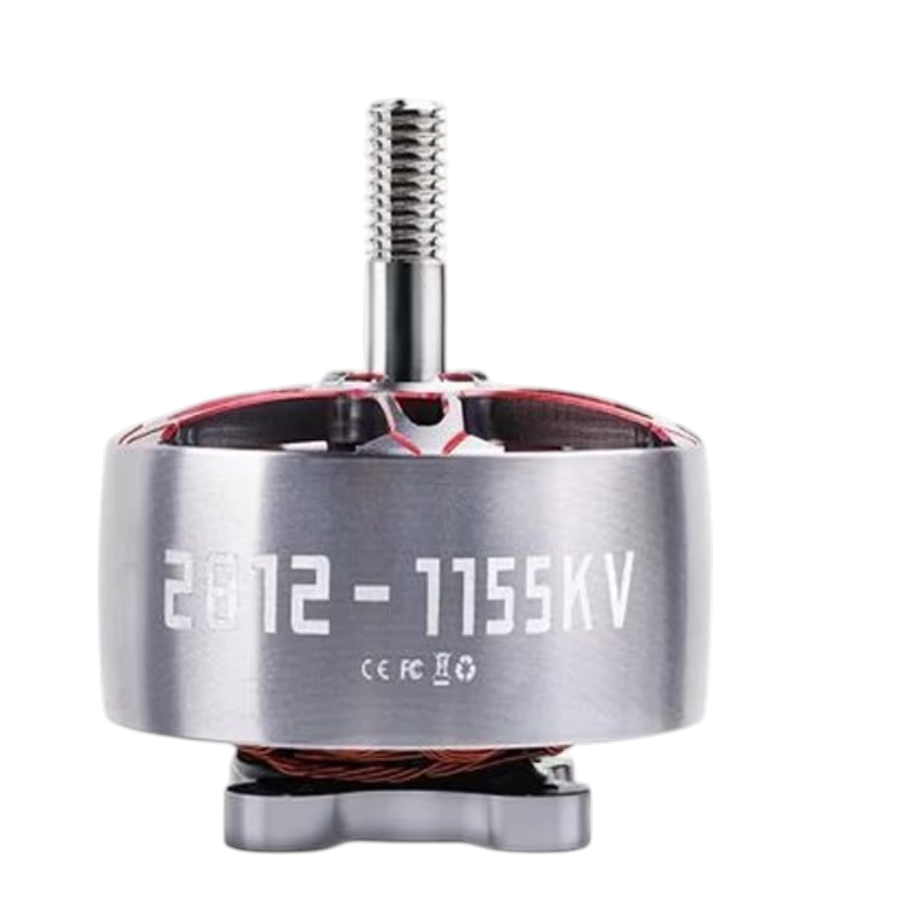

HGLRC SPECTER 2812 1155KV Brushless Motor
Description:
The HGLRC SPECTER 2812 1155KV Brushless Motor is engineered for high-performance drone applications, offering a balance of power and efficiency. Its 1155KV rating makes it suitable for various drone builds, providing ample thrust for aggressive maneuvers. Designed with quality materials and precise construction, it delivers smooth and reliable operation. This motor is aimed at pilots seeking a durable and responsive power source for their freestyle or racing drones.
Features:
- Brand new rotor appearance design, anodized two-color process
- High-strength one-piece rotor
- Customized N52H curved magnet, strong magnetism, large torque
- 220° copper wire winding, the motor runs more stably
- Imported Kawasaki silicon steel sheets, low-loss stator, reduce heat generation and improve efficiency
- Newly optimized tuning maintains high torque at low speeds, linear power output when the throttle changes rapidly, and accurate and quick response when turning.
- Titanium alloy shaft, higher strength while reducing body weight
- Suitable for 8-9 inches and 8-inch x8
Specifications:
| Motor KV (RPM/V): | 1155 |
| Motor Type: | Brushless Motor |
| Max. Continuous Current(A): | 54.5A (60s) |
| Input Voltage | 4-6S |
| Brushless ESC(A) | > 55A |
| Propeller | 8-9 inches |
| Wiring | 18 AWG, 250mm length |
| Output shaft | 5 mm |
| Idle Current | 1.41A (at 10V) |
| Winding Type | 200°C high-temp copper wire |
| Poles | 12N14P magnetic pole configuration |

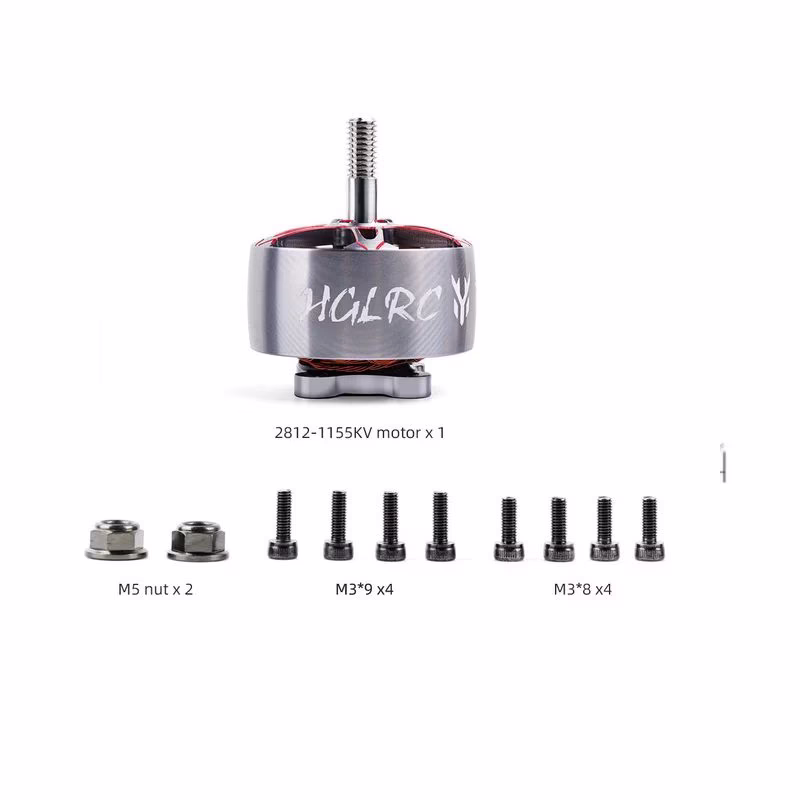

Package Includes:
1 x HGLRC SPECTER 2812 1155KV Brushless Motor
Long Range FPV Drone: How to Build a 50km+ Fixed Wing UAV in India (2026)
Fixed-wing UAVs capable of flying 50 kilometres or more represent the pinnacle of amateur and professional drone engineering....
Read More →
TMC2209 vs TMC2208: Best Silent Stepper Driver Comparison
If you have spent any time tuning a 3D printer or building a CNC machine, you already know...
Read More →
Drone Maintenance Checklist: Pre and Post Flight
Table of Contents Understanding Drone Maintenance Checklist Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Brand | HGLRC |
|---|---|
| KV Rating | 1155KV |
| SKU | AI8186 |
| Weight | 0.13 kg |
| Availability | Out of Stock |
Applications & Use Cases
The HGLRC SPECTER 2812 1155KV Brushless Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
