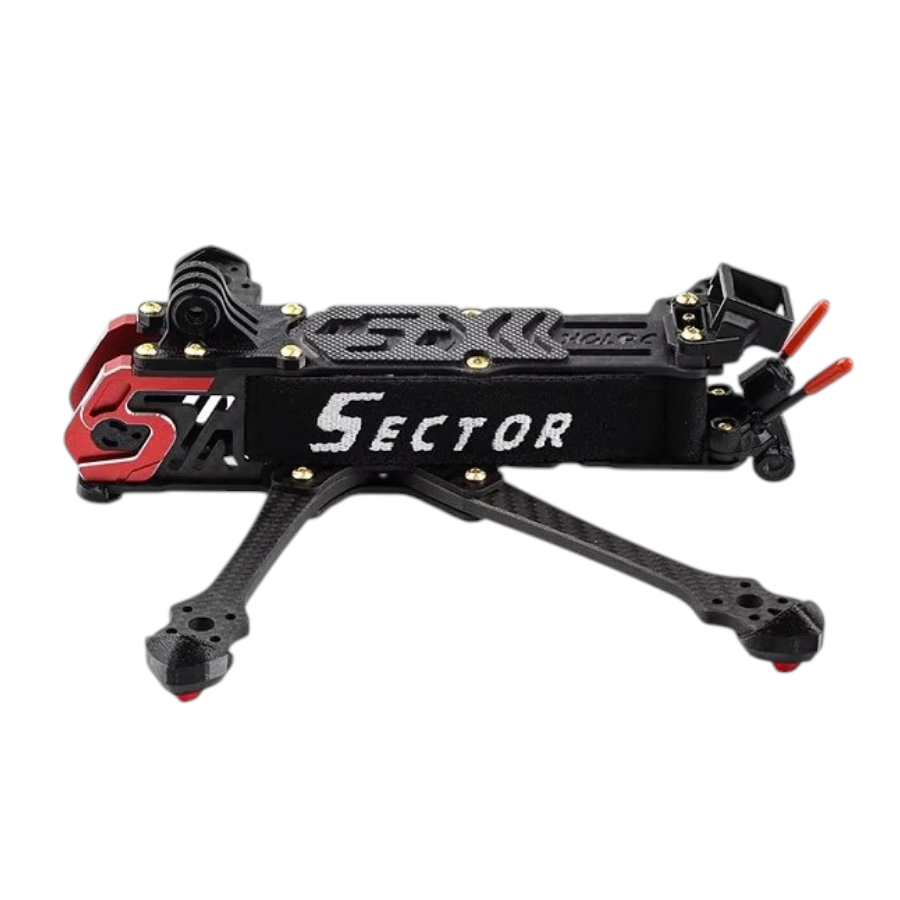

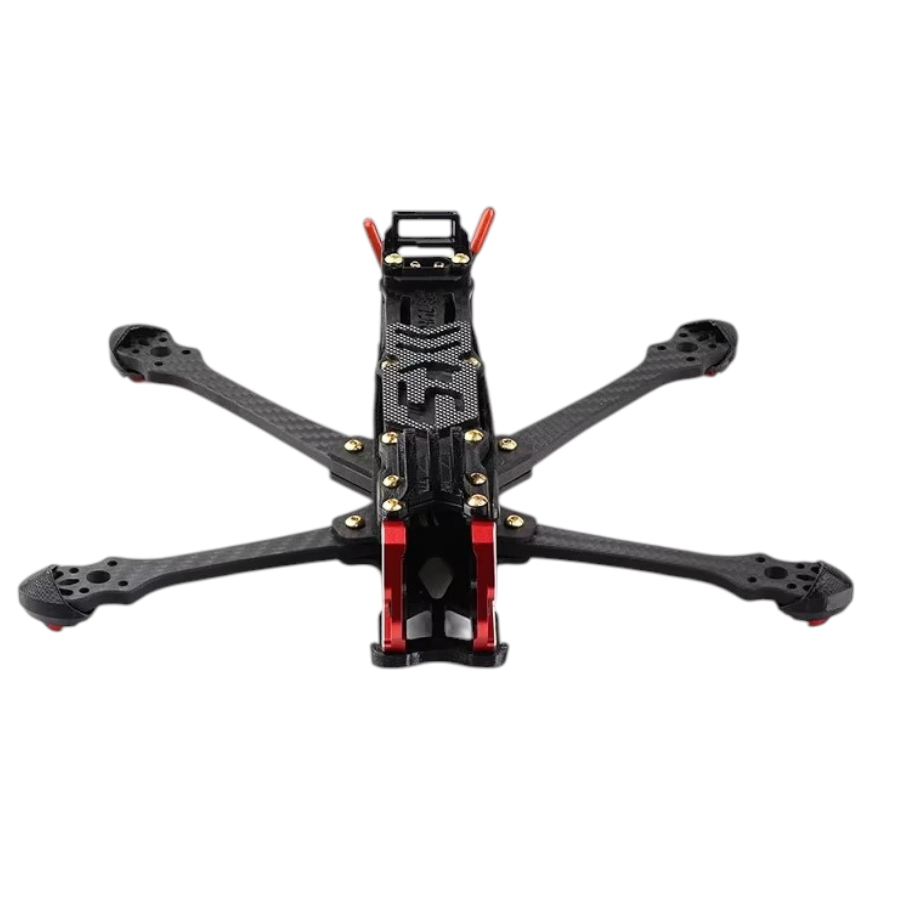

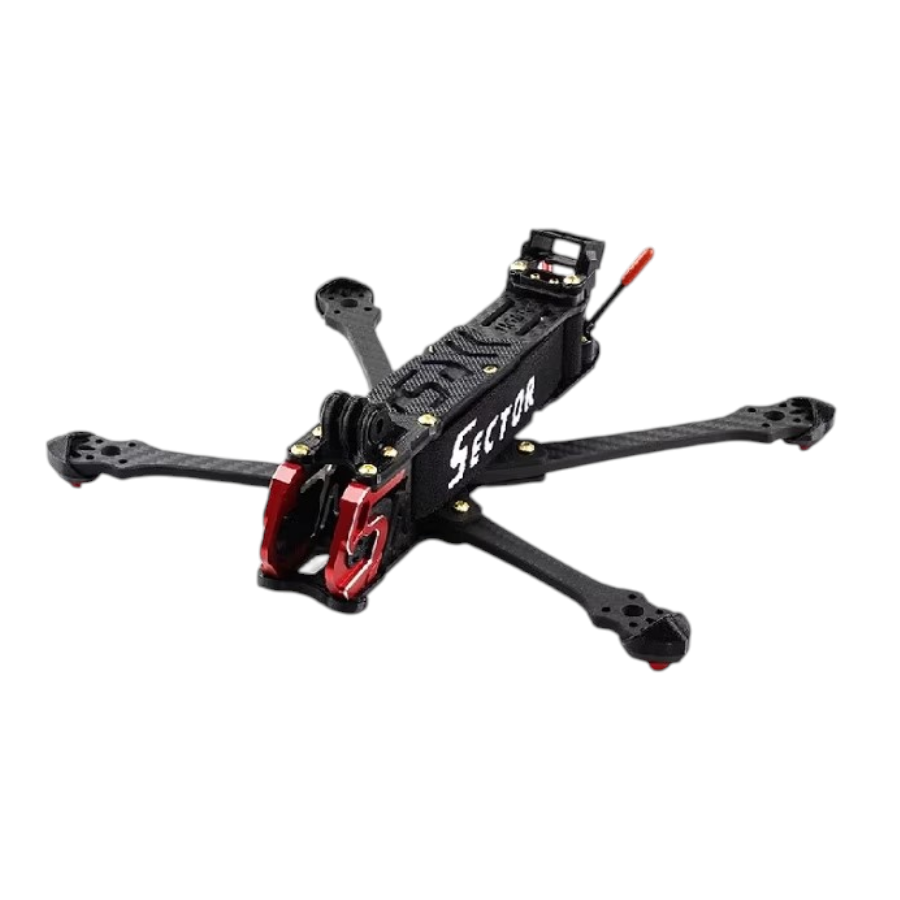

HGLRC Sector D5 FR 5-inch Freestyle FPV Frame

HGLRC Sector D5 FR 5-inch Freestyle FPV Frame

Description:

The HGLRC Sector D5 FR is a 5-inch freestyle FPV frame designed to push the limits of aerial acrobatics. Constructed with durability in mind, it offers a robust platform for aggressive flying while maintaining a lightweight profile. The frame’s thoughtful layout allows for easy component mounting and maintenance. With its ability to handle high-speed flights and dynamic maneuvers, the Sector D5 FR is a top choice for freestyle FPV enthusiasts seeking performance and resilience.

Specification:

Features:

• Replaceable arms for quick disassembly without taking apart the whole frame
• A fixed power outlet for convenience and protecting your power cable from cutting by propellers
• Dust-proof straps covering both sides to better protect your rig and keep them clean
• CNC aluminum side plates combined with 3D-printed parts make your drone look dope!

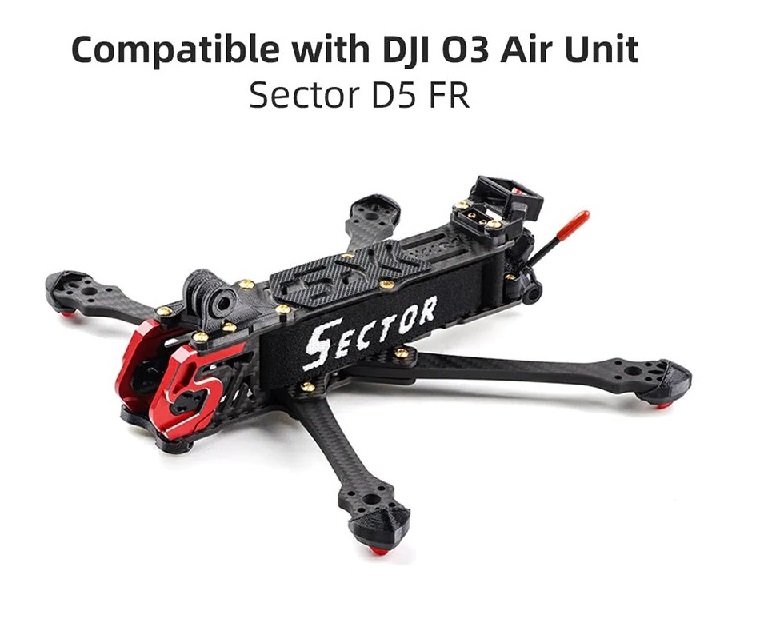

• The Sector D5 optimized body aluminum parts for DJI O3 VTX and with the print fixing method, the lens is fixed by the print to effectively reduce low-frequency vibration, enhance shooting stability, and reduce in-flight video jelly.
• The quadcopter has dimensions of 199 * 178 mm, providing a well-balanced size for various applications.
• The top plate boasts a thickness of 2.5 mm, ensuring durability and stability during flight.
• The middle plate has a thickness of 2 mm, contributing to the overall structural integrity of the quadcopter.
• The bottom plate is also constructed with a thickness of 2.5 mm, enhancing the overall robustness of the frame.
• The space between the top and middle plates is 25mm, providing room for additional components and allowing for flexibility in the configuration.
• The flight controller mounting hole has dimensions of 30.5mm x 30.5 mm, offering compatibility with standard flight controllers.
• The camera mount is designed with dimensions of 19 x 19mm, providing a secure and stable platform for mounting cameras.

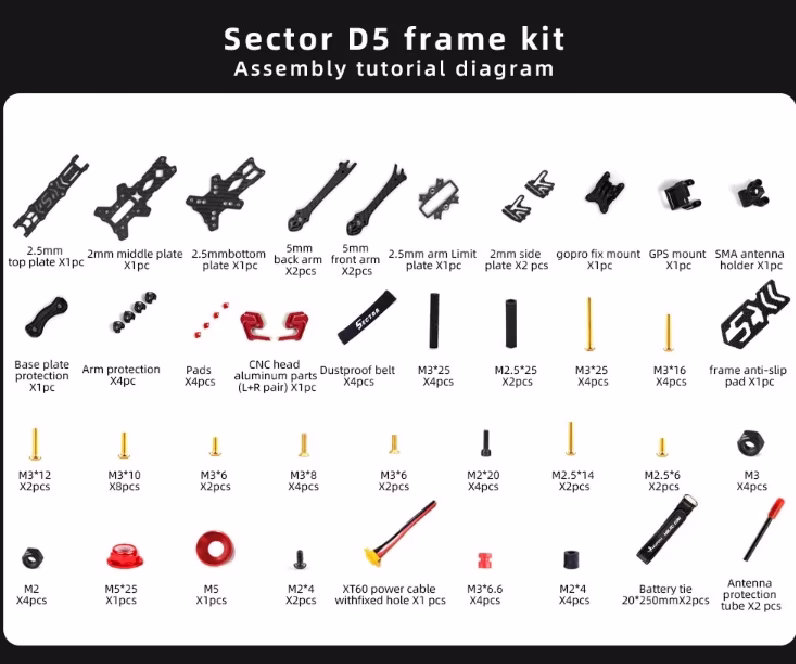

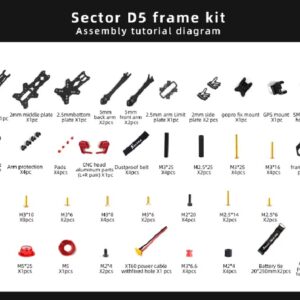

Package Includes:

1 x 2.5 mm Top plate 1 x 2 mm Mid-plate 1 x 2.5 mm Base plate 2x 5 mm Front arm 2x 5 mm Rear arm 1x 2.5mm Arm limit plate 2x 2mm Camera side panel 1x Frame head CNC aluminum parts (one pair) 1x TPU Black GOPRO holder mount 1X TPU black Cam Conversion board (one pair) 1x TPU black SMA antenna mount 1x TPU black GPS mount 1x TPU black bottom mount 4x TPU black arm protection 4x TPU Red footpad 2x Battery straps 20x250mm 1x Battery Anti-slip pad 1x Screw Accessory package
