Product Description
The HC-08 Bluetooth UART communication module is a transmission module based on the new generation of Bluetooth V4.0 BLE protocol. It operates on the 2.4GHz ISM wireless frequency and uses GFSK modulation. The module has a maximum transmit power of 4dBm and a receiving sensitivity of -93dBm. It can achieve up to 80 meters of ultra-long-distance communication with an iphone4s in an open environment.
The module employs the CC2540 chip, which has a 256K Byte space and supports AT commands. Users can change the parameters such as the role, the serial baud rate, and the device name according to their needs, making it flexible to use.
The module is mainly designed for short-range wireless data transmission, such as Bluetooth wireless data transfer, industrial remote control, telemetry, traffic, underground positioning, alarm, smart home, etc. It can also serve as an industrial serial port Bluetooth, replacing wired serial connections.
Note: Default pairing code is 1234
Features:
- Based on TI CC2540 chipset
- Bluetooth class 2
- Industrial level SPP Bluetooth module
- Integrated chip antenna
- Industrial temperature range from -40 to 85
- Support for on-board applications
- Modulation method: GFSK
- Transfer rate: Asynchronous: 6 KBPS Synchronous: KBPS
Package Includes :
1 x HC-08 Bluetooth 4.0BLE Serial Port Module.

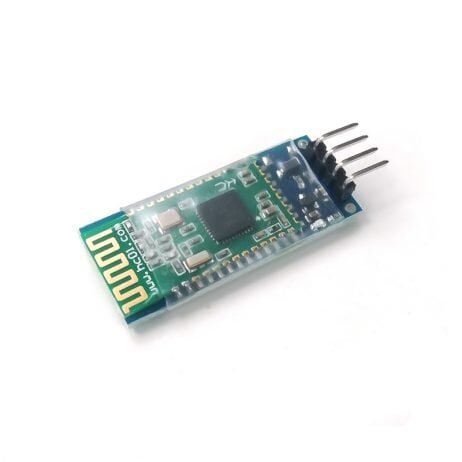

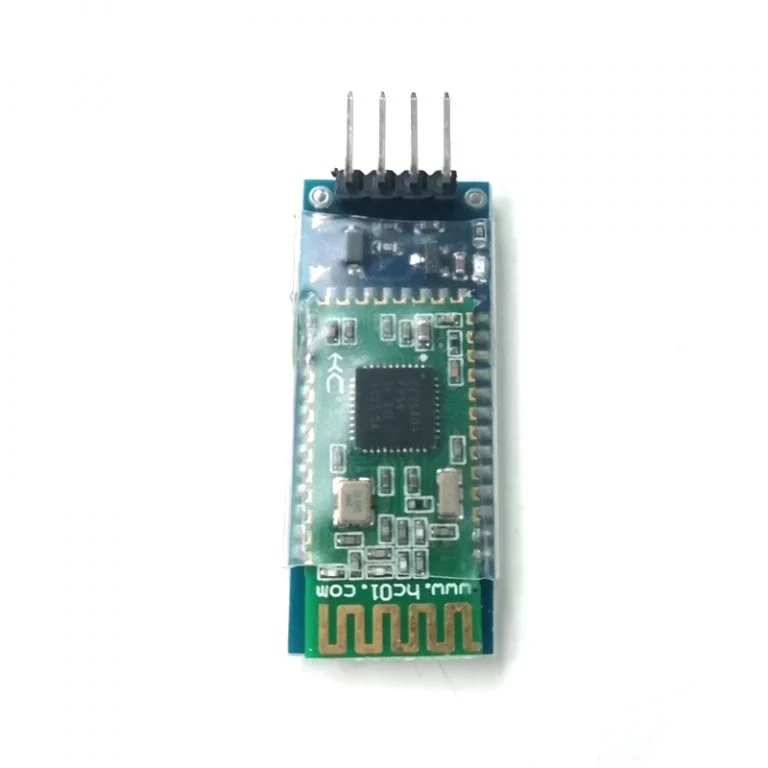

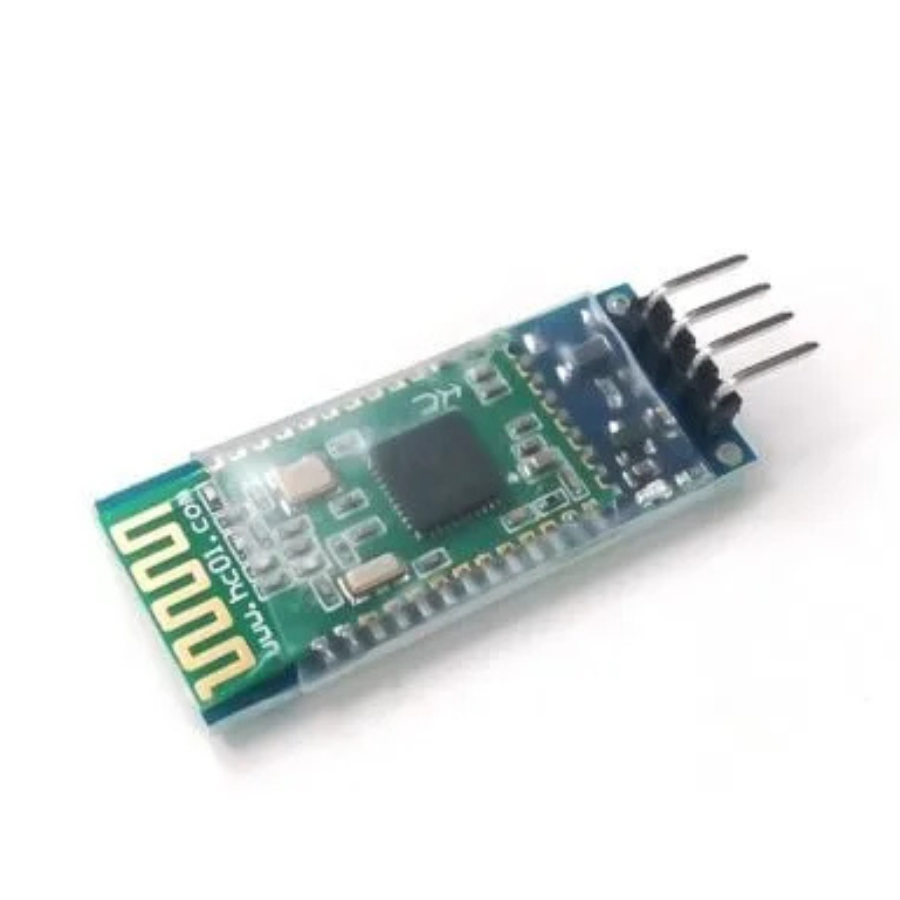

HC-08 4pin Bluetooth Module without Button Overview
The HC-08 4pin Bluetooth Module without Button is a compact BLE UART transceiver based on the TI CC2540 chipset. Designed for wireless serial communication over Bluetooth 4.0 Low Energy, it enables reliable data exchange at distances up to 80 meters in open space.
Key Features of HC-08 4pin Bluetooth Module without Button
- Bluetooth V4.0 BLE protocol for low-power, high-efficiency wireless links
- TI CC2540 chipset with 256 KB onboard flash and support for AT command configuration
- Transmit power up to 4 dBm and receiver sensitivity down to –93 dBm
- Operates on 2.4 GHz ISM band using GFSK modulation
- 4-pin footprint (VCC, GND, TX, RX) with no push-button, ideal for PCB integration
- Fast shipping from Zbotic across India
Applications and Use Cases
- Wireless UART link between microcontrollers (Arduino, ESP32, STM32)
- Smartphone-to-device communication for data logging and control apps
- BLE-based sensor networks in industrial or home automation setups
- Remote control of robots, drones or IoT devices
- Beacon and proximity detection systems
- Portable data acquisition modules in research projects
How to Use HC-08 4pin Bluetooth Module without Button
Connect the four pins (VCC to 3.3–6 V, GND to ground, TX/RX to your host UART) and power up the module. Use a serial terminal at the default baud rate to issue AT commands for setting device name, baud rate, and role. Once configured, pair from your BLE-capable host (smartphone or MCU), and start sending or receiving serial data over the wireless link.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I change the module’s baud rate?
Use the AT+BAUD command over the default serial interface (e.g., AT+BAUD4 for 115200 bps). After sending the command, power-cycle the module to apply the new baud setting.
Is the HC-08 compatible with Android and iOS devices?
Yes. The HC-08 supports Bluetooth Low Energy 4.0, so it works with Android 4.3+ and iOS 8+ devices. Simply search for the module’s name in your phone’s BLE scanner and pair.
Since there’s no button, how do I enter AT command mode?
The HC-08 enters AT command mode automatically when it is powered and not connected to a host. Open your serial terminal at 9600 bps (default) and type AT to verify communication.
ESP32 ThingSpeak: IoT Analytics and Visualization
Esp32 Thingspeak Iot Analytics — this detailed tutorial covers everything from hardware selection to complete working code, designed...
Read More →
RC522 RFID Library: Read Write Mifare Tags Tutorial
The RC522 RFID module is one of the most popular contactless communication devices used by hobbyists, students, and...
Read More →
Arduino Serial Communication: UART, SoftwareSerial & Debugging
Serial communication is the foundation of how your Arduino talks to the world. Whether you are reading data...
Read More →Technical Specifications
| Model | HC-08 |
|---|---|
| Pin Count | 4-pin |
| Interface / Protocol | Bluetooth |
| Color | Blue |
| SKU | AI2482 |
| Weight | 0.0052 kg |
| Availability | In Stock |
Applications & Use Cases
The HC-08 4pin Bluetooth Module without Button is a versatile bluetooth and nrf modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
