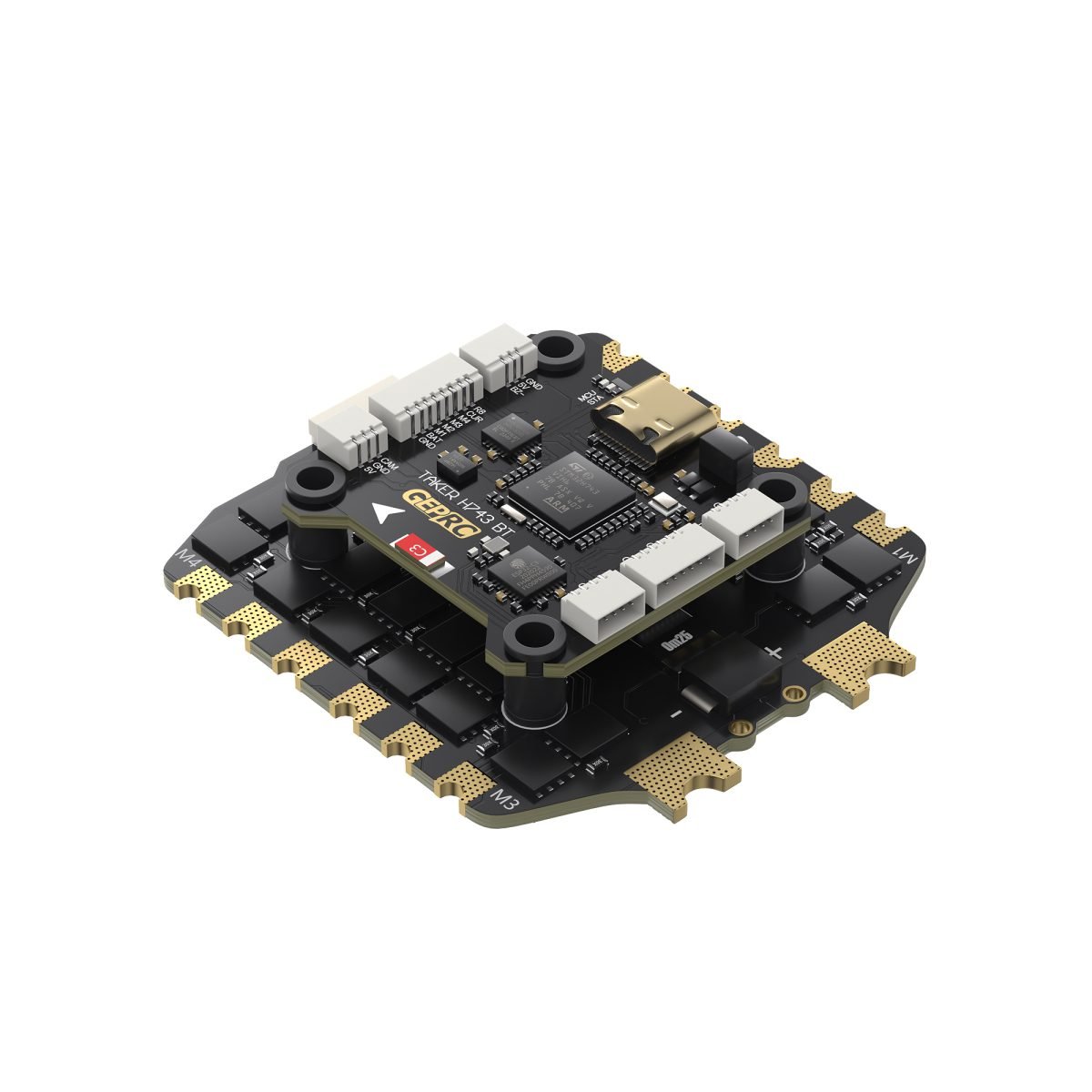

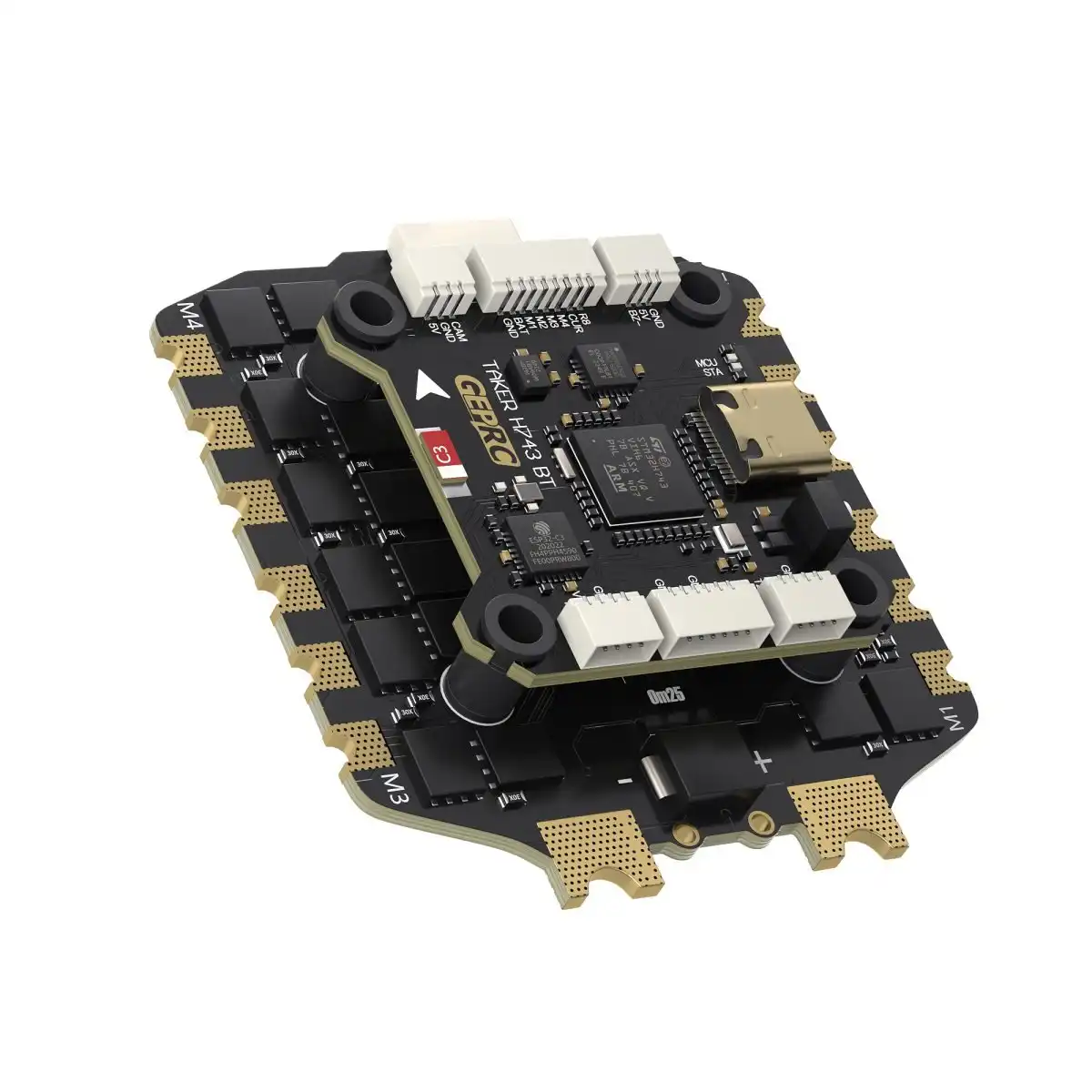

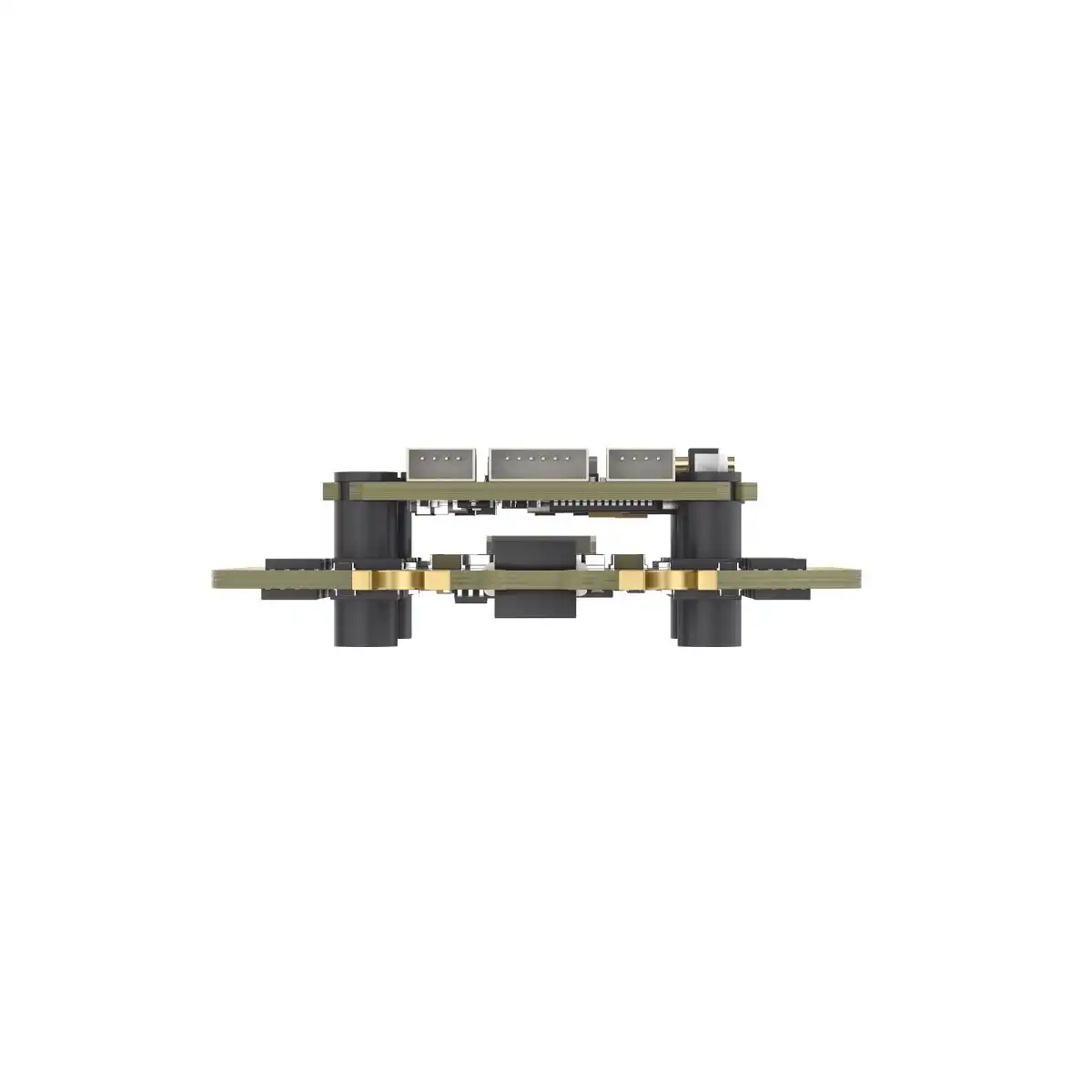

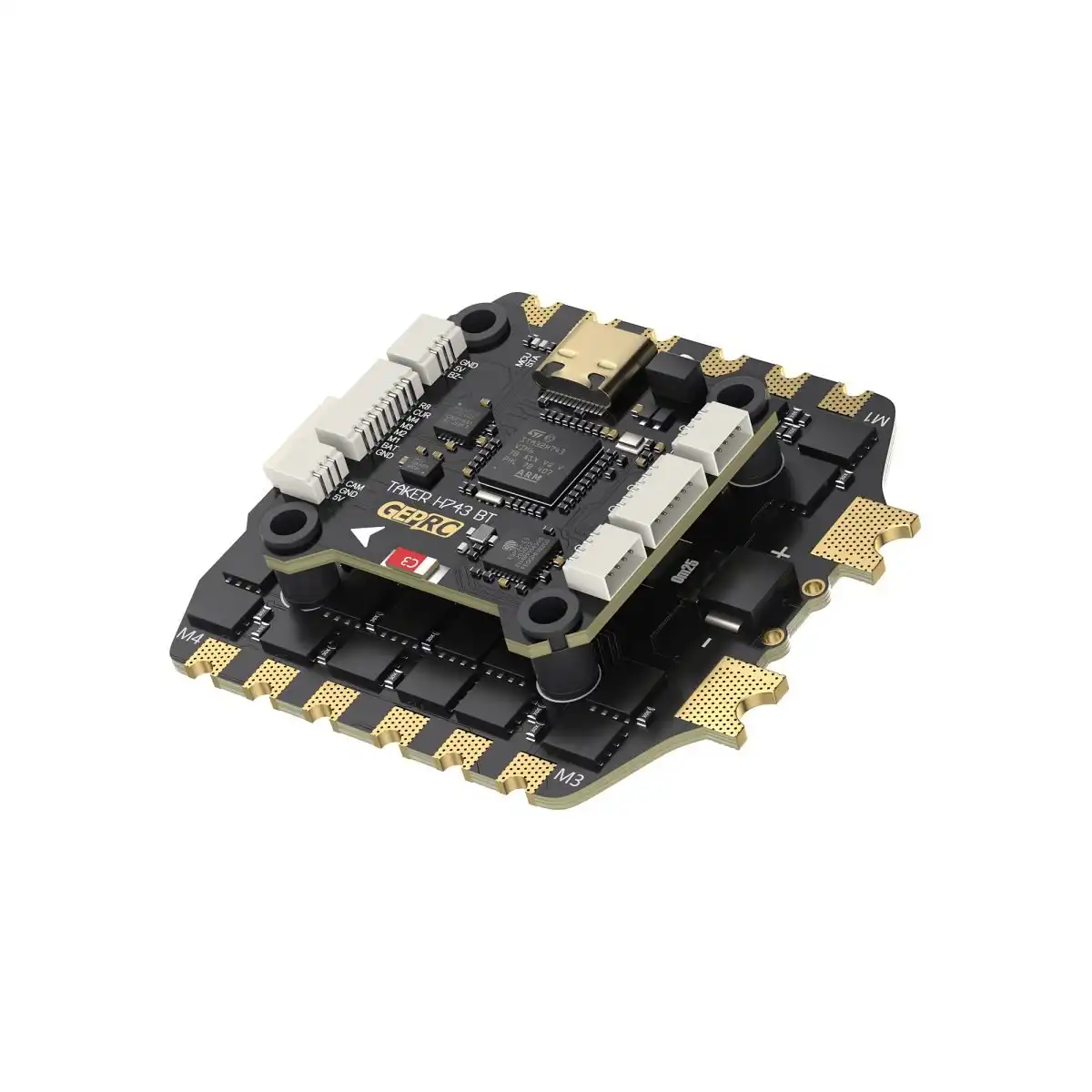

GEPRC TAKER H743 BT 8Bit 80A STACK

GEPRC TAKER H743 BT 8Bit 80A STACK

Description:

TAKER H743 BT 8Bit 80A STACK is the latest Stack system developed by the GEPRC team. It features a high-performance STM32H743VIH6 chip with a Cortex-M7 core running at up to 480MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.

Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + [email protected] BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H80_BLS 80A 4IN1 ESC, it delivers an exceptionally smooth flight experience.

Feature:

• Adopts the high-performance STM32H743 as the main controller
• Equipped with MPU6000 and 42688-P dual gyroscopes
•  512MB high-capacity black box storage
• Bluetooth parameter tuning
• Plug-and-play, no soldering required
•  Integrated barometer
• Features 7 UART ports
• Independent BEC with [email protected] and 5V@3A outputs
•  Supports multiple firmware options
•  Equipped with the TAKER H80_BLS 80A 4IN1 ESC for a smooth flight experience

Specifications:

TAKER H743 BT 8Bit 80A STACK

• MCU: STM32H743
• IMU: MPU6000 + ICM42688-P(dual gyro)
• Air Unit Connection: direct plug for DJI Air Unit
• Black Box: 512M onboard
• Bluetooth: Supported
• Barometer: Supported
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC Output: 5V@3A,[email protected] dual BEC
• Target: GEPRC_TAKER_H743
• Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
• Input Voltage: 3-6S LiPo
• UART Ports: 7 groups (UART3 fixed for Bluetooth)
• Power Filtering: Integrated LC filter
• Weight: 8.4g

Package Includes :

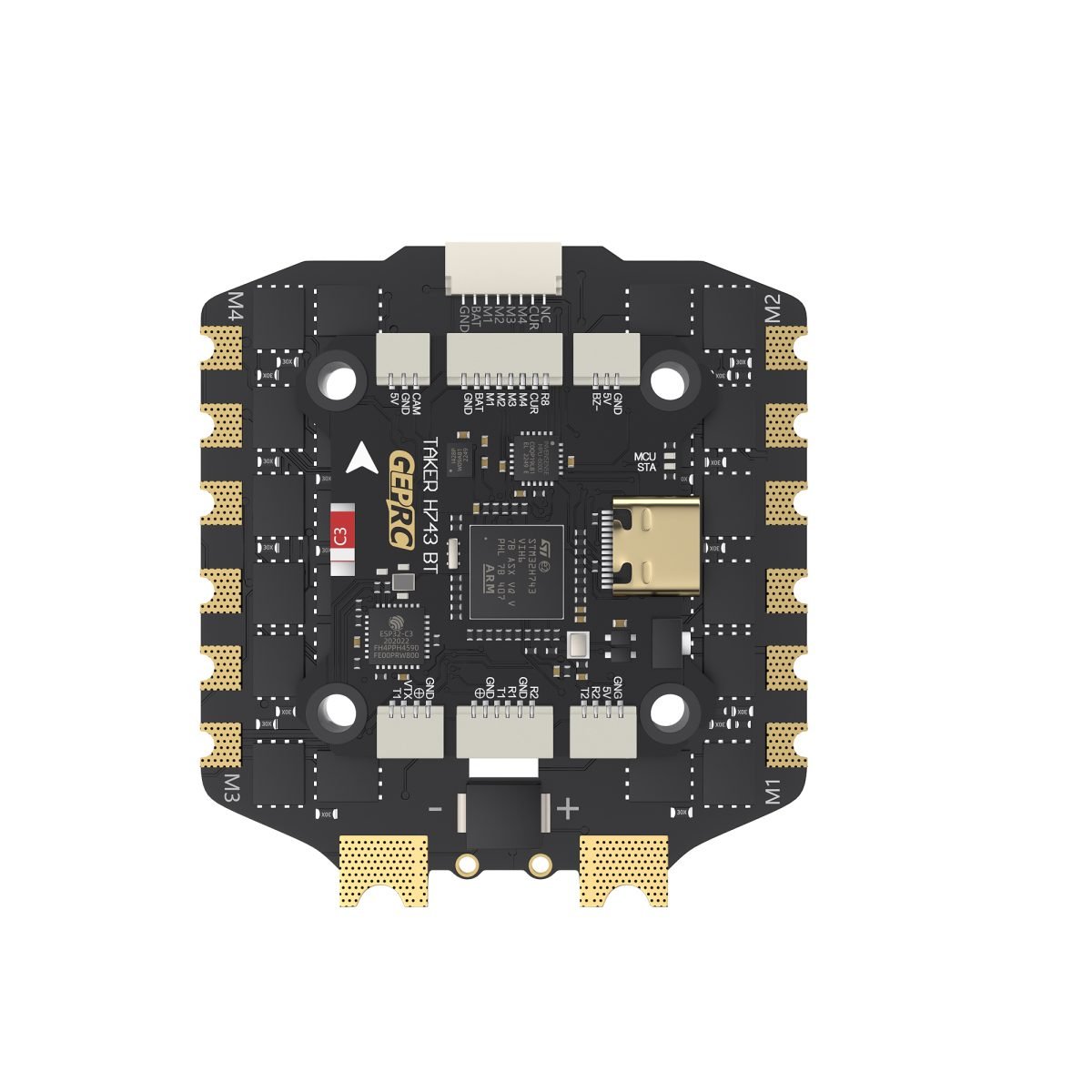

1 x TAKER H743 BT Flight Controller

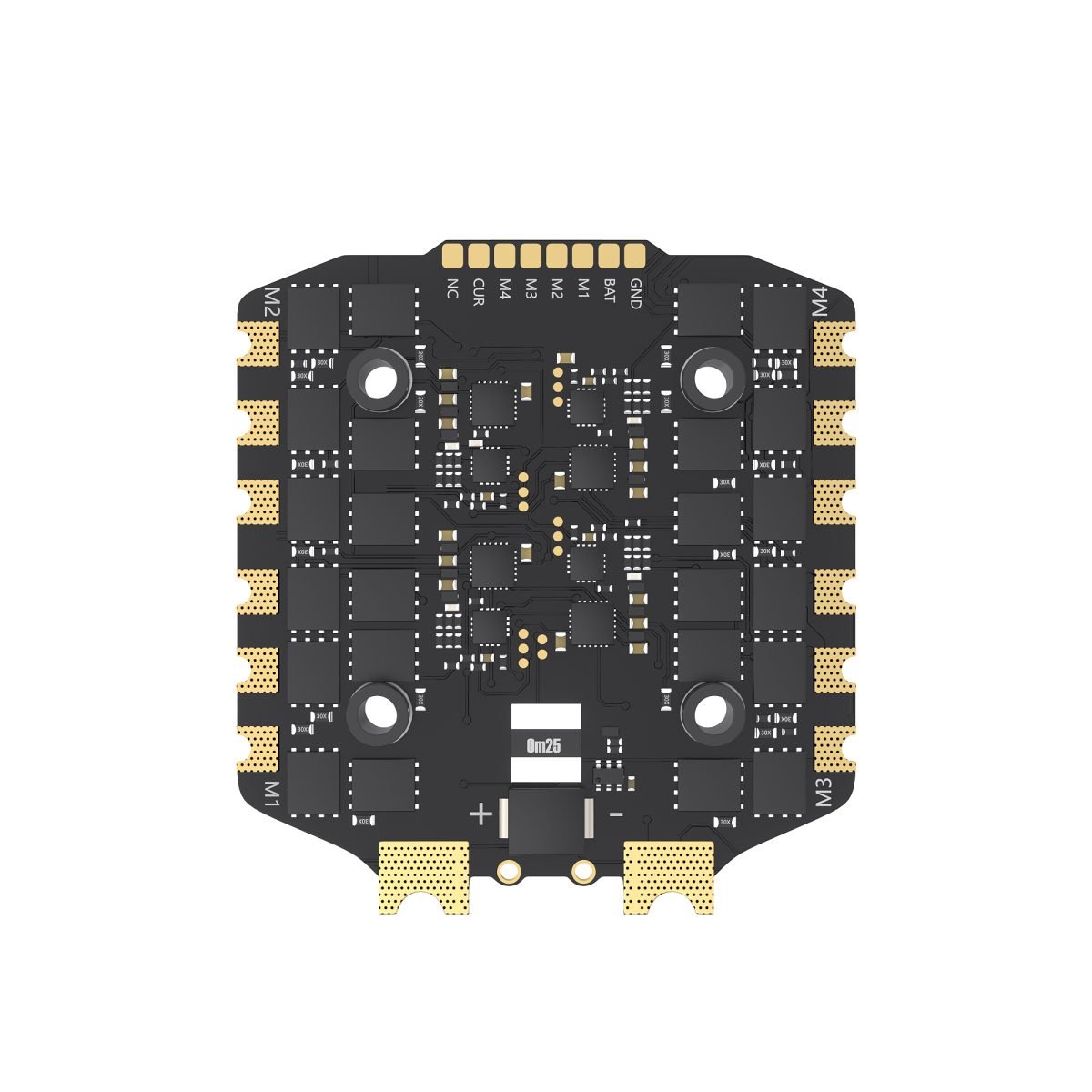

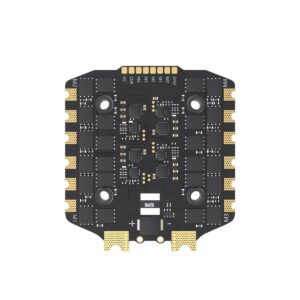

1 x TAKER H80_BLS 80A 4IN1 ESC

1 x Electrolytic capacitor(50V 4700uF)

1 x DJI connection cable(SH1.0 6pin 100mm)

1 x FC adapter cable(SH1.0 8pin 30mm)

1 x Receiver silicone cable(SH1.0 4pin 150mm)

1 x Camera connection cable(SH1.0-SH1.25 3pin 60mm)

1 x VTX connection cable(SH1.0 4pin-6pin 100mm)

1 x XT90 power cable(10AWG 230mm)

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts(M3)

12 x Silicone anti-shake pads(M3)
