GEPRC TAKER H743 BT 32Bit 50A Stack

GEPRC TAKER H743 BT 32Bit 50A Stack

Description:

The GEPRC TAKER H743 BT 32Bit 50A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32H743VIH6 chip with a Cortex-M7 core running at up to 480MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.

Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + [email protected] BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the GEP-BL32 50A 96K 4IN1 32Bit ESC, it delivers an exceptionally smooth flight experience.

---

Feature

• Adopts the high-performance STM32H743 as the main controller
• Equipped with MPU6000 and 42688-P dual gyroscopes
• 512MB high-capacity black box storage
•  Bluetooth parameter tuning
• Upgraded Type-C USB interface
•  Plug-and-play, no soldering required
• Integrated barometer
• Features 7 UART ports
• Independent BEC with [email protected] and 5V@3A outputs
•  Equipped with the GEP-BL32 50A 96K 4IN1 32Bit ESC for a smooth flight experience

---

Specifications

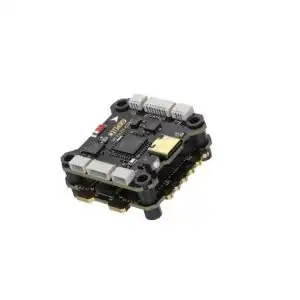

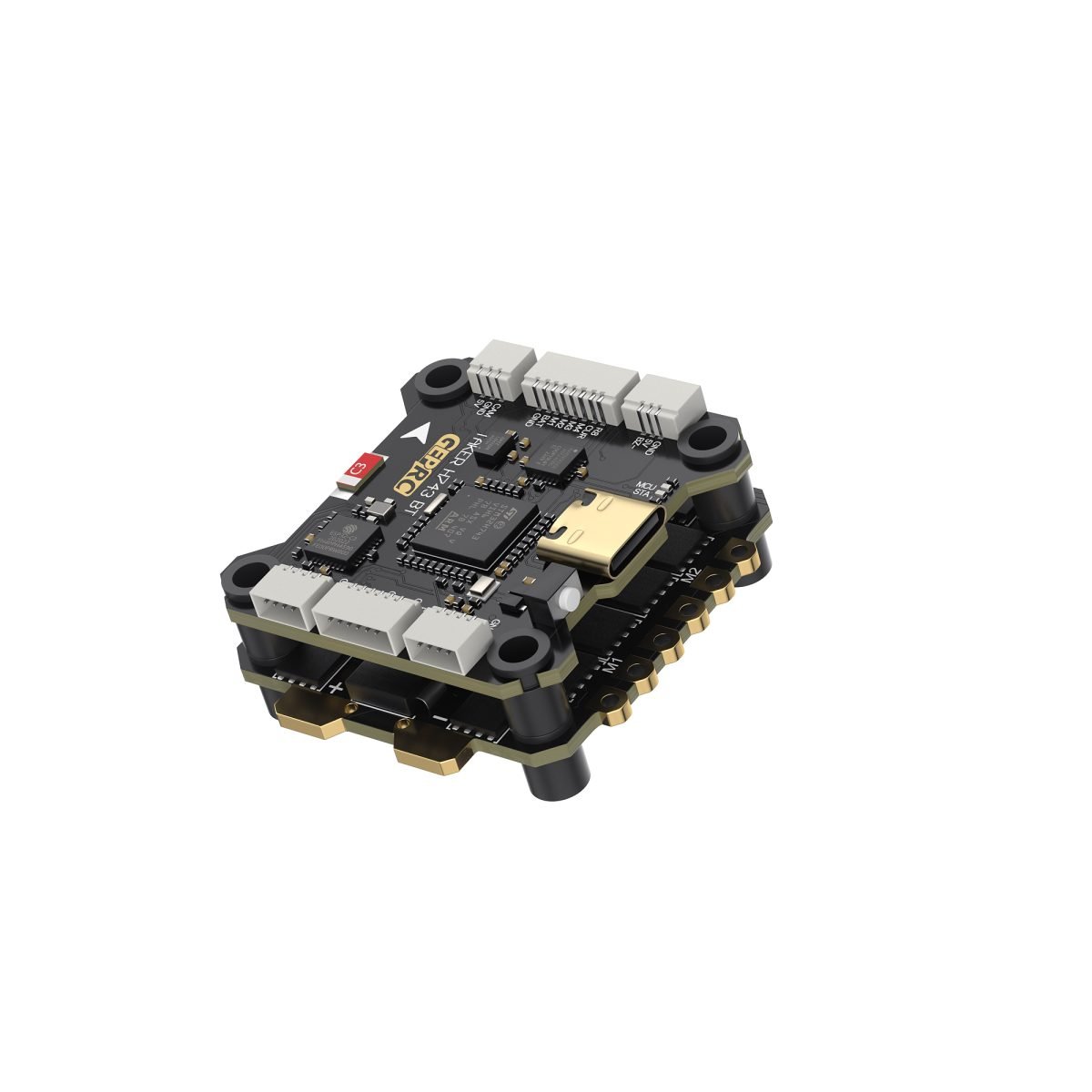

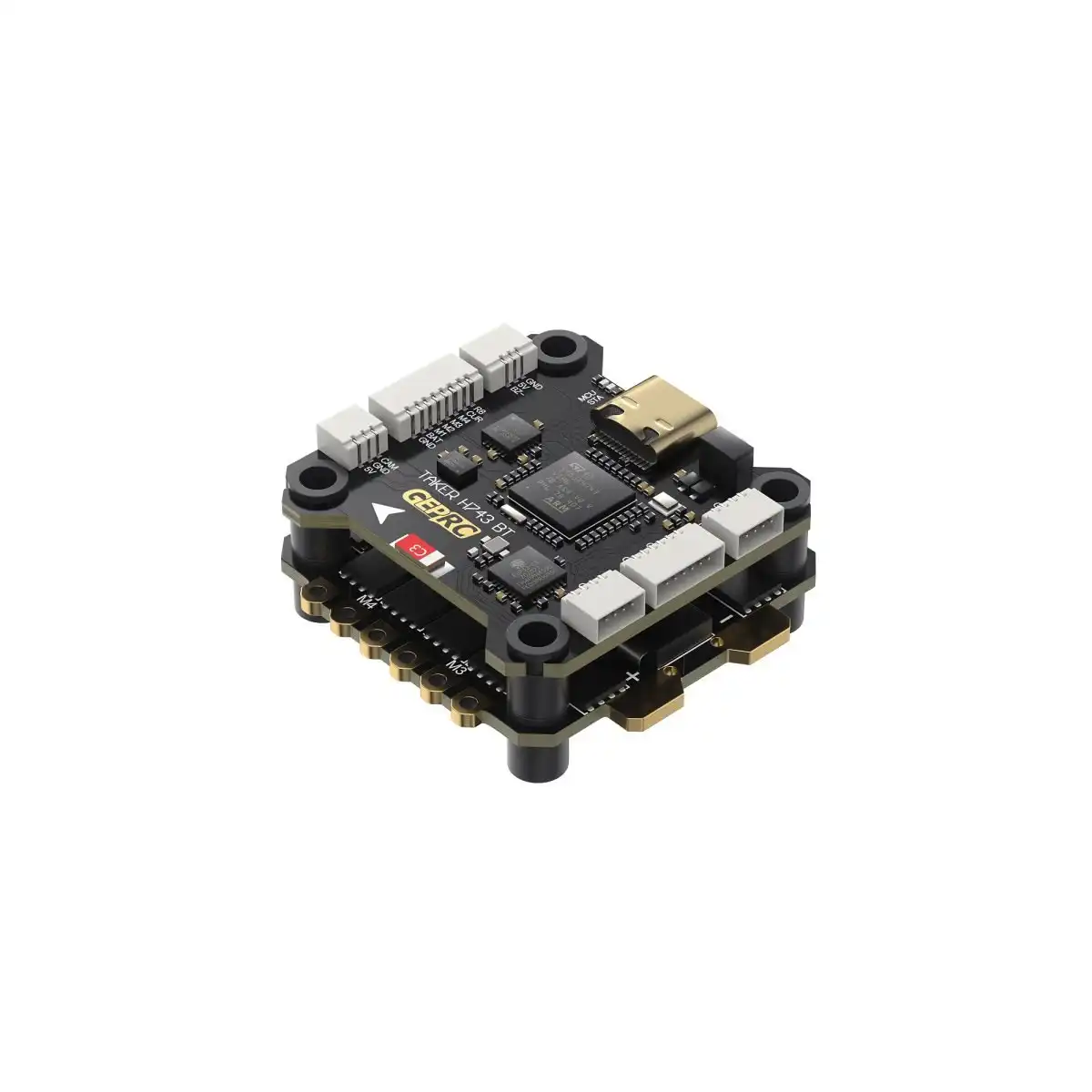

TAKER H743 BT 32Bit 50A Stack

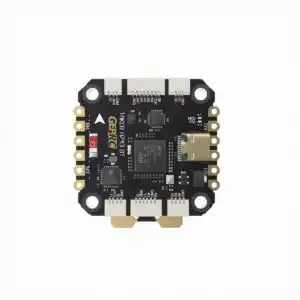

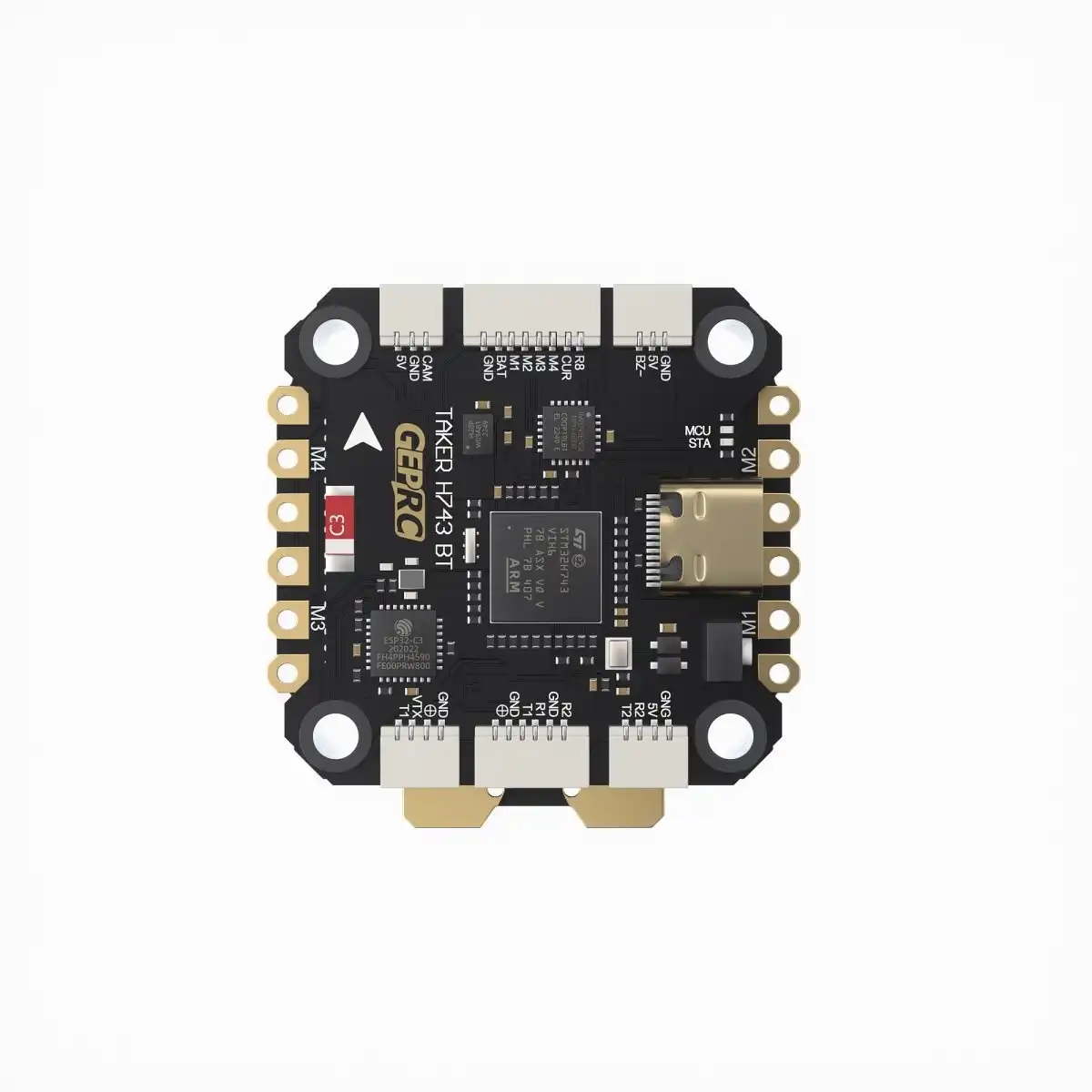

• FC model: TAKER H743 BT Flight Controller
• MCU: STM32H743
• IMU: MPU6000 + ICM42688-P(dual gyro)
• Air Unit Connection: direct plug for DJI Air Unit
• Black Box: 512M onboard
• Bluetooth: Supported
• Barometer: Supported
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC Output: 5V@3A,[email protected] dual BEC
• Target: GEPRC_TAKER_H743
• Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
• Input Voltage: 3-6S LiPo
• UART Ports: 7 groups (UART3 fixed for Bluetooth)
• Power Filtering: Integrated LC filter
• Weight: 8.4g

---

Package Includes:

1 x FC board

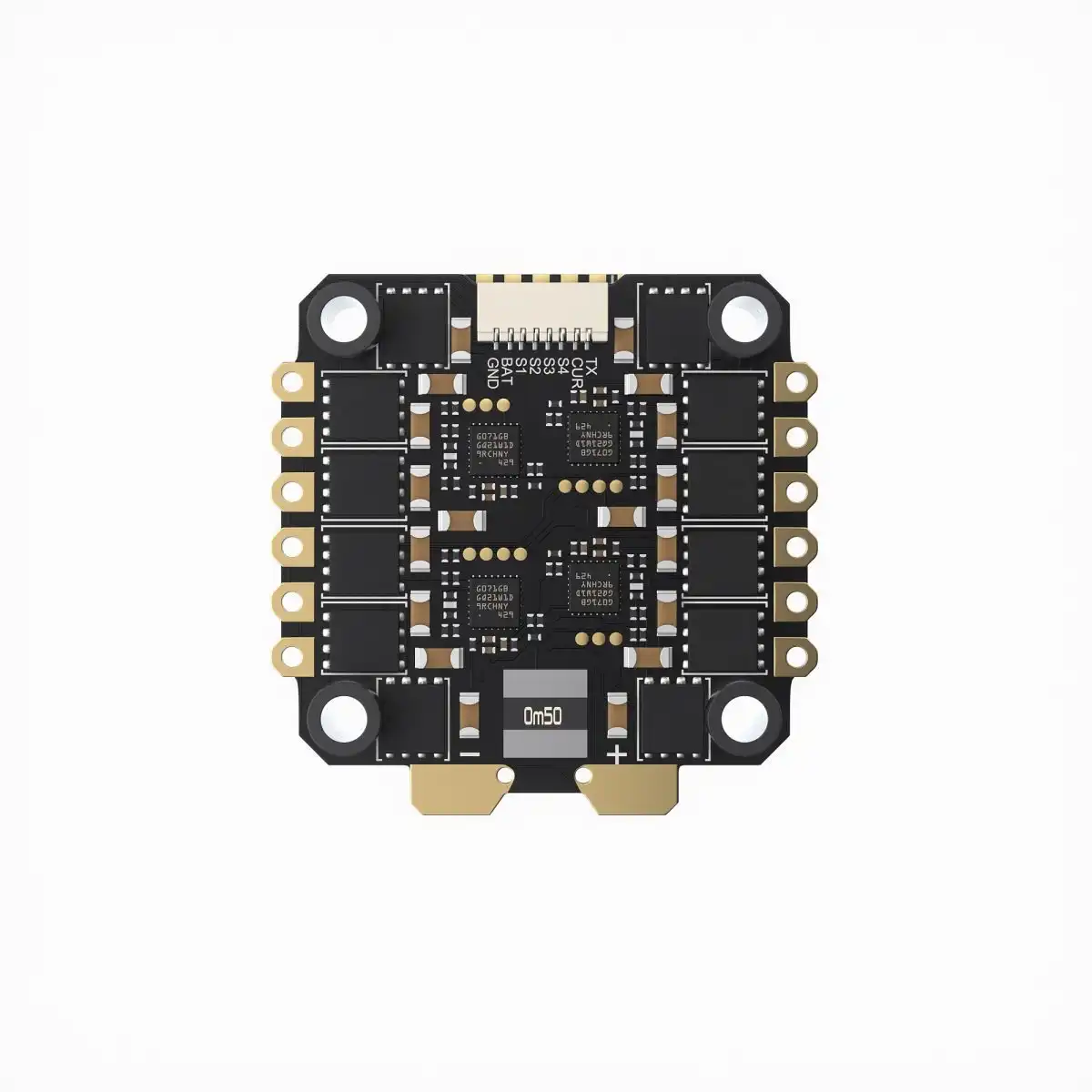

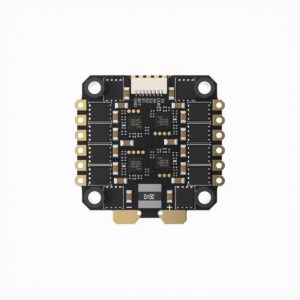

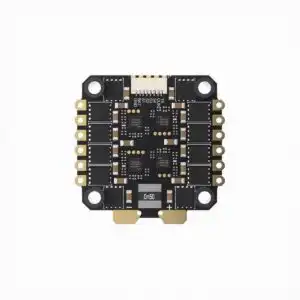

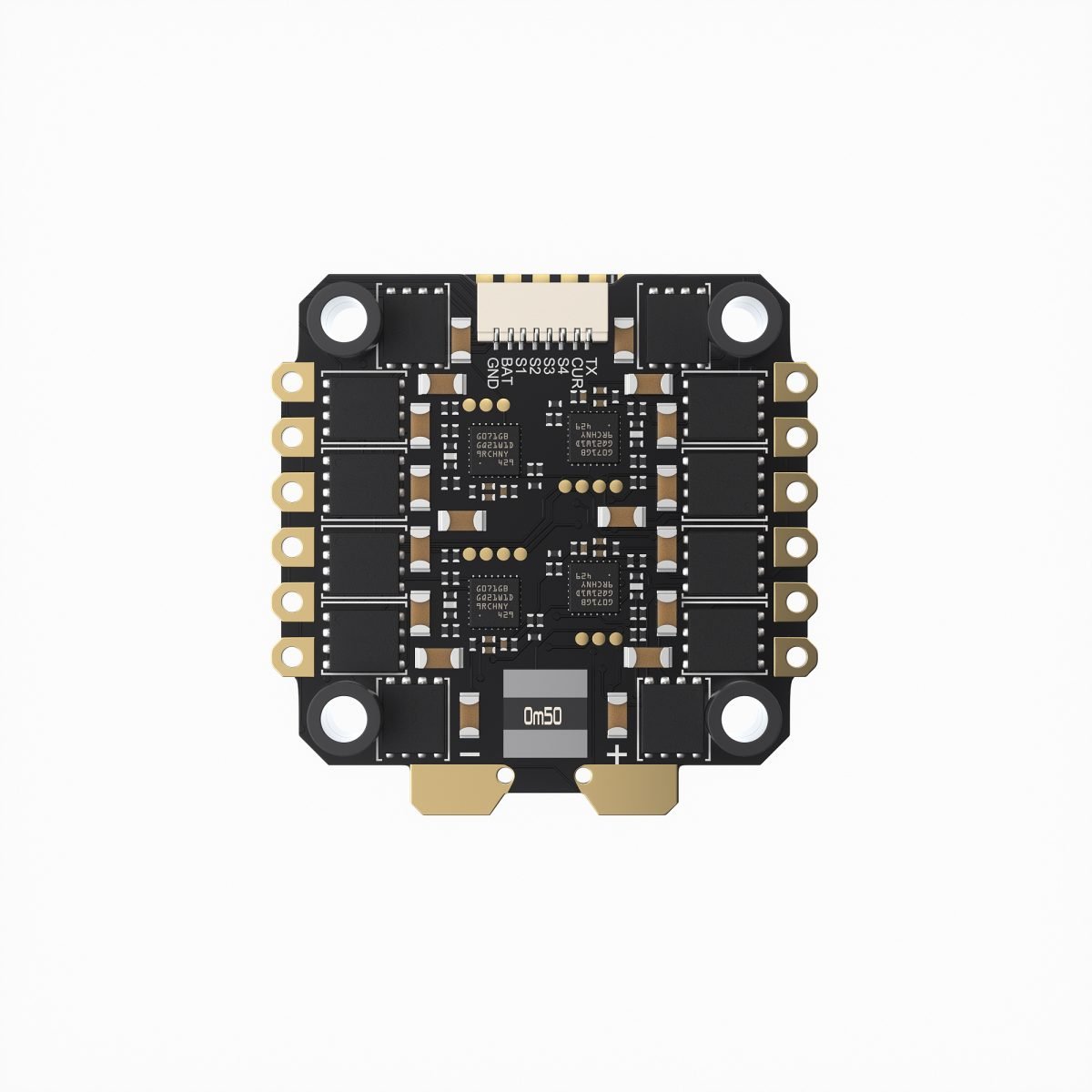

1 x ESC board

1 x Capacitor

1 x O3 3-in-1 connection cable

1 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x Buzzer connection cable

1 x XT60 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

12 x Silicone anti-shake pads

---
