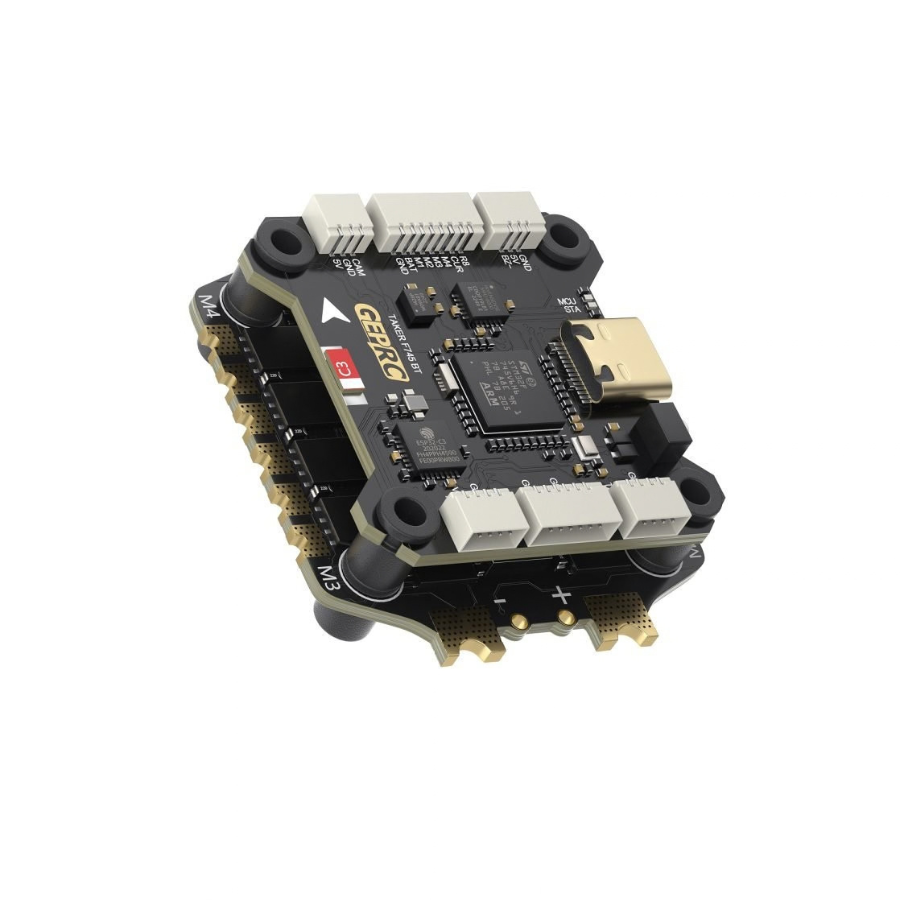

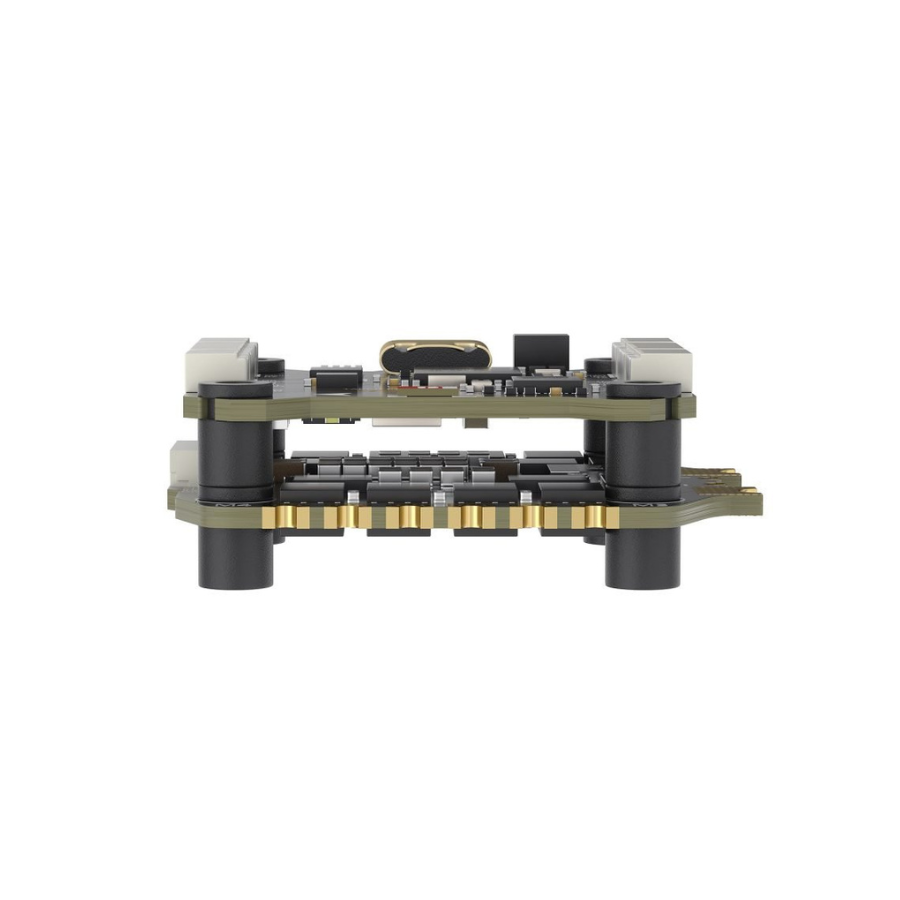

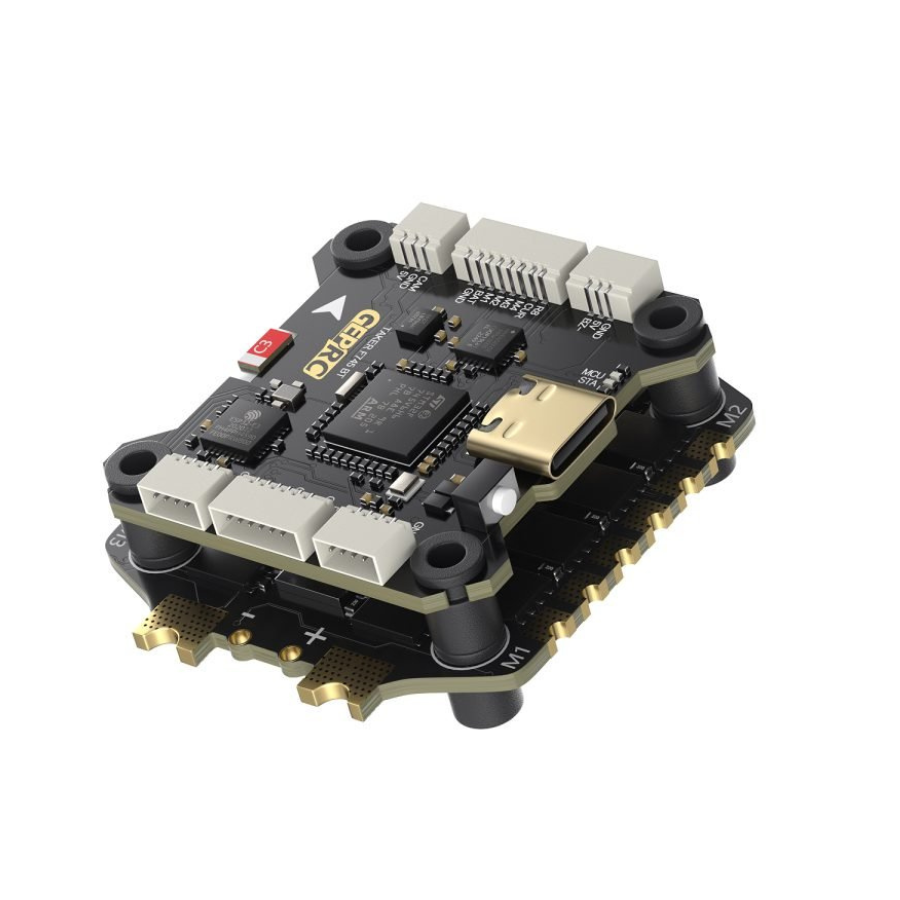

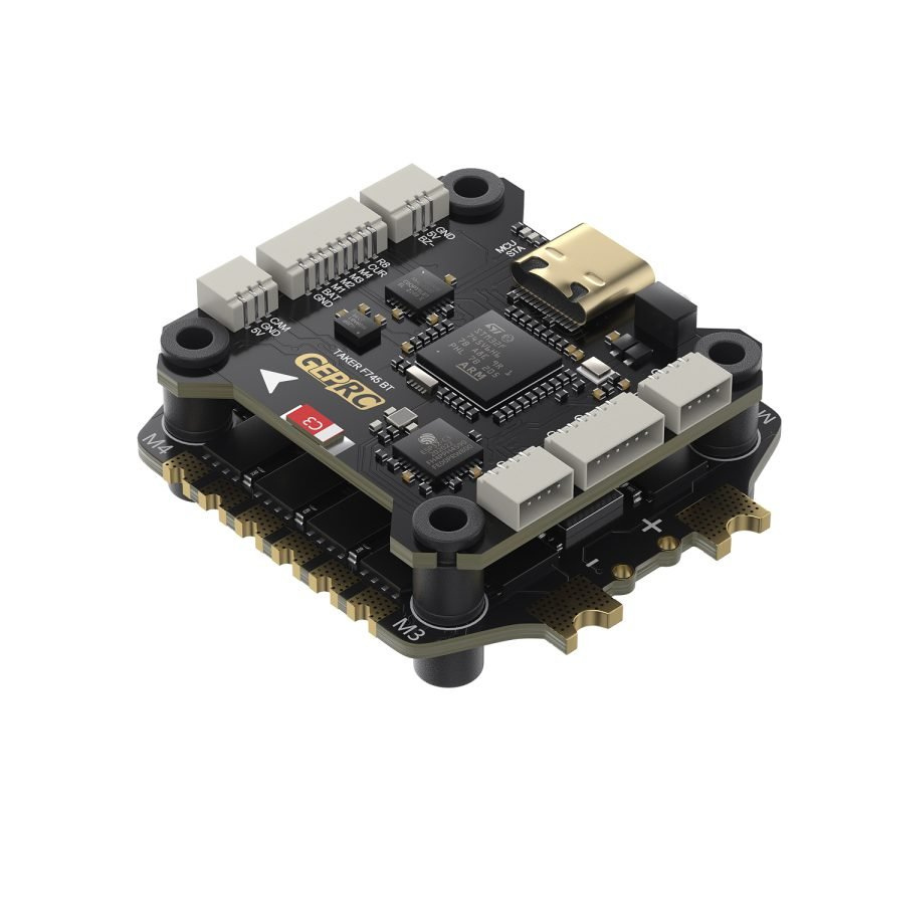

GEPRC TAKER F745 BT 8Bit 60A STACK
Description:
The GEPRC TAKER F745 BT 8Bit 60A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32F745VGH6 chip with a Cortex-M7 core running at up to 216MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.
Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + [email protected] BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H60_BLS 4-in-1 ESC, it delivers an exceptionally smooth flight experience.
Features
- Adopts the high-performance STM32F745 as the main controller
- Equipped with MPU6000 and 42688-P dual gyroscopes
- 512MB high-capacity black box storage
- Bluetooth parameter tuning
- Upgraded Type-C USB interface
- Plug-and-play, no soldering required.
- Integrated barometer
- Features 7 UART ports
- Independent BEC with [email protected] and 5V@3A outputs
- Equipped with the TAKER H60_BLS 60A 4IN1 ESC for a smooth flight experience.
Specifications :

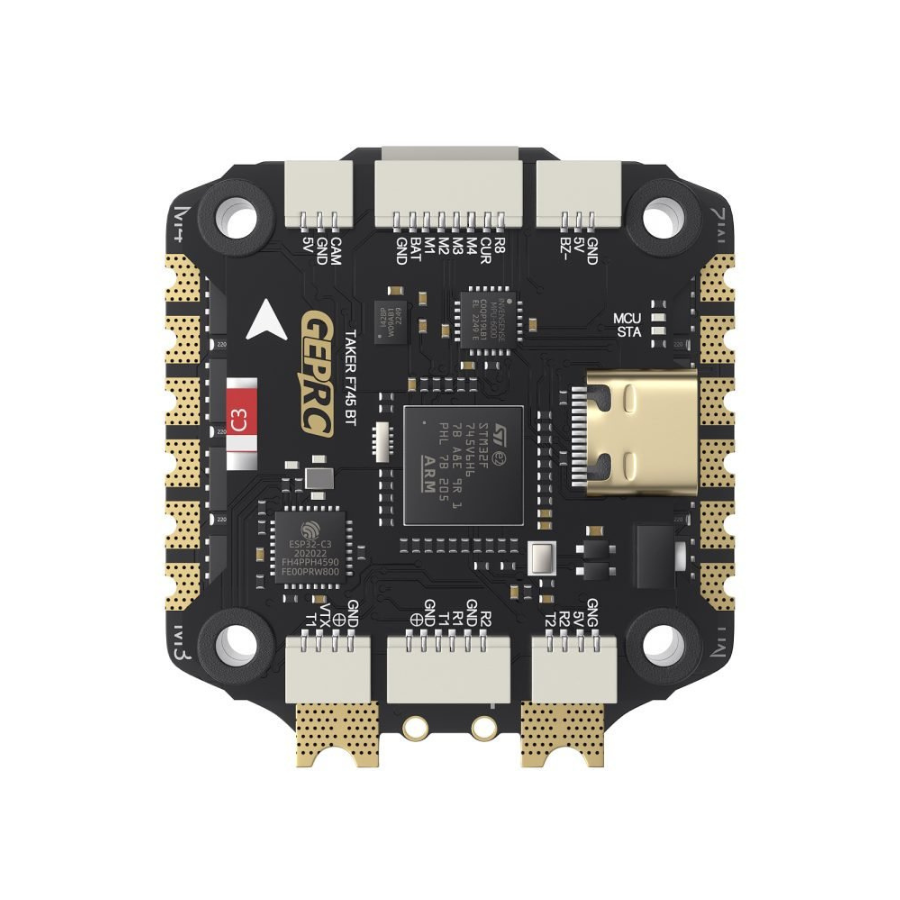

TAKER F745 BT Flight Controller
- FC model: TAKER F745 BT Flight Controller
- MCU: STM32F745
- IMU: MPU6000 + ICM42688-P(dual gyro)
- Air Unit Connection: direct plug for DJI Air Unit
- Black Box：512M onboard
- Bluetooth: Supported
- Barometer: Supported
- USB Interface: Type-C
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC Output: 5V@3A,[email protected] dual BEC
- Target: GEPRCF745_BT_HD
- Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
- Input Voltage: 3-6S LiPo
- UART Ports: 7 groups (UART3 fixed for Bluetooth)
- Power Filtering: Integrated LC filter
- Weight: 8.4g

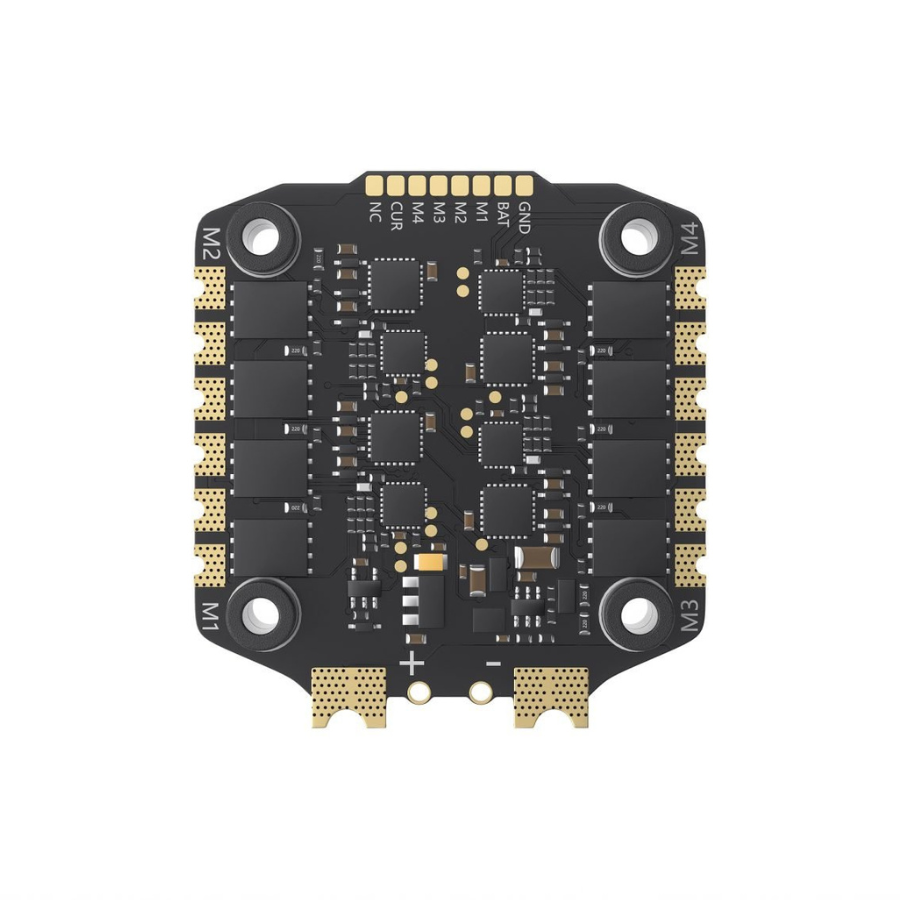

TAKER H60_BLS 60A 4IN1 ESC
- ESC Model: TAKER H60_BLS 60A 4IN1 ESC
- Input Voltage: 3-6S Lipo
- Continuous Current: 60A
- Peak Current: 65A（5 seconds）
- Supported Protocol: Dshot 150/300/600
- Dimension：42×45.7mm, mounting hole size 30.5×30.5mm
- Weight: 14.9g
- Target: B_X_30
