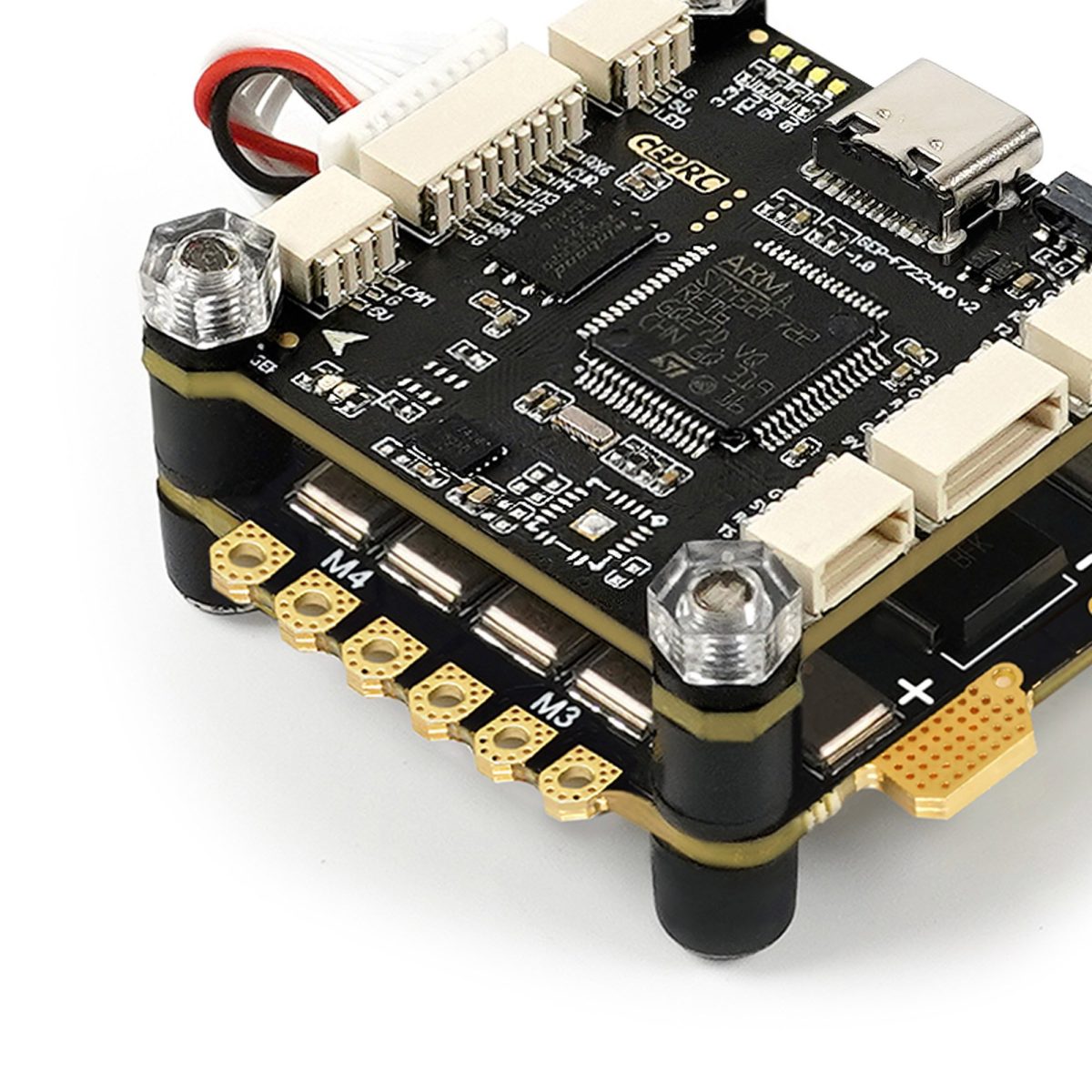

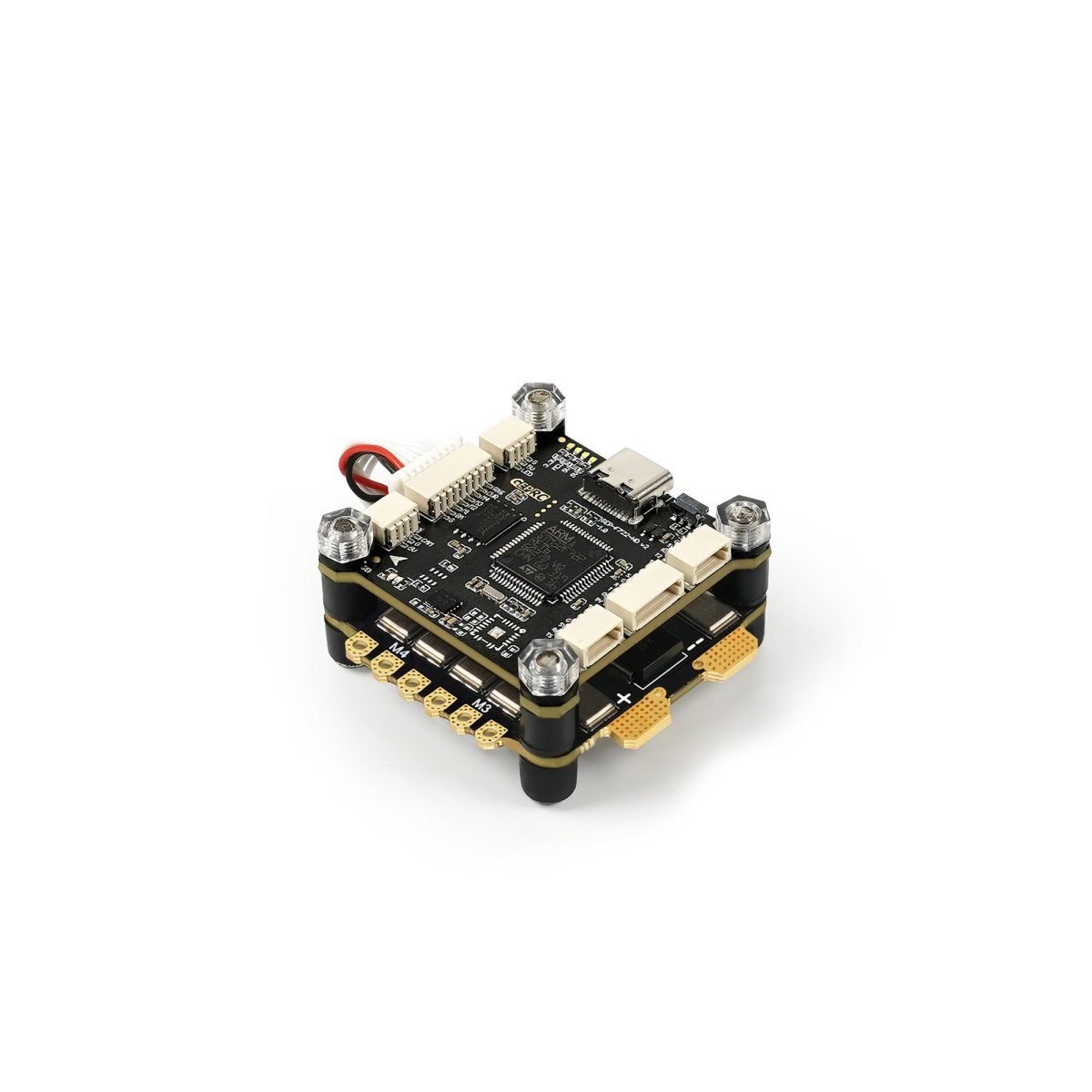

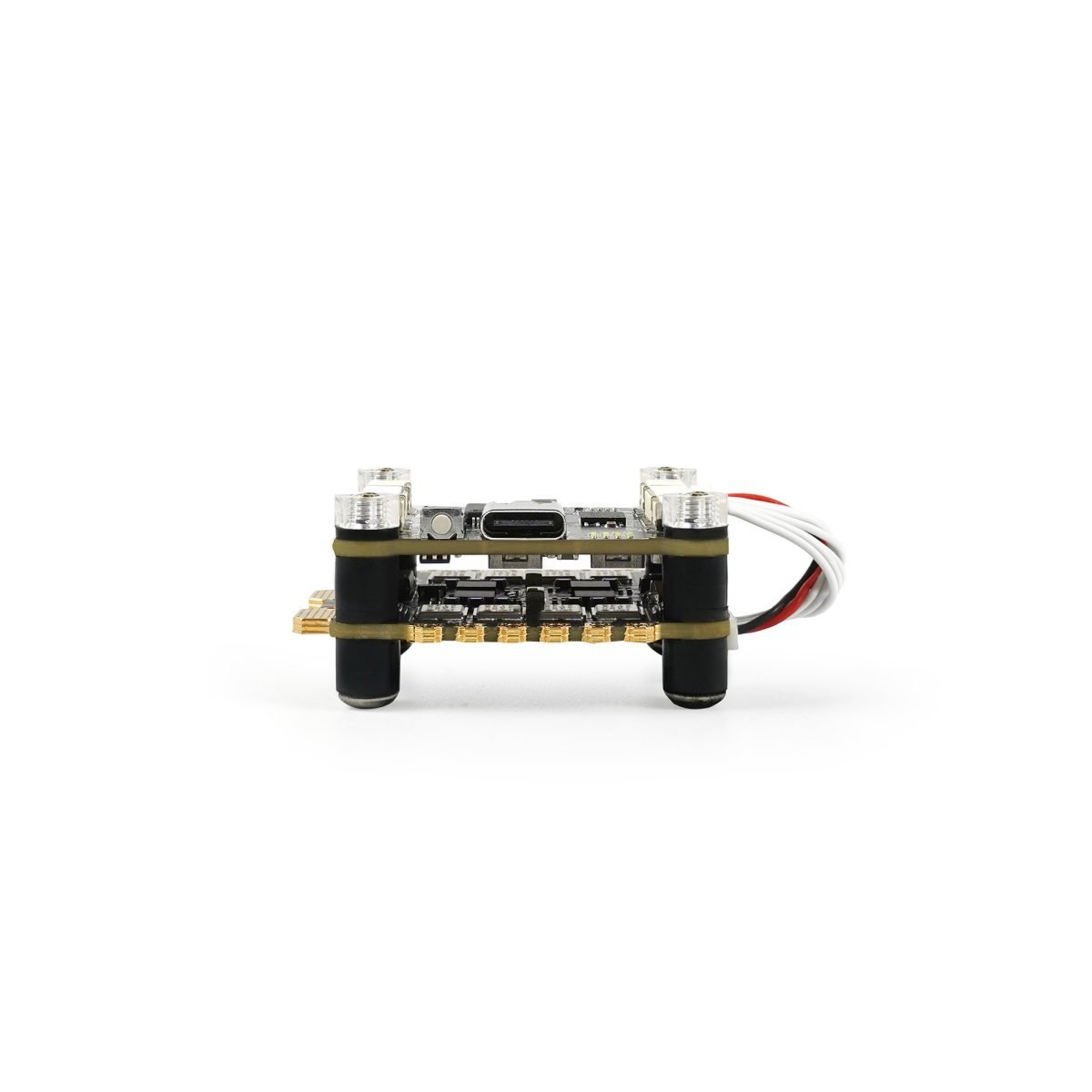

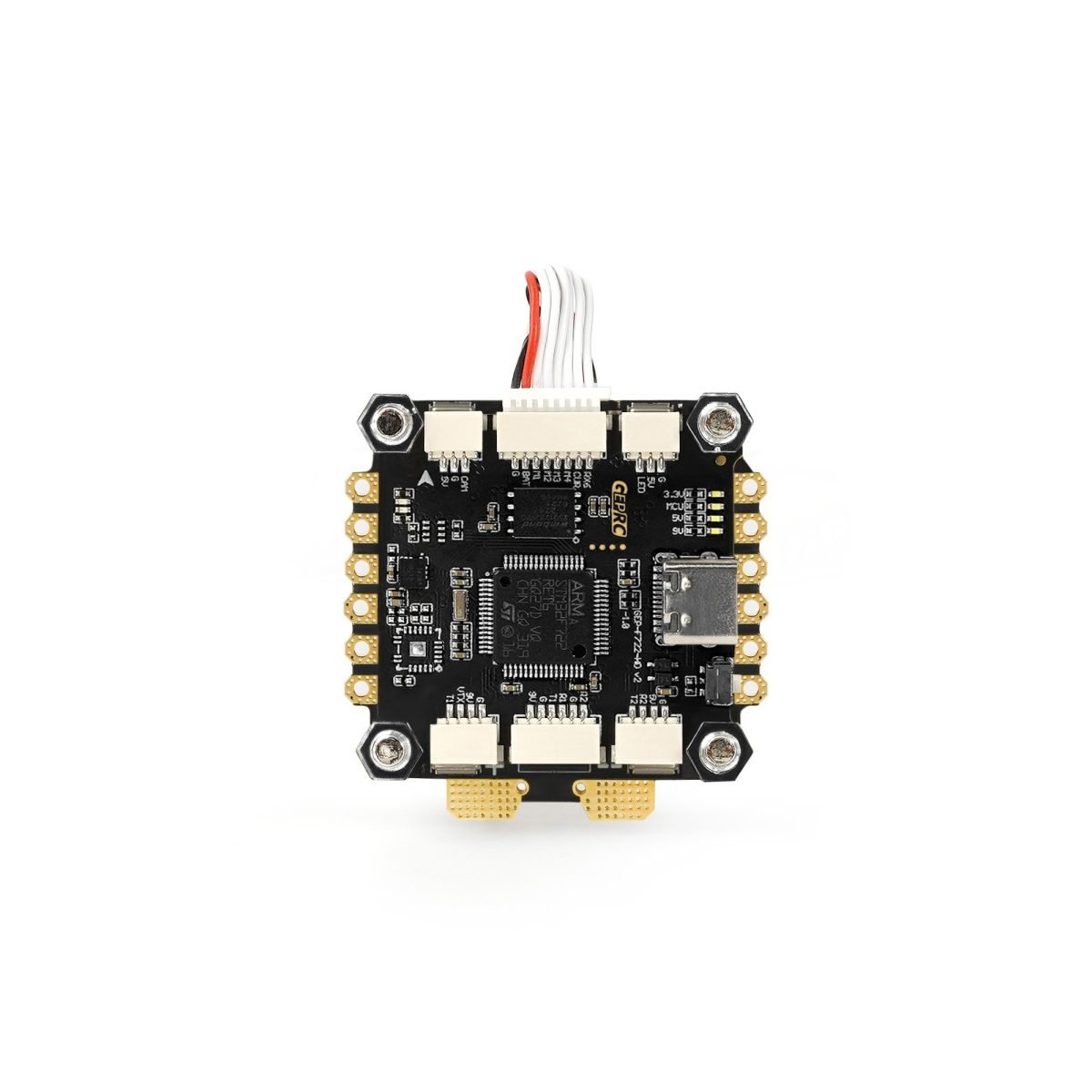

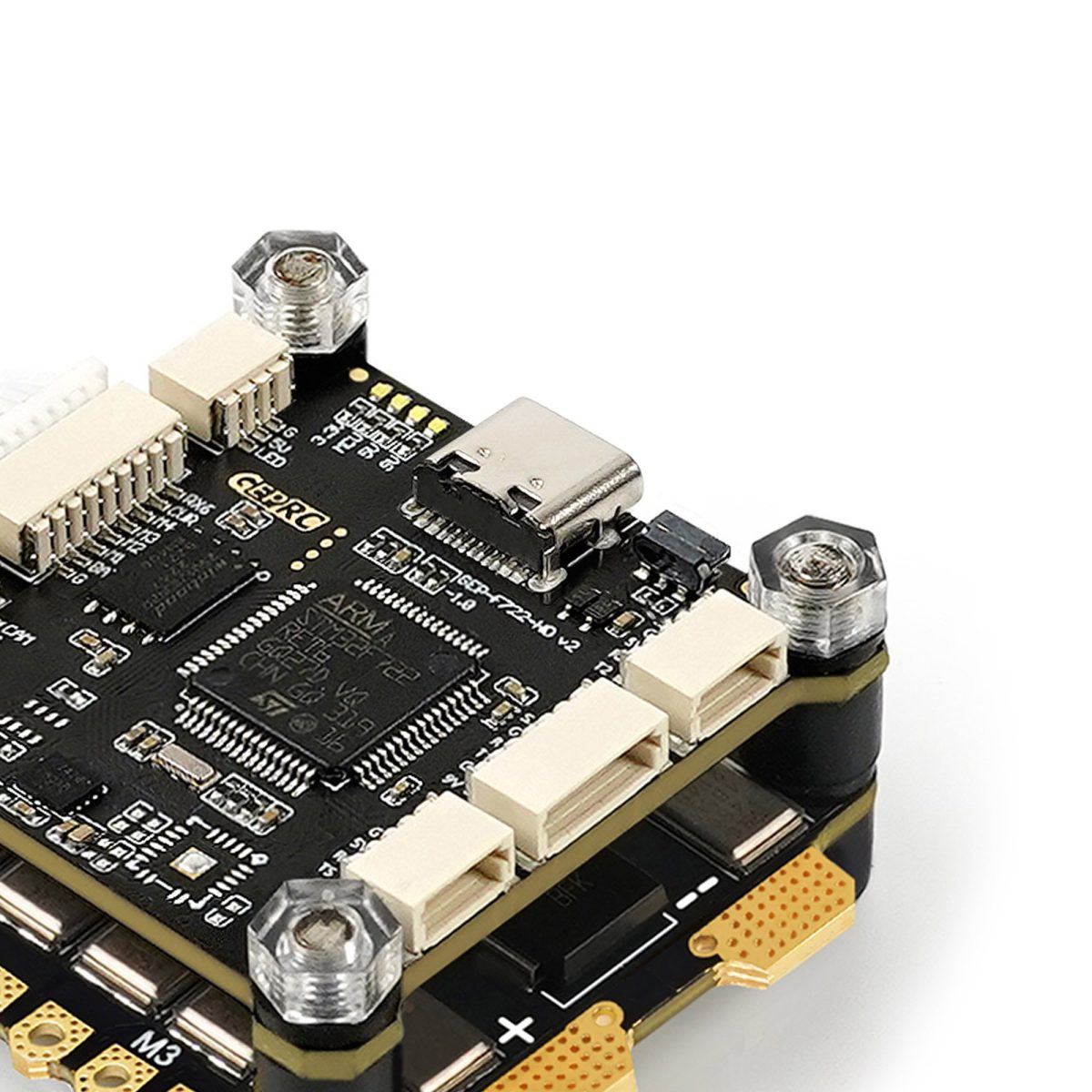

GEPRC TAKER F722 BL32 70A STACK

Description:

The GEPRC TAKER F722 BL32 70A Stack is a high-performance flight controller and ESC stack designed for demanding FPV racing and freestyle applications. It combines an F722 32-bit flight controller with a 70A BL32 ESC, providing responsive flight control and reliable high-current motor performance.

The integrated stack design helps simplify installation while keeping the drone electronics compact and organized. It is suitable for performance-focused FPV builds requiring dependable control and efficient motor operation

GEPRC TAKER F722 BL32 70A STACK is a plug-and-play flying tower system specially designed for DJI Air Unit.Use STM32F722 chip, ICM42688-P gyroscope, integrated 16M black box, and collocation TAKER H70_96K 4IN1 ESC, flight dynamics is strong, have a more delicate hand feeling experience.

The GEPRC TAKER F722 BL32 70A STACK can be directly plugged into the DJI Air Unit, which can save the trouble of welding. Upgrade the type-C USB interface, which greatly improves the service life of the socket and reduces the risk of poor contact. [email protected] + 5V@3A dual independent BEC, more stable power supply for external devices.

Features

Use mainstream STM32F722 chip
Equipped with the latest 42688-P gyroscope
16M black box storage
Integrated LC filter
Upgrade type-C USB interface
Directly plugged into the DJI Air Unit
With TAKER H70_96K ESC, 70A continuous current, strong power, and the feeling of flight is silky
Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
[email protected] + 5V@3A dual independent BEC
Specifications

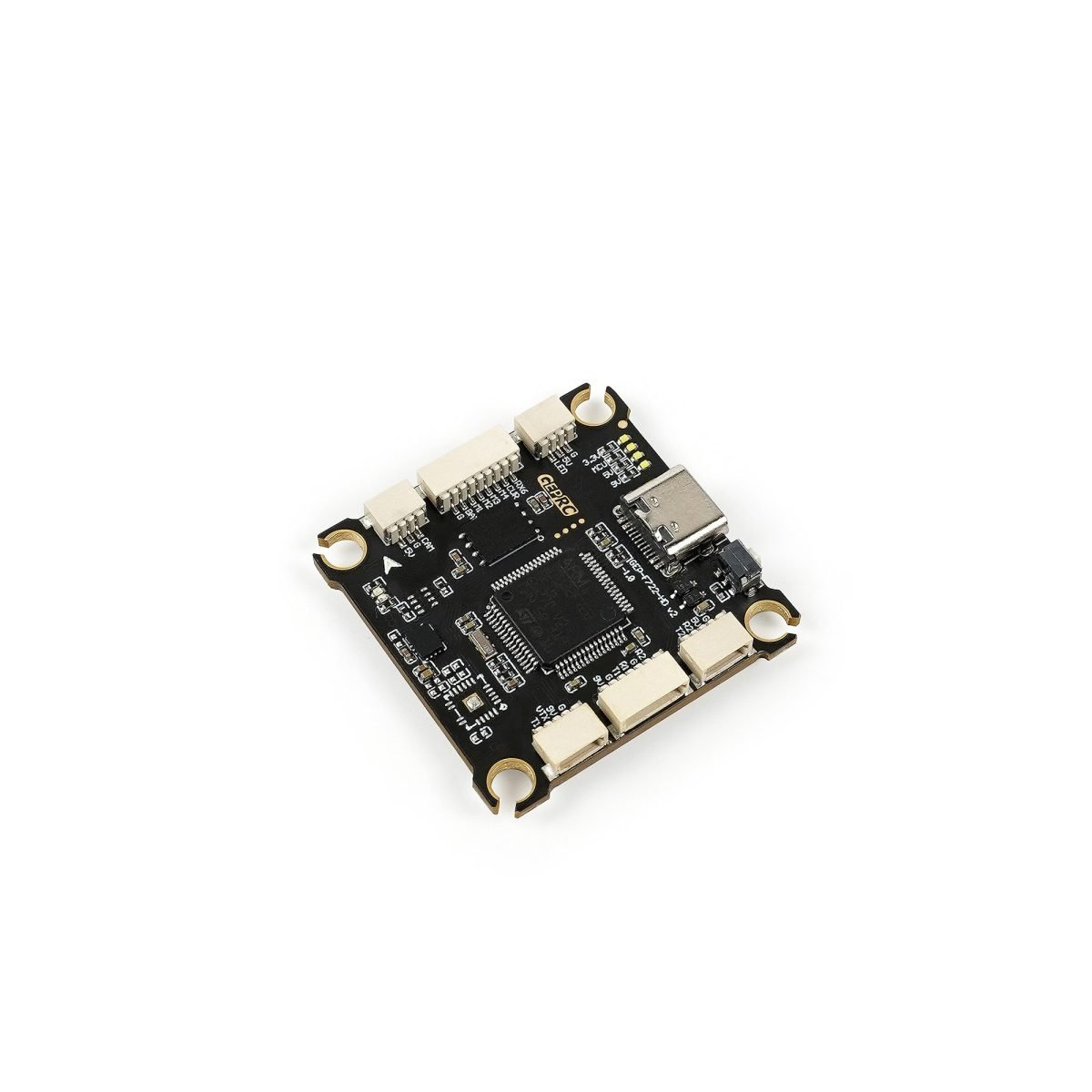

GEP-F722-HD v2 Flight Controller

MCU：STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection：Direct plugging into DJI Air Unit
Black Box：16M onboard
USB Interface：Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,[email protected] dual BEC
Firmware Target：GEPRCF722
Size：36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
Input Voltage：3-6S LiPo
UART：5
Power Filter：Integrated LC filter
Weight：8.1g

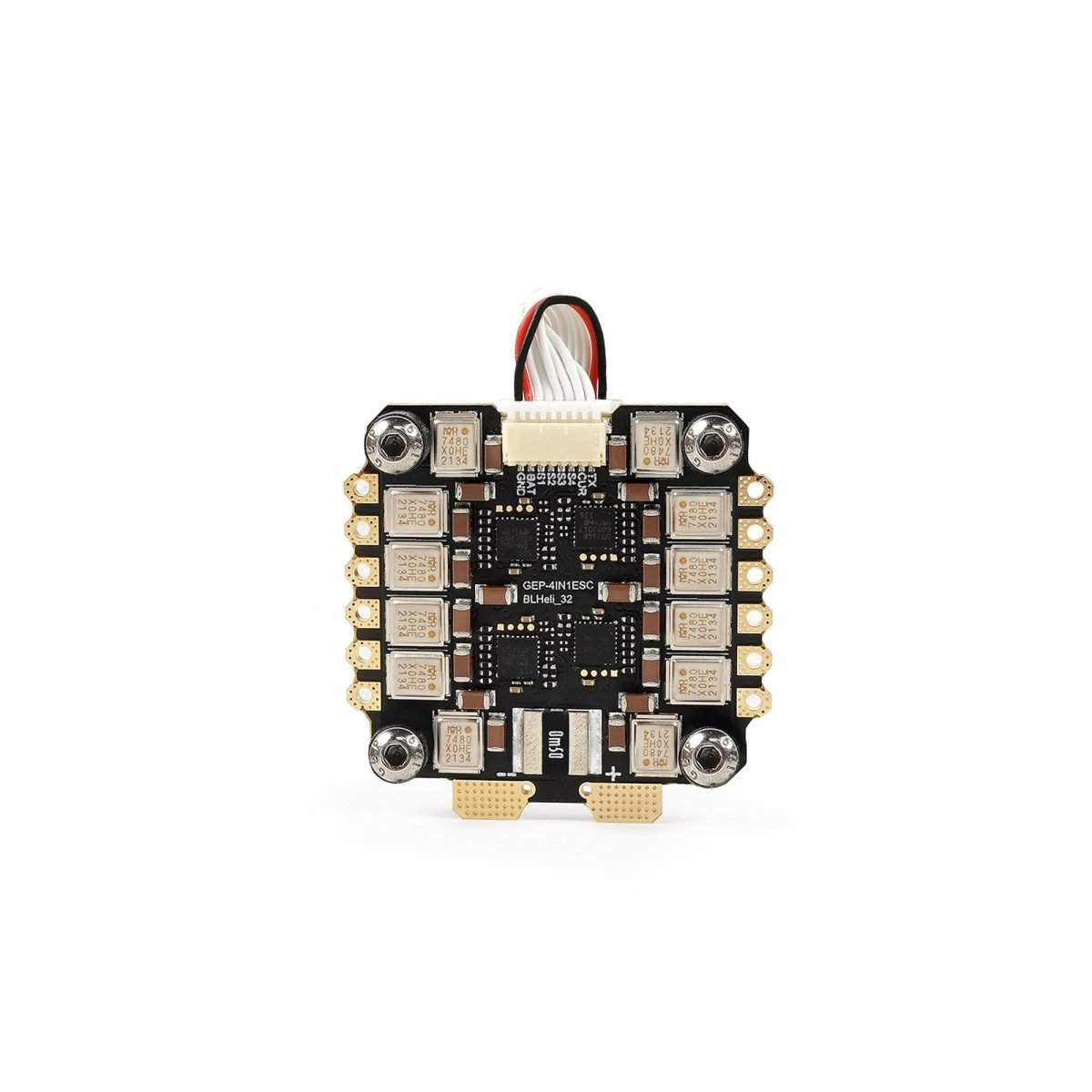

GEPRC TAKER H70_96K ESC

Input Voltage：3-6S Lipo
Galvanometer：Support
PWM frequency: 24~96K
Continue Current：70A
Burst Current：80A（5 second）
Support Protocol：Dshot 150/300/600
Size：42.6*42.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.
Weight：12.8g
Target：GEPRC_G071_4IN1_96K

Package Include:

1 x Flight Controller

1 x ESC

1 x Capacitor

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

1 x XT60 Power cable

4 x M3*30 Screws

4 x M3*25 Screws

8 x Nylon nuts

8 x Silicone grommets

2 x sh1.0 4pinsilicone cable

1 x Camera connection cable

Technical Specifications

Brand	GEPRC
Current Rating	70A
SKU	AI5025
Weight	0.0 kg
Availability	Out of Stock

Applications & Use Cases

The GEPRC TAKER F722 BL32 70A STACK is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.

Common use cases:
